KDH200V-RKMDY (2004)
Toyota Hiace/Regiusace
Production
Aug 2004
-
Sep 2007
Engine
2KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

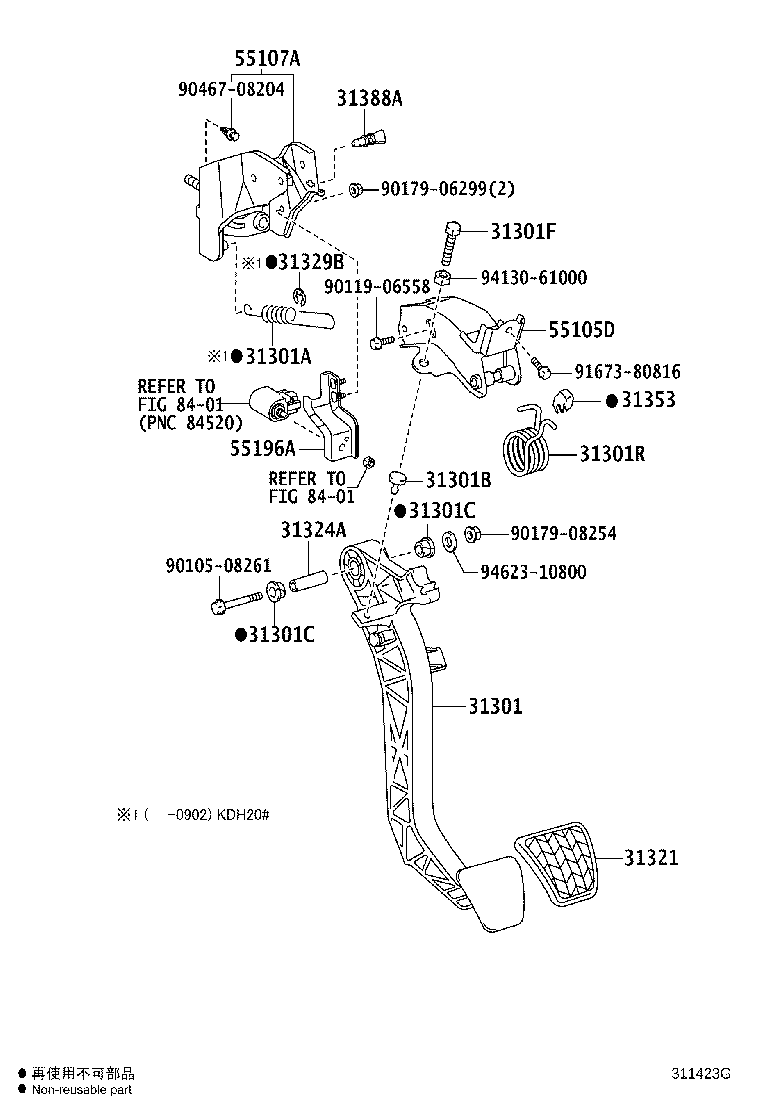

ILLUST NO. 1 OF 2(0408- )5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31311-26150 |
KDH20#,TRH200..5F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-23024 |
KDH20#..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06071 |
KDH20#,TRH200..5F |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-14015 |
KDH20#,TRH200..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-14015 |
KDH20#,TRH200..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
KDH200,205,TRH200..5F |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 90949-03131 |
KDH20#..5F |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52010 |
KDH20#,TRH200..5F |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-08160 |
KDH20#,TRH200..5F |
1 | ||
| 31329B - RING, E(FOR CLUTCH PEDAL PAWL) | ||||
| 96160-00600 |
KDH20#..5F |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
KDH20#,TRH200..5F |
1 | ||
| 31388A - STOPPER, CLUTCH RELEASE SECTOR | ||||
| 31388-26010 |
KDH20#,TRH200..5F |
1 | ||
| 55105D - BRACKET SUB-ASSY, CLUTCH PEDAL | ||||
| 55105-26010 |
KDH20#,TRH200..5F |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-26040 |
KDH20#,TRH200..5F |
1 | ||
| 55196A - BRACKET, CLUTCH START SWITCH MOUNTING | ||||
| 55196-26020 |
KDH20#,TRH200..5F |
1 | ||
| Common parts | ||||
| 90105-08261 | ||||
| 90119-06558 | ||||
| 90179-06299 | ||||
| 90179-08254 | ||||
| 90467-08204 | ||||
| 91673-80816 | ||||
| 94130-61000 | ||||
| 94623-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

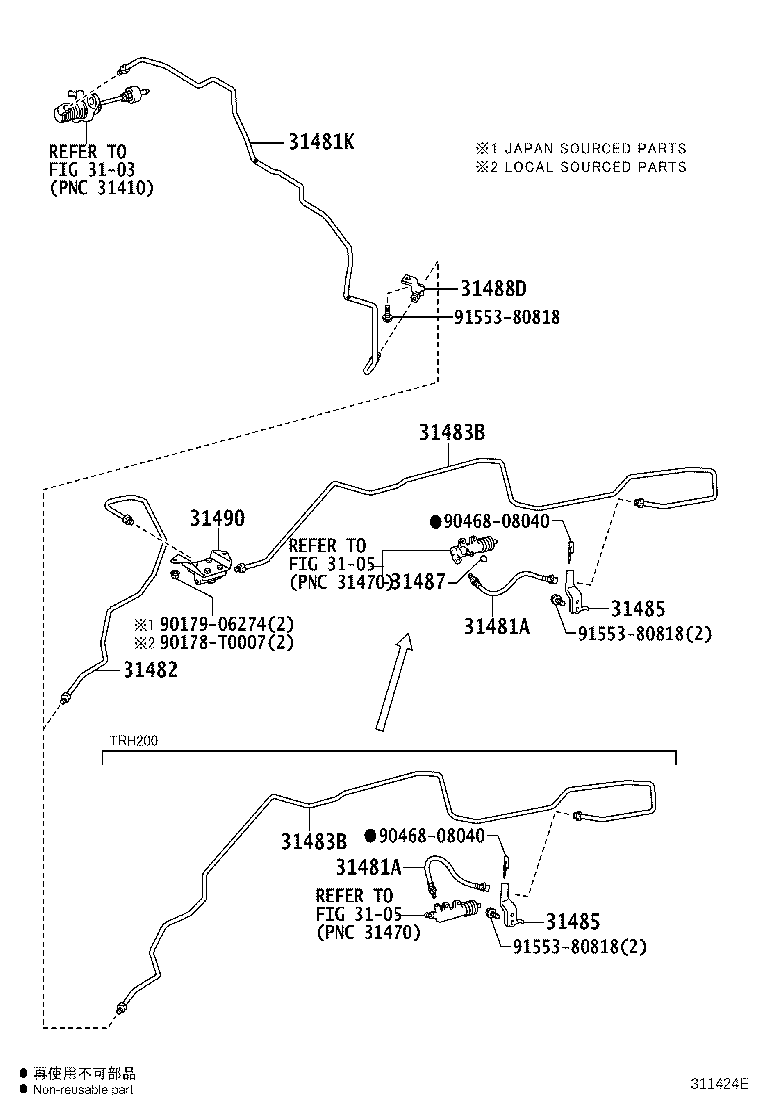

ILLUST NO. 2 OF 2(0408- )5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90947-02D92 |
KDH20#..5F |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90947-02D92 |
KDH20#..5F |
1 | ||
| 31481K - TUBE, MASTER CYLINDER TO TUBE CONNECTOR | ||||
| 31481-26310 |
KDH20#,TRH200..5F |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-26280 |
KDH20#..5F |
1 | ||
| 31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE | ||||
| 31483-26010 |
KDH20#..5F |
1 | ||
| 31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE | ||||
| 31483-26010 |
KDH20#..5F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-26130 |
KDH20#,TRH200..5F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-26130 |
KDH20#,TRH200..5F |
1 | ||
| 31488D - WAY, 2(FOR CLUTCH TUBE TO RELEASE CYLINDER) | ||||
| 90412-12063 |
KDH20#,TRH200..5F |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-26010 |
KDH20#..5F |
1 | ||
| Common parts | ||||
| 90178-T0007 | ||||
| 90179-06274 | ||||
| 90468-08040 | ||||
| 91553-80818 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
