Toyota Hiace/regiusace KDH200 STARTER

KDH200V-RKMDY (2004)

Toyota Hiace/Regiusace

Production Aug 2004 - Sep 2007

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

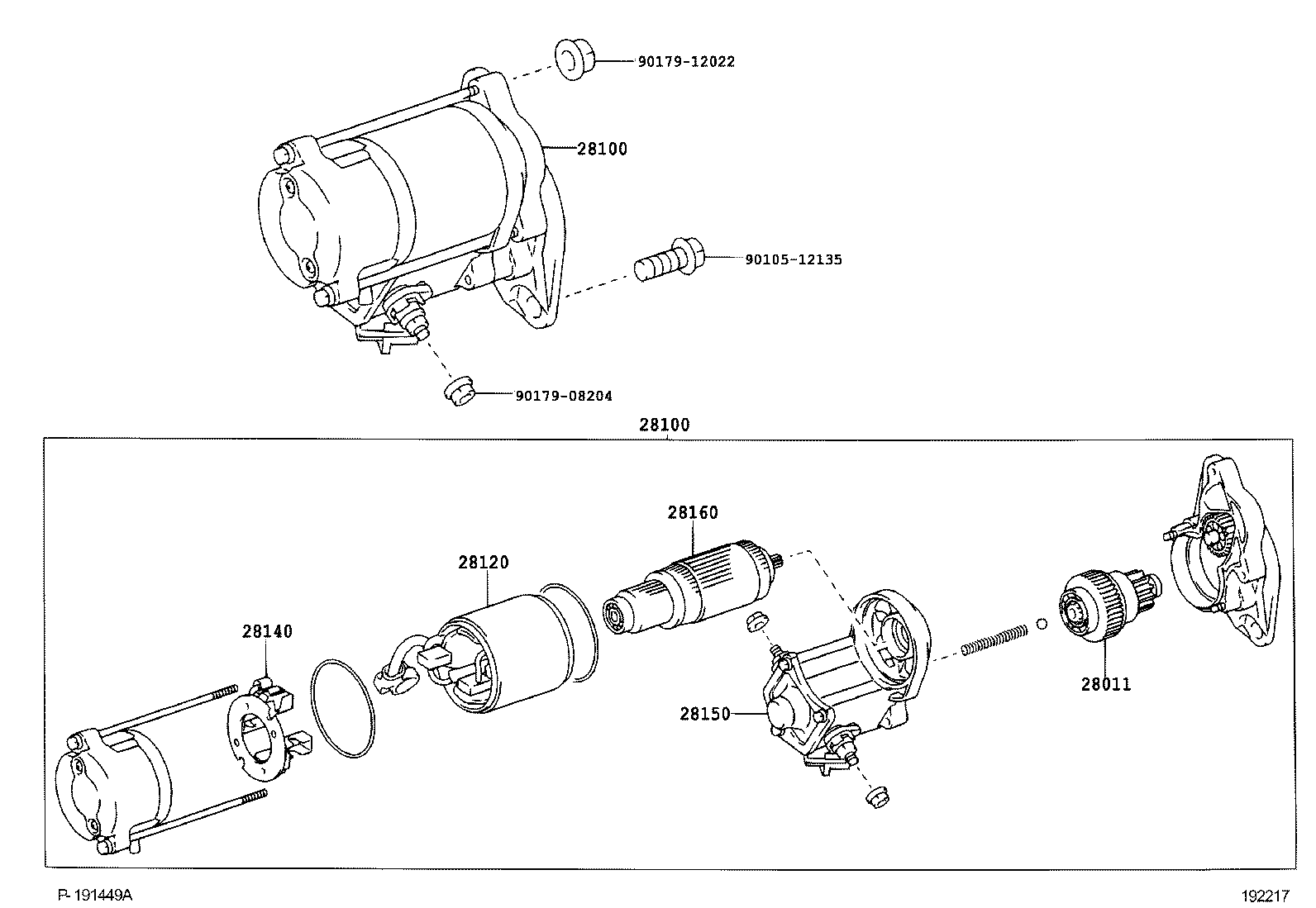

Click highlighted areas on diagram

12V 2.0KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-30040	2KDFTV..KDH20#..5F	08/2004 - 09/2007	1
28011-30050	1KDFTV,2KDFTV..KDH20#..5F 寒冷地仕様	08/2004 - 12/2999	1
28100 - STARTER ASSY
28100-30040	2KDFTV..KDH20#..5F 12V 2.0KW	08/2004 - 09/2007	1
28100-30050	1KDFTV,2KDFTV..KDH20#..5F 12V 2.7KW,寒冷地仕様	08/2004 - 05/2009	1
28100 - STARTER ASSY
28100-30040	2KDFTV..KDH20#..5F 12V 2.0KW	08/2004 - 09/2007	1
28100-30050	1KDFTV,2KDFTV..KDH20#..5F 12V 2.7KW,寒冷地仕様	08/2004 - 05/2009	1
28120 - YOKE ASSY, STARTER
28120-54380	2KDFTV..KDH20#..5F	08/2004 - 09/2007	1
28120-67020	1KDFTV,2KDFTV..KDH20#..5F 寒冷地仕様	08/2004 - 12/2013	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-54380	2KDFTV..KDH20#..5F	08/2004 - 09/2007	1
28140-77090	1KDFTV,2KDFTV..KDH20#..5F 寒冷地仕様	08/2004 - 12/2013	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-30040	2KDFTV..KDH20#..5F	08/2004 - 09/2007	1
28150-30050	1KDFTV,2KDFTV..KDH20#..5F 寒冷地仕様	08/2004 - 12/2013	1
28160 - ARMATURE ASSY, STARTER
28160-54380	2KDFTV..KDH20#..5F	08/2004 - 09/2007	1
28160-54140	1KDFTV,2KDFTV..KDH20#..5F 寒冷地仕様	08/2004 - 12/2013	1
Common parts
90105-12135
90179-08204
90179-12022

Click highlighted areas on diagram

12V 2.7KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-30040	2KDFTV..KDH20#..5F	08/2004 - 09/2007	1
28011-30050	1KDFTV,2KDFTV..KDH20#..5F 寒冷地仕様	08/2004 - 12/2999	1
28100 - STARTER ASSY
28100-30040	2KDFTV..KDH20#..5F 12V 2.0KW	08/2004 - 09/2007	1
28100-30050	1KDFTV,2KDFTV..KDH20#..5F 12V 2.7KW,寒冷地仕様	08/2004 - 05/2009	1
28100 - STARTER ASSY
28100-30040	2KDFTV..KDH20#..5F 12V 2.0KW	08/2004 - 09/2007	1
28100-30050	1KDFTV,2KDFTV..KDH20#..5F 12V 2.7KW,寒冷地仕様	08/2004 - 05/2009	1
28120 - YOKE ASSY, STARTER
28120-54380	2KDFTV..KDH20#..5F	08/2004 - 09/2007	1
28120-67020	1KDFTV,2KDFTV..KDH20#..5F 寒冷地仕様	08/2004 - 12/2013	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-54380	2KDFTV..KDH20#..5F	08/2004 - 09/2007	1
28140-77090	1KDFTV,2KDFTV..KDH20#..5F 寒冷地仕様	08/2004 - 12/2013	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-30040	2KDFTV..KDH20#..5F	08/2004 - 09/2007	1
28150-30050	1KDFTV,2KDFTV..KDH20#..5F 寒冷地仕様	08/2004 - 12/2013	1
28160 - ARMATURE ASSY, STARTER
28160-54380	2KDFTV..KDH20#..5F	08/2004 - 09/2007	1
28160-54140	1KDFTV,2KDFTV..KDH20#..5F 寒冷地仕様	08/2004 - 12/2013	1
Common parts
90105-12053
90105-12135
90179-10195
90179-12022
