KDH200V-RHMDY (2004)
Toyota Hiace/Regiusace
ILLUST NO. 2 OF 2(0408- )KDH205,206..DX..CBU ; (0408- )KDH200,201,TRH200..V1..SP ; (0408- )
ｾﾊﾟﾚｰﾀ ｶｰﾃﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74870A - CURTAIN ASSY, SEPARATOR | ||||
| 74870-26190 |
KDH20#..V1..(03S,09S) ﾙｰﾑｾﾊﾟﾚｰﾀｶｰﾃﾝ−有り(固定式) |
1 | ||
| 74870A - CURTAIN ASSY, SEPARATOR | ||||
| 74870-26190 |
KDH20#..V1..(03S,09S) ﾙｰﾑｾﾊﾟﾚｰﾀｶｰﾃﾝ−有り(固定式) |
1 | ||
| 74875A - PLATE, CURTAIN REAR SEPARATOR | ||||
| 74875-26020 |
KDH20#..V1..(03S,09S) ﾙｰﾑｾﾊﾟﾚｰﾀｶｰﾃﾝ−有り(固定式),TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 74875-95J01 |
KDH20#..V1..(03S,09S) ﾙｰﾑｾﾊﾟﾚｰﾀｶｰﾃﾝ−有り(固定式),TYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 74875A - PLATE, CURTAIN REAR SEPARATOR | ||||
| 74875-26020 |
KDH20#..V1..(03S,09S) ﾙｰﾑｾﾊﾟﾚｰﾀｶｰﾃﾝ−有り(固定式),TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 74875-95J01 |
KDH20#..V1..(03S,09S) ﾙｰﾑｾﾊﾟﾚｰﾀｶｰﾃﾝ−有り(固定式),TYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 74875A - PLATE, CURTAIN REAR SEPARATOR | ||||
| 74875-26020 |
KDH20#..V1..(03S,09S) ﾙｰﾑｾﾊﾟﾚｰﾀｶｰﾃﾝ−有り(固定式),TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 74875-95J01 |
KDH20#..V1..(03S,09S) ﾙｰﾑｾﾊﾟﾚｰﾀｶｰﾃﾝ−有り(固定式),TYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 74878C - FASTENER, SEPARATOR CURTAIN | ||||
| 90530-06009B7 |
KDH20#,TRH200..V1..(03S,09S) ﾙｰﾑｾﾊﾟﾚｰﾀｶｰﾃﾝ−有り(固定式),GRAY,TRIM1# |
2 | ||
| 74878C - FASTENER, SEPARATOR CURTAIN | ||||
| 90530-06009B7 |
KDH20#,TRH200..V1..(03S,09S) ﾙｰﾑｾﾊﾟﾚｰﾀｶｰﾃﾝ−有り(固定式),GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 65923-26030B0 | ||||
| 65923-26030B1 | ||||
| 90167-50044 | ||||
| 90467-07164 | ||||
| Linked diagrams | ||||
| 5854 | ||||

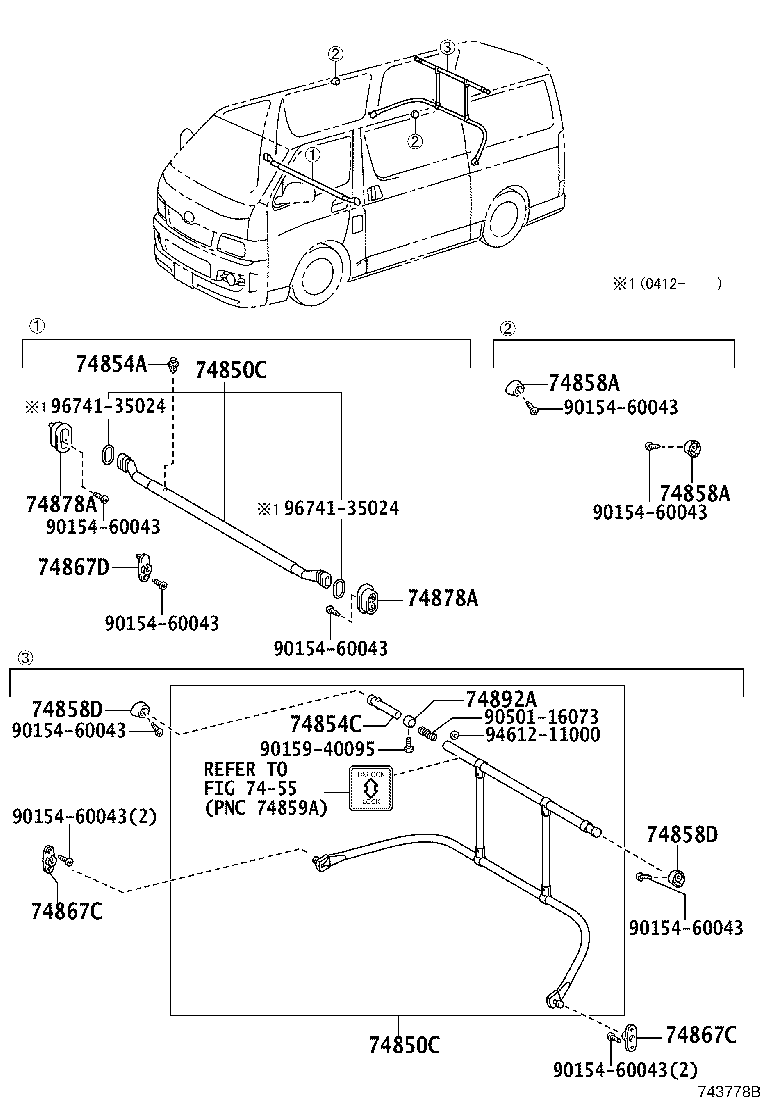

ILLUST NO. 1 OF 2(0408- )09S
ｾﾊﾟﾚｰﾀ ﾊﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74850C - BAR ASSY, SEPARATOR | ||||
| 74850-26160B0 |
KDH20#,TRH200..09S GRAY,TRIM1#,ﾌﾛﾝﾄ |
1 | ||
| 74850-26100B0 |
KDH20#,TRH200..09S GRAY,TRIM1#,ﾘﾔ |
1 | ||
| 74850C - BAR ASSY, SEPARATOR | ||||
| 74850-26160B0 |
KDH20#,TRH200..09S GRAY,TRIM1#,ﾌﾛﾝﾄ |
1 | ||
| 74850-26100B0 |
KDH20#,TRH200..09S GRAY,TRIM1#,ﾘﾔ |
1 | ||
| 74854A - STOP, SEPARATOR | ||||
| 90467-07071P4 |
KDH20#,TRH200..09S GRAY,TRIM1# |
1 | ||
| 74854C - STOP, SEPARATOR | ||||
| 74854-95J01B1 |
KDH20#,TRH200..09S GRAY,TRIM1# |
1 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74858-26050B0 |
KDH20#,TRH200..09S LT.GRAY,TRIM1#,左側 |
1 | ||
| 74858-26040B0 |
KDH20#,TRH200..09S LT.GRAY,TRIM1#,右側 |
1 | ||
| 74858A - BRACKET, SEPARATOR BAR, UPPER | ||||
| 74858-26050B0 |
KDH20#,TRH200..09S LT.GRAY,TRIM1#,左側 |
1 | ||
| 74858-26040B0 |
KDH20#,TRH200..09S LT.GRAY,TRIM1#,右側 |
1 | ||
| 74858D - BRACKET, REAR SEPARATOR BAR, UPPER | ||||
| 74858-26040B0 |
KDH20#,TRH200..09S LT.GRAY,TRIM1# |
2 | ||
| 74858D - BRACKET, REAR SEPARATOR BAR, UPPER | ||||
| 74858-26040B0 |
KDH20#,TRH200..09S LT.GRAY,TRIM1# |
2 | ||
| 74867C - BRACKET, SEPARATOR BAR, LOWER | ||||
| 74867-26090B1 |
KDH20#,TRH200..09S GRAY,TRIM1# |
2 | ||
| 74867C - BRACKET, SEPARATOR BAR, LOWER | ||||
| 74867-26090B1 |
KDH20#,TRH200..09S GRAY,TRIM1# |
2 | ||
| 74867D - BRACKET, SEPARATOR BAR, LOWER | ||||
| 74867-26100B1 |
KDH20#,TRH200..09S GRAY,TRIM1# |
1 | ||
| 74878A - BRACKET, SEPARATOR BAR, LOWER | ||||
| 74867-26080B1 |
KDH200,201,TRH200..V1..SP;KDH200,201,TRH200..SG..CBU;KDH205,206,211,220,221,225,TRH211,216,221,226..(03S,05S,06S,09S)..CBU GRAY,TRIM1#,右側 |
1 | ||
| 74867-26130B0 |
KDH200,201,TRH200..V1..SP;KDH200,201,TRH200..SG..CBU;KDH205,206,211,220,221,225,TRH211,216,221,226..(03S,05S,06S,09S)..CBU GRAY,TRIM1#,左側 |
1 | ||
| 74878A - BRACKET, SEPARATOR BAR, LOWER | ||||
| 74867-26080B1 |
KDH200,201,TRH200..V1..SP;KDH200,201,TRH200..SG..CBU;KDH205,206,211,220,221,225,TRH211,216,221,226..(03S,05S,06S,09S)..CBU GRAY,TRIM1#,右側 |
1 | ||
| 74867-26130B0 |
KDH200,201,TRH200..V1..SP;KDH200,201,TRH200..SG..CBU;KDH205,206,211,220,221,225,TRH211,216,221,226..(03S,05S,06S,09S)..CBU GRAY,TRIM1#,左側 |
1 | ||
| 74892A - COVER, SEPARATOR BAR, NO.2 | ||||
| 74892-95J00B1 |
KDH20#,TRH200..09S GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90154-60043 | ||||
| 90159-40095 | ||||
| 90501-16073 | ||||
| 94612-11000 | ||||
| 96741-35024 | ||||
| Linked diagrams | ||||
| 7455 | ||||
