Toyota Hiace/regiusace KDH200 SEAT & SEAT TRACK

KDH200V-RHMDY (2004)

Toyota Hiace/Regiusace

Production Aug 2004 - Sep 2007

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0408- )03S,06S,09S,10S,15S..DX

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ

Part #	Description	Period	Qty
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-26A50B2	KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX GRAY,TRIM1#	08/2004 - 08/2010	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71027-26040B3	KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX GRAY,TRIM1#	08/2004 - 08/2010	1
71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-26010	KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX	08/2004 - 09/2008	1
71410C - CLIP(FOR FRONT SEAT CUSHION)
90467-08188	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX	08/2004 - 02/2006	2
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-26170	TRH224,229..CBU;KDH20#,211,22#,TRH200,21#,221,223,226,228	08/2004 - 12/2013	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-26270	KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX	08/2004 - 12/2013	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-26010B0	KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1#	08/2004 - 08/2010	1
71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71867-26010B0	KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1#	08/2004 - 08/2010	1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26010B0	KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1#	08/2004 - 08/2010	1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26020B0	KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1#	08/2004 - 08/2010	1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26010B0	KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1#	08/2004 - 08/2010	1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26030B0	KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1#	08/2004 - 08/2010	1
72249 - GUIDE, SEAT TRACK LOCKING
72249-26030	KDH20#,220,221,222,225,227,TRH200,221,226..(03S,06S,09S,15S)..DX	08/2004 - 12/2013	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-26080B0	KDH20#,211,22#,TRH200,21#,22# GRAY,TRIM1#	08/2004 - 08/2010	1
Common parts
90119-10949
C9916-40001
Linked diagrams
7152

(0408-0512)03S,06S,09S,15S..DX

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ-2ﾆﾝｶﾞｹｼｰﾄ

Part #	Description	Period	Qty
58801D - BOX ASSY, CONSOLE
58801-26100B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#	08/2004 - 08/2010	1
58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE
58839-26050B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,NO.2	08/2004 - 08/2010	1
58839-26040B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,NO.1	08/2004 - 08/2010	1
58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE
58839-26050B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,NO.2	08/2004 - 08/2010	1
58839-26040B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,NO.1	08/2004 - 08/2010	1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-26170	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX	08/2004 - 12/2005	1
71035S - COVER, FRONT SEAT BACK, CENTER
71095-26200B3	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 08/2010	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-26700B2	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 12/2005	1
71072-26850B0	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),GRAY,TRIM1#	08/2004 - 12/2005	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
70169-26080B2	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 12/2005	1
71127A - PLATE, FR0NT SEAT CUSHION COVER SET
71377-26030	KDH20#,TRH200..DX	08/2004 - 05/2012	1
71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT)
71148-26010	KDH20#,220,221,222,225,227,TRH200,221,226..(03S,06S,09S,15S)..DX	08/2004 - 12/2013	1
71365S - PAD, CENTER SEAT BACK
71033-26020	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S	08/2004 - 05/2012	1
71389 - SPACER, CENTER SEAT HINGE
71389-26020	KDH20#,220,221,222,225,227,TRH200,221,226..03S,06S,09S,15S	08/2004 - 12/2013	2
71389 - SPACER, CENTER SEAT HINGE
71389-26020	KDH20#,220,221,222,225,227,TRH200,221,226..03S,06S,09S,15S	08/2004 - 12/2013	2
71395B - COVER, CENTER SEAT HINGE, RH
71395-26030B0	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 08/2010	1
71396B - COVER, CENTER SEAT HINGE, LH
71396-26010B0	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 08/2010	1
71398H - COVER, CENTER SEAT HINGE, UPPER LH
71398-26010B0	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 08/2010	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71052-26040	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側)	08/2004 - 12/2005	1
71502-26080	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX	08/2004 - 12/2005	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-26300	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX	08/2004 - 12/2005	1
71788B - WASHER, FRONT SEAT BACK BOARD SETTING
71788-26010	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX	08/2004 - 04/2005	1
71788-26010	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側)	04/2005 - 12/2005	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-26020B0	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 12/2005	1
71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71868-26030B0	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 12/2005	1
71875C - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26030B0	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 12/2005	1
71876B - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26020B0	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 12/2005	1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-26090	KDH200,205,220,221,222,225,227,TRH221,226..(03S,06S,09S,15S)..DX	08/2004 - 12/2013	1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26010B0	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 12/2005	1
72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26030B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,ﾌﾛﾝﾄｼｰﾄ	08/2004 - 08/2010	1
72848A - CAP, SEAT ARMREST, NO.1
90339-10001P8	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#	08/2004 - 08/2010	2
72881 - SUPPORT, REAR SEAT CENTER ARMREST, RH
72881-26020	KDH20#,220,221,222,225,227,TRH200,221,226..03S,06S,09S,15S	08/2004 - 12/2013	1
72881A - SUPPORT, REAR SEAT CENTER ARMREST, LH
72881-26010	KDH20#,220,221,222,225,227,TRH200,221,226..03S,06S,09S,15S	08/2004 - 12/2013	1
78631 - TABLE, FRONT SEAT SIDE
78061-26030B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#	08/2004 - 08/2010	1
Common parts
72702-26100
72702-26110
72702-26120
78899-52030
90105-10261
90119-10949
90159-40082
90386-12036
93249-14008
93249-54006
93269-54016
C9916-40001

(0408- )09S

Click highlighted areas on diagram

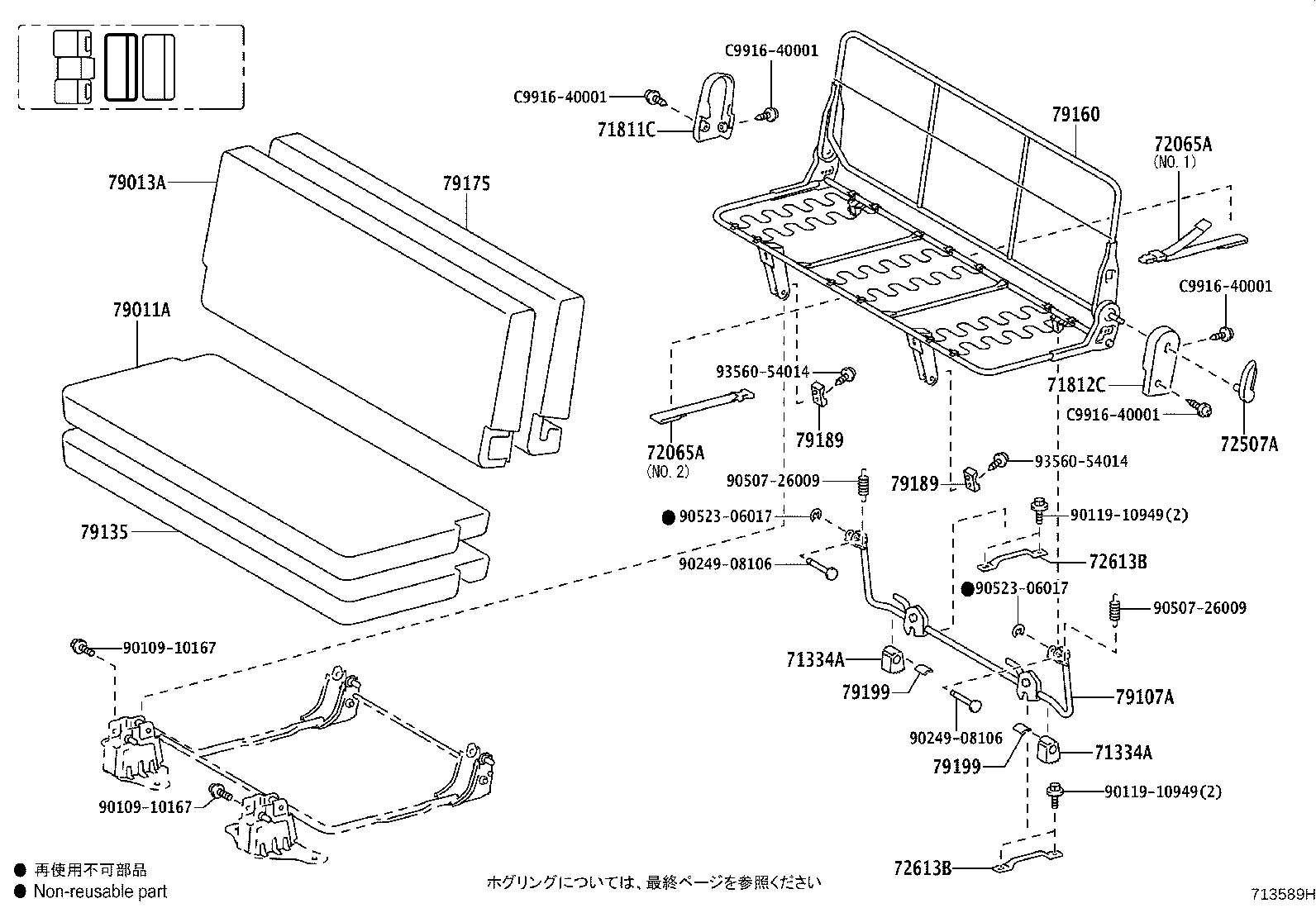

ﾘﾔ NO.1 ｼｰﾄ

Part #	Description	Period	Qty
71334A - STOPPER, REAR SEAT LEG
71334-26100	KDH20#,TRH200..(06S,09S)..CBU	08/2004 - 12/2999	2
71334A - STOPPER, REAR SEAT LEG
71334-26100	KDH20#,TRH200..(06S,09S)..CBU	08/2004 - 12/2999	2
71811C - COVER, RECLINING ADJUSTER, RH
71811-26160B0	KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU GRAY,TRIM1#	08/2004 - 08/2010	1
71812C - COVER, RECLINING ADJUSTER, LH
71812-26320B0	KDH20#,TRH200..09S GRAY,TRIM1#	08/2004 - 08/2010	1
72065A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,RH
72065-26050	KDH20#,TRH200..09S NO.1	08/2004 - 12/2013	1
72065-26060	KDH20#,TRH200..09S NO.2	08/2004 - 12/2013	1
72065A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,RH
72065-26050	KDH20#,TRH200..09S NO.1	08/2004 - 12/2013	1
72065-26060	KDH20#,TRH200..09S NO.2	08/2004 - 12/2013	1
72507A - HANDLE SUB-ASSY, RECLINING RELEASE
72507-58020B1	KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU GRAY,TRIM1#	08/2004 - 08/2010	1
72613B - STRIKER, REAR SEAT LOCK
72613-26090	KDH20#,TRH200..09S	08/2004 - 12/2999	4
72613B - STRIKER, REAR SEAT LOCK
72613-26090	KDH20#,TRH200..09S	08/2004 - 12/2999	4
79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION
79011-26A40B1	KDH20#,TRH200..09S GRAY,TRIM1#	08/2004 - 12/2005	1
79013A - COVER SUB-ASSY, NO.1 SEAT BACK
79013-26A00B4	KDH20#,220,225,TRH200,221,226..(06S,09S)..CBU GRAY,TRIM1#	08/2004 - 05/2005	1
79107A - LEG SUB-ASSY, NO.1 SEAT, REAR
79107-26140	KDH20#,TRH200..09S ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),3点式X4個&2点式X2個(ﾘﾔｼｰﾄ:6人用)	08/2004 - 09/2007	1
79107-26170	KDH20#,TRH200..09S	08/2004 - 09/2007	1
79135 - PAD, NO.1 SEAT CUSHION
79135-26290	KDH20#,TRH200..09S	08/2004 - 12/2005	1
79135-26351	KDH20#,TRH200..09S	12/2005 - 09/2007	1
79160 - SPRING ASSY, NO.1 SEAT CUSHION
79160-26220	KDH20#,TRH200..09S	08/2004 - 12/2999	1
79175 - PAD, NO.1 SEAT BACK
79175-26260	KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU	08/2004 - 05/2012	1
79189 - STOPPER, NO.1 SEAT LEG
71334-26090	KDH20#,TRH200..09S	08/2004 - 08/2010	2
79189 - STOPPER, NO.1 SEAT LEG
71334-26090	KDH20#,TRH200..09S	08/2004 - 08/2010	2
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00	KDH20#,211,TRH200,211,216..(05S,06S,09S)..CBU	08/2004 - 12/2999	2
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00	KDH20#,211,TRH200,211,216..(05S,06S,09S)..CBU	08/2004 - 12/2999	2
Common parts
90109-10167
90119-10949
90249-08106
90507-26009
90523-06017
93560-54014
C9916-40001

(0408- )09S

Click highlighted areas on diagram

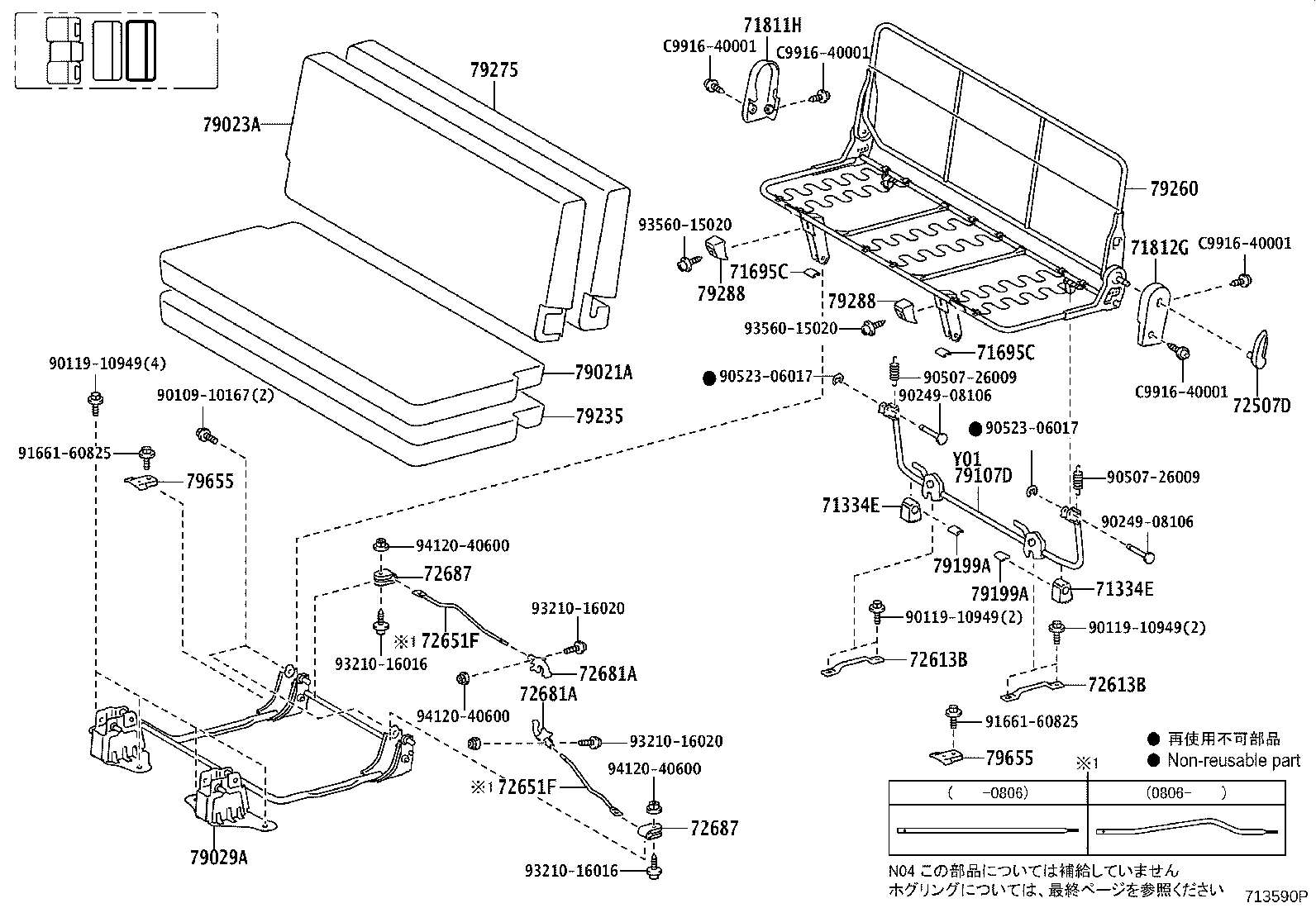

ﾘﾔ NO.2 ｼｰﾄ

Part #	Description	Period	Qty
71334E - STOPPER, REAR SEAT LEG, NO.2
71334-26070	KDH20#,TRH200..09S	08/2004 - 12/2999	2
71334E - STOPPER, REAR SEAT LEG, NO.2
71334-26070	KDH20#,TRH200..09S	08/2004 - 12/2999	2
71695C - PROTECTOR, REAR SEAT, NO.1
71695-26090	KDH20#,TRH200..09S	08/2004 - 08/2010	2
71695C - PROTECTOR, REAR SEAT, NO.1
71695-26090	KDH20#,TRH200..09S	08/2004 - 08/2010	2
71811H - COVER, RECLINING ADJUSTER, RH
71811-26160B0	KDH20#,TRH200..09S GRAY,TRIM1#	08/2004 - 08/2010	1
71812G - COVER, RECLINING ADJUSTER, LH
71812-26150B0	KDH20#,TRH200..09S GRAY,TRIM1#	08/2004 - 08/2010	1
72507D - HANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE
72507-58020B1	KDH20#,TRH200..09S GRAY,TRIM1#	08/2004 - 08/2010	1
72613B - STRIKER, REAR SEAT LOCK
72613-26090	KDH20#,TRH200..09S	08/2004 - 12/2999	4
72613B - STRIKER, REAR SEAT LOCK
72613-26090	KDH20#,TRH200..09S	08/2004 - 12/2999	4
72651F - ROD, REAR SEAT LOCK, NO.2
72651-26080	KDH20#,TRH200..09S	08/2004 - 06/2008	2
72651F - ROD, REAR SEAT LOCK, NO.2
72651-26080	KDH20#,TRH200..09S	08/2004 - 06/2008	2
72681A - HOOK, REAR SEAT
72681-26030B0	KDH20#,TRH200..09S MD.GRAY,TRIM1#	08/2004 - 08/2010	2
72681A - HOOK, REAR SEAT
72681-26030B0	KDH20#,TRH200..09S MD.GRAY,TRIM1#	08/2004 - 08/2010	2
72687 - BRACKET, REAR SEAT HOOK
72687-95J01B0	KDH20#,TRH200..09S MD.GRAY,TRIM1#	08/2004 - 08/2010	2
72687 - BRACKET, REAR SEAT HOOK
72687-95J01B0	KDH20#,TRH200..09S MD.GRAY,TRIM1#	08/2004 - 08/2010	2
79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION
79011-26A50B1	KDH20#,TRH200..09S GRAY,TRIM1#	08/2004 - 12/2005	1
79023A - COVER SUB-ASSY, NO.2 SEAT BACK
79013-26A00B4	KDH20#,TRH200..09S GRAY,TRIM1#	08/2004 - 05/2005	1
79029A - STAY SUB-ASSY, NO.2 SEAT
79029-26050	KDH20#..09S	08/2004 - 09/2007	1
79107D - LEG SUB-ASSY, NO.2 SEAT, REAR
79107-26190	KDH20#,TRH200..09S	08/2004 - 09/2007	1
79107-26150	KDH20#,TRH200..09S ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),3点式X4個&2点式X2個(ﾘﾔｼｰﾄ:6人用)	08/2004 - 09/2007	1
79199A - HOLDER, NO.2 SEAT LEG STOPPER
79199-26010	KDH20#,TRH200..09S	08/2004 - 12/2999	2
79199A - HOLDER, NO.2 SEAT LEG STOPPER
79199-26010	KDH20#,TRH200..09S	08/2004 - 12/2999	2
79235 - PAD, NO.2 SEAT CUSHION
79135-26350	KDH20#,TRH200..09S	08/2004 - 12/2005	1
79135-26351	KDH20#,TRH200..09S	12/2005 - 09/2007	1
79260 - SPRING ASSY, NO.2 SEAT CUSHION
79160-26230	KDH20#,TRH200..09S	08/2004 - 12/2999	1
79275 - PAD, NO.2 SEAT BACK
79175-26260	KDH20#,TRH200..09S	08/2004 - 05/2012	1
79288 - STOPPER, NO.2 SEAT CUSHION
79288-26010	KDH20#,TRH200..09S	08/2004 - 08/2010	2
79288 - STOPPER, NO.2 SEAT CUSHION
79288-26010	KDH20#,TRH200..09S	08/2004 - 08/2010	2
79655 - STRIKER, NO.2 SEAT LEG
79239-26010	KDH20#..09S	08/2004 - 09/2007	2
79655 - STRIKER, NO.2 SEAT LEG
79239-26010	KDH20#..09S	08/2004 - 09/2007	2
Common parts
90109-10167
90119-10949
90249-08106
90507-26009
90523-06017
91661-60825
93210-16016
93210-16020
93560-15020
94120-40600
C9916-40001

(0408- )06S,09S

Click highlighted areas on diagram

ﾘﾔｼｰﾄﾚｯｸﾞ:ｱﾘ(ｼｰﾄﾍﾞﾙﾄ, ｼｰﾄﾍﾞﾙﾄ:*DOP

Part #	Description	Period	Qty
72630A - LOCK ASSY, REAR NO.1 SEAT
72630-26030	KDH20#,TRH200..09S ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),3点式X4個&2点式X2個(ﾘﾔｼｰﾄ:6人用)	08/2004 - 09/2007	4
72630A - LOCK ASSY, REAR NO.1 SEAT
72630-26030	KDH20#,TRH200..09S ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),3点式X4個&2点式X2個(ﾘﾔｼｰﾄ:6人用)	08/2004 - 09/2007	4
72630A - LOCK ASSY, REAR NO.1 SEAT
72630-26030	KDH20#,TRH200..09S ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),3点式X4個&2点式X2個(ﾘﾔｼｰﾄ:6人用)	08/2004 - 09/2007	4
72630A - LOCK ASSY, REAR NO.1 SEAT
72630-26030	KDH20#,TRH200..09S ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),3点式X4個&2点式X2個(ﾘﾔｼｰﾄ:6人用)	08/2004 - 09/2007	4
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-95701B1	KDH20#,TRH200..09S ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),3点式X4個&2点式X2個(ﾘﾔｼｰﾄ:6人用),MD.GRAY,TRIM1#	08/2004 - 09/2007	4
72658B - KNOB, REAR SEAT LOCK HANDLE
72658-95701B1	KDH20#,TRH200..09S ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),3点式X4個&2点式X2個(ﾘﾔｼｰﾄ:6人用),MD.GRAY,TRIM1#	08/2004 - 09/2007	4
72665 - COVER, REAR SEAT BACK LOCK, RH
72665-26010B1	KDH20#,TRH200..09S ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),3点式X4個&2点式X2個(ﾘﾔｼｰﾄ:6人用),MD.GRAY,TRIM1#	08/2004 - 09/2007	2
72665 - COVER, REAR SEAT BACK LOCK, RH
72665-26010B1	KDH20#,TRH200..09S ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),3点式X4個&2点式X2個(ﾘﾔｼｰﾄ:6人用),MD.GRAY,TRIM1#	08/2004 - 09/2007	2
72666 - COVER, REAR SEAT BACK LOCK, LH
72665-26010B1	KDH20#,TRH200..09S ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),3点式X4個&2点式X2個(ﾘﾔｼｰﾄ:6人用),MD.GRAY,TRIM1#	08/2004 - 09/2007	2
72666 - COVER, REAR SEAT BACK LOCK, LH
72665-26010B1	KDH20#,TRH200..09S ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),3点式X4個&2点式X2個(ﾘﾔｼｰﾄ:6人用),MD.GRAY,TRIM1#	08/2004 - 09/2007	2
79107A - LEG SUB-ASSY, NO.1 SEAT, REAR
79107-26140	KDH20#,TRH200..09S ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),3点式X4個&2点式X2個(ﾘﾔｼｰﾄ:6人用)	08/2004 - 09/2007	1
79107-26170	KDH20#,TRH200..09S	08/2004 - 09/2007	1
79107A - LEG SUB-ASSY, NO.1 SEAT, REAR
79107-26140	KDH20#,TRH200..09S ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),3点式X4個&2点式X2個(ﾘﾔｼｰﾄ:6人用)	08/2004 - 09/2007	1
79107-26170	KDH20#,TRH200..09S	08/2004 - 09/2007	1
79107D - LEG SUB-ASSY, NO.2 SEAT, REAR
79107-26190	KDH20#,TRH200..09S	08/2004 - 09/2007	1
79107-26150	KDH20#,TRH200..09S ﾘﾔｼｰﾄﾍﾞﾙﾄ−有り(DOP),3点式X4個&2点式X2個(ﾘﾔｼｰﾄ:6人用)	08/2004 - 09/2007	1
Common parts
90164-50020
90206-08038
91612-B1020
93269-54016
94150-80600
Linked diagrams
7152

(0512- )03S,06S,09S,15S..DX

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ-2ﾆﾝｶﾞｹｼｰﾄ

Part #	Description	Period	Qty
58801D - BOX ASSY, CONSOLE
58801-26100B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#	08/2004 - 08/2010	1
58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE
58839-26050B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,NO.2	08/2004 - 08/2010	1
58839-26040B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,NO.1	08/2004 - 08/2010	1
58839C - COVER, FRONT SEAT BACK CONTROL PANEL HOLE
58839-26050B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,NO.2	08/2004 - 08/2010	1
58839-26040B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,NO.1	08/2004 - 08/2010	1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-26170	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX	08/2004 - 12/2005	1
71035S - COVER, FRONT SEAT BACK, CENTER
71095-26200B3	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 08/2010	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-26700B2	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 12/2005	1
71072-26850B0	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),GRAY,TRIM1#	08/2004 - 12/2005	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
70169-26080B2	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 12/2005	1
71127A - PLATE, FR0NT SEAT CUSHION COVER SET
71377-26030	KDH20#,TRH200..DX	08/2004 - 05/2012	1
71149C - COVER, FRONT SEAT LEG, LH (FOR LH SEAT)
71148-26010	KDH20#,220,221,222,225,227,TRH200,221,226..(03S,06S,09S,15S)..DX	08/2004 - 12/2013	1
71365S - PAD, CENTER SEAT BACK
71033-26020	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S	08/2004 - 05/2012	1
71389 - SPACER, CENTER SEAT HINGE
71389-26020	KDH20#,220,221,222,225,227,TRH200,221,226..03S,06S,09S,15S	08/2004 - 12/2013	2
71389 - SPACER, CENTER SEAT HINGE
71389-26020	KDH20#,220,221,222,225,227,TRH200,221,226..03S,06S,09S,15S	08/2004 - 12/2013	2
71395B - COVER, CENTER SEAT HINGE, RH
71395-26030B0	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 08/2010	1
71396B - COVER, CENTER SEAT HINGE, LH
71396-26010B0	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 08/2010	1
71398H - COVER, CENTER SEAT HINGE, UPPER LH
71398-26010B0	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 08/2010	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71052-26040	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側)	08/2004 - 12/2005	1
71502-26080	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX	08/2004 - 12/2005	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-26300	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX	08/2004 - 12/2005	1
71788B - WASHER, FRONT SEAT BACK BOARD SETTING
71788-26010	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX	08/2004 - 04/2005	1
71788-26010	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側)	04/2005 - 12/2005	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-26020B0	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 12/2005	1
71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71868-26030B0	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 12/2005	1
71875C - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26030B0	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 12/2005	1
71876B - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26020B0	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 12/2005	1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-26090	KDH200,205,220,221,222,225,227,TRH221,226..(03S,06S,09S,15S)..DX	08/2004 - 12/2013	1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26010B0	KDH20#,22#,TRH200,221,223,226,228..(03S,06S,09S,15S)..DX GRAY,TRIM1#	08/2004 - 12/2005	1
72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26030B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#,ﾌﾛﾝﾄｼｰﾄ	08/2004 - 08/2010	1
72848A - CAP, SEAT ARMREST, NO.1
90339-10001P8	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#	08/2004 - 08/2010	2
72881 - SUPPORT, REAR SEAT CENTER ARMREST, RH
72881-26020	KDH20#,220,221,222,225,227,TRH200,221,226..03S,06S,09S,15S	08/2004 - 12/2013	1
72881A - SUPPORT, REAR SEAT CENTER ARMREST, LH
72881-26010	KDH20#,220,221,222,225,227,TRH200,221,226..03S,06S,09S,15S	08/2004 - 12/2013	1
78631 - TABLE, FRONT SEAT SIDE
78061-26030B0	KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S GRAY,TRIM1#	08/2004 - 08/2010	1
Common parts
72702-26100
72702-26110
72702-26120
78899-52030
90105-10261
90119-10949
90159-40082
90386-12036
93249-14008
93249-54006
93269-54016
93560-54012
C9916-40001

(0408- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

Part #	Description	Period	Qty	Price
Common parts
90468-16019
90468-18008

KDH200V-RHMDY (2004)

(0408- )03S,06S,09S,10S,15S..DX

(0408-0512)03S,06S,09S,15S..DX

(0408- )09S

(0408- )09S

(0408- )06S,09S

(0512- )03S,06S,09S,15S..DX

(0408- )

Part Price Details
