GDH223B-LETNY (2017)
Toyota Hiace/Regiusace

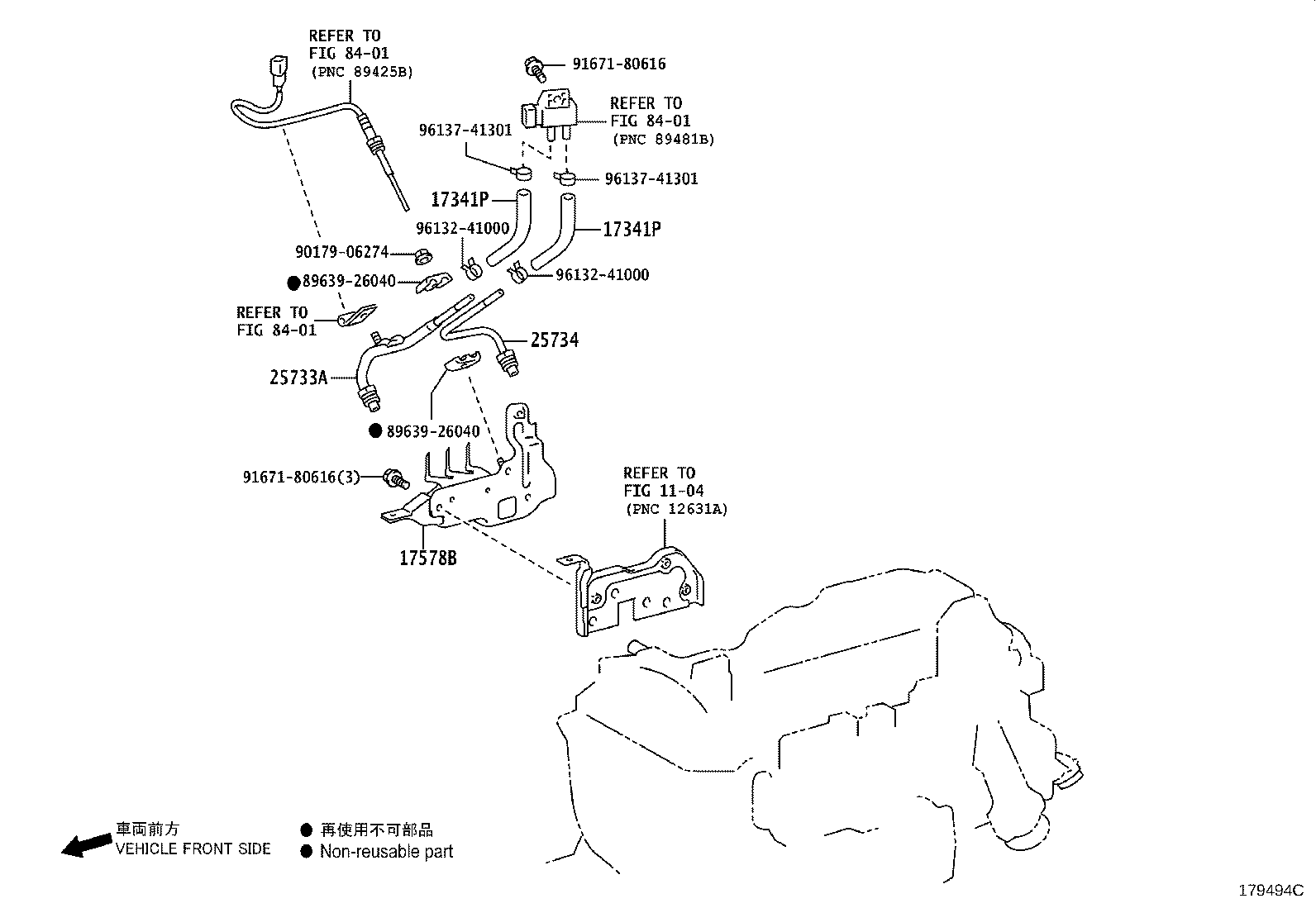

ILLUST NO. 1 OF 2(1712- )1GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341P - HOSE, AIR | ||||
| 17341-11460 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 17341P - HOSE, AIR | ||||
| 17341-11460 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 17578B - CLAMP, PIPE | ||||
| 17578-11050 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 25733A - PIPE, VACUUM, NO.1 | ||||
| 25733-0E010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 (L) |
1 | ||
| 25733-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 (J) |
1 | ||
| 25734 - PIPE, VACUUM, NO.2 | ||||
| 25734-0E010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 (L) |
1 | ||
| 25734-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 (J) |
1 | ||
| Common parts | ||||
| 89639-26040 | ||||
| 90179-06274 | ||||
| 91671-80616 | ||||
| 96132-41000 | ||||
| 96137-41301 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 8401 | ||||

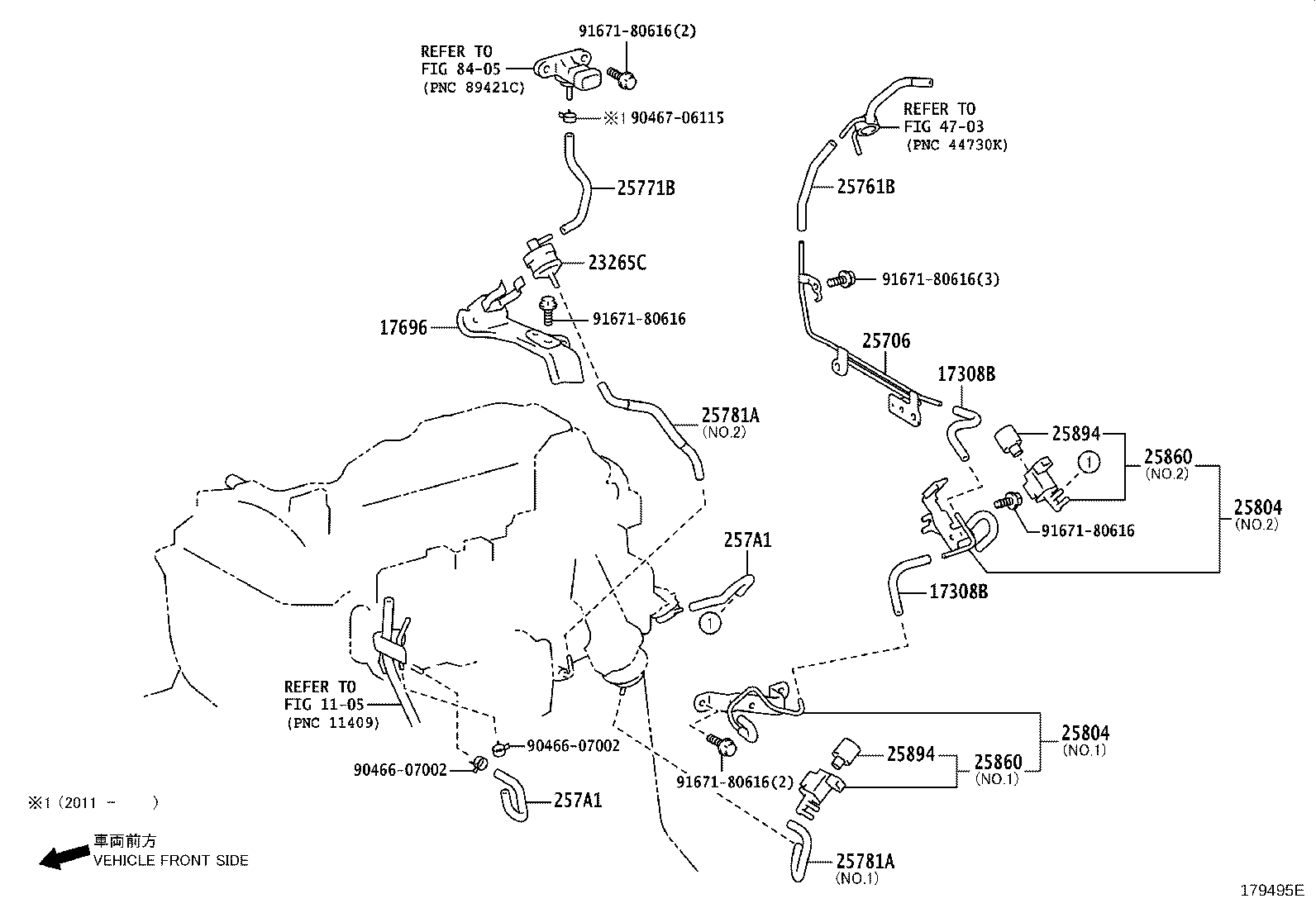

ILLUST NO. 2 OF 2(1712- )1GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17308B - HOSE SUB-ASSY, VACUUM | ||||
| 90999-92002 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 17308B - HOSE SUB-ASSY, VACUUM | ||||
| 90999-92002 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 17696 - BRACKET, GAS FILTER | ||||
| 17696-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 23265C - FILTER, GAS | ||||
| 90917-11038 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-0E010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 (L) |
1 | ||
| 25706-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 (J) |
1 | ||
| 25761B - HOSE, VACCUM TRANSMITTING, NO.1 | ||||
| 25761-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 25771B - HOSE, VACCUM TRANSMITTING, NO.2 | ||||
| 25771-11030 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 25781A - HOSE, VACUUM TRANSMITTING, NO.3 | ||||
| 25781-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.2 |
1 | ||
| 25781-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.1 |
1 | ||
| 25781A - HOSE, VACUUM TRANSMITTING, NO.3 | ||||
| 25781-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.2 |
1 | ||
| 25781-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.1 |
1 | ||
| 257A1 - HOSE, VACUUM TRANSMITTING, NO.5 | ||||
| 257A1-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 257A1 - HOSE, VACUUM TRANSMITTING, NO.5 | ||||
| 257A1-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 25804 - VALVE SET, VACUUM CONTROL | ||||
| 25804-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.1 |
1 | ||
| 25804-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.2 |
1 | ||
| 25804 - VALVE SET, VACUUM CONTROL | ||||
| 25804-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.1 |
1 | ||
| 25804-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.2 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-30160 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.2 |
1 | ||
| 25860-30070 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.1 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-30160 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.2 |
1 | ||
| 25860-30070 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.1 |
1 | ||
| 25894 - FILTER, NO.1 | ||||
| 25894-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 25894 - FILTER, NO.1 | ||||
| 25894-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| Common parts | ||||
| 90466-07002 | ||||
| 90467-06115 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 4703 | ||||
| 8405 | ||||
