GDH223B-LETDY (2017)

Toyota Hiace/Regiusace

Production Dec 2017 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )1GDFTV..GDH22#

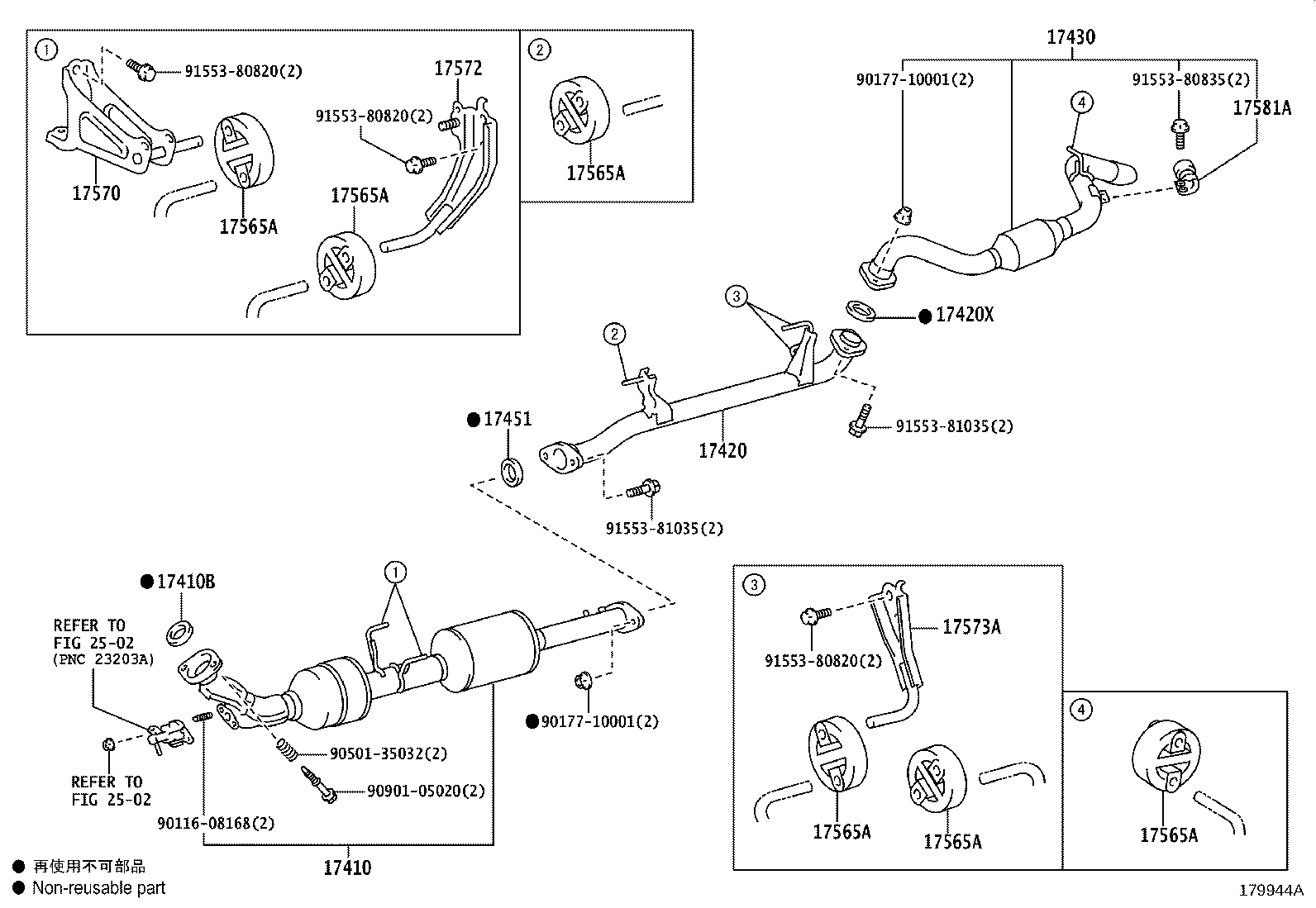

Click highlighted areas on diagram

diagram 17410 17410B 17420 17420X 17430 17451 17565A 17565A 17565A 17565A 17565A 17565A 17570 17572 17573A 17581A 2502 2502 9011608168 9017710001 9017710001 9050135032 9090105020 9155380820 9155380820 9155380820 9155380835 9155381035 9155381035
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-11B10

1GDFTV..GDH201,211,221,223..CBU,IV6

 1
17410B - GASKET, EXHAUST PIPE
17451-22070

1GDFTV,1TRFE,2TRFE..GDH206,TRH200,223,224,228..4FC,6FC;1GDFTV,2TRFE..GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-11740

1GDFTV..GDH22#..CBU,IV6

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06054

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-11A10

1GDFTV..GDH211,22#..CBU,IV6

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

1GDFTV,2TRFE..GDH206,TRH223,224,228;1GDFTV,2TRFE..GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P240

1GDFTV,1TRFE,2TRFE..GDH206,TRH200,223,224,228..4FC,6FC;1GDFTV,2TRFE..GDH201,211,TRH21#,221,226,229..CBU,IV6,IV7

ﾀｲ製

 5
17565-28010

1GDFTV,1TRFE,2TRFE..GDH206,TRH200,223,224,228..4FC,6FC;1GDFTV,2TRFE..GDH201,211,TRH21#,221,226,229..CBU,IV6,IV7

日本製

 5
17565-28010

1KDFTV..KDH20#,223;1GDFTV,1KDFTV..GDH22#,KDH211,221..CBU,IV6

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P240

1GDFTV,1TRFE,2TRFE..GDH206,TRH200,223,224,228..4FC,6FC;1GDFTV,2TRFE..GDH201,211,TRH21#,221,226,229..CBU,IV6,IV7

ﾀｲ製

 5
17565-28010

1GDFTV,1TRFE,2TRFE..GDH206,TRH200,223,224,228..4FC,6FC;1GDFTV,2TRFE..GDH201,211,TRH21#,221,226,229..CBU,IV6,IV7

日本製

 5
17565-28010

1KDFTV..KDH20#,223;1GDFTV,1KDFTV..GDH22#,KDH211,221..CBU,IV6

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P240

1GDFTV,1TRFE,2TRFE..GDH206,TRH200,223,224,228..4FC,6FC;1GDFTV,2TRFE..GDH201,211,TRH21#,221,226,229..CBU,IV6,IV7

ﾀｲ製

 5
17565-28010

1GDFTV,1TRFE,2TRFE..GDH206,TRH200,223,224,228..4FC,6FC;1GDFTV,2TRFE..GDH201,211,TRH21#,221,226,229..CBU,IV6,IV7

日本製

 5
17565-28010

1KDFTV..KDH20#,223;1GDFTV,1KDFTV..GDH22#,KDH211,221..CBU,IV6

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P240

1GDFTV,1TRFE,2TRFE..GDH206,TRH200,223,224,228..4FC,6FC;1GDFTV,2TRFE..GDH201,211,TRH21#,221,226,229..CBU,IV6,IV7

ﾀｲ製

 5
17565-28010

1GDFTV,1TRFE,2TRFE..GDH206,TRH200,223,224,228..4FC,6FC;1GDFTV,2TRFE..GDH201,211,TRH21#,221,226,229..CBU,IV6,IV7

日本製

 5
17565-28010

1KDFTV..KDH20#,223;1GDFTV,1KDFTV..GDH22#,KDH211,221..CBU,IV6

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P240

1GDFTV,1TRFE,2TRFE..GDH206,TRH200,223,224,228..4FC,6FC;1GDFTV,2TRFE..GDH201,211,TRH21#,221,226,229..CBU,IV6,IV7

ﾀｲ製

 5
17565-28010

1GDFTV,1TRFE,2TRFE..GDH206,TRH200,223,224,228..4FC,6FC;1GDFTV,2TRFE..GDH201,211,TRH21#,221,226,229..CBU,IV6,IV7

日本製

 5
17565-28010

1KDFTV..KDH20#,223;1GDFTV,1KDFTV..GDH22#,KDH211,221..CBU,IV6

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0P240

1GDFTV,1TRFE,2TRFE..GDH206,TRH200,223,224,228..4FC,6FC;1GDFTV,2TRFE..GDH201,211,TRH21#,221,226,229..CBU,IV6,IV7

ﾀｲ製

 5
17565-28010

1GDFTV,1TRFE,2TRFE..GDH206,TRH200,223,224,228..4FC,6FC;1GDFTV,2TRFE..GDH201,211,TRH21#,221,226,229..CBU,IV6,IV7

日本製

 5
17565-28010

1KDFTV..KDH20#,223;1GDFTV,1KDFTV..GDH22#,KDH211,221..CBU,IV6

 6
17570 - BRACKET ASSY, EXHAUST PIPE SUPPORT
17570-30010

1KDFTV..KDH223;1GDFTV,1KDFTV..GDH211,22#,KDH211,221..CBU,IV6

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-30060

1GDFTV,1KDFTV..GDH206,KDH20#,223;1GDFTV,1KDFTV..GDH201,211,22#,KDH211,221..CBU,IV6

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-30030

1GDFTV,1KDFTV..GDH206,KDH20#,223;1GDFTV,1KDFTV..GDH201,211,22#,KDH211,221..CBU,IV6

 1
17581A - DAMPER, EXHAUST PIPE
17581-75060

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
Common parts
90116-08168
90177-10001
90501-35032
90901-05020
91553-80820
91553-80835
91553-81035
Linked diagrams
2502
