GDH206V-RFTDY (2017)

Toyota Hiace/Regiusace

Production Dec 2017 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )1GDFTV

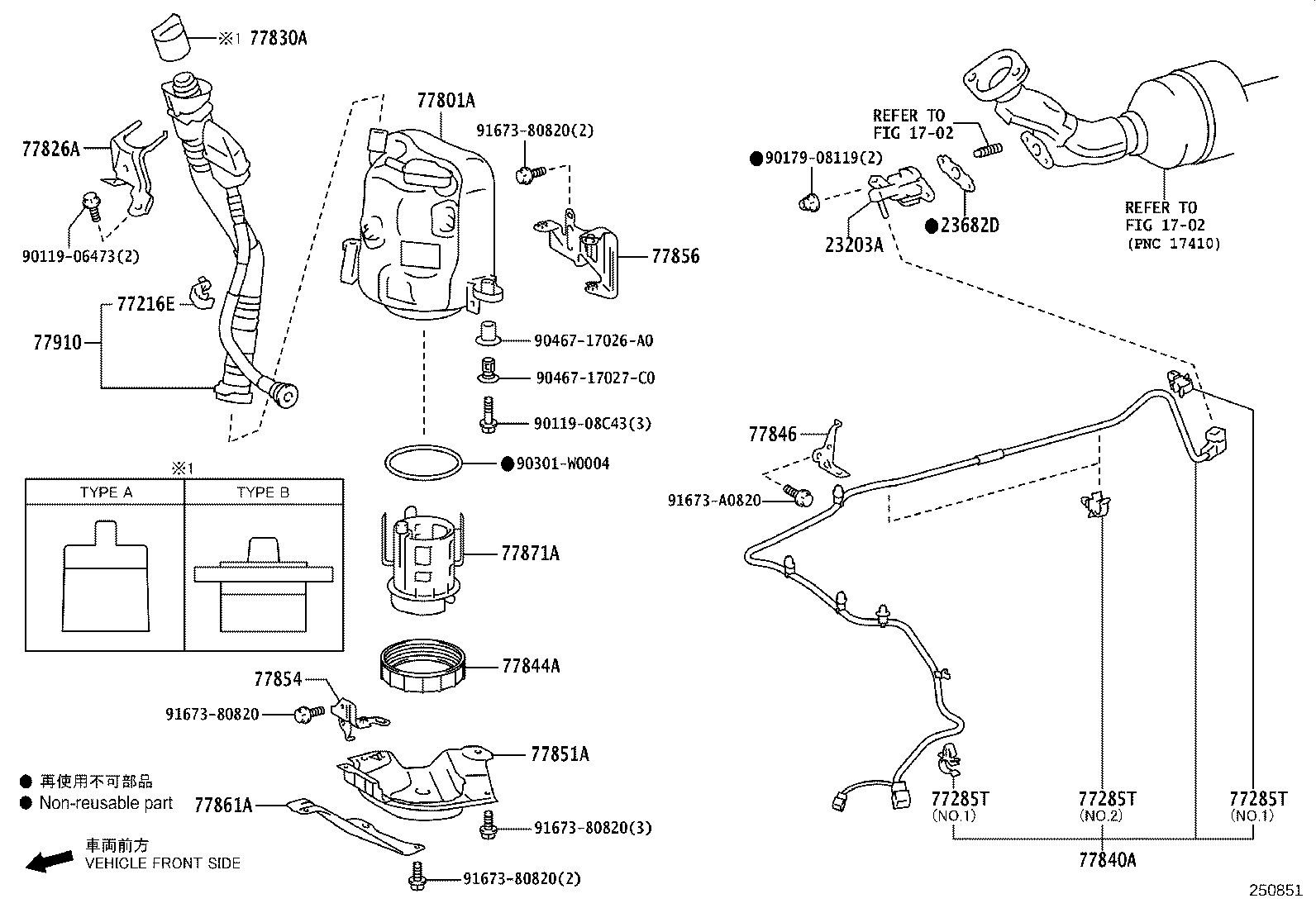

Click highlighted areas on diagram

diagram 1702 1702 23203A 23682D 77216E 77285T 77285T 77285T 77801A 77826A 77830A 77840A 77844A 77846 77851A 77854 77856 77861A 77871A 77910 9011906473 9011908C43 9017908119 90301W0004 9046717026A0 9046717027C0 9167380820 9167380820 9167380820 9167380820 91673A0820
Part # Description Qty Price
23203A - INJECTOR SET, UREA
23203-11021

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
23682D - GASKET, NOZZLE HOLDER
23682-11010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
77216E - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-26080

GDH206;GDH201,211,22#..CBU,IV6

 1
77285T - CLAMP, UREA TUBE, NO.1
77285-26140

GDH206;GDH201,211,22#..CBU,IV6

NO.1

 2
77285-26150

GDH206;GDH201,211,22#..CBU,IV6

NO.2

 2
77285T - CLAMP, UREA TUBE, NO.1
77285-26140

GDH206;GDH201,211,22#..CBU,IV6

NO.1

 2
77285-26150

GDH206;GDH201,211,22#..CBU,IV6

NO.2

 2
77285T - CLAMP, UREA TUBE, NO.1
77285-26140

GDH206;GDH201,211,22#..CBU,IV6

NO.1

 2
77285-26150

GDH206;GDH201,211,22#..CBU,IV6

NO.2

 2
77801A - TANK SUB-ASSY, UREA
77801-26030

GDH206;GDH201,211,22#..CBU,IV6

 1
77826A - SUPPORT, UREA TANK FILLER PIPE, NO.1
77916-26010

GDH206;GDH201,211,22#..CBU,IV6

 1
77830A - CAP ASSY, UREA TANK
77830-26010

GDH206;GDH201,211,22#..CBU,IV6

TYPE B:ｲﾗｽﾄ参照

 1
77830-60010

GDH20#,211,22#

TYPE A:ｲﾗｽﾄ参照

 1
77840A - TUBE ASSY, UREA W/HEATER
77840-26020

GDH206;GDH201..CBU

 1
77844A - RETAINER, UREA PUMP GAGE
77844-60010

GDH206;GDH201,211,22#..CBU,IV6

 1
77846 - BRACKET, UREA TUBE, NO.1
77846-26010

GDH206;GDH201,211,22#..CBU,IV6

 1
77851A - PROTECTOR, UREA TANK
77851-26020

GDH20#

 1
77851-26030

GDH206;GDH201..CBU

 1
77854 - BRACKET, UREA TANK PROTECTOR, FRONT NO.1
77854-26010

GDH206;GDH201,211,22#..CBU,IV6

 1
77856 - BRACKET, UREA TANK PROTECTOR, REAR NO.1
77856-26010

GDH206;GDH201,211,22#..CBU,IV6

 1
77861A - BRACKET, UREA TANK, NO.1
77861-26010

GDH206;GDH201..CBU

 1
77871A - PUMP, UREA
77871-26010

GDH206;GDH201,211,22#..CBU,IV6

 1
77910 - PIPE ASSY, UREA TANK FILLER
77910-26021

GDH206;GDH201,211,22#..CBU,IV6

PNC 77830A=TYPE B

 1
77910-26020

GDH20#,211,22#

PNC 77830A=TYPE A

 1
Common parts
90119-06473
90119-08C43
90179-08119
90301-W0004
90467-17026A0
90467-17027C0
91673-80820
91673-A0820
Linked diagrams
1702
