GDH206V-RFTDY (2017)

Toyota Hiace/Regiusace

Production Dec 2017 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )1GDFTV

Click highlighted areas on diagram

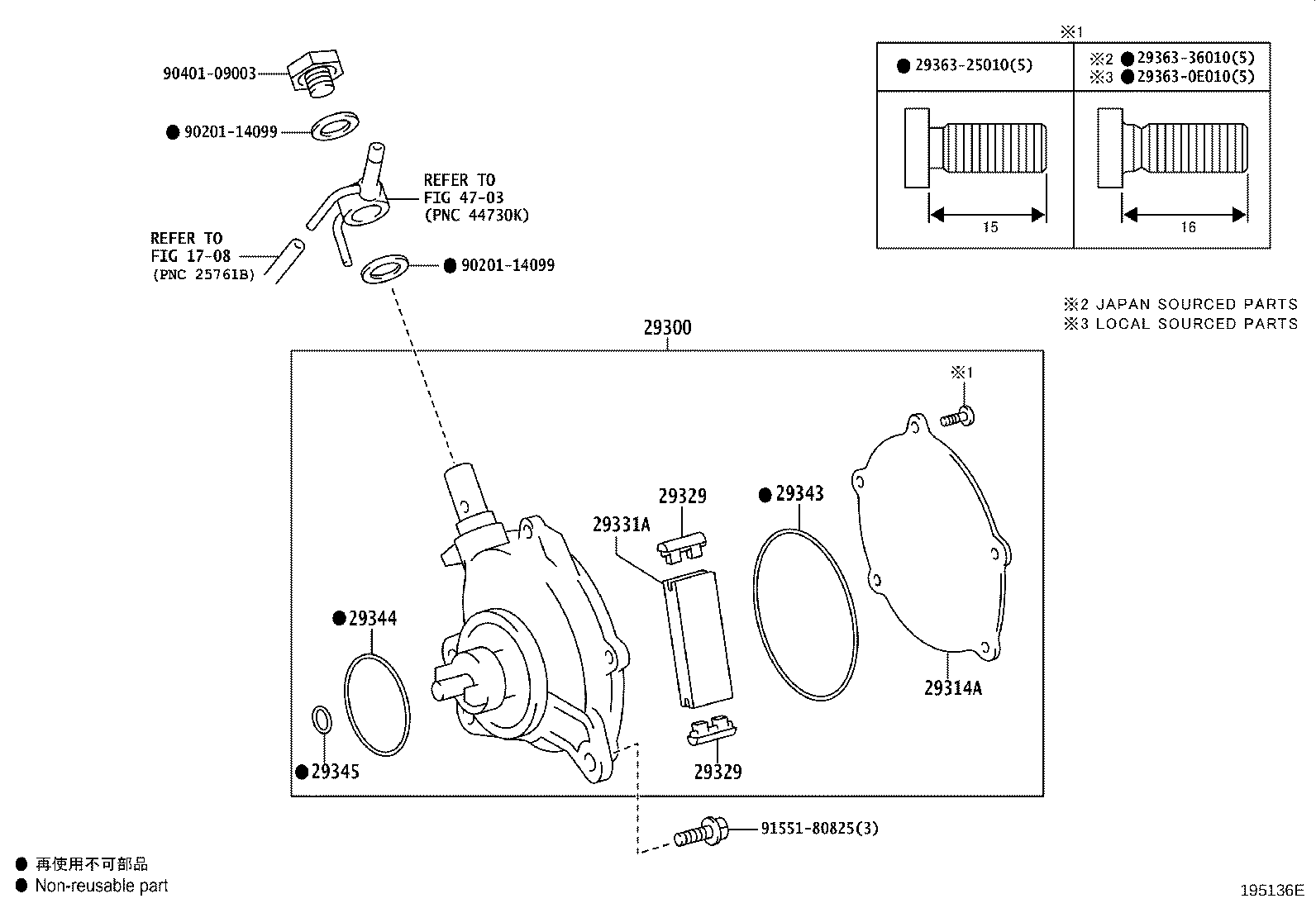

diagram 1708 29300 29314A 29329 29329 29331A 29343 29344 29345 293630E010 2936325010 2936336010 4703 9020114099 9020114099 9040109003 9155180825
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-11020

1GDFTV..GDH20#,211,22#

 1
29300-11021

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

(J)

 1
29314A - COVER, END
29314-11020

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

(J)

 1
29314-11020

1GDFTV..GDH20#,211,22#

 1
29314-0E010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

(L)

 1
29329 - CAP, VACUUM PUMP VANE
29329-37010

1GDFTV..GDH20#,211,22#

 2
29329-37010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

(J)

 2
29329-0E010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

(L)

 2
29329 - CAP, VACUUM PUMP VANE
29329-37010

1GDFTV..GDH20#,211,22#

 2
29329-37010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

(J)

 2
29329-0E010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

(L)

 2
29331A - VANE, VACUUM PUMP
29331-11020

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

(J)

 1
29331-0E010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

(L)

 1
29331-11020

1GDFTV..GDH20#,211,22#

 1
29343 - RING, O VACUUM PUMP, NO.1
29343-11020

1GDFTV..GDH20#,211,22#

 1
29343-11020

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

(J)

 1
29343-0E010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

(L)

 1
29344 - RING, O VACUUM PUMP, NO.2
29344-22011

1GDFTV..GDH20#,211,22#

 1
29344-22011

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

(J)

 1
29344-0E010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

(L)

 1
29345 - RING, O VACUUM PUMP, NO.3
29345-22011

1GDFTV..GDH20#,211,22#

 1
29345-22011

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

(J)

 1
29345-0E010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

(L)

 1
Common parts
29363-0E010
29363-25010
29363-36010
90201-14099
90401-09003
91551-80825
Linked diagrams
1708
4703
