GDH206V-RFTDY (2017)

Toyota Hiace/Regiusace

Production Dec 2017 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )1GDFTV

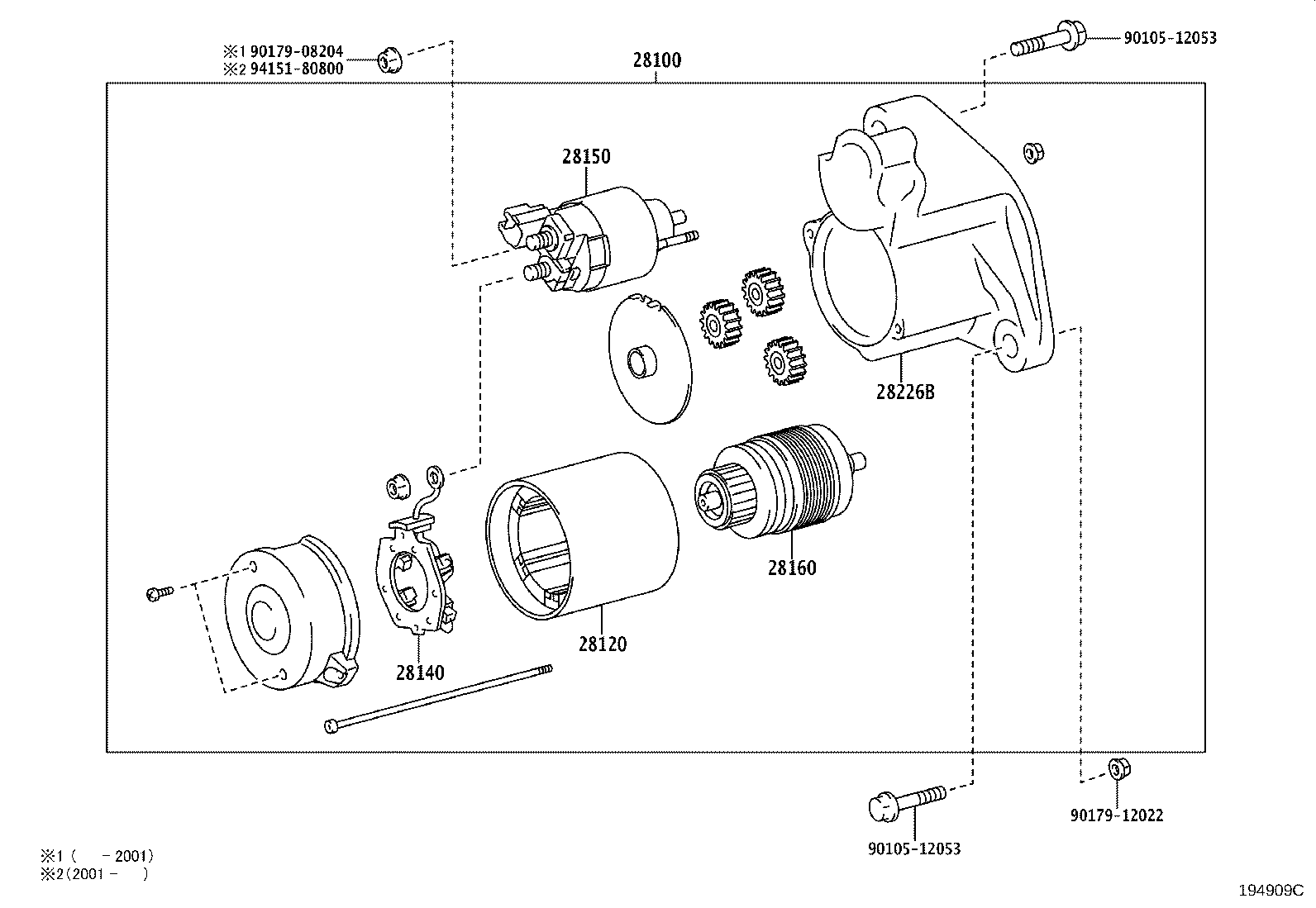

Click highlighted areas on diagram

12V 2.0KW

diagram 28100 28120 28140 28150 28160 28226B 9010512053 9010512053 9017908204 9017912022 9415180800
Part # Description Qty Price
28100 - STARTER ASSY
28100-11190

1GDFTV..GDH20#,211,22#..CBU,IV6

12V 2.0KW

 1
28100-30051

1KDFTV..KDH20#,223;1GDFTV,1KDFTV..GDH20#,211,22#,KDH211,221..CBU,IV6

12V 2.7KW,寒冷地仕様

 1
28120 - YOKE ASSY, STARTER
28120-0L180

1GDFTV..GDH20#,211,22#..CBU,IV6

 1
28120-67020

1KDFTV..KDH20#,223;1GDFTV,1KDFTV..GDH20#,211,22#,KDH211,221..CBU,IV6

寒冷地仕様

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090

1KDFTV..KDH20#,223;1GDFTV,1KDFTV..GDH20#,211,22#,KDH211,221..CBU,IV6

寒冷地仕様

 1
28140-0L180

1GDFTV..GDH20#,211,22#..CBU,IV6

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-40090

1GDFTV..GDH20#,211,22#..CBU,IV6

 1
28150-30050

1KDFTV..KDH20#,223;1GDFTV,1KDFTV..GDH20#,211,22#,KDH211,221..CBU,IV6

寒冷地仕様

 1
28160 - ARMATURE ASSY, STARTER
28160-37100

1GDFTV..GDH20#,211,22#..CBU,IV6

 1
28160-54140

1KDFTV..KDH20#,223;1GDFTV,1KDFTV..GDH20#,211,22#,KDH211,221..CBU,IV6

寒冷地仕様

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-0L180

1GDFTV..GDH20#,211,22#..CBU,IV6

 1
Common parts
90105-12053
90179-08204
90179-12022
94151-80800
