GDH206V-RFTDY (2017)

Toyota Hiace/Regiusace

Production Dec 2017 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )1GDFTV

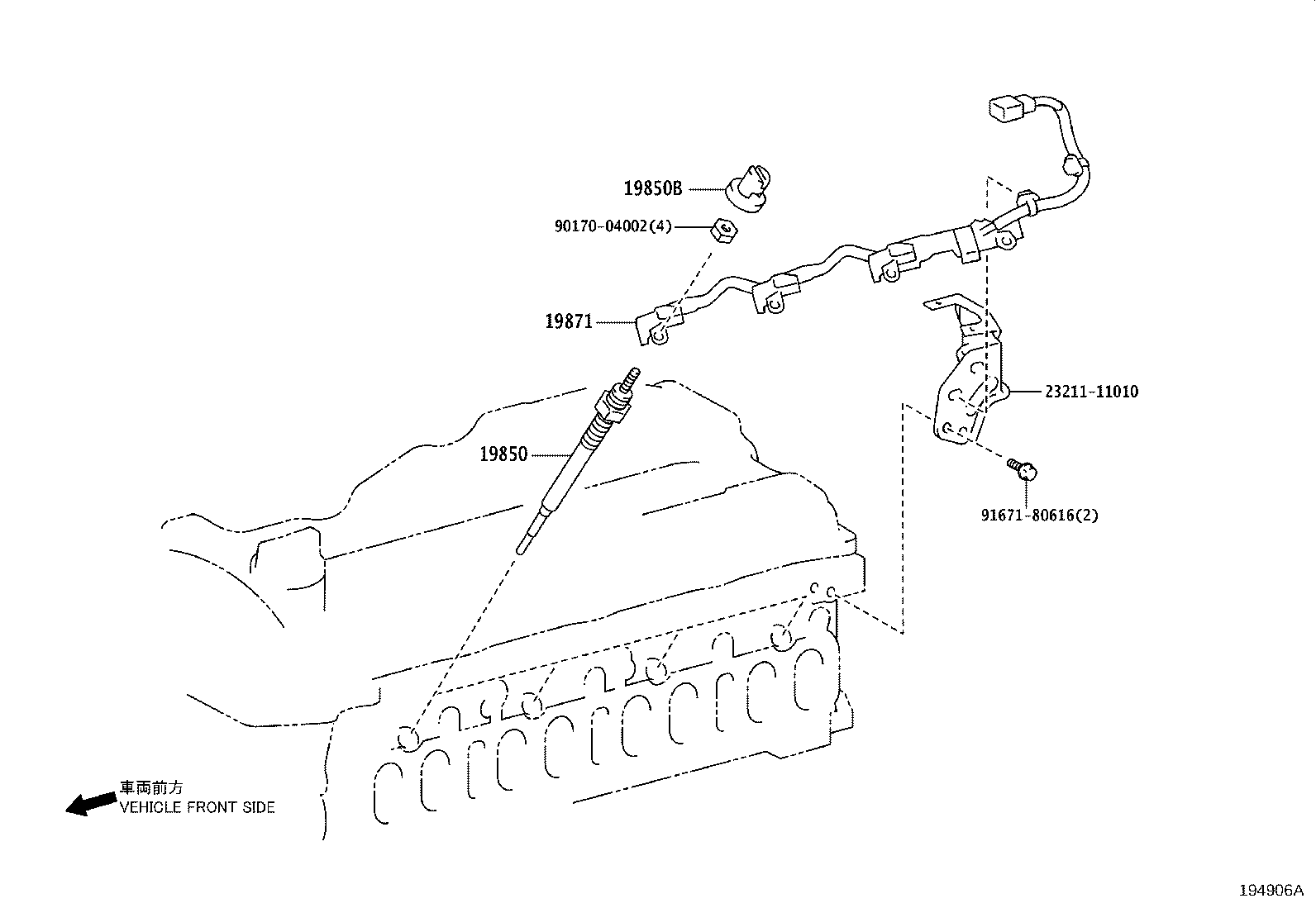

Click highlighted areas on diagram

diagram 19850 19850B 19871 2321111010 9017004002 9167180616
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-11040

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

*BV−GV=12V−7V

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-04024

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19871-11020

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
Common parts
23211-11010
90170-04002
91671-80616
