GDH206V-RFTDY (2017)

Toyota Hiace/Regiusace

Production Dec 2017 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )1GDFTV

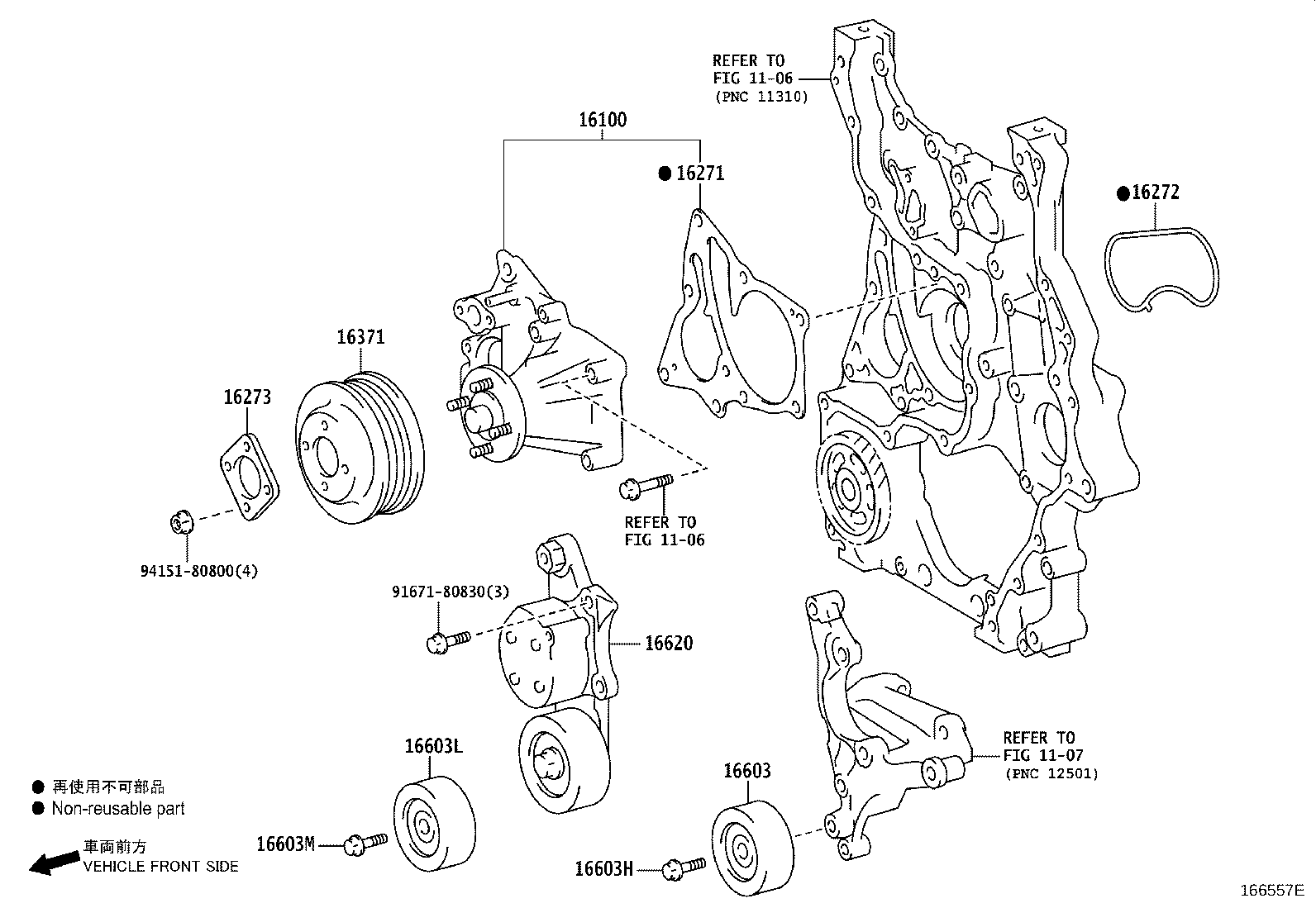

Click highlighted areas on diagram

diagram 1106 1106 1107 16100 16271 16272 16273 16371 16603 16603H 16603L 16603M 16620 9167180830 9415180800
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-19365

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
16271 - GASKET, WATER PUMP
16271-11010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
16272 - GASKET, WATER PUMP, NO.2
16272-11010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
16273 - SPACER, WATER PUMP
16273-11010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
16371 - PULLEY, FAN
16371-11010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
16603 - PULLEY SUB-ASSY, IDLER, NO.1
16603-31040

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
16603H - BOLT(FOR IDLER PULLEY)
91552-81050

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
16603L - PULLEY SUB-ASSY, IDLER, NO.1
16603-31050

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
16603M - BOLT(FOR IDLER PULLEY)
91552-81050

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-11010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
Common parts
91671-80830
94151-80800
Linked diagrams
1106
1107
