Toyota Hiace/regiusace GDH206 CYLINDER BLOCK

Part #	Description	Period	Qty
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80888	1GDFTV..GDH206,226	12/2017 - 06/2020	1
11401-80A15	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	07/2020 - 12/2999	1
11401G - SENSOR, CRANK POSITION
90919-05073	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
11401V - O-RING, CRANK POSITION SENSOR
90301-14016	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
11409 - GUIDE SUB-ASSY, OIL LEVEL GAGE
11409-11021	1GDFTV..GDH20#,211,22#	12/2017 - 10/2018	1
11409-11022	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	11/2018 - 12/2999	1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09128	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02191	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	10
11421 - BOLT, STUD(FOR OIL PAN)
90126-06028	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 長さ=18,外径=8	12/2017 - 12/2999	2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-15016	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	2
11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET)
90250-10030	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
12101 - PAN SUB-ASSY, OIL
12101-11130	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
12581A - INSULATOR, CYLINDER BLOCK, NO.1
12581-11020	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
12583A - INSULATOR, CYLINDER BLOCK, NO.3
12583-11020	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
12584 - INSULATOR, CYLINDER BROCK, NO.4
12584-67030	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
12585 - INSULATOR, CYLINDER BROCK, NO.5
12585-11020	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-11090	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-11010	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	4
19313 - BRACKET, CRANK POSITION SENSOR HARNESS
19313-11010	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
27148C - WIRE, CONNECTING
27148-11010	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
Common parts
90110-06040
90119-06938
90301-09018
90339-03005
90480-13034
91551-80616
91671-80612
91671-80616
94151-80600
Linked diagrams
1106
8401

Part #	Description	Period	Qty
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 長さ=11,外径=6	12/2017 - 12/2999	2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10192	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	2
Common parts
90253-13017

Part #	Description	Period	Qty
11991A - PLATE, BALANCESHAFT THRUST, NO.1
11991-11010	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
13603B - GEAR SUB-ASSY, BALANCESHAFT
13603-11010	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
13620B - BALANCER ASSY, ENGINE
13620-11012	1GDFTV..GDH20#,211,22#	01/2020 - 12/2020	1
13620-11013	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	01/2021 - 12/2999	1
13620-11011	1GDFTV..GDH20#,211,22#	05/2018 - 12/2019	1
13620-11010	1GDFTV..GDH20#,211,22#	12/2017 - 04/2018	1
Common parts
90253-13017
91551-80816
91551-80850
91552-F1055
Linked diagrams
1302

GDH206V-RFTDY (2017)

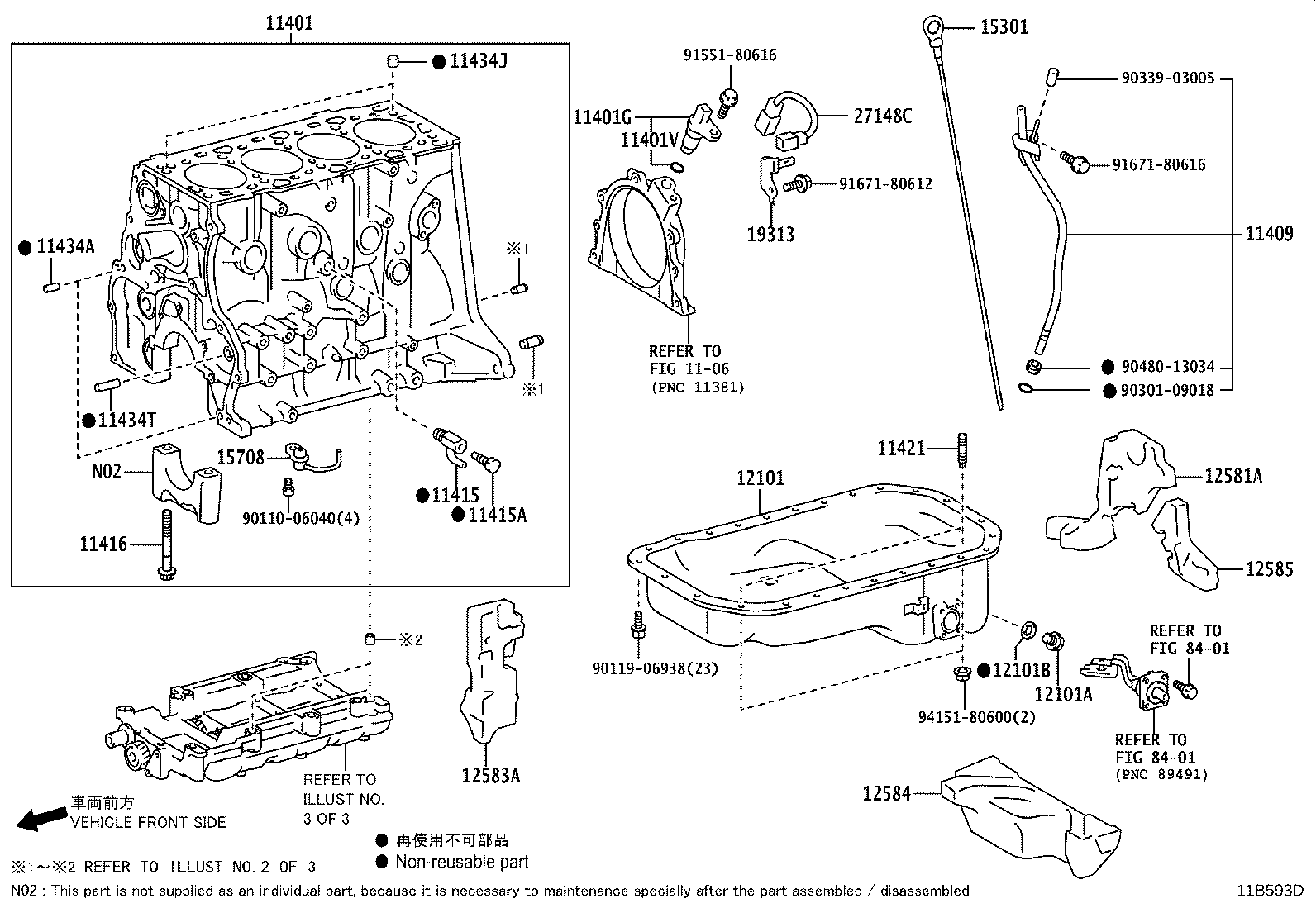

ILLUST NO. 1 OF 3(1712- )1GDFTV

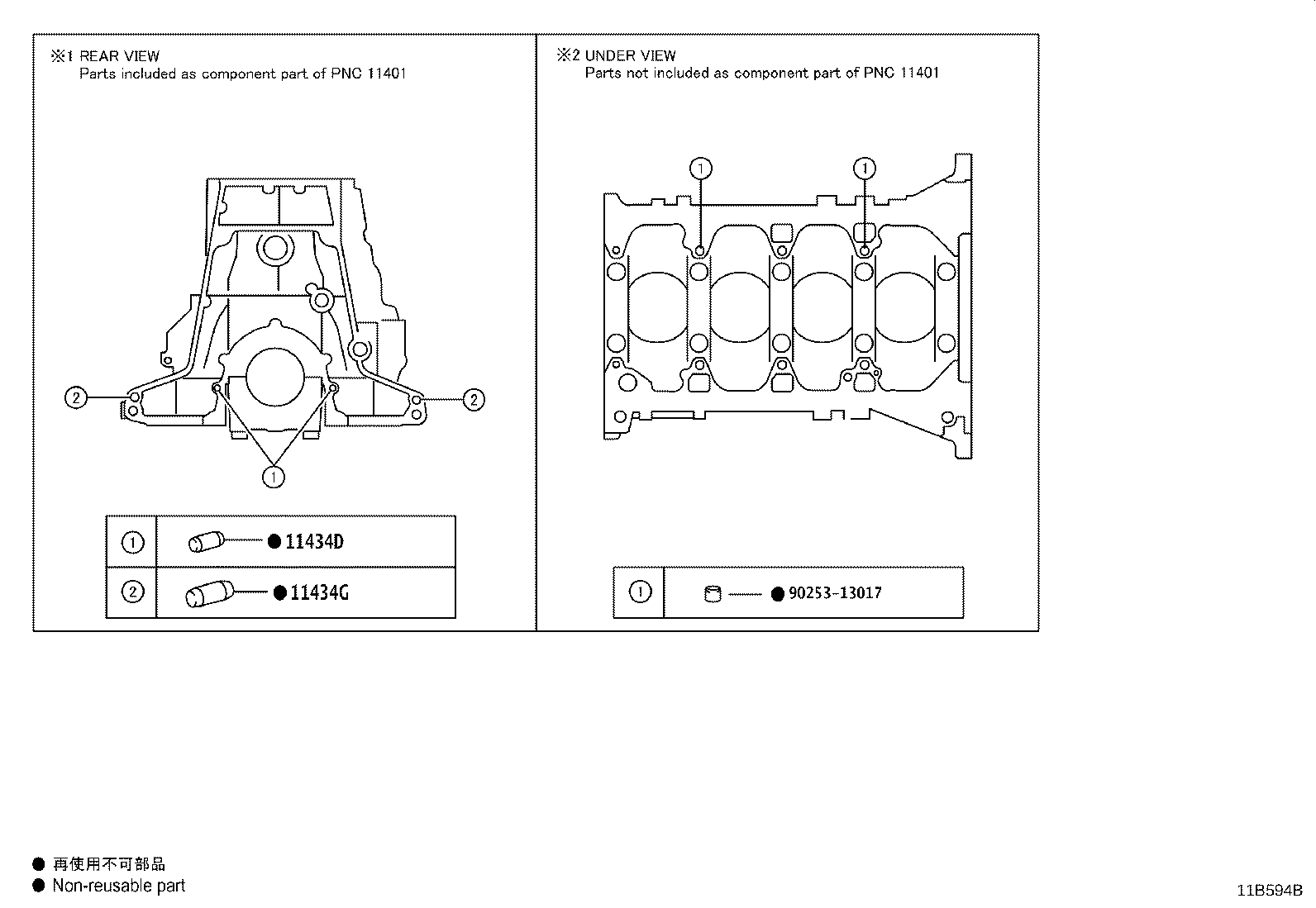

ILLUST NO. 2 OF 3(1712- )1GDFTV

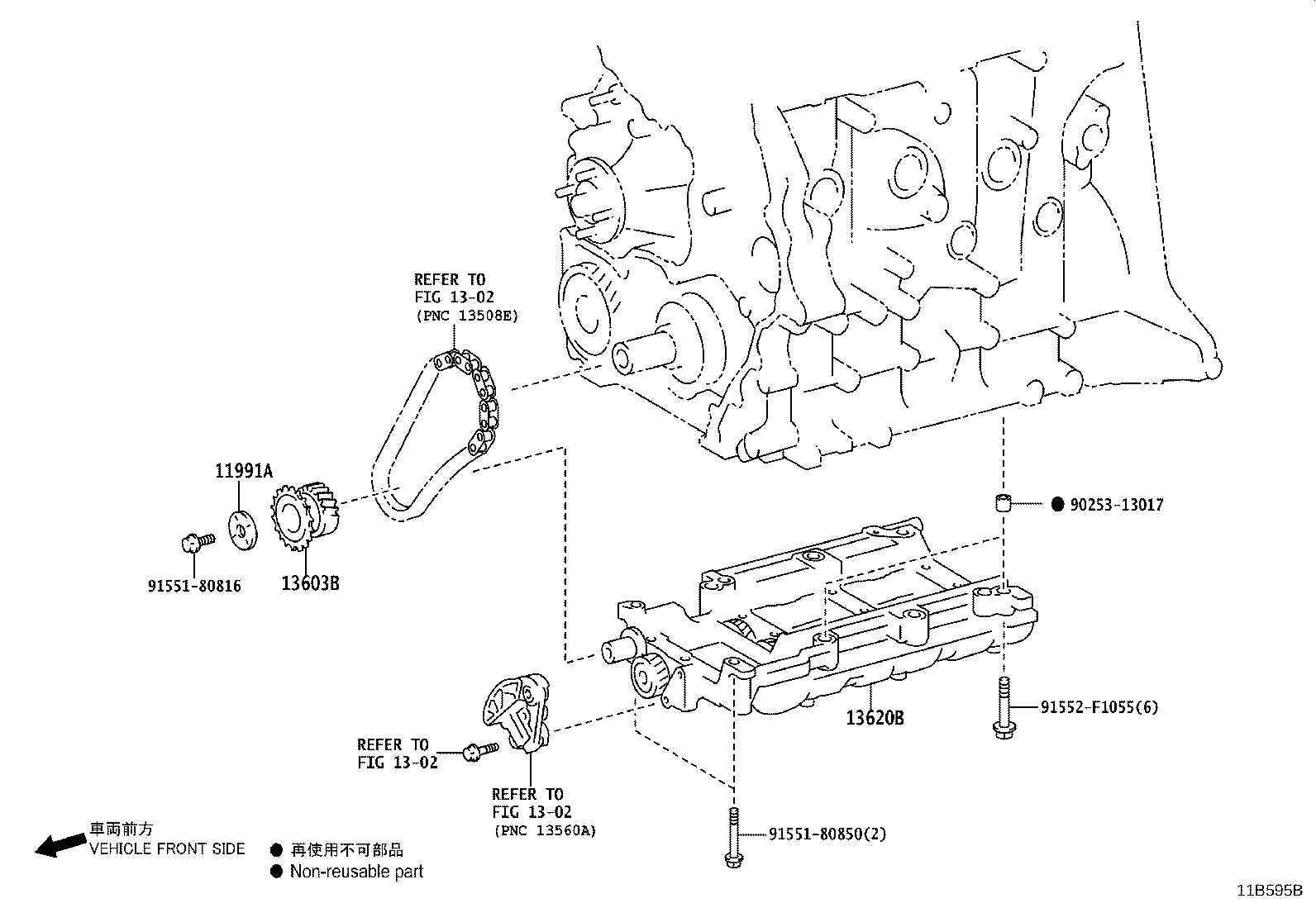

ILLUST NO. 3 OF 3(1712- )1GDFTV
