GDH206V-RFTDY (2017)

Toyota Hiace/Regiusace

Production Dec 2017 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

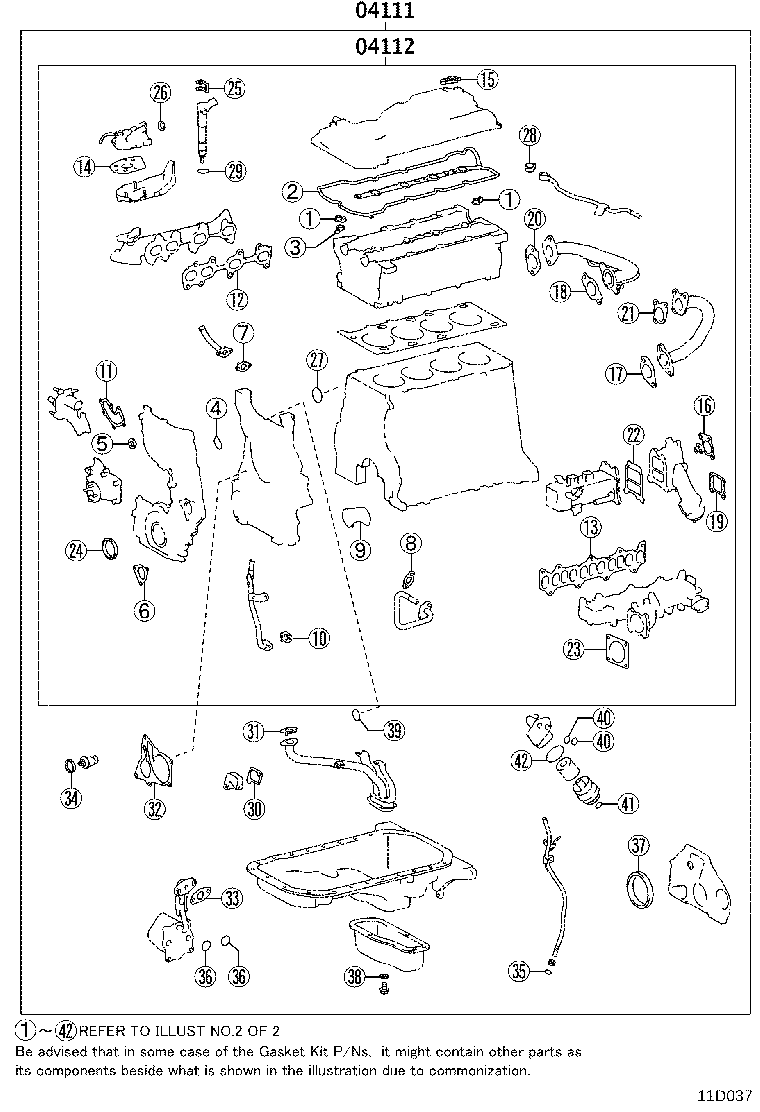

ILLUST NO. 1 OF 2(1712- )1GDFTV

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-60021

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-60020

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1

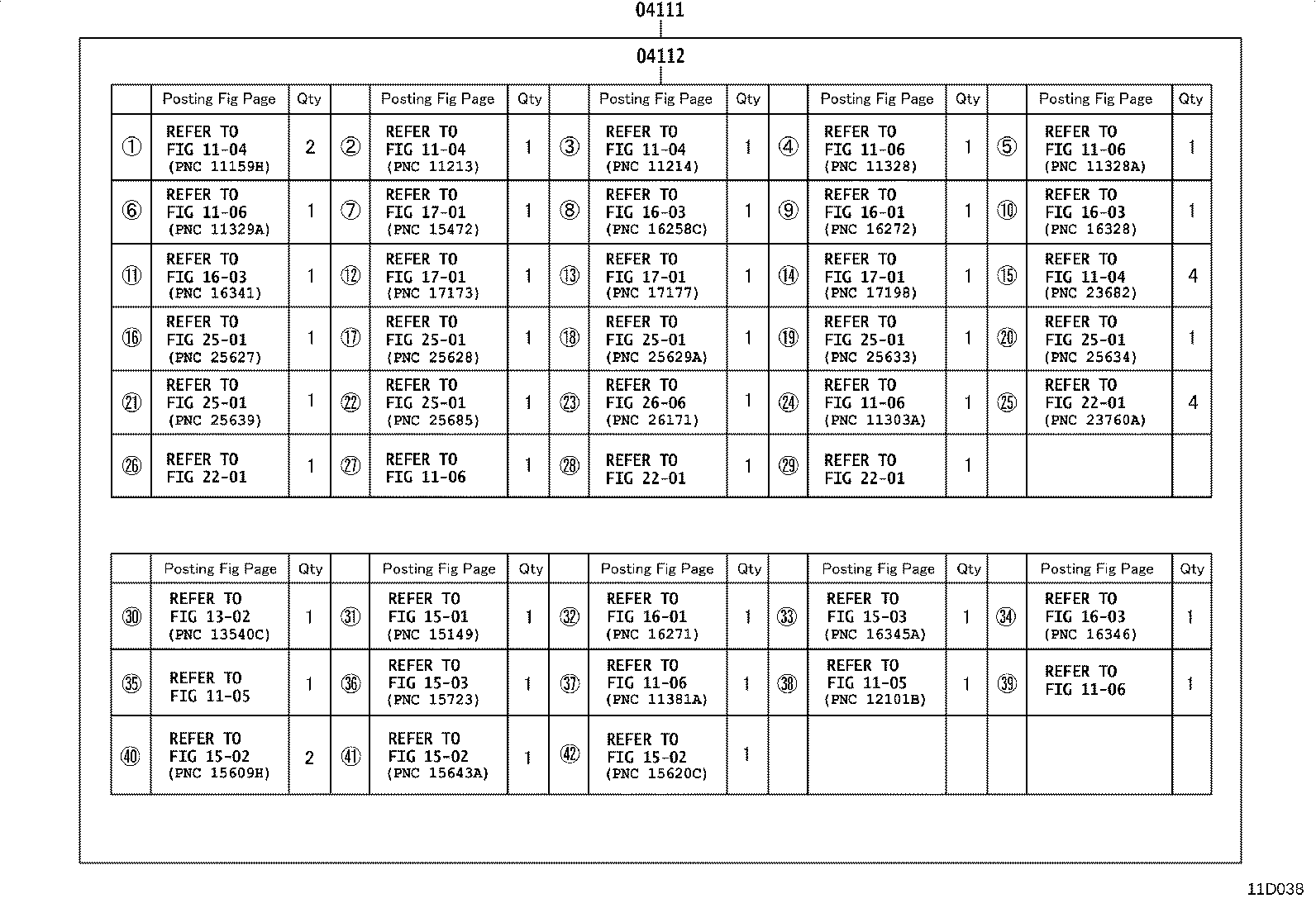

ILLUST NO. 2 OF 2(1712- )1GDFTV

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1104 1105 1105 1106 1106 1106 1106 1106 1106 1106 1302 1501 1502 1502 1502 1503 1503 1601 1601 1603 1603 1603 1603 1701 1701 1701 1701 2201 2201 2201 2201 2501 2501 2501 2501 2501 2501 2501 2606
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-60021

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-60020

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
Linked diagrams
1104
1105
1106
1302
1501
1502
1503
1601
1603
1701
2201
2501
2606
