GDH206K-FRTDY (2017)
Toyota Hiace/Regiusace

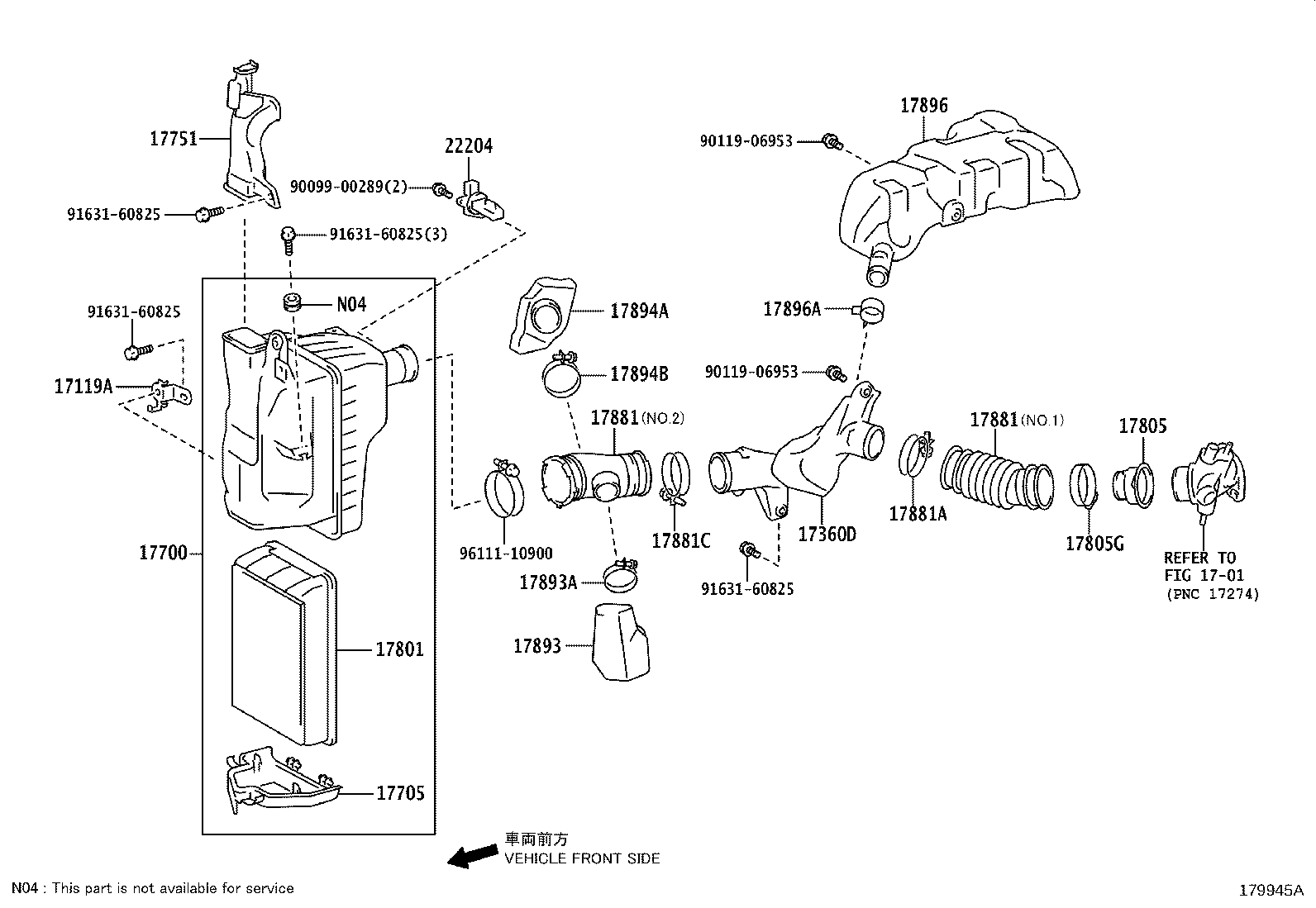

ILLUST NO. 2 OF 2(1712- )1GDFTV..GDH206
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17119A - BRACKET, AIR CLEANER | ||||
| 17119-30020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17360D - PIPE ASSY, AIR | ||||
| 17360-11080 |
1GDFTV..GDH206 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-11A00 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 17700-11A01 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-30180 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 17705-30181 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17750-30060 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-30070 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-30020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17805G - CLAMP, HOSE(FOR AIR CONNECTOR) | ||||
| 90460-67004 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-11630 |
1GDFTV..GDH206 NO.1 |
1 | ||
| 17881-30150 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.2 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-11630 |
1GDFTV..GDH206 NO.1 |
1 | ||
| 17881-30150 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10650 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-30060 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 96111-10500 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17894A - RESONATOR, INTAKE AIR, NO.2 | ||||
| 17894-30020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 96111-10690 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17896 - RESONATOR, INTAKE AIR, NO.3 | ||||
| 17896-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3) | ||||
| 96136-44301 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30030 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06953 | ||||
| 91631-60825 | ||||
| 96111-10900 | ||||
| Linked diagrams | ||||
| 1701 | ||||

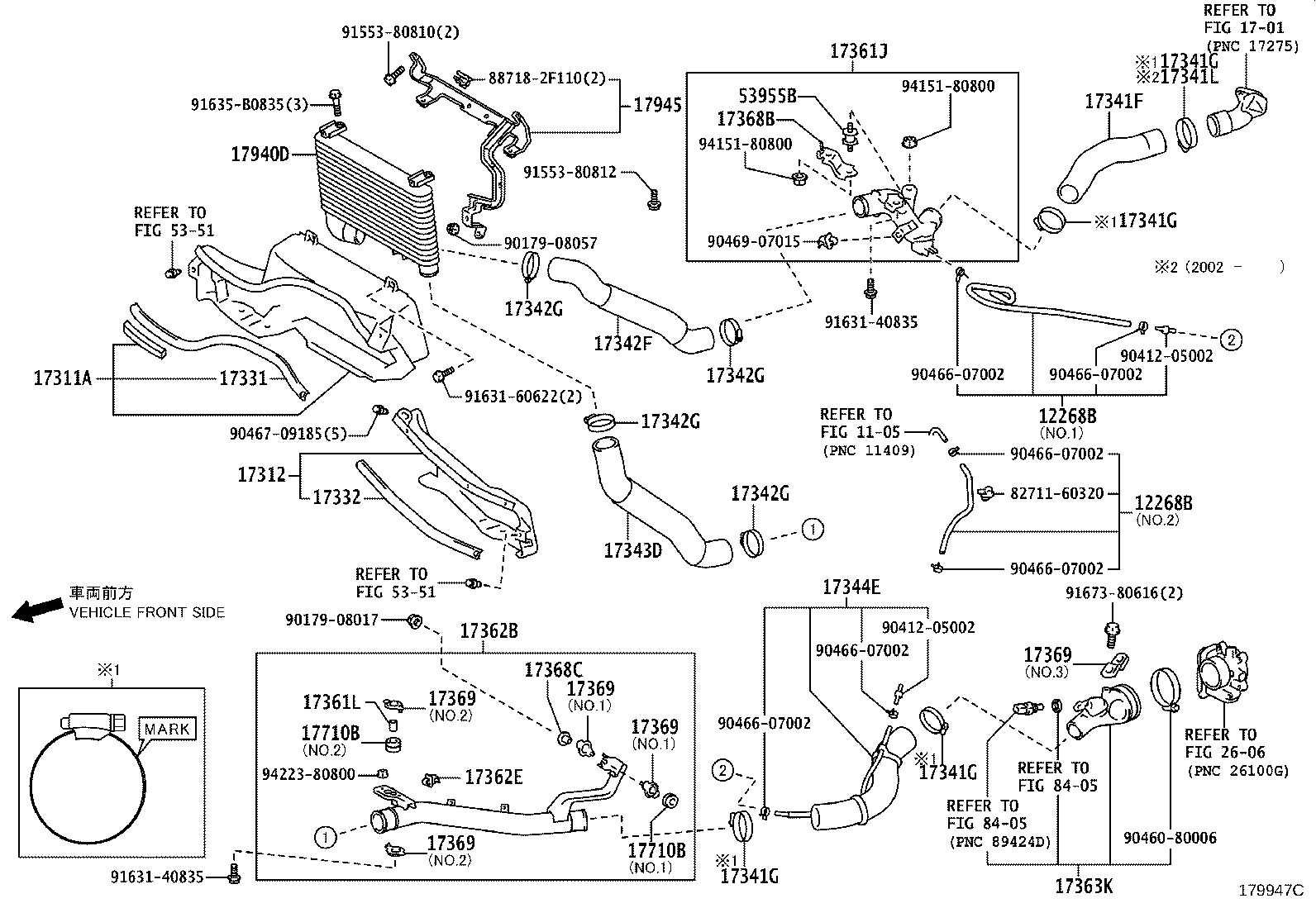

ILLUST NO. 1 OF 2(1712- )1GDFTV..GDH206
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12268B - HOSE, OIL RETURN | ||||
| 12268-11030 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.2 |
1 | ||
| 12268-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.1 |
1 | ||
| 12268B - HOSE, OIL RETURN | ||||
| 12268-11030 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.2 |
1 | ||
| 12268-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.1 |
1 | ||
| 17311A - DUCT, AIR INLET, NO.1 | ||||
| 17311-30050 |
1GDFTV..GDH206;1GDFTV..GDH201..CBU |
1 | ||
| 17312 - DUCT, AIR INLET, NO.2 | ||||
| 17312-11010 |
1GDFTV..GDH206;1GDFTV..GDH201..CBU |
1 | ||
| 17331 - SEAL, DUCT AIR INLET NO.1 | ||||
| 17331-30030 |
1GDFTV..GDH206;1GDFTV..GDH201..CBU |
1 | ||
| 17332 - SEAL, DUCT AIR INLET NO.2 | ||||
| 17332-30010 |
1GDFTV..GDH206;1GDFTV..GDH201..CBU |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-11500 |
1GDFTV..GDH206,226 |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-65012 |
1GDFTV..GDH20#,211,22# ﾏｰｸ無し |
3 | ||
| 90460-65012 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU ﾏｰｸ無し |
2 | ||
| 90460-67008 |
1GDFTV..GDH20#,211,22# 識別記号=ｲｴﾛｰ |
3 | ||
| 90460-67008 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 識別記号=ｲｴﾛｰ |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-65012 |
1GDFTV..GDH20#,211,22# ﾏｰｸ無し |
3 | ||
| 90460-65012 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU ﾏｰｸ無し |
2 | ||
| 90460-67008 |
1GDFTV..GDH20#,211,22# 識別記号=ｲｴﾛｰ |
3 | ||
| 90460-67008 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 識別記号=ｲｴﾛｰ |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-65012 |
1GDFTV..GDH20#,211,22# ﾏｰｸ無し |
3 | ||
| 90460-65012 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU ﾏｰｸ無し |
2 | ||
| 90460-67008 |
1GDFTV..GDH20#,211,22# 識別記号=ｲｴﾛｰ |
3 | ||
| 90460-67008 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 識別記号=ｲｴﾛｰ |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-65012 |
1GDFTV..GDH20#,211,22# ﾏｰｸ無し |
3 | ||
| 90460-65012 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU ﾏｰｸ無し |
2 | ||
| 90460-67008 |
1GDFTV..GDH20#,211,22# 識別記号=ｲｴﾛｰ |
3 | ||
| 90460-67008 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 識別記号=ｲｴﾛｰ |
2 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-68001 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-30062 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-67008 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
4 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-67008 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
4 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-67008 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
4 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-67008 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
4 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-30023 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-11090 |
1GDFTV..GDH206,226 |
1 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-11120 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17361L - PIN, RING(FOR AIR TUBE) | ||||
| 90253-13002 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-11020 |
1GDFTV..GDH206;1GDFTV..GDH201..CBU |
1 | ||
| 17362E - CLAMP, NO.2(FOR AIR TUBE, NO.2) | ||||
| 90469-07015 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 17363K - TUBE, AIR, NO.3(FOR INTERCOOLER) | ||||
| 17363-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17368B - SUPPORT, AIR TUBE | ||||
| 17368-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17368C - BUSH(FOR AIR TUBE SUPPORT) | ||||
| 90389-09025 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17369 - BRACKET, AIR TUBE SUPPORT | ||||
| 17369-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.3 |
1 | ||
| 17369-30020 |
1GDFTV..GDH223..CBU;1GDFTV..GDH206,211,221,226 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 17369-30010 |
1GDFTV..GDH223..CBU;1GDFTV..GDH206,211,221,226 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 17369 - BRACKET, AIR TUBE SUPPORT | ||||
| 17369-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.3 |
1 | ||
| 17369-30020 |
1GDFTV..GDH223..CBU;1GDFTV..GDH206,211,221,226 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 17369-30010 |
1GDFTV..GDH223..CBU;1GDFTV..GDH206,211,221,226 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 17369 - BRACKET, AIR TUBE SUPPORT | ||||
| 17369-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.3 |
1 | ||
| 17369-30020 |
1GDFTV..GDH223..CBU;1GDFTV..GDH206,211,221,226 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 17369-30010 |
1GDFTV..GDH223..CBU;1GDFTV..GDH206,211,221,226 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 17369 - BRACKET, AIR TUBE SUPPORT | ||||
| 17369-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.3 |
1 | ||
| 17369-30020 |
1GDFTV..GDH223..CBU;1GDFTV..GDH206,211,221,226 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 17369-30010 |
1GDFTV..GDH223..CBU;1GDFTV..GDH206,211,221,226 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 17369 - BRACKET, AIR TUBE SUPPORT | ||||
| 17369-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.3 |
1 | ||
| 17369-30020 |
1GDFTV..GDH223..CBU;1GDFTV..GDH206,211,221,226 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 17369-30010 |
1GDFTV..GDH223..CBU;1GDFTV..GDH206,211,221,226 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 17710B - GROMMET | ||||
| 90480-16021 |
1GDFTV..GDH223..CBU;1GDFTV..GDH206,211,221,226 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90480-16039 |
1GDFTV..GDH223..CBU;1GDFTV..GDH206,211,221,226 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 17710B - GROMMET | ||||
| 90480-16021 |
1GDFTV..GDH223..CBU;1GDFTV..GDH206,211,221,226 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90480-16039 |
1GDFTV..GDH223..CBU;1GDFTV..GDH206,211,221,226 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-30051 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 17945 - BRACKET, INTERCOOLER SUPPORT | ||||
| 17945-30040 |
1GDFTV..GDH206;1GDFTV..GDH201..CBU |
1 | ||
| 53955B - CUSHION, AIR CLEANER INLET, NO.1 | ||||
| 53955-95402 |
GDH206;GDH201,211,22#..CBU,IV6 |
1 | ||
| Common parts | ||||
| 82711-60320 | ||||
| 88718-2F110 | ||||
| 90179-08017 | ||||
| 90179-08057 | ||||
| 90412-05002 | ||||
| 90460-80006 | ||||
| 90466-07002 | ||||
| 90467-09185 | ||||
| 90469-07015 | ||||
| 91553-80810 | ||||
| 91553-80812 | ||||
| 91631-40835 | ||||
| 91631-60622 | ||||
| 91635-B0835 | ||||
| 91673-80616 | ||||
| 94151-80800 | ||||
| 94223-80800 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1701 | ||||
| 2606 | ||||
| 5351 | ||||
| 8405 | ||||
