Toyota Hiace/regiusace GDH206 FUEL FILTER

GDH206K-ERTDY5 (2017)

Toyota Hiace/Regiusace

Production Dec 2017 - Sep 9999

Engine 1GDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1712- )1GDFTV

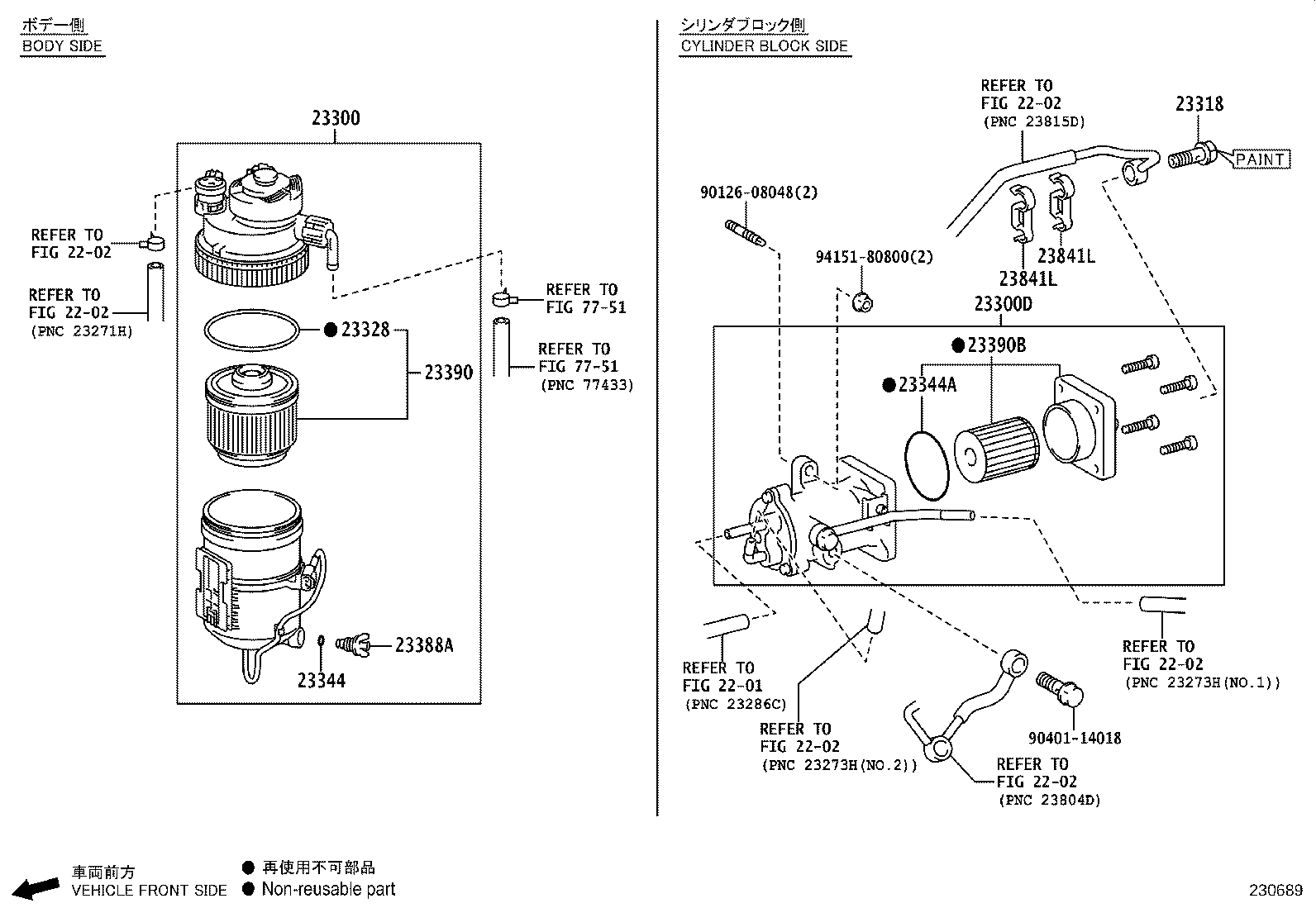

Click highlighted areas on diagram

Part #	Description	Period	Qty
23300 - FILTER ASSY, FUEL
23300-30205	1GDFTV..GDH20#,211,22#	12/2017 - 08/2018	1
23300-30218	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	08/2018 - 12/2999	1
23300-30218	1GDFTV..GDH20#,211,22# 寒冷地仕様	12/2017 - 08/2018	1
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-11231	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	07/2018 - 12/2999	1
23300-11230	1GDFTV..GDH20#,211,22#	12/2017 - 07/2018	1
23318 - BOLT, UNION
90401-14020	1GDFTV..GDH20#,211,22# 識別ﾍﾟｲﾝﾄ=ﾋﾟﾝｸ	12/2018 - 06/2019	1
90401-T0009	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 ﾍﾟｲﾝﾄ無し	07/2019 - 12/2999	1
90401-14018	1GDFTV..GDH20#,211,22# ﾍﾟｲﾝﾄ無し	12/2017 - 12/2018	1
23328 - GASKET(FOR FUEL FILTER)
23344-0L010	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER)
23344-0L041	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
23344A - GASKET, FUEL FILTER ELEMENT
23385-11230	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
23388A - PLUG, FUEL FILTER DRAIN
23388-0L041	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
23390 - ELEMENT ASSY, FUEL FILTER
23390-0L050	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
23390B - ELEMENT ASSY, FUEL FILTER, NO.2
23390-11230	1GDFTV..GDH20#,211,22#	12/2017 - 07/2018	1
23390-11231	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	07/2018 - 12/2999	1
23841L - CLAMP, FUEL PIPE
23841-11050	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	2
23841L - CLAMP, FUEL PIPE
23841-11050	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	2
Common parts
90126-08048
90401-14018
94151-80800
Linked diagrams
2201
2202
7751

(1712- )1GDFTV

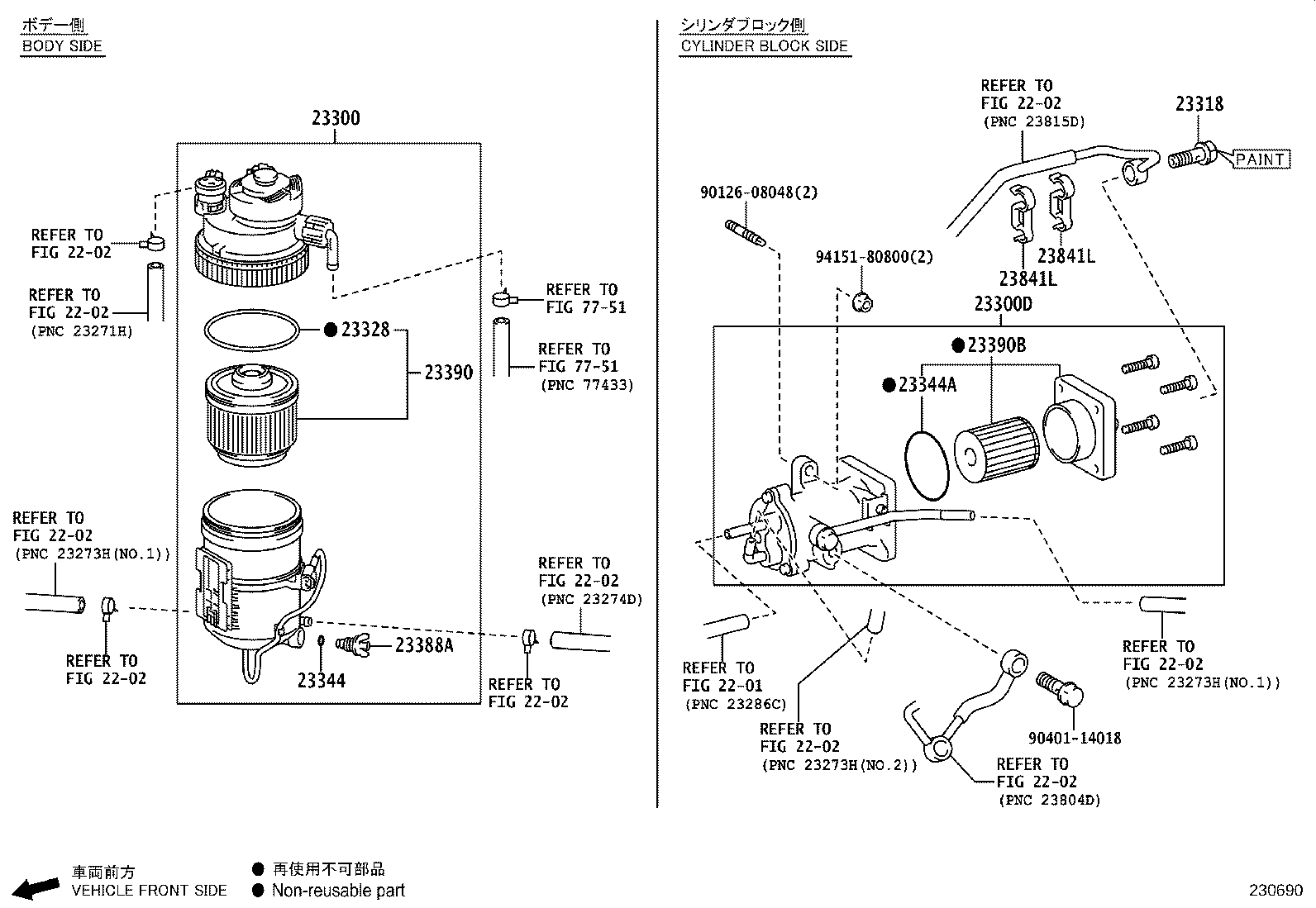

Click highlighted areas on diagram

COLD AREA SPEC

Part #	Description	Period	Qty
23300 - FILTER ASSY, FUEL
23300-30205	1GDFTV..GDH20#,211,22#	12/2017 - 08/2018	1
23300-30218	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	08/2018 - 12/2999	1
23300-30218	1GDFTV..GDH20#,211,22# 寒冷地仕様	12/2017 - 08/2018	1
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-11231	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	07/2018 - 12/2999	1
23300-11230	1GDFTV..GDH20#,211,22#	12/2017 - 07/2018	1
23318 - BOLT, UNION
90401-14020	1GDFTV..GDH20#,211,22# 識別ﾍﾟｲﾝﾄ=ﾋﾟﾝｸ	12/2018 - 06/2019	1
90401-T0009	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 ﾍﾟｲﾝﾄ無し	07/2019 - 12/2999	1
90401-14018	1GDFTV..GDH20#,211,22# ﾍﾟｲﾝﾄ無し	12/2017 - 12/2018	1
23328 - GASKET(FOR FUEL FILTER)
23344-0L010	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER)
23344-0L041	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
23344A - GASKET, FUEL FILTER ELEMENT
23385-11230	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
23388A - PLUG, FUEL FILTER DRAIN
23388-0L041	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
23390 - ELEMENT ASSY, FUEL FILTER
23390-0L050	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	1
23390B - ELEMENT ASSY, FUEL FILTER, NO.2
23390-11230	1GDFTV..GDH20#,211,22#	12/2017 - 07/2018	1
23390-11231	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	07/2018 - 12/2999	1
23841L - CLAMP, FUEL PIPE
23841-11050	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	2
23841L - CLAMP, FUEL PIPE
23841-11050	1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6	12/2017 - 12/2999	2
Common parts
90126-08048
90401-14018
94151-80800
Linked diagrams
2201
2202
7751
