GDH206K-ERTDY (2017)
Toyota Hiace/Regiusace

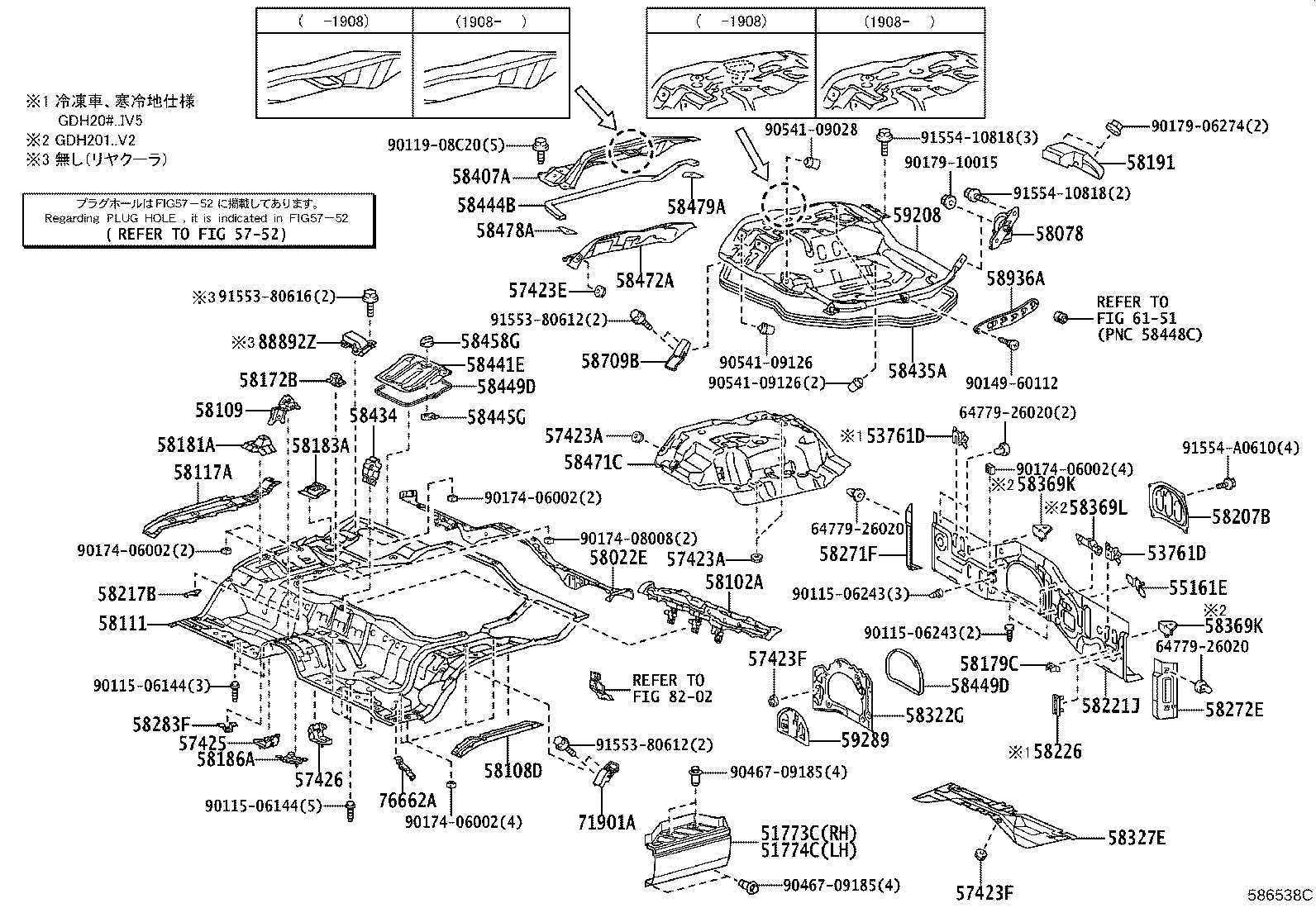

ILLUST NO. 1 OF 2(1712- )GDH20#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-26023 |
TRH200,214,219..(4FC,6FC)..DX..CBU;GDH20#,22#,KDH20#,22#,TRH221,223,226,228..(DX,GL)..CBU |
1 | ||
| 51773-26034A0 |
TRH200..(06S,09S)..(4FC,6FC);GDH20#,221,226,KDH20#,221,TRH221,226..(05S,06S,09S)..DX GLﾊﾟｯｹｰｼﾞ,WHITE,058 |
1 | ||
| 51773-26034C0 |
GDH20#,KDH20#..06S,09S;TRH200..(06S,09S)..(4FC,6FC) GLﾊﾟｯｹｰｼﾞ,BLACK MC.,209 |
1 | ||
| 51773-26034B2 |
TRH200..(06S,09S)..(4FC,6FC);GDH20#,221,226,KDH20#,221,TRH221,226..(05S,06S,09S)..DX GLﾊﾟｯｹｰｼﾞ,SILVER M.M.,1E7 |
1 | ||
| 51773-26034J0 |
TRH200..(06S,09S)..(4FC,6FC);GDH20#,221,226,KDH20#,221,TRH221,226..(05S,06S,09S)..DX GLﾊﾟｯｹｰｼﾞ,DK.BLUE M.M.,8P4 |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51774-26023 |
TRH200,214,219..(4FC,6FC)..DX..CBU;GDH20#,22#,KDH20#,22#,TRH221,223,226,228..(DX,GL)..CBU |
1 | ||
| 51774-26034J0 |
TRH200..(06S,09S)..(4FC,6FC);GDH20#,221,226,KDH20#,221,TRH221,226..(05S,06S,09S)..DX GLﾊﾟｯｹｰｼﾞ,DK.BLUE M.M.,8P4 |
1 | ||
| 51774-26034B2 |
TRH200..(06S,09S)..(4FC,6FC);GDH20#,221,226,KDH20#,221,TRH221,226..(05S,06S,09S)..DX GLﾊﾟｯｹｰｼﾞ,SILVER M.M.,1E7 |
1 | ||
| 51774-26034C0 |
GDH20#,KDH20#..06S,09S;TRH200..(06S,09S)..(4FC,6FC) GLﾊﾟｯｹｰｼﾞ,BLACK MC.,209 |
1 | ||
| 51774-26034A0 |
TRH200..(06S,09S)..(4FC,6FC);GDH20#,221,226,KDH20#,221,TRH221,226..(05S,06S,09S)..DX GLﾊﾟｯｹｰｼﾞ,WHITE,058 |
1 | ||
| 53761D - BRACKET, BATTERY CLAMP | ||||
| 53761-26030 |
GDH20#,22#..(COM,V1)..DX..CBU 寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),左側 |
1 | ||
| 53761-26021 |
GDH20#,22#..(COM,V1)..DX..CBU 寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),右側 |
1 | ||
| 53761-26030 |
GDH20#..4D..06S ﾊﾞﾝ架装用ﾊﾟｯｹｰｼﾞ&寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),左､ |
1 | ||
| 53761-26021 |
GDH20#..4D..06S ﾊﾞﾝ架装用ﾊﾟｯｹｰｼﾞ&寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),右､ |
1 | ||
| 53761D - BRACKET, BATTERY CLAMP | ||||
| 53761-26030 |
GDH20#,22#..(COM,V1)..DX..CBU 寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),左側 |
1 | ||
| 53761-26021 |
GDH20#,22#..(COM,V1)..DX..CBU 寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),右側 |
1 | ||
| 53761-26030 |
GDH20#..4D..06S ﾊﾞﾝ架装用ﾊﾟｯｹｰｼﾞ&寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),左､ |
1 | ||
| 53761-26021 |
GDH20#..4D..06S ﾊﾞﾝ架装用ﾊﾟｯｹｰｼﾞ&寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),右､ |
1 | ||
| 55161E - BRACKET, HEATER MOUNTING | ||||
| 55161-26050 |
GDH20#,211,22#,TRH211,216,223,228..(COM,V1)..6FC |
1 | ||
| 55161-26050 |
GDH20#,22#..(COM,V1)..DX..CBU 寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側) |
1 | ||
| 55161-26050 |
GDH20#..4D..06S ﾊﾞﾝ架装用ﾊﾟｯｹｰｼﾞ&寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側) |
1 | ||
| 55161-26050 |
TRH223,228..IV5;GDH201..V1..DX..CBU;GDH206,22#,TRH221,223,226,228..DX..(CBU,IV5) SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側) |
1 | ||
| 55161-26050 |
GDH20#..4D..06S ﾊﾞﾝ架装用ﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側) |
1 | ||
| 57423A - CLAMP, FRONT FLOOR | ||||
| 57423-26010 |
GDH206;GDH201..CBU |
3 | ||
| 57423A - CLAMP, FRONT FLOOR | ||||
| 57423-26010 |
GDH206;GDH201..CBU |
3 | ||
| 57423E - CLAMP, FRONT FLOOR, NO.2 | ||||
| 57423-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
4 | ||
| 57423F - CLAMP, FRONT FLOOR, NO.3 | ||||
| 57423-26010 |
TRH214,219..5D;TRH200..4FC,6FC;TRH224..4FC..CBU;GDH201,211,22#..CBU,IV6;TRH21#,221,223,226,228,229..4FC;GDH206,KDH20#,TRH224..02S,03S,05S,06S,09S |
5 | ||
| 57423F - CLAMP, FRONT FLOOR, NO.3 | ||||
| 57423-26010 |
TRH214,219..5D;TRH200..4FC,6FC;TRH224..4FC..CBU;GDH201,211,22#..CBU,IV6;TRH21#,221,223,226,228,229..4FC;GDH206,KDH20#,TRH224..02S,03S,05S,06S,09S |
5 | ||
| 57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57426-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58022E - REINFORCEMENT SUB-ASSY, HEADER PANEL | ||||
| 58022-26350 |
GDH20#..CBU 寒冷地仕様 |
1 | ||
| 58078 - BALANCER SUB-ASSY, ENGINE SERVICE HOLE COVER | ||||
| 58078-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-26310 |
GDH206;GDH201..CBU |
1 | ||
| 58108D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH | ||||
| 58108-26030 |
GDH201..CBU;GDH206,KDH20#;TRH200..4FC,6FC |
1 | ||
| 58109 - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58109-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH | ||||
| 58117-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58172B - BRACKET, COMPUTER MOUNTING, NO.3 | ||||
| 58172-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58179C - BRACKET, CLAMP FLOOR | ||||
| 58179-26080 |
TRH200..4FC,6FC;TRH221,226..02S;TRH221,226..4FC..CBU;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,TRH21#,229..CBU,IV6 |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-26080 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58183A - RETAINER, SEAT RAIL, REAR RH | ||||
| 58105-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58186A - BRACKET, BRAKE TUBE SET | ||||
| 58186-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-26050 |
GDH201..CBU;GDH206,KDH20#;TRH200..4FC,6FC |
1 | ||
| 58207B - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | ||||
| 58207-26090 |
GDH206;GDH201,211,22#..CBU,IV6 |
1 | ||
| 58217B - PLATE, FRONT FLOOR | ||||
| 58217-26040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58221J - PANEL, HEADER | ||||
| 58221-26870 |
GDH20#..DX..CBU |
1 | ||
| 58221-26A60 |
GDH20#..4D..06S ﾊﾞﾝ架装用ﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側) |
1 | ||
| 58221-26A60 |
GDH206..HRF..4D..CBU 特装車両:008J |
1 | ||
| 58221-26A60 |
GDH20#..4D..06S ﾊﾞﾝ架装用ﾊﾟｯｹｰｼﾞ&寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側) |
1 | ||
| 58271F - PLATE, FLOOR SIDE, REAR RH | ||||
| 58271-26010 |
TRH200..4FC,6FC;TRH221,226..02S;TRH221,226..4FC..CBU;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,TRH21#,229..CBU,IV6 |
1 | ||
| 58272E - PLATE, FLOOR SIDE, REAR LH | ||||
| 58272-26020 |
TRH200..4FC,6FC;TRH221,226..02S;TRH221,226..4FC..CBU;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,TRH21#,229..CBU,IV6 |
1 | ||
| 58283F - BRACKET, PARKING CABLE CLAMP, NO.6 | ||||
| 55731-26060 |
GDH206,KDH20#,223;GDH201,211,22#,KDH211,221..CBU,IV6 |
1 | ||
| 58322G - INSULATOR, HEADER PANEL, NO.1 | ||||
| 58322-26110 |
GDH206;GDH201..CBU |
1 | ||
| 58327E - INSULATOR, TRANSMISSION SERVICE HOLE COVER | ||||
| 58327-26070 |
GDH201..CBU;GDH206,KDH20#;TRH200..4FC,6FC |
1 | ||
| 58434 - HOOK, ENGINE SERVICE HOLE COVER | ||||
| 58434-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58435A - PACKING, ENGINE MAIN COVER | ||||
| 58435-26020 |
GDH201..CBU;GDH206,KDH20#;TRH200..4FC,6FC |
1 | ||
| 58441E - COVER, BATTERY SERVICE HOLE | ||||
| 58209-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58445G - LOCK, BATTERY SERVICE HOLE COVER | ||||
| 58445-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58449D - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-26040 |
GDH206;GDH201,211,22#..CBU,IV6 長さ=800 |
1 | ||
| 58449-26021 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 長さ=1065 |
1 | ||
| 58449D - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-26040 |
GDH206;GDH201,211,22#..CBU,IV6 長さ=800 |
1 | ||
| 58449-26021 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 長さ=1065 |
1 | ||
| 58458G - KNOB, BATTERY SERVICE HOLE COVER | ||||
| 58458-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58471C - SILENCER, ENGINE MAIN COVER | ||||
| 58471-26110 |
GDH206;GDH201..CBU |
1 | ||
| 58478A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58478-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58709B - CATCH SUB-ASSY, ENGINE SERVICE COVER | ||||
| 58709-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 59208 - COVER SUB-ASSY, ENGINE SERVIS HOLE MAIN | ||||
| 59208-26560 |
GDH206..DX;GDH201..DX..CBU |
1 | ||
| 59208-26570 |
GDH206..HRF..4D..CBU 特装車両:008J |
1 | ||
| 59208-26570 |
GDH20#..4D..06S ﾊﾞﾝ架装用ﾊﾟｯｹｰｼﾞ |
1 | ||
| 59289 - SILENCER, TRANSMISSION COVER | ||||
| 59289-26010 |
GDH206;GDH201,211,22#..CBU,IV6 |
1 | ||
| 71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT | ||||
| 71902-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 76662A - BRACE, FRONT MUDGUARD, FRONT LH | ||||
| 76661-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 88892Z - COVER, COOLER | ||||
| 88891-26260 |
TRH200..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..DX..CBU |
1 | ||
| 88891-26260 |
TRH200..SG..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..SG..DX..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| Common parts | ||||
| 64779-26020 | ||||
| 90115-06144 | ||||
| 90115-06243 | ||||
| 90119-08C20 | ||||
| 90149-60112 | ||||
| 90174-06002 | ||||
| 90174-08008 | ||||
| 90179-06274 | ||||
| 90179-10015 | ||||
| 90467-09185 | ||||
| 90541-09028 | ||||
| 90541-09126 | ||||
| 91553-80612 | ||||
| 91553-80616 | ||||
| 91554-10818 | ||||
| 91554-A0610 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 6151 | ||||
| 8202 | ||||

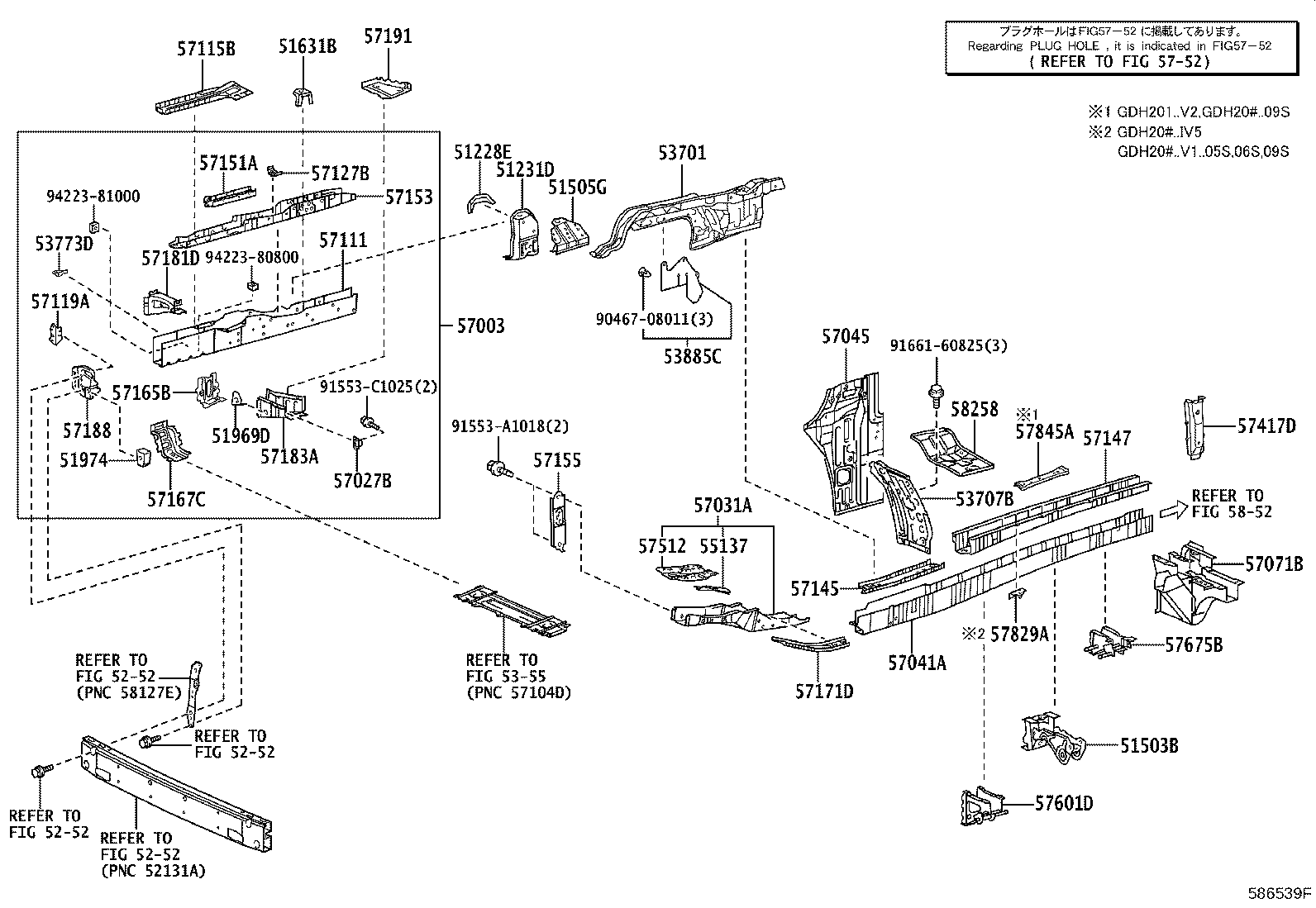

ILLUST NO. 2 OF 2(1712- )GDH20#
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51228E - PATCH, FRONT SUSPENSION MEMBER, RH | ||||
| 51228-26060 |
GDH206,226,KDH206,TRH216,219,226,228,229 |
1 | ||
| 51231D - BRACKET, FRONT SHOCK ABSORBER, RH | ||||
| 51231-26060 |
GDH206,226,KDH206,TRH216,219,226,228,229 |
1 | ||
| 51503B - BRACE SUB-ASSY, LOWER ARM BRACKET, RH | ||||
| 51503-26040 |
KDH223,TRH223,224,228;TRH200..V1..(4FC,6FC)..CBU;GDH20#,211,22#,KDH20#,211,221,TRH21#,221,226,229..(COM,V1,WG)..(CBU,IV6,IV7) |
1 | ||
| 51631B - STOPPER, FRONT SUSPENSION REBOUND, RH | ||||
| 51631-26070 |
GDH206,226,KDH206,TRH216,219,226,228,229 |
1 | ||
| 51969D - REINFORCEMENT, TRANSPORT HOOK MOUNTING, REAR RH | ||||
| 51969-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 51974 - NUT, TRANSPORT HOOK, RH | ||||
| 51974-26011 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-26190 |
GDH20#..CBU 寒冷地仕様 |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53707-26080 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 53773D - BRACKET, AIR CLEANER MOUNTING | ||||
| 53773-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 53885C - SEAL, FENDER APRON MUDGUARD, RH | ||||
| 53885-26071 |
GDH206,KDH20#,223;GDH201,211,22#,KDH211,221..CBU,IV6 |
1 | ||
| 55137 - BRACE, DASH TO FRAME, RH | ||||
| 55137-26020 |
GDH201..CBU;GDH206,KDH20#;TRH200..4FC,6FC |
1 | ||
| 57003 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57003-26380 |
GDH206,KDH206 |
1 | ||
| 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH | ||||
| 57027-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57031-26030 |
GDH201..CBU;GDH206,KDH20#;TRH200..4FC,6FC |
1 | ||
| 57045 - PLATE SUB-ASSY, FLOOR SIDE RAIL, RH | ||||
| 57045-26530 |
GDH20#,221,226..4D..(03S,05S,06S)..CBU |
1 | ||
| 57045-26540 |
GDH20#,221,226..4D..SG..(03S,05S,06S)..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 57071B - HANGER SUB-ASSY, REAR SPRING, FRONT A RH | ||||
| 57071-26520 |
GDH20#..V1..4D..(03S,06S)..CBU |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-26170 |
GDH201..CBU;GDH206,KDH20#;TRH200..4FC,6FC |
1 | ||
| 57115B - PLATE, FRONT SIDE MEMBER, NO.1 RH | ||||
| 57115-26030 |
GDH201..CBU;GDH206,KDH20#;TRH200..4FC,6FC |
1 | ||
| 57119A - PLATE, FRONT SIDE MEMBER, FRONT RH | ||||
| 57119-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57127B - PLATE, FRONT SUSPENSION MEMBER MOUNTING, RH | ||||
| 57127-26080 |
GDH206,226,KDH206,TRH216,219,226,228,229 |
1 | ||
| 57145 - PLATE, FRONT SIDE MEMBER, CENTER RH | ||||
| 57145-26051 |
GDH201..CBU;GDH206,KDH20#;TRH200..4FC,6FC |
1 | ||
| 57147 - PLATE, FRONT SIDE MEMBER, REAR RH | ||||
| 57147-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57151A - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH | ||||
| 57151-26150 |
GDH201..CBU;GDH206,KDH20#;TRH200..4FC,6FC |
1 | ||
| 57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57153-26090 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-26050 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57165B - REINFORCEMENT, FRONT CROSSMEMBER, NO.2 RH | ||||
| 57165-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH | ||||
| 57167-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57171D - PLATE, FRONT SIDE MEMBER TO FLOOR, RH | ||||
| 57171-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57181D - EXTENSION, FRONT CROSSMEMBER, FRONT RH | ||||
| 57181-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57183A - EXTENSION, FRONT CROSSMEMBER, RR RH | ||||
| 57183-26040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57188 - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH | ||||
| 57188-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57191 - PLATE, FRONT SIDE MEMBER, OUTER REAR RH | ||||
| 57191-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57417D - REINFORCEMENT, FLOOR SIDE, INNER RH | ||||
| 58037-26010 |
GDH201,223..4D..CBU;TRH200..4D..(4FC,6FC);GDH206,221,226,KDH20#,22#,TRH214,219,22#..4D |
1 | ||
| 57512 - REINFORCEMENT, FRONT FLOOR, RH | ||||
| 57511-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57601D - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-26032 |
KDH20#..V1;TRH200..09S..4FC;GDH201..V1..(03S,05S,06S)..CBU;GDH206,TRH200..V1..(03S,05S,06S)..(4FC,6FC) |
1 | ||
| 57675B - REINFORCEMENT, REAR FLOOR CROSS, NO.1 RH | ||||
| 57675-26020 |
KDH20#..03S,05S,06S;GDH206,KDH223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH221,226,229..CBU,IV6,IV7 |
1 | ||
| 57829A - REINFORCEMENT, SEAT LEG, RH | ||||
| 57829-26030 |
TRH214,219..5D;TRH200..V1..(05S,06S,09S)..(4FC,6FC);GDH20#,KDH20#,223,TRH223,224,228..(COM,V1,WG)..(02S,05S,06S,09S) |
1 | ||
| 58258 - PLATE, WATER GUARD, NO.1 | ||||
| 58258-26010 |
TRH200,223,224,228..4FC,6FC;GDH20#,211,22#,KDH20#,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| Common parts | ||||
| 90467-08011 | ||||
| 91553-A1018 | ||||
| 91553-C1025 | ||||
| 91661-60825 | ||||
| 94223-80800 | ||||
| 94223-81000 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 5355 | ||||
| 5752 | ||||
| 5852 | ||||

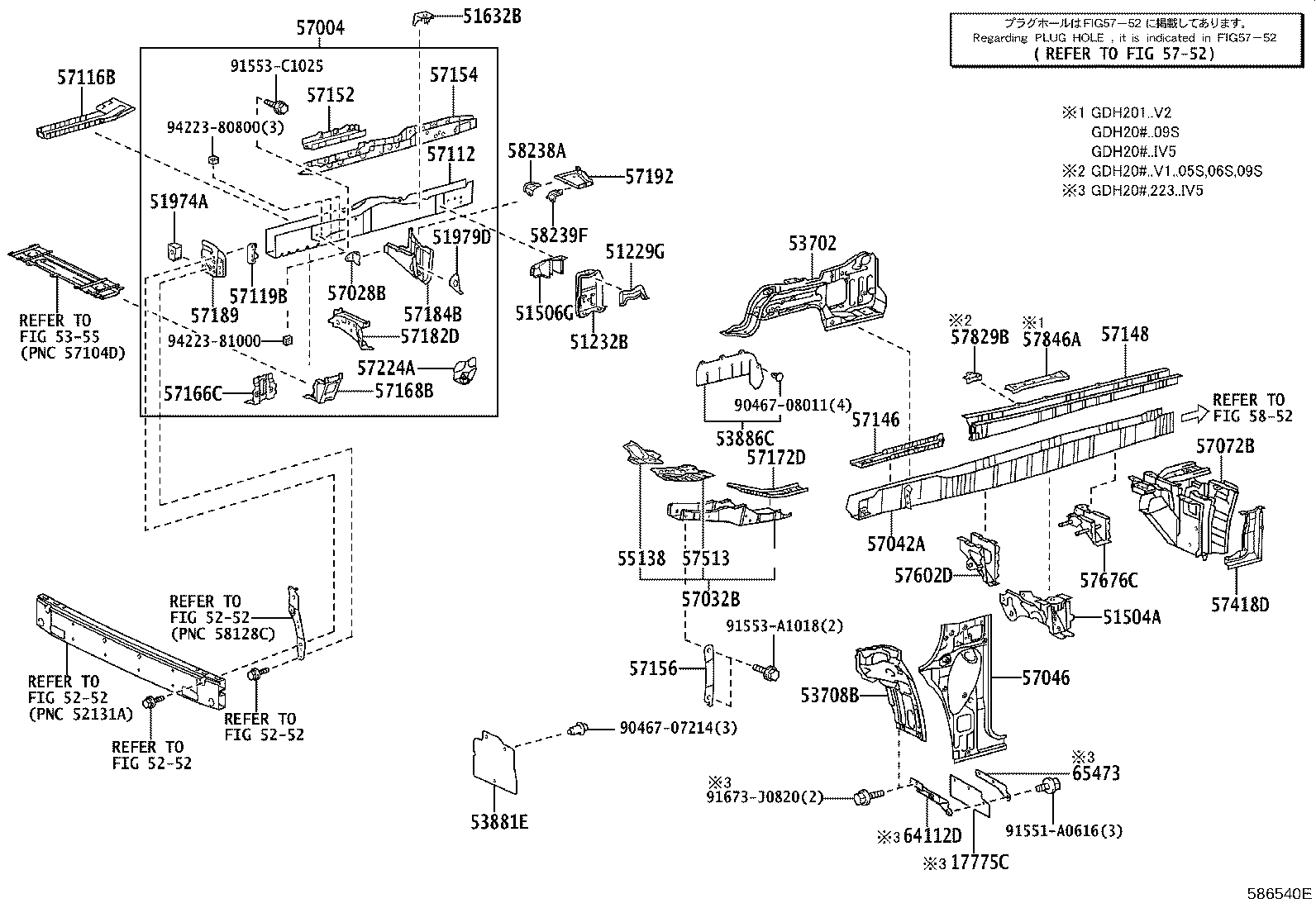

ILLUST NO. 2 OF 2(1712- )GDH20#
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51229G - PATCH, FRONT SUSPENSION MEMBER, LH | ||||
| 51229-26090 |
GDH206,226,KDH206,TRH216,219,226,228,229 |
1 | ||
| 51232B - BRACKET, FRONT SHOCK ABSORBER, LH | ||||
| 51232-26050 |
GDH206,226,KDH206,TRH216,219,226,228,229 |
1 | ||
| 51504A - BRACE SUB-ASSY, LWR ARM BRACKET, LH | ||||
| 51504-26040 |
KDH223,TRH223,224,228;TRH200..V1..(4FC,6FC)..CBU;GDH20#,211,22#,KDH20#,211,221,TRH21#,221,226,229..(COM,V1,WG)..(CBU,IV6,IV7) |
1 | ||
| 51632B - STOPPER, FRONT SUSPENSION REBOUND, LH | ||||
| 51631-26070 |
GDH206,226,KDH206,TRH216,219,226,228,229 |
1 | ||
| 51974A - NUT, TRANSPORT HOOK, LH | ||||
| 51974-26011 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 51979D - REINFORCEMENT, TRANSPORT HOOK MOUNTING, REAR LH | ||||
| 51979-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 53881E - MUDGUARD, FRONT | ||||
| 53881-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 53886C - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53886-26070 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 55138 - BRACE, DASH TO FRAME, LH | ||||
| 55138-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57004 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57004-26460 |
GDH206 |
1 | ||
| 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH | ||||
| 57028-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57032-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57046 - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH | ||||
| 57046-26311 |
TRH200..SG..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..SG..DX..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 57046-26291 |
TRH200..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..DX..CBU |
1 | ||
| 57072B - HANGER SUB-ASSY, REAR SPRING, FRONT A LH | ||||
| 57072-26310 |
TRH200..V1..(05S,06S)..(4FC,6FC);GDH20#,211,KDH20#,211,TRH211,216..V1..(05S,06S) |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-26160 |
GDH201..CBU;GDH206,KDH20#;TRH200..4FC,6FC |
1 | ||
| 57116B - PLATE, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57116-26020 |
GDH201..CBU;GDH206,KDH20#;TRH200..4FC,6FC |
1 | ||
| 57119B - PLATE, FRONT SIDE MEMBER, FRONT LH | ||||
| 57119-26040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57146 - PLATE, FRONT SIDE MEMBER, CENTER LH | ||||
| 57146-26051 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57148 - PLATE, FRONT SIDE MEMBER, REAR LH | ||||
| 57148-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57152 - REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57152-26170 |
GDH201..CBU;GDH206,KDH20#;TRH200..4FC,6FC |
1 | ||
| 57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57154-26080 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57156-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57166C - REINFORCEMENT, FRONT CROSSMEMBER, NO.2 LH | ||||
| 57166-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH | ||||
| 57168-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57172D - PLATE, FRONT SIDE MEMBER TO FLOOR, LH | ||||
| 57172-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57182D - EXTENSION, FRONT CROSSMEMBER, FRONT LH | ||||
| 57182-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57184B - EXTENSION, FRONT CROSSMEMBER, RR LH | ||||
| 57184-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57189 - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH | ||||
| 57189-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57192 - PLATE, FRONT SIDE MEMBER, OUTER REAR LH | ||||
| 57192-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57224A - BRACKET, FRONT MOUNTING, LH | ||||
| 57224-26010 |
GDH206;GDH201,211,22#..CBU,IV6 |
1 | ||
| 57418D - REINFORCEMENT, FLOOR SIDE, INNER LH | ||||
| 57418-26010 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 57513 - REINFORCEMENT, FRONT FLOOR, LH | ||||
| 57512-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57602D - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-26032 |
KDH20#..V1..CBU;TRH200..09S..4FC;GDH20#,TRH200..V1..(03S,05S,06S)..(4FC,6FC)..CBU;GDH22#,KDH223,TRH214,219,22#..4D..(02S,10S,14S)..(CBU,IV6,IV7) |
1 | ||
| 57676C - REINFORCEMENT, REAR FLOOR CROSS, NO.1 LH | ||||
| 57676-26020 |
KDH20#..03S,05S,06S;GDH206,KDH223,TRH223,224,228;TRH200..(03S,05S,06S)..(4FC,6FC);GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 57829B - REINFORCEMENT, SEAT LEG, LH | ||||
| 57829-26030 |
TRH214,219..5D;TRH200..V1..(05S,06S,09S)..(4FC,6FC);GDH20#,KDH20#,223,TRH223,224,228..(COM,V1,WG)..(02S,05S,06S,09S) |
1 | ||
| 58238A - BRACKET, BRAKE TUBE CONNECTOR, NO.4 | ||||
| 58238-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58239F - BRACKET, BRAKE TUBE CONNECTOR, NO.3 | ||||
| 58239-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| Common parts | ||||
| 90467-07214 | ||||
| 90467-08011 | ||||
| 91551-A0616 | ||||
| 91553-A1018 | ||||
| 91553-C1025 | ||||
| 91673-J0820 | ||||
| 94223-80800 | ||||
| 94223-81000 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 5355 | ||||
| 5752 | ||||
| 5852 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
