GDH201V-RHTDY (2018)

Toyota Hiace/Regiusace

Production Jan 2018 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1801- )09S

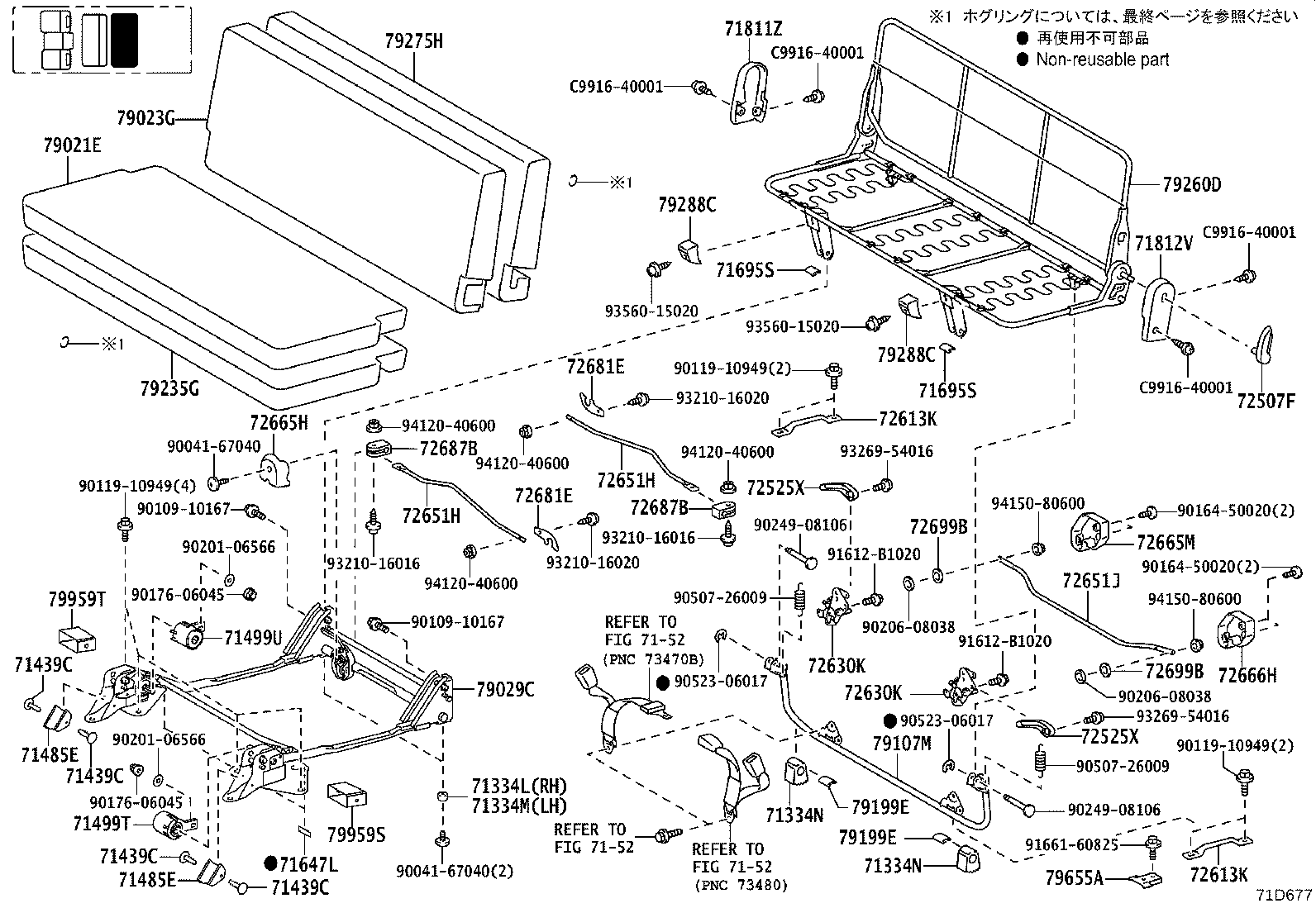

Click highlighted areas on diagram

ﾘﾔ NO.2 ｼｰﾄ ｱﾘ(ｼｰﾄﾍﾞﾙﾄ)

diagram 71334L 71334M 71334N 71334N 71439C 71439C 71439C 71439C 71485E 71485E 71499T 71499U 7152 7152 7152 71647L 71695S 71695S 71811Z 71812V 72507F 72525X 72525X 72613K 72613K 72630K 72630K 72651H 72651H 72651J 72665H 72665M 72666H 72681E 72681E 72687B 72687B 72699B 72699B 79021E 79023G 79029C 79107M 79199E 79199E 79235G 79260D 79275H 79288C 79288C 79655A 79959S 79959T 9004167040 9004167040 9010910167 9010910167 9011910949 9011910949 9011910949 9016450020 9016450020 9017606045 9017606045 9020106566 9020106566 9020608038 9020608038 9024908106 9024908106 9050726009 9050726009 9052306017 9052306017 91612B1020 91612B1020 9166160825 9321016016 9321016016 9321016020 9321016020 9326954016 9326954016 9356015020 9356015020 9412040600 9412040600 9412040600 9412040600 9415080600 9415080600 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
71439C - CLIP
90467-05161C9

GDH20#,TRH200..09S..6FC

BLACK

 4
71439C - CLIP
90467-05161C9

GDH20#,TRH200..09S..6FC

BLACK

 4
71439C - CLIP
90467-05161C9

GDH20#,TRH200..09S..6FC

BLACK

 4
71439C - CLIP
90467-05161C9

GDH20#,TRH200..09S..6FC

BLACK

 4
71485E - COVER, REAR SEAT HINGE
71485-26050

GDH20#,TRH200..09S..6FC

 2
71485E - COVER, REAR SEAT HINGE
71485-26050

GDH20#,TRH200..09S..6FC

 2
71499T - DAMPER, SEAT CUSHION SPRING, RH
71499-26070

GDH20#,TRH200..09S..6FC

 1
71499U - DAMPER, SEAT CUSHION SPRING, LH
71499-26080

GDH20#,TRH200..09S..6FC

 1
71647L - PROTECTOR, REAR SEAT CUSHION EDGE
71647-26040

GDH20#,TRH200..09S..6FC

 2
72507F - HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE
72507-58020B0

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

DK.GRAY,TRIM1#

 1
72651H - ROD, REAR SEAT LOCK, NO.2
72651-26110

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

 2
72651H - ROD, REAR SEAT LOCK, NO.2
72651-26110

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

 2
72665M - COVER, REAR SEAT BACK LOCK, RH NO.2
72665-26051B2

GDH20#,TRH200..09S..6FC

DK.GRAY,TRIM1#

 1
72666H - COVER, REAR SEAT BACK LOCK, LH NO.2
72665-26061B2

GDH20#,TRH200..09S..6FC

DK.GRAY,TRIM1#

 1
72681E - HOOK, REAR SEAT
72681-26030B1

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

DK.GRAY,TRIM1#

 2
72681E - HOOK, REAR SEAT
72681-26030B1

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

DK.GRAY,TRIM1#

 2
72687B - BRACKET, REAR SEAT HOOK
72687-95J01B1

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

DK.GRAY,TRIM1#

 2
72687B - BRACKET, REAR SEAT HOOK
72687-95J01B1

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

DK.GRAY,TRIM1#

 2
79029C - STAY SUB-ASSY, NO.2 SEAT
79029-26070B0

GDH20#,TRH200..09S..6FC

DK.GRAY,TRIM1#

 1
79288C - STOPPER, NO.2 SEAT CUSHION
79288-26010

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

 2
79288C - STOPPER, NO.2 SEAT CUSHION
79288-26010

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

 2
79959S - COVER, REAR SEAT LEG, RH
79956-26300

GDH20#,TRH200..09S..6FC

 1
79959T - COVER, REAR SEAT LEG, LH
79956-26310

GDH20#,TRH200..09S..6FC

 1
Common parts
90041-67040
90109-10167
90119-10949
90164-50020
90176-06045
90201-06566
90206-08038
90249-08106
90507-26009
90523-06017
91612-B1020
91661-60825
93210-16016
93210-16020
93269-54016
93560-15020
94120-40600
94150-80600
C9916-40001
Linked diagrams
