GDH201V-RHTDY (2018)

Toyota Hiace/Regiusace

Production Jan 2018 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

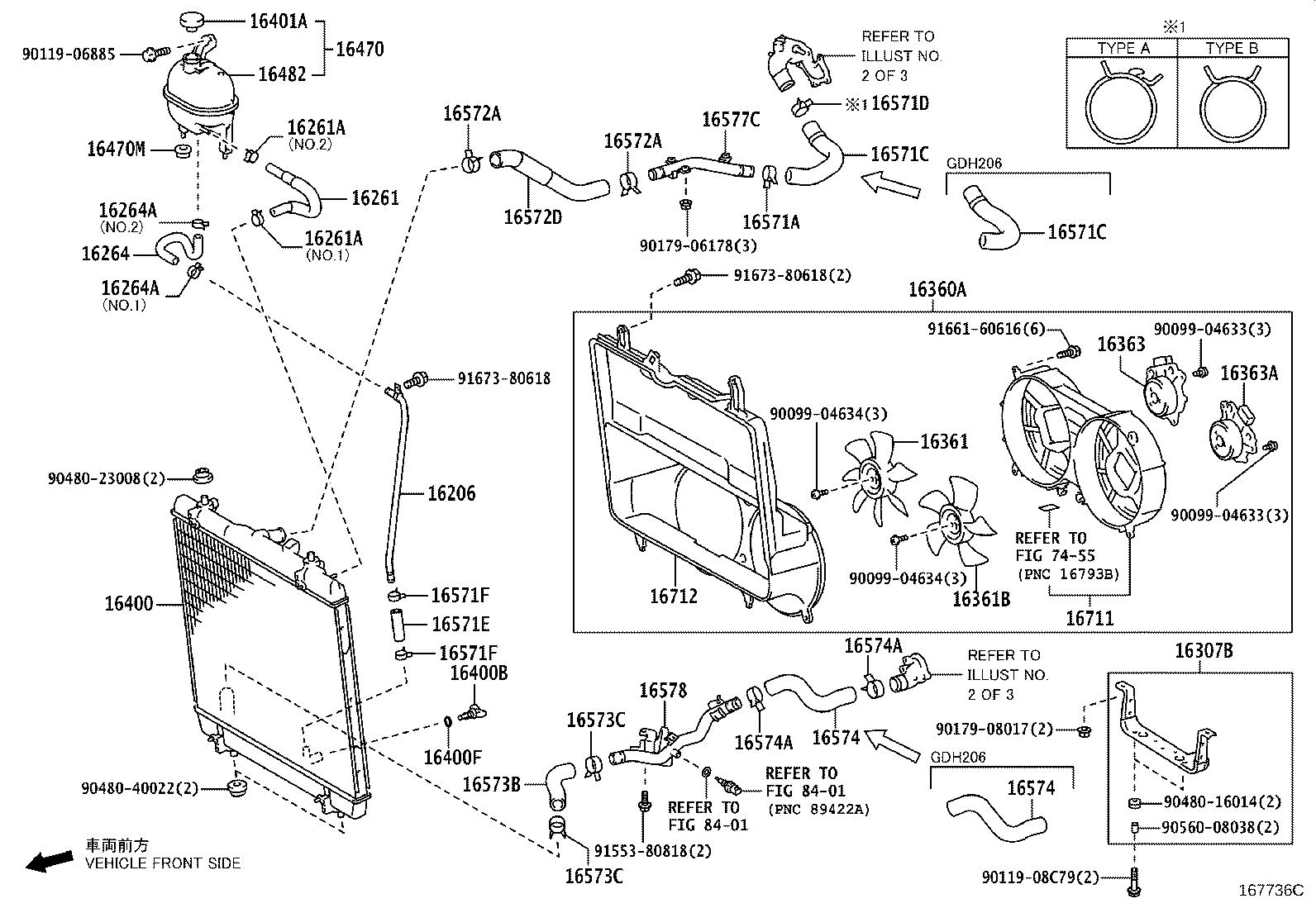

ILLUST NO. 1 OF 3(2005- )1GDFTV..GDH20#

Click highlighted areas on diagram

diagram 16206 16261 16261A 16261A 16264 16264A 16264A 16307B 16360A 16361 16361B 16363 16363A 16400 16400B 16400F 16401A 16470 16470M 16482 16571A 16571C 16571C 16571D 16571E 16571F 16571F 16572A 16572A 16572D 16573B 16573C 16573C 16574 16574 16574A 16574A 16577C 16578 16711 16712 7455 8401 8401 9009904633 9009904633 9009904634 9009904634 9011906885 9011908C79 9017906178 9017908017 9048016014 9048023008 9048040022 9056008038 9155380818 9166160616 9167380618 9167380618
Part # Description Qty Price
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-26004

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

NO.2:ｲﾗｽﾄ参照

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-26004

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

NO.2:ｲﾗｽﾄ参照

 1
16360A - FAN ASSY, W/MOTOR
16360-11300

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
16361 - FAN
16361-11040

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
16361B - FAN, NO.2
16361-11050

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
16363 - MOTOR, COOLING FAN
16363-24100

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
16363A - MOTOR, COOLING FAN, NO.2
16363-24100

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
16711 - SHROUD, FAN
16711-11330

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
Common parts
90099-04633
90099-04634
90119-06885
90119-08C79
90179-06178
90179-08017
90480-16014
90480-23008
90480-40022
90560-08038
91553-80818
91661-60616
91673-80618
Linked diagrams
7455
8401
