GDH201V-RBTDY (2017)
Toyota Hiace/Regiusace

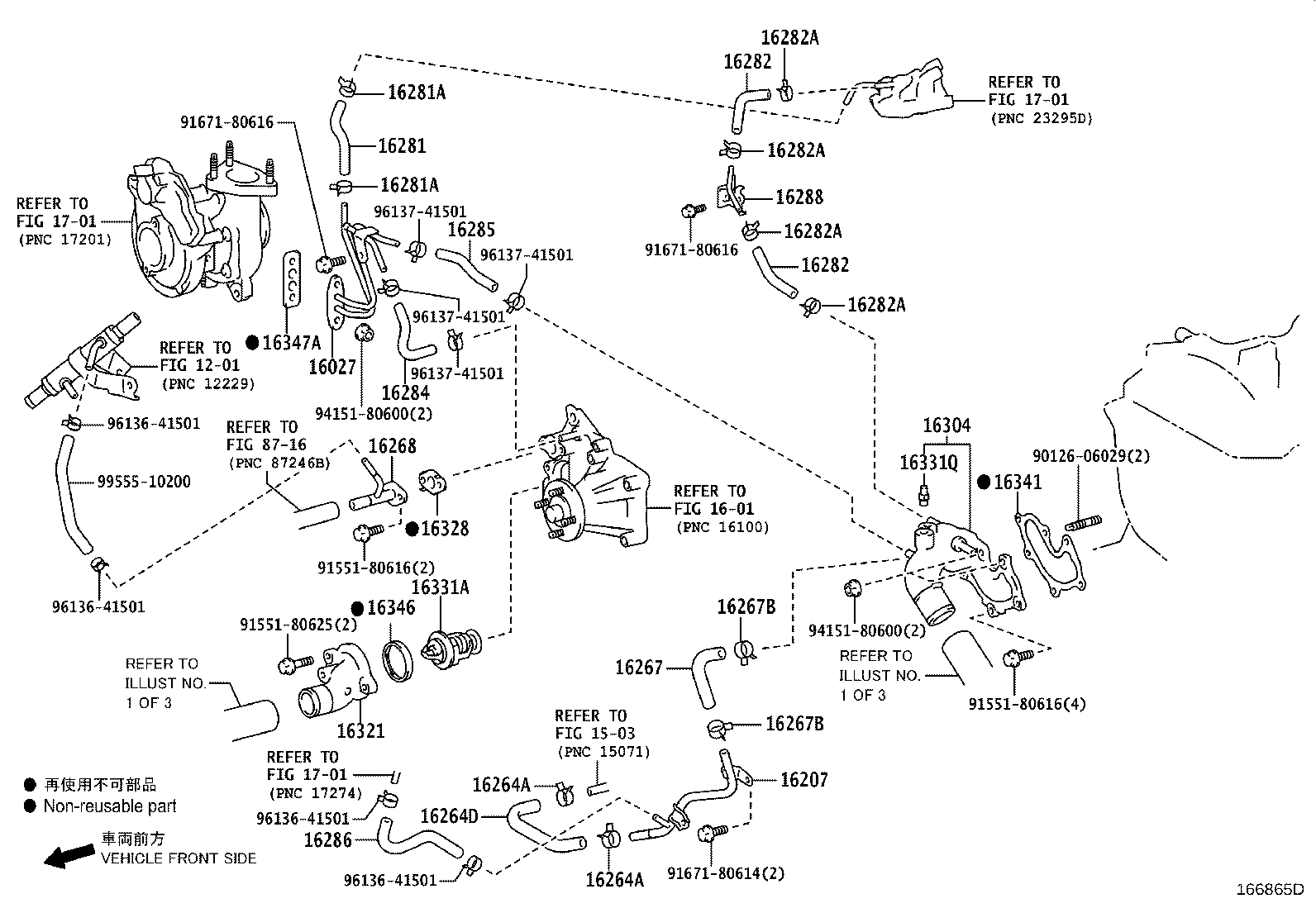

ILLUST NO. 2 OF 3(1712- )1GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-0E020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 (L) |
1 | ||
| 16027-11060 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 (J) |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42501 |
1GDFTV..GDH20#,211,22# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42101 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 96136-42101 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90466-26004 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42501 |
1GDFTV..GDH20#,211,22# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42101 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 96136-42101 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90466-26004 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16293-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16264-11150 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-42101 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-42101 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-11110 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96137-41501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96137-41501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-11030 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-11030 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96137-41501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
4 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96137-41501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
4 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96137-41501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
4 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96137-41501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
4 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-11050 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16286-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16288-11010 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-11040 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-11070 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16328 - GASKET, WATER INLET PIPE | ||||
| 16328-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 *WAX 82−95 |
1 | ||
| 16331Q - PLUG(FOR WATER OUTLET) | ||||
| 90910-09133 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-0K010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| Common parts | ||||
| 90126-06029 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
| 96136-41501 | ||||
| 96137-41501 | ||||
| 99555-10200 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1503 | ||||
| 1601 | ||||
| 1701 | ||||
| 8716 | ||||

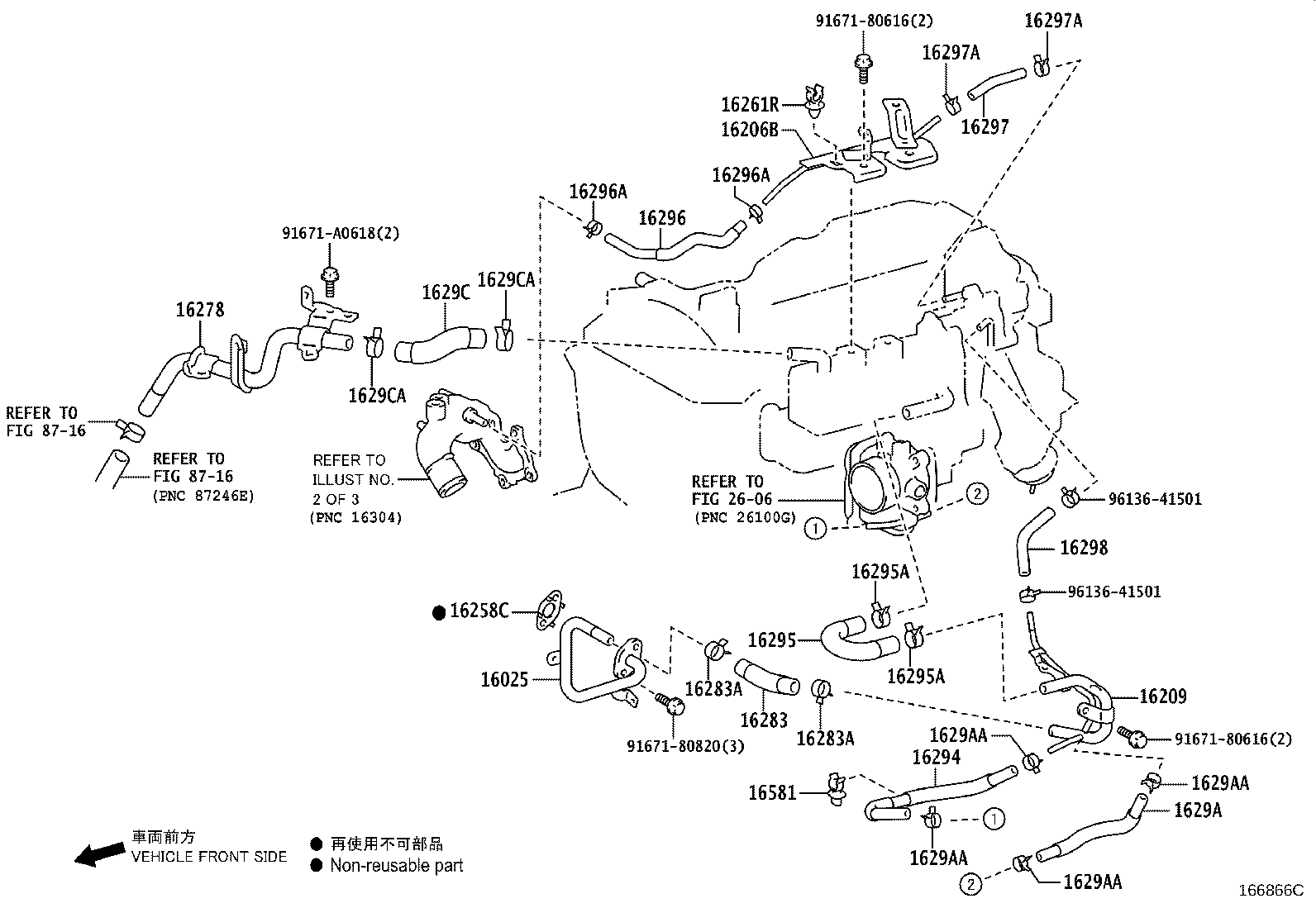

ILLUST NO. 3 OF 3(1712- )1GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16025 - PIPE SUB-ASSY, WATER BY-PASS, NO.5 | ||||
| 16025-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 (J) |
1 | ||
| 16025-0E010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 (L) |
1 | ||
| 16206B - PIPE SUB-ASSY, WATER BY-PASS, NO.3 | ||||
| 16208-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16209 - PIPE SUB-ASSY, WATER BY-PASS, NO.4 | ||||
| 16209-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90469-10005 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-11100 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-42501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-42501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16294 - HOSE, WATER BY-PASS, NO.11 | ||||
| 16294-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-42501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-42501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-41501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-41501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-41501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-41501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16298 - HOSE, WATER BY-PASS, NO.12 | ||||
| 16298-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 1629A - HOSE, WATER BY-PASS, NO.14 | ||||
| 1629A-11010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 1629AA - CLIP(FOR WATER BY-PASS HOSE NO.14) | ||||
| 96136-41501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
4 | ||
| 1629AA - CLIP(FOR WATER BY-PASS HOSE NO.14) | ||||
| 96136-41501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
4 | ||
| 1629AA - CLIP(FOR WATER BY-PASS HOSE NO.14) | ||||
| 96136-41501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
4 | ||
| 1629AA - CLIP(FOR WATER BY-PASS HOSE NO.14) | ||||
| 96136-41501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
4 | ||
| 1629C - HOSE, WATER BY-PASS, NO.16 | ||||
| 1629C-11030 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 1629CA - CLIP(FOR WATER BY-PASS HOSE NO.16) | ||||
| 96138-42501 |
1GDFTV..GDH20#,211,22# |
2 | ||
| 96138-42501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 1629CA - CLIP(FOR WATER BY-PASS HOSE NO.16) | ||||
| 96138-42501 |
1GDFTV..GDH20#,211,22# |
2 | ||
| 96138-42501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-22050 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 91671-A0618 | ||||
| 96136-41501 | ||||
| Linked diagrams | ||||
| 2606 | ||||
| 8716 | ||||

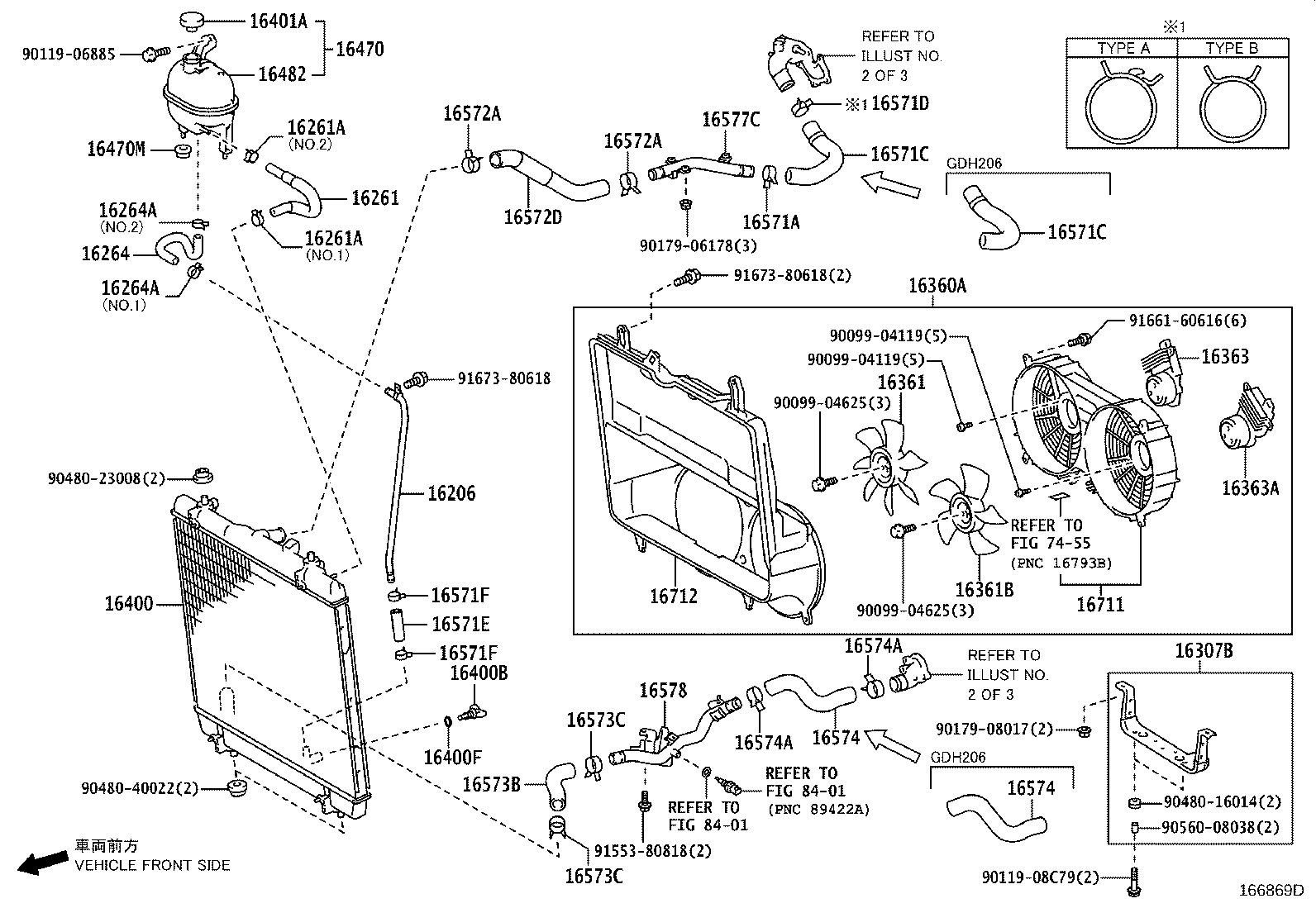

ILLUST NO. 1 OF 3(1712-2005)1GDFTV..GDH20#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-75010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-11120 |
1GDFTV..GDH206;1GDFTV..GDH201..CBU |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-41901 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-41901 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75170 |
1GDFTV..GDH206;1GDFTV..GDH201..CBU |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42501 |
1GDFTV..GDH20#,211,22# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42101 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 96136-42101 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90466-26004 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42501 |
1GDFTV..GDH20#,211,22# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42101 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 96136-42101 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90466-26004 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-30010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-30023 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 16360-11300 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16361 - FAN | ||||
| 16361-30060 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 16361-11040 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-30050 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 16361-11050 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-30041 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 16363-24100 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-24100 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16363-30041 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-11A40 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16475-28140 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75124 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-14470 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-54801 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-11280 |
1GDFTV..GDH201,211,221,223..CBU,IV6 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-11280 |
1GDFTV..GDH201,211,221,223..CBU,IV6 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54801 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90466-41007 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 16571E - HOSE, WATER | ||||
| 99555-20075 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-54801 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-54801 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-75310 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-30030 |
1GDFTV..GDH206;1GDFTV..GDH201..CBU |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-11020 |
1GDFTV..GDH201..CBU |
1 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-11020 |
1GDFTV..GDH201..CBU |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 96136-54801 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 96136-54801 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-30082 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 16711-11330 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75122 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-04625 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08017 | ||||
| 90480-16014 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 90560-08038 | ||||
| 91553-80818 | ||||
| 91661-60616 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(2005- )1GDFTV..GDH20#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-75010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-11120 |
1GDFTV..GDH206;1GDFTV..GDH201..CBU |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-41901 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-41901 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75170 |
1GDFTV..GDH206;1GDFTV..GDH201..CBU |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42501 |
1GDFTV..GDH20#,211,22# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42101 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 96136-42101 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90466-26004 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96138-42501 |
1GDFTV..GDH20#,211,22# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42101 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 96136-42101 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90466-26004 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-30010 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-30023 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 16360-11300 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16361 - FAN | ||||
| 16361-30060 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 16361-11040 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-30050 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 16361-11050 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-30041 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 16363-24100 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-24100 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16363-30041 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-11A40 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-30170 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16475-28140 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75124 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-14470 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-75070 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-54801 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-11280 |
1GDFTV..GDH201,211,221,223..CBU,IV6 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-11280 |
1GDFTV..GDH201,211,221,223..CBU,IV6 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54801 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90466-41007 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 16571E - HOSE, WATER | ||||
| 99555-20075 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96136-42101 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-54801 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-54801 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-75310 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-30030 |
1GDFTV..GDH206;1GDFTV..GDH201..CBU |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-41007 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-11020 |
1GDFTV..GDH201..CBU |
1 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-11020 |
1GDFTV..GDH201..CBU |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 96136-54801 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 96136-54801 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-11020 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-30082 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 16711-11330 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-75122 |
1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6 |
1 | ||
| Common parts | ||||
| 90099-04633 | ||||
| 90099-04634 | ||||
| 90119-06885 | ||||
| 90119-08C79 | ||||
| 90179-06178 | ||||
| 90179-08017 | ||||
| 90480-16014 | ||||
| 90480-23008 | ||||
| 90480-40022 | ||||
| 90560-08038 | ||||
| 91553-80818 | ||||
| 91661-60616 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
