GDH201V-RBTDY (2017)

Toyota Hiace/Regiusace

Production Dec 2017 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )1GDFTV

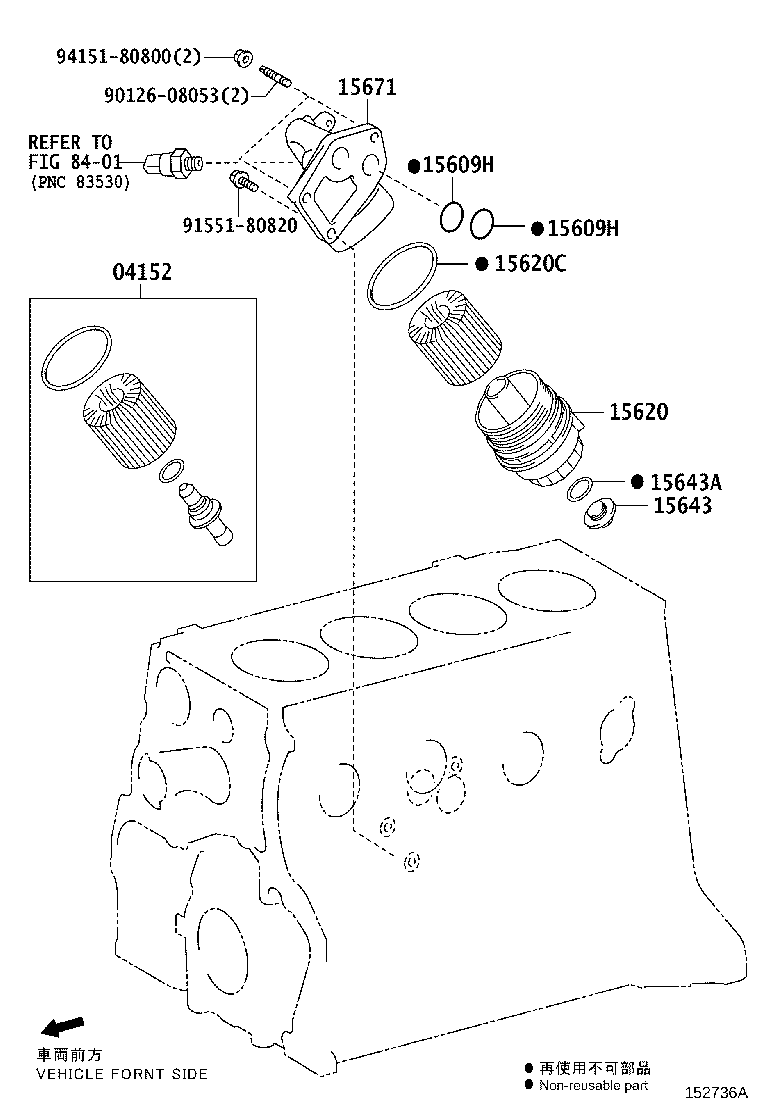

Click highlighted areas on diagram

ELEMENT TYPE

diagram 04152 15609H 15609H 15620 15620C 15643 15643A 15671 8401 9012608053 9155180820 9415180800
Part # Description Qty Price
04152 - ELEMENT KIT, OIL FILTER
04152-38010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
15609H - RING, O(FOR OIL FILTER BRACKET)
96723-24030

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
96723-24030

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 2
15620 - CAP ASSY, OIL FILTER
15620-31050

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
15620C - GASKET(FOR OIL FILTER CAP)
90301-79006

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
15643 - PLUG, OIL FILTER DRAIN
15643-31050

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
15643A - RING, O(FOR OIL FILTER DRAIN PLUG)
96723-35028

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
15671 - BRACKET, OIL FILTER
15671-11010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
Common parts
90126-08053
91551-80820
94151-80800
Linked diagrams
8401
