GDH201K-FRTDY (2017)

Toyota Hiace/Regiusace

Production Dec 2017 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

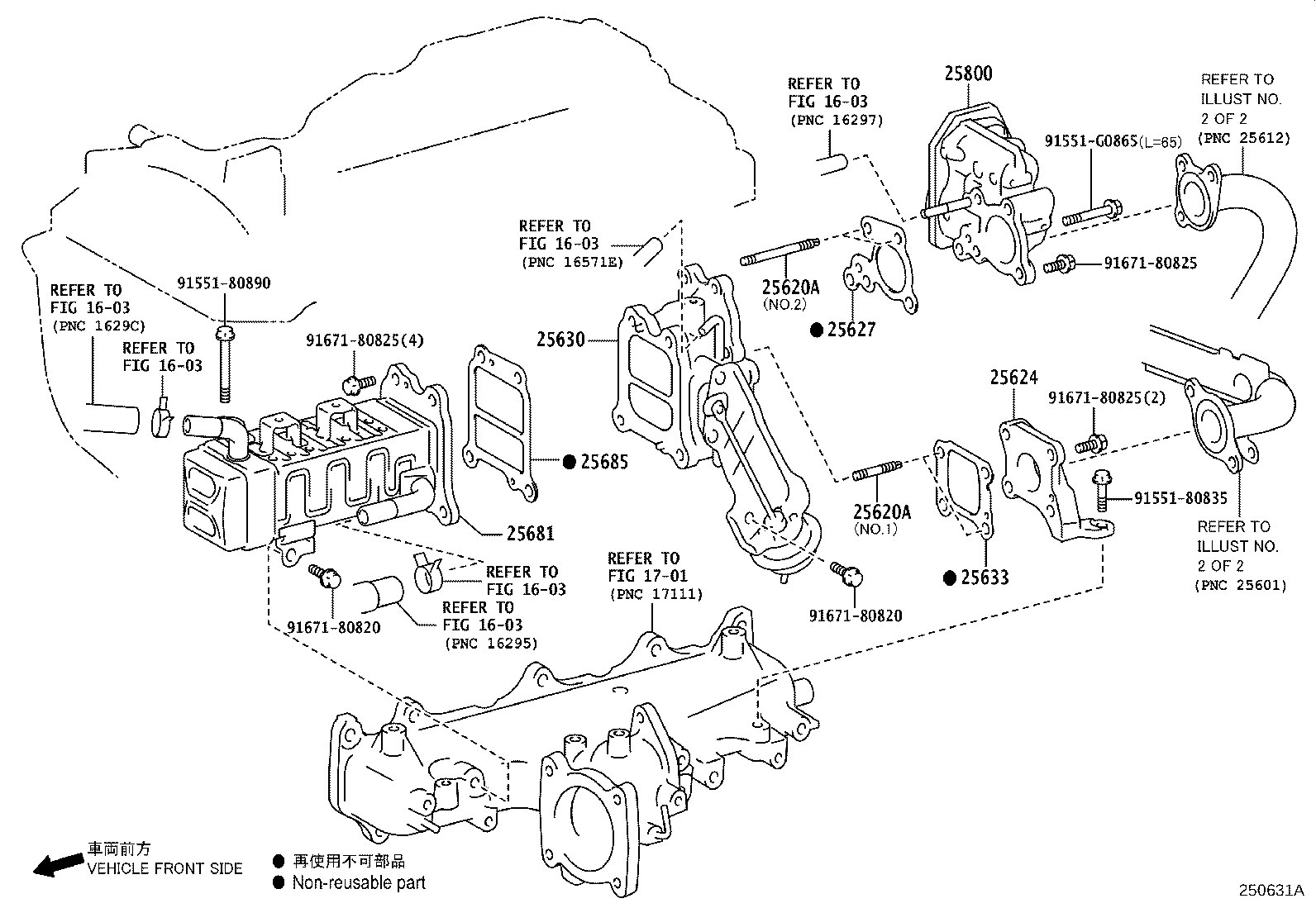

ILLUST NO. 1 OF 2(1712- )1GDFTV

Click highlighted areas on diagram

EGR VAVLE

diagram 1603 1603 1603 1603 1603 1603 1701 25620A 25620A 25624 25627 25630 25633 25681 25685 25800 9155180835 9155180890 91551G0865 9167180820 9167180820 9167180825 9167180825 9167180825
Part # Description Qty Price
25620A - BOLT, STUD(FOR EGR VALVE)
90126-08047

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

NO.1

 2
90126-08064

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

NO.2

 2
25620A - BOLT, STUD(FOR EGR VALVE)
90126-08047

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

NO.1

 2
90126-08064

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

NO.2

 2
25624 - ADAPTER, EGR VALVE
25624-11010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
25627 - GASKET, EGR VALVE
25627-11050

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
25630 - VALVE ASSY, EGR, NO.2
25630-11021

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
25630-11020

1GDFTV..GDH20#,211,22#

 1
25633 - GASKET, EGR VALVE
25633-11010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
25681 - COOLER, EGR, NO.1
25681-0W010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
25685 - GASKET, EGR COOLER, NO.1
25685-11010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-11010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
Common parts
91551-80835
91551-80890
91551-G0865
91671-80820
91671-80825
Linked diagrams
1603
1701

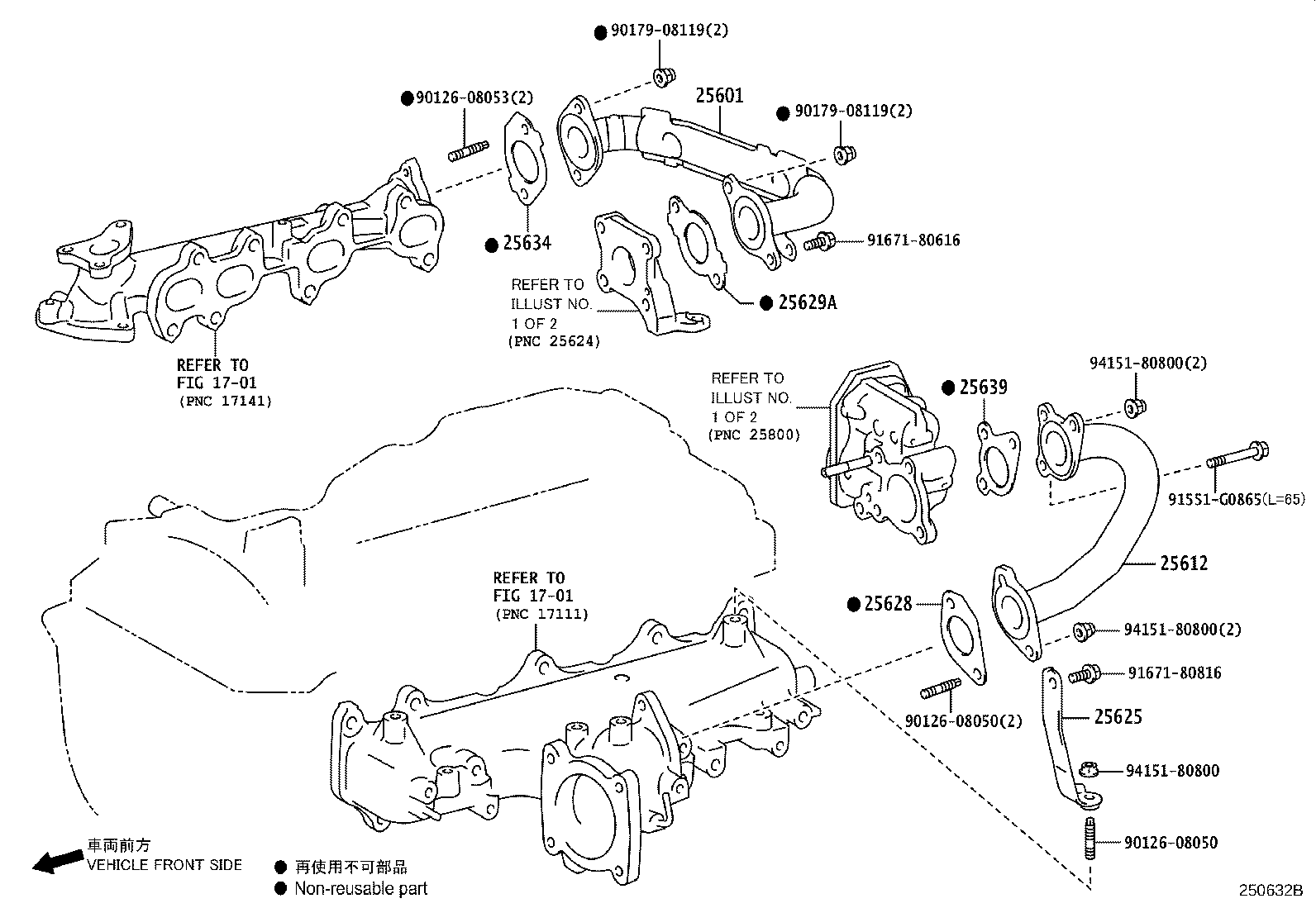

ILLUST NO. 2 OF 2(1712- )1GDFTV

Click highlighted areas on diagram

EGR VALVE

diagram 1701 1701 25601 25612 25625 25628 25629A 25634 25639 9012608050 9012608050 9012608053 9017908119 9017908119 91551G0865 9167180616 9167180816 9415180800 9415180800 9415180800
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-11060

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
25612 - PIPE, EGR, NO.2
25612-11010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
25625 - BRACKET, EGR VALVE
25625-11010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
25628 - GASKET, EGR INLET
25628-11030

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
25629A - GASKET, EGR PIPE, NO.2
25629-11010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
25634 - GASKET, EGR PIPE
25634-11020

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
25639 - GASKET, EGR PIPE, NO.3
25639-11010

1GDFTV..GDH206;1GDFTV..GDH201,211,22#..CBU,IV6

 1
Common parts
90126-08050
90126-08053
90179-08119
91551-G0865
91671-80616
91671-80816
94151-80800
Linked diagrams
1701
