GDH201K-ERTDY5 (2017)
Toyota Hiace/Regiusace

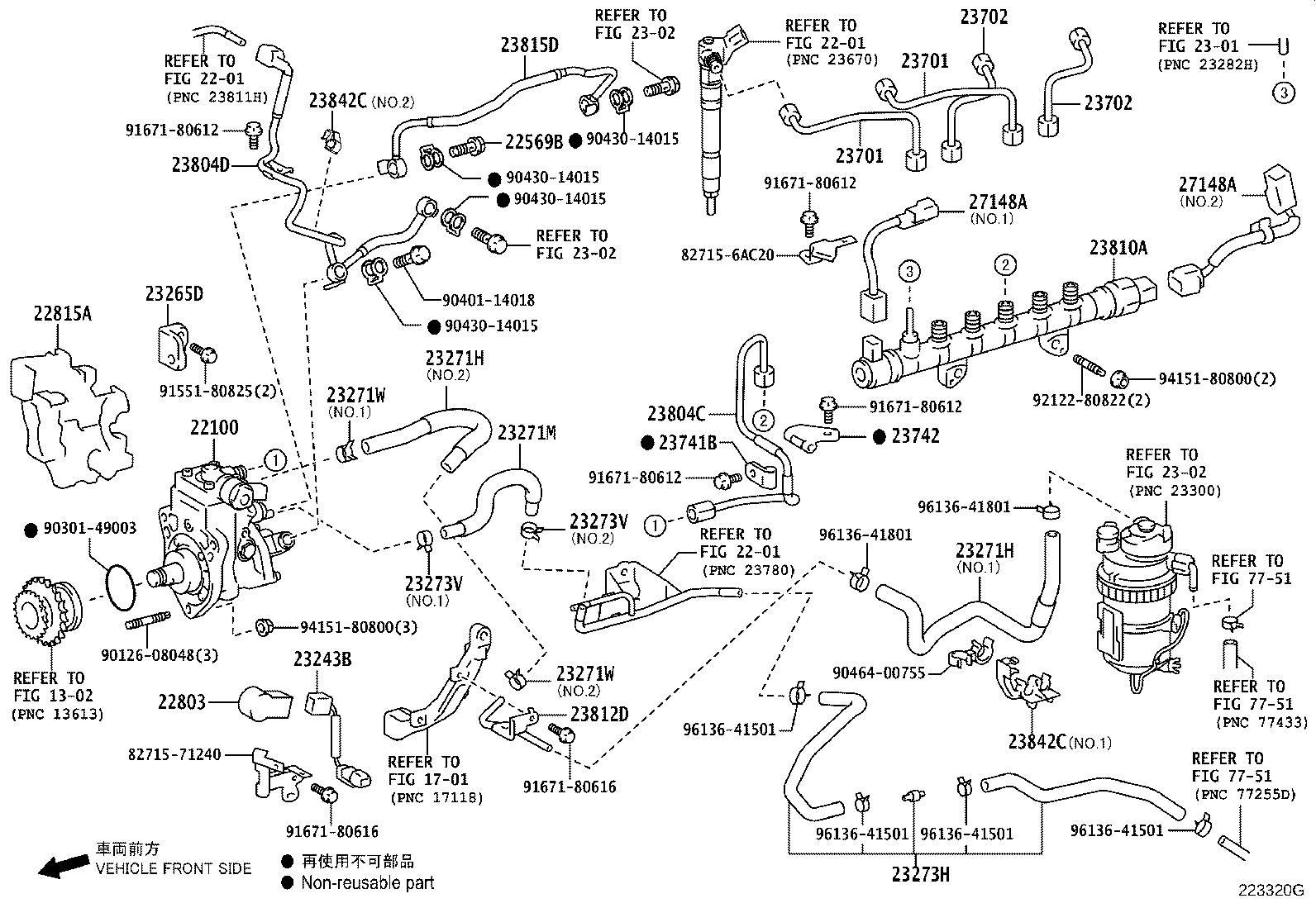

(1712- )1GDFTV..GDH20#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-11010 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 22569B - SCREW, SUPPLY PUMP HOLLOW | ||||
| 22569-11010 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 22803 - COVER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22803-11010 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 22815A - INSULATOR, INJECTION PUMP | ||||
| 22815-11010 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 22815-11011 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23243B - WIRE, FUEL PUMP MOTOR | ||||
| 23243-11010 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23265D - BRACKET, FUEL PUMP, NO.1 | ||||
| 23265-11010 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-11370 |
1GDFTV..GDH20#,211,22# NO.2 |
1 | ||
| 23271-11371 |
1GDFTV..GDH201,223..IV5 NO.2 |
1 | ||
| 23271-75330 |
1GDFTV..GDH20# NO.1 |
1 | ||
| 23271-75331 |
1GDFTV..GDH201..IV5 NO.1 |
1 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-11370 |
1GDFTV..GDH20#,211,22# NO.2 |
1 | ||
| 23271-11371 |
1GDFTV..GDH201,223..IV5 NO.2 |
1 | ||
| 23271-75330 |
1GDFTV..GDH20# NO.1 |
1 | ||
| 23271-75331 |
1GDFTV..GDH201..IV5 NO.1 |
1 | ||
| 23271M - HOSE, FUEL | ||||
| 23273-11030 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23271W - CLIP(FOR FUEL HOSE NO.1) | ||||
| 96136-41501 |
1GDFTV..GDH201,223..IV5 NO.2 |
1 | ||
| 96136-51801 |
1GDFTV..GDH201,223..IV5 NO.1 |
1 | ||
| 23271W - CLIP(FOR FUEL HOSE NO.1) | ||||
| 96136-41501 |
1GDFTV..GDH201,223..IV5 NO.2 |
1 | ||
| 96136-51801 |
1GDFTV..GDH201,223..IV5 NO.1 |
1 | ||
| 23273H - HOSE, FUEL, NO.2 | ||||
| 23273-75421 |
1GDFTV..GDH20# 寒冷地仕様 |
1 | ||
| 23273-75420 |
1GDFTV..GDH20# 寒冷地仕様 |
1 | ||
| 23273-75421 |
1GDFTV..GDH201..IV5 |
1 | ||
| 23273-75410 |
1GDFTV..GDH20# |
1 | ||
| 23273V - CLIP(FOR FUEL HOSE NO.2) | ||||
| 96136-41501 |
1GDFTV..GDH201,223..IV5 NO.2 |
1 | ||
| 96136-51801 |
1GDFTV..GDH201,223..IV5 NO.1 |
1 | ||
| 23273V - CLIP(FOR FUEL HOSE NO.2) | ||||
| 96136-41501 |
1GDFTV..GDH201,223..IV5 NO.2 |
1 | ||
| 96136-51801 |
1GDFTV..GDH201,223..IV5 NO.1 |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-0E012 |
1GDFTV..GDH201,223..IV5 |
2 | ||
| 23701-0E010 |
1GDFTV..GDH20#,211,22# |
2 | ||
| 23701-0E011 |
1GDFTV..GDH20#,211,22# |
2 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-0E012 |
1GDFTV..GDH201,223..IV5 |
2 | ||
| 23701-0E010 |
1GDFTV..GDH20#,211,22# |
2 | ||
| 23701-0E011 |
1GDFTV..GDH20#,211,22# |
2 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-0E010 |
1GDFTV..GDH20#,211,22# |
2 | ||
| 23702-0E011 |
1GDFTV..GDH20#,211,22# |
2 | ||
| 23702-0E012 |
1GDFTV..GDH201,223..IV5 |
2 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-0E010 |
1GDFTV..GDH20#,211,22# |
2 | ||
| 23702-0E011 |
1GDFTV..GDH20#,211,22# |
2 | ||
| 23702-0E012 |
1GDFTV..GDH201,223..IV5 |
2 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 23741-30010 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-11010 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23804C - PIPE SUB-ASSY, FUEL INLET | ||||
| 23804-11012 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23804-11010 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 23804-11011 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 23804D - PIPE SUB-ASSY, FUEL, NO.4 | ||||
| 23816-0E013 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23816-0E012 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-11030 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 23810-11031 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23812D - PIPE, FUEL, NO.2 | ||||
| 23812-11031 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23812-11030 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 23815D - PIPE, FUEL, NO.3 | ||||
| 23815-0E011 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 23815-0E012 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 23815-0E014 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23842C - CLAMP, FUEL PIPE, NO.2(FOR INJECTION PUMP) | ||||
| 23842-11070 |
1GDFTV..GDH20#,211,22# NO.2 |
1 | ||
| 23842-11060 |
1GDFTV..GDH201,223..IV5 NO.1 |
1 | ||
| 23842-11071 |
1GDFTV..GDH201,223..IV5 NO.2 |
1 | ||
| 23842C - CLAMP, FUEL PIPE, NO.2(FOR INJECTION PUMP) | ||||
| 23842-11070 |
1GDFTV..GDH20#,211,22# NO.2 |
1 | ||
| 23842-11060 |
1GDFTV..GDH201,223..IV5 NO.1 |
1 | ||
| 23842-11071 |
1GDFTV..GDH201,223..IV5 NO.2 |
1 | ||
| 27148A - WIRE, CONNECTING | ||||
| 27148-11040 |
1GDFTV..GDH201,223..IV5 NO.2 |
1 | ||
| 27148-11030 |
1GDFTV..GDH201,223..IV5 NO.1 |
1 | ||
| 27148A - WIRE, CONNECTING | ||||
| 27148-11040 |
1GDFTV..GDH201,223..IV5 NO.2 |
1 | ||
| 27148-11030 |
1GDFTV..GDH201,223..IV5 NO.1 |
1 | ||
| Common parts | ||||
| 82715-6AC20 | ||||
| 82715-71240 | ||||
| 90126-08048 | ||||
| 90301-49003 | ||||
| 90401-14018 | ||||
| 90430-14015 | ||||
| 90464-00755 | ||||
| 91551-80825 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 92122-80822 | ||||
| 94151-80800 | ||||
| 96136-41501 | ||||
| 96136-41801 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 1701 | ||||
| 2201 | ||||
| 2301 | ||||
| 2302 | ||||
| 7751 | ||||

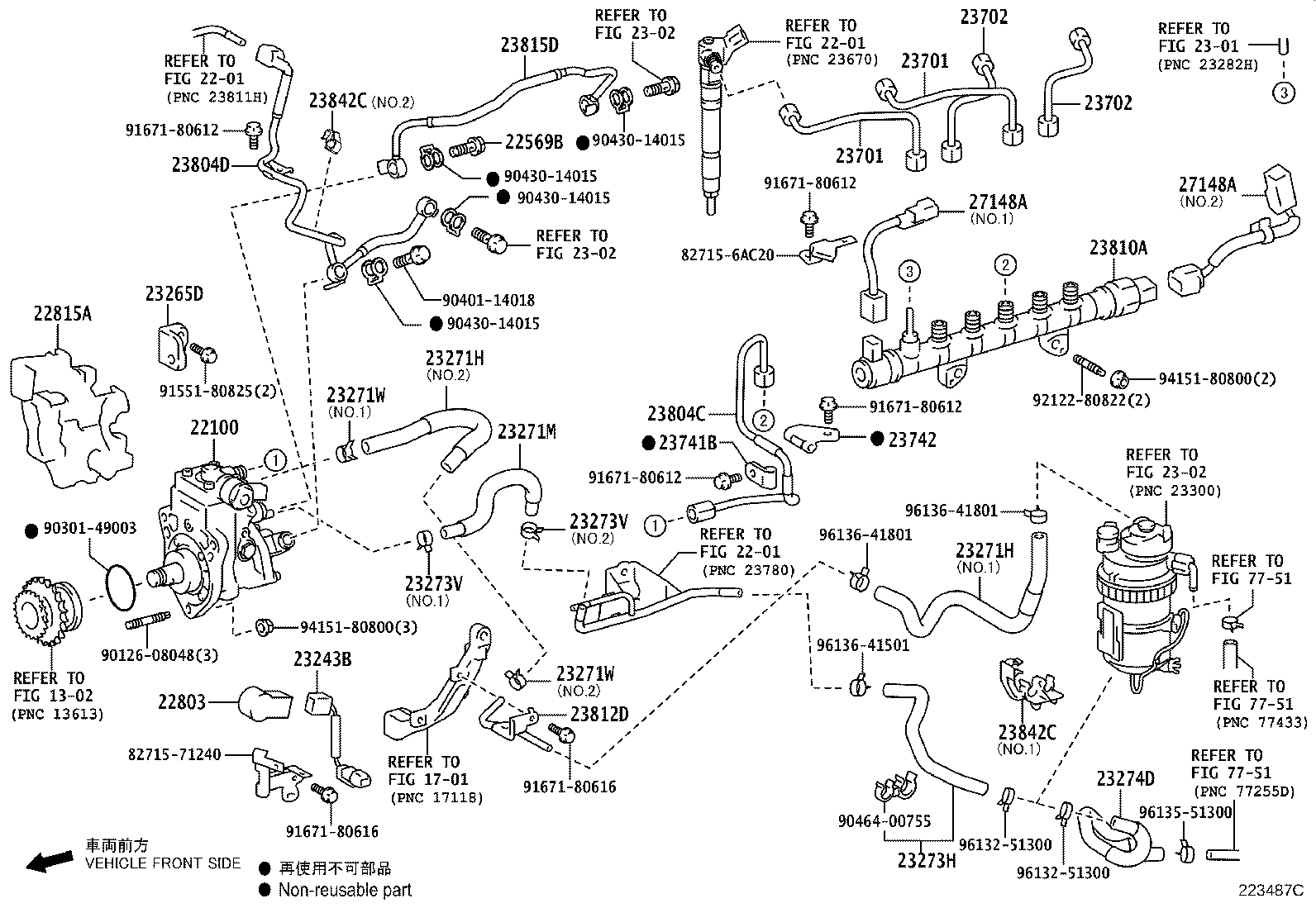

(1712- )1GDFTV..GDH20#
COLD AREA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-11010 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 22569B - SCREW, SUPPLY PUMP HOLLOW | ||||
| 22569-11010 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 22803 - COVER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22803-11010 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 22815A - INSULATOR, INJECTION PUMP | ||||
| 22815-11010 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 22815-11011 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23243B - WIRE, FUEL PUMP MOTOR | ||||
| 23243-11010 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23265D - BRACKET, FUEL PUMP, NO.1 | ||||
| 23265-11010 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-11370 |
1GDFTV..GDH20#,211,22# NO.2 |
1 | ||
| 23271-11371 |
1GDFTV..GDH201,223..IV5 NO.2 |
1 | ||
| 23271-75330 |
1GDFTV..GDH20# NO.1 |
1 | ||
| 23271-75331 |
1GDFTV..GDH201..IV5 NO.1 |
1 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-11370 |
1GDFTV..GDH20#,211,22# NO.2 |
1 | ||
| 23271-11371 |
1GDFTV..GDH201,223..IV5 NO.2 |
1 | ||
| 23271-75330 |
1GDFTV..GDH20# NO.1 |
1 | ||
| 23271-75331 |
1GDFTV..GDH201..IV5 NO.1 |
1 | ||
| 23271M - HOSE, FUEL | ||||
| 23273-11030 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23271W - CLIP(FOR FUEL HOSE NO.1) | ||||
| 96136-41501 |
1GDFTV..GDH201,223..IV5 NO.2 |
1 | ||
| 96136-51801 |
1GDFTV..GDH201,223..IV5 NO.1 |
1 | ||
| 23271W - CLIP(FOR FUEL HOSE NO.1) | ||||
| 96136-41501 |
1GDFTV..GDH201,223..IV5 NO.2 |
1 | ||
| 96136-51801 |
1GDFTV..GDH201,223..IV5 NO.1 |
1 | ||
| 23273H - HOSE, FUEL, NO.2 | ||||
| 23273-75421 |
1GDFTV..GDH20# 寒冷地仕様 |
1 | ||
| 23273-75420 |
1GDFTV..GDH20# 寒冷地仕様 |
1 | ||
| 23273-75421 |
1GDFTV..GDH201..IV5 |
1 | ||
| 23273-75410 |
1GDFTV..GDH20# |
1 | ||
| 23273V - CLIP(FOR FUEL HOSE NO.2) | ||||
| 96136-41501 |
1GDFTV..GDH201,223..IV5 NO.2 |
1 | ||
| 96136-51801 |
1GDFTV..GDH201,223..IV5 NO.1 |
1 | ||
| 23273V - CLIP(FOR FUEL HOSE NO.2) | ||||
| 96136-41501 |
1GDFTV..GDH201,223..IV5 NO.2 |
1 | ||
| 96136-51801 |
1GDFTV..GDH201,223..IV5 NO.1 |
1 | ||
| 23274D - HOSE, FUEL, NO.3 | ||||
| 23274-30030 |
1GDFTV..GDH201..IV5 |
1 | ||
| 23274-30030 |
1GDFTV..GDH20# 寒冷地仕様 |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-0E012 |
1GDFTV..GDH201,223..IV5 |
2 | ||
| 23701-0E010 |
1GDFTV..GDH20#,211,22# |
2 | ||
| 23701-0E011 |
1GDFTV..GDH20#,211,22# |
2 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-0E012 |
1GDFTV..GDH201,223..IV5 |
2 | ||
| 23701-0E010 |
1GDFTV..GDH20#,211,22# |
2 | ||
| 23701-0E011 |
1GDFTV..GDH20#,211,22# |
2 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-0E010 |
1GDFTV..GDH20#,211,22# |
2 | ||
| 23702-0E011 |
1GDFTV..GDH20#,211,22# |
2 | ||
| 23702-0E012 |
1GDFTV..GDH201,223..IV5 |
2 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-0E010 |
1GDFTV..GDH20#,211,22# |
2 | ||
| 23702-0E011 |
1GDFTV..GDH20#,211,22# |
2 | ||
| 23702-0E012 |
1GDFTV..GDH201,223..IV5 |
2 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 23741-30010 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-11010 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23804C - PIPE SUB-ASSY, FUEL INLET | ||||
| 23804-11012 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23804-11010 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 23804-11011 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 23804D - PIPE SUB-ASSY, FUEL, NO.4 | ||||
| 23816-0E013 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23816-0E012 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-11030 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 23810-11031 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23812D - PIPE, FUEL, NO.2 | ||||
| 23812-11031 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23812-11030 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 23815D - PIPE, FUEL, NO.3 | ||||
| 23815-0E011 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 23815-0E012 |
1GDFTV..GDH20#,211,22# |
1 | ||
| 23815-0E014 |
1GDFTV..GDH201,223..IV5 |
1 | ||
| 23842C - CLAMP, FUEL PIPE, NO.2(FOR INJECTION PUMP) | ||||
| 23842-11070 |
1GDFTV..GDH20#,211,22# NO.2 |
1 | ||
| 23842-11060 |
1GDFTV..GDH201,223..IV5 NO.1 |
1 | ||
| 23842-11071 |
1GDFTV..GDH201,223..IV5 NO.2 |
1 | ||
| 23842C - CLAMP, FUEL PIPE, NO.2(FOR INJECTION PUMP) | ||||
| 23842-11070 |
1GDFTV..GDH20#,211,22# NO.2 |
1 | ||
| 23842-11060 |
1GDFTV..GDH201,223..IV5 NO.1 |
1 | ||
| 23842-11071 |
1GDFTV..GDH201,223..IV5 NO.2 |
1 | ||
| 27148A - WIRE, CONNECTING | ||||
| 27148-11040 |
1GDFTV..GDH201,223..IV5 NO.2 |
1 | ||
| 27148-11030 |
1GDFTV..GDH201,223..IV5 NO.1 |
1 | ||
| 27148A - WIRE, CONNECTING | ||||
| 27148-11040 |
1GDFTV..GDH201,223..IV5 NO.2 |
1 | ||
| 27148-11030 |
1GDFTV..GDH201,223..IV5 NO.1 |
1 | ||
| Common parts | ||||
| 82715-6AC20 | ||||
| 82715-71240 | ||||
| 90126-08048 | ||||
| 90301-49003 | ||||
| 90401-14018 | ||||
| 90430-14015 | ||||
| 90464-00755 | ||||
| 91551-80825 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 92122-80822 | ||||
| 94151-80800 | ||||
| 96132-51300 | ||||
| 96135-51300 | ||||
| 96136-41501 | ||||
| 96136-41801 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 1701 | ||||
| 2201 | ||||
| 2301 | ||||
| 2302 | ||||
| 7751 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
