MHU38W-AWXGK (2005)
Toyota Harrier Hv
(0503- )

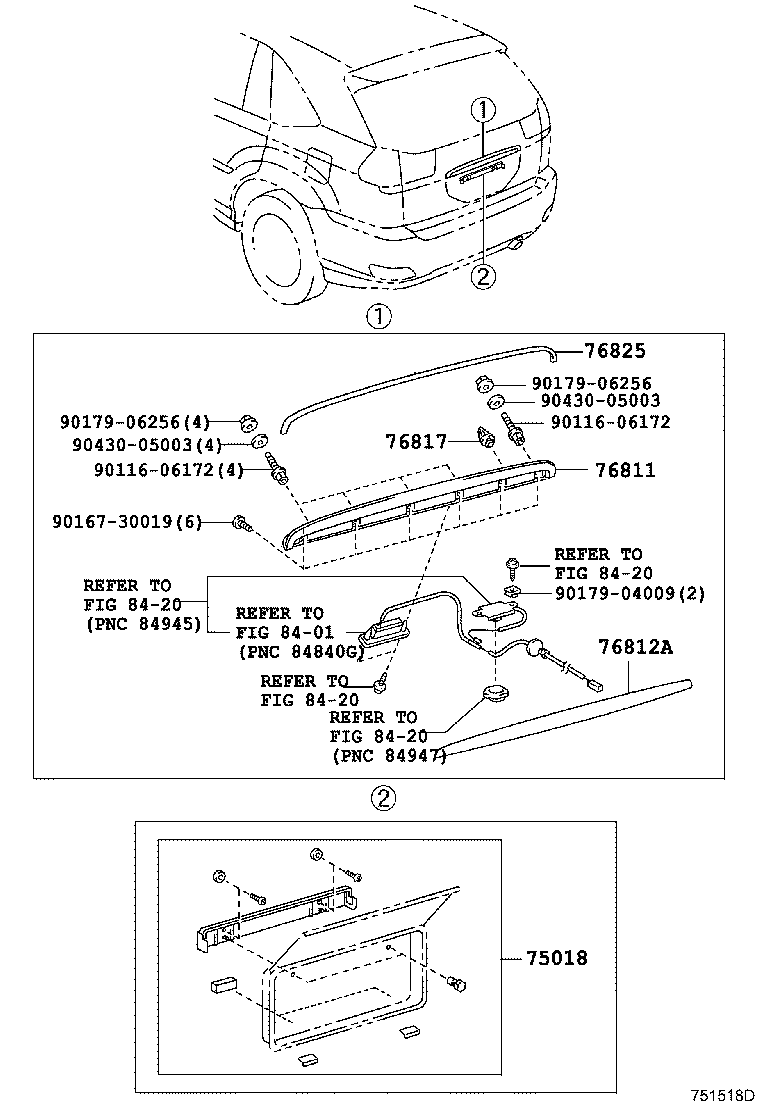

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75018 - FRAME SUB-ASSY, REAR LICENSE PLATE | ||||
| 75010-48020 |
MHU38 ﾗｲｾﾝｽﾌﾟﾚｰﾄﾌﾞﾗｹｯﾄ−国内字光式 |
1 | ||
| 76811 - GARNISH, BACK DOOR, OUTSIDE | ||||
| 76811-48070A0 |
MHU38 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(01EMV & 03ﾅﾋﾞｹﾞｰｼｮﾝ),WHITE PEARL CS.,062 |
1 | ||
| 76811-48070C0 |
MHU38 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(01EMV & 03ﾅﾋﾞｹﾞｰｼｮﾝ),BLACK,202 |
1 | ||
| 76811-48100A0 |
MHU38 WHITE PEARL CS.,062 |
1 | ||
| 76811-48120J1 |
MHU38 ALCANTARA Prime Version *(D),LT.BLUE M.M.,8S7 |
1 | ||
| 76811-48070E1 |
MHU38 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(01EMV & 03ﾅﾋﾞｹﾞｰｼｮﾝ),COPPERBROWN MC.,4S6 |
1 | ||
| 76811-48100E0 |
MHU38 LT.BROWN M.M.,4S5 |
1 | ||
| 76811-48070B0 |
MHU38 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(01EMV & 03ﾅﾋﾞｹﾞｰｼｮﾝ),SILVERME.,1C0 |
1 | ||
| 76811-48100B0 |
MHU38 SILVER ME.,1C0 |
1 | ||
| 76811-48100E1 |
MHU38 COPPER BROWN MC.,4S6 |
1 | ||
| 76811-48070E0 |
MHU38 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(01EMV & 03ﾅﾋﾞｹﾞｰｼｮﾝ),LT.BROWN M.M.,4S5 |
1 | ||
| 76811-48120B0 |
MHU38 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD,SILVER ME.,1C0 |
1 | ||
| 76811-48120A0 |
MHU38 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD,WHITE PEARL CS.,062 |
1 | ||
| 76811-48120E1 |
MHU38 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD,COPPER BROWN MC.,4S6 |
1 | ||
| 76811-48100J1 |
MHU38 LT.BLUE M.M.,8S7 |
1 | ||
| 76811-48100G0 |
MHU38 LT.OLIVE M.M.,6T1 |
1 | ||
| 76811-48100D1 |
MHU38 DK. RED M.M.,3Q3 |
1 | ||
| 76811-48120G0 |
MHU38 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD,LT.OLIVE M.M.,6T1 |
1 | ||
| 76811-48120J1 |
MHU38 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD,LT.BLUE M.M.,8S7 |
1 | ||
| 76811-48120C0 |
MHU38 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD,BLACK,202 |
1 | ||
| 76811-48100C0 |
MHU38 BLACK,202 |
1 | ||
| 76811-48100J2 |
MHU38 DK.BLUE MC.,8S6 |
1 | ||
| 76811-48120A1 |
MHU38 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD,WHITE PEARL CS.,070 |
1 | ||
| 76811-48120D2 |
MHU38 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD,BLACKISH RED MC.,3R0 |
1 | ||
| 76811-48120J2 |
MHU38 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD,DK.BLUE MC.,8S6 |
1 | ||
| 76811-48120B1 |
MHU38 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD,SILVER ME.,1F7 |
1 | ||
| 76811-48100D2 |
MHU38 BLACKISH RED MC.,3R0 |
1 | ||
| 76811-48120D1 |
MHU38 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD,DK. RED M.M.,3Q3 |
1 | ||
| 76811-48100B1 |
MHU38 SILVER ME.,1F7 |
1 | ||
| 76811-48100A1 |
MHU38 WHITE PEARL CS.,070 |
1 | ||
| 76812A - GARNISH, BACK DOOR, OUTSIDE NO.2 | ||||
| 76812-48011 |
MHU38 |
1 | ||
| 76812-48010 |
MHU38 |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 75819-33010 |
MHU38 |
1 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-48010 |
MHU38 |
1 | ||
| Common parts | ||||
| 90116-06172 | ||||
| 90167-30019 | ||||
| 90179-04009 | ||||
| 90179-06256 | ||||
| 90430-05003 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8420 | ||||
