MHU38W-AWXGK (2005)
Toyota Harrier Hv

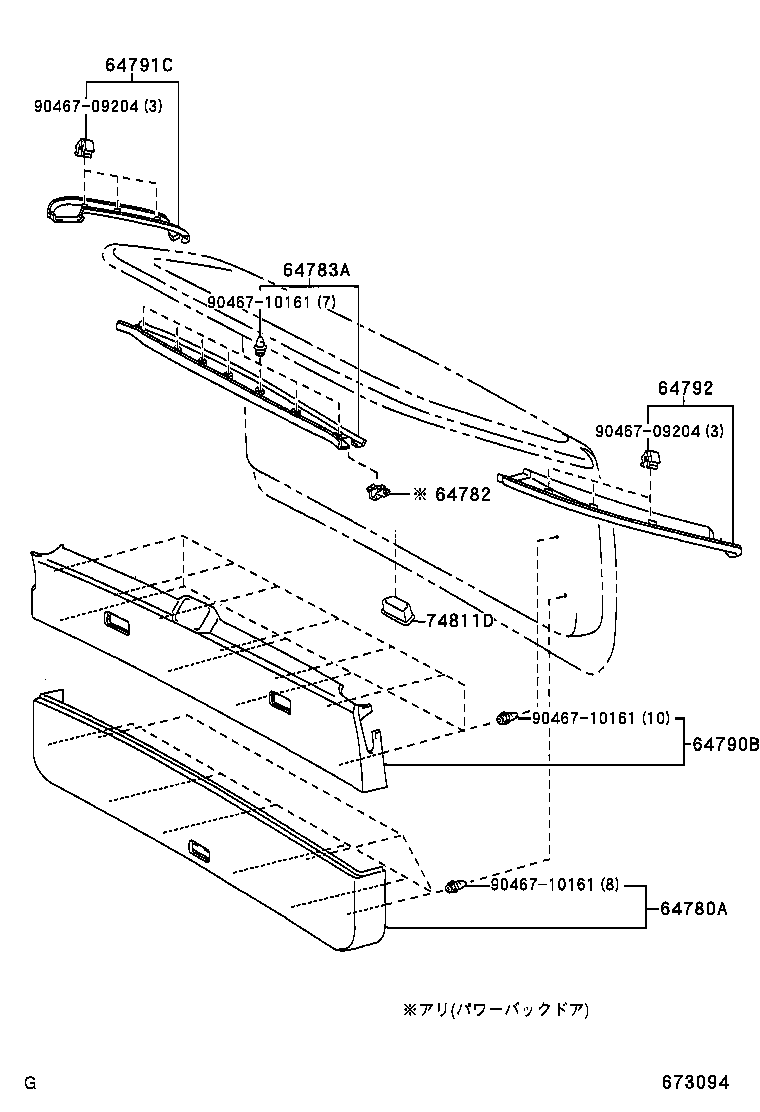

ILLUST NO. 1 OF 2(0503- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-48050B1 |
MHU38 ALCANTARA Prime Version *(D),LT.GRAY,TRIM11 |
1 | ||
| 64780-48050A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 64780-48050A0 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64780-48050C1 |
MHU38 BLACK,TRIM2# |
1 | ||
| 64780-48050A0 |
MHU38 Lﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64782 - BOARD, BACK DOOR TRIM, LH | ||||
| 64782-48010B1 |
MHU38 ALCANTARA Prime Version *(D),LT.GRAY,TRIM11 |
1 | ||
| 64782-48010A0 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64782-48010B0 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,LT.GRAY,TRIM2# |
1 | ||
| 64782-48010B1 |
MHU38 Lﾊﾟｯｹｰｼﾞ,LT. GRAY,TRIM2# |
1 | ||
| 64782-48010B0 |
MHU38 Lﾊﾟｯｹｰｼﾞ,LT.GRAY,TRIM2# |
1 | ||
| 64782-48010A0 |
MHU38 Lﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64782-48010B1 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,LT. GRAY,TRIM2# |
1 | ||
| 64782-48010A1 |
MHU38 Lﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64782-48010A1 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64783A - TRIM, BACK WINDOW PANEL, UPPER | ||||
| 64783-48040B0 |
MHU38 LT.GRAY,TRIM2# |
1 | ||
| 64783-48050A1 |
MHU38 Lﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64783-48040B1 |
MHU38 LT. GRAY,TRIM2# |
1 | ||
| 64783-48050A0 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64783-48040A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 64783-48050B0 |
MHU38 Lﾊﾟｯｹｰｼﾞ,LT.GRAY,TRIM2# |
1 | ||
| 64783-48050B0 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,LT.GRAY,TRIM2# |
1 | ||
| 64783-48050A1 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64783-48051B1 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,LT. GRAY,TRIM2# |
1 | ||
| 64783-48051A1 |
MHU38 Lﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64783-48041B1 |
MHU38 ALCANTARA Prime Version *(D),LT.GRAY,TRIM11 |
1 | ||
| 64783-48050B1 |
MHU38 Lﾊﾟｯｹｰｼﾞ,LT. GRAY,TRIM2# |
1 | ||
| 64783-48051B1 |
MHU38 Lﾊﾟｯｹｰｼﾞ,LT. GRAY,TRIM2# |
1 | ||
| 64783-48051A1 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64783-48041B1 |
MHU38 LT. GRAY,TRIM2# |
1 | ||
| 64783-48050A0 |
MHU38 Lﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64783-48050B1 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,LT. GRAY,TRIM2# |
1 | ||
| 64790B - PANEL ASSY, BACK DOOR TRIM, UPPER | ||||
| 64790-48031A1 |
MHU38 Lﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64790-48031B1 |
MHU38 LT.GRAY,TRIM2# |
1 | ||
| 64790-48030A1 |
MHU38 IVORY,TRIM0# |
1 | ||
| 64790-48030B1 |
MHU38 LT.GRAY,TRIM2# |
1 | ||
| 64790-48031B1 |
MHU38 ALCANTARA Prime Version *(D),LT.GRAY,TRIM11 |
1 | ||
| 64790-48031A1 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64791C - COVER, BACK DOOR TRIM, RH | ||||
| 64791-48030A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 64791-48030A1 |
MHU38 Lﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64791-48030A1 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64791-48031A1 |
MHU38 Lﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64791-48031A1 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64791-48030B0 |
MHU38 LT.GRAY,TRIM2# |
1 | ||
| 64791-48031B1 |
MHU38 LT. GRAY,TRIM2# |
1 | ||
| 64791-48031B1 |
MHU38 ALCANTARA Prime Version *(D),LT.GRAY,TRIM11 |
1 | ||
| 64791-48030B1 |
MHU38 LT. GRAY,TRIM2# |
1 | ||
| 64792 - COVER, BACK DOOR TRIM, LH | ||||
| 64792-48030A0 |
MHU38 IVORY,TRIM0# |
1 | ||
| 64792-48031A1 |
MHU38 Lﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64792-48030A1 |
MHU38 Lﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64792-48030B1 |
MHU38 LT. GRAY,TRIM2# |
1 | ||
| 64792-48031B1 |
MHU38 ALCANTARA Prime Version *(D),LT.GRAY,TRIM11 |
1 | ||
| 64792-48031A1 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64792-48030B0 |
MHU38 LT.GRAY,TRIM2# |
1 | ||
| 64792-48030A1 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 64792-48031B1 |
MHU38 LT. GRAY,TRIM2# |
1 | ||
| 74811D - HANDLE, DOOR PULL | ||||
| 74811-13010C0 |
MHU38 BLACK |
1 | ||
| Common parts | ||||
| 90467-09204 | ||||
| 90467-10161 | ||||

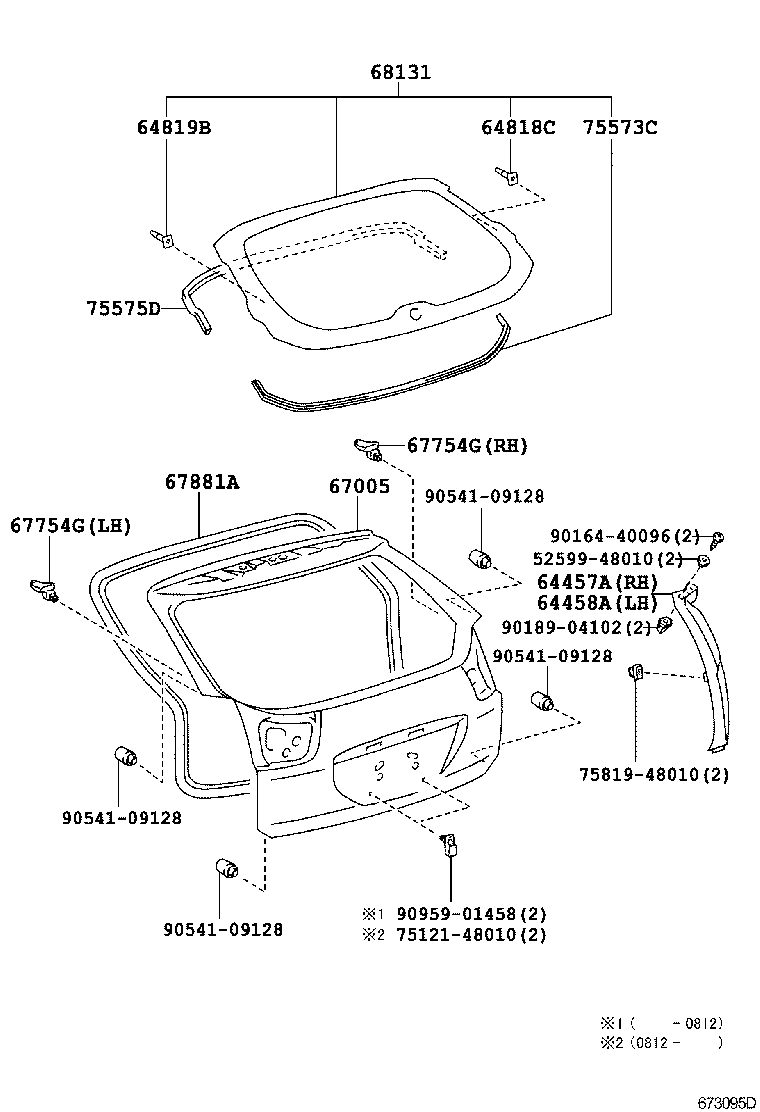

ILLUST NO. 2 OF 2(0503- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64457A - COVER, LUGGAGE DOOR STOPPER CUSHION, RH | ||||
| 64457-48010 |
MHU38 |
1 | ||
| 64458A - COVER, LUGGAGE DOOR STOPPER CUSHION, LH | ||||
| 64458-48010 |
MHU38 |
1 | ||
| 64818C - SPACER, BACK WINDOW GLASS, NO.1 | ||||
| 64818-48030 |
MHU38 |
1 | ||
| 64819B - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-48030 |
MHU38 |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-48160 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ |
1 | ||
| 67005-48470 |
MHU38 |
1 | ||
| 67005-48490 |
MHU38 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD |
1 | ||
| 67005-48480 |
MHU38 Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 67005-48180 |
MHU38 Lﾊﾟｯｹｰｼﾞ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(01EMV & 03ﾅﾋﾞｹﾞｰｼｮﾝ) |
1 | ||
| 67005-48480 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ |
1 | ||
| 67005-48160 |
MHU38 Lﾊﾟｯｹｰｼﾞ |
1 | ||
| 67005-48180 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD |
1 | ||
| 67005-48500 |
MHU38 Lﾊﾟｯｹｰｼﾞ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD |
1 | ||
| 67005-48170 |
MHU38 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(01EMV & 03ﾅﾋﾞｹﾞｰｼｮﾝ) |
1 | ||
| 67005-48180 |
MHU38 Lﾊﾟｯｹｰｼﾞ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD |
1 | ||
| 67005-48180 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(01EMV & 03ﾅﾋﾞｹﾞｰｼｮﾝ) |
1 | ||
| 67005-48170 |
MHU38 EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD |
1 | ||
| 67005-48150 |
MHU38 |
1 | ||
| 67005-48500 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD |
1 | ||
| 67754G - SPACER, BACK DOOR TRIM | ||||
| 67754-48061B0 |
MHU38 ALCANTARA Prime Version *(D),LT.GRAY,TRIM11,左側 |
1 | ||
| 67754-48051A0 |
MHU38 Lﾊﾟｯｹｰｼﾞ,IVORY,TRIM0#,右側 |
1 | ||
| 67754-48010A0 |
MHU38 IVORY,TRIM0#,右側 |
1 | ||
| 67754-48050A0 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,IVORY,TRIM0#,右側 |
1 | ||
| 67754-48020B0 |
MHU38 LT.GRAY,TRIM2#,左側 |
1 | ||
| 67754-48050A0 |
MHU38 Lﾊﾟｯｹｰｼﾞ,IVORY,TRIM0#,右側 |
1 | ||
| 67754-48060A0 |
MHU38 Lﾊﾟｯｹｰｼﾞ,IVORY,TRIM0#,左側 |
1 | ||
| 67754-48010B0 |
MHU38 LT.GRAY,TRIM2#,右側 |
1 | ||
| 67754-48051A0 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,IVORY,TRIM0#,右側 |
1 | ||
| 67754-48050B0 |
MHU38 LT.GRAY,TRIM2#,右側 |
1 | ||
| 67754-48060A0 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,IVORY,TRIM0#,左側 |
1 | ||
| 67754-48020A0 |
MHU38 IVORY,TRIM0#,左側 |
1 | ||
| 67754-48061A0 |
MHU38 Lﾊﾟｯｹｰｼﾞ,IVORY,TRIM0#,左側 |
1 | ||
| 67754-48051B0 |
MHU38 ALCANTARA Prime Version *(D),LT.GRAY,TRIM11,右側 |
1 | ||
| 67754-48060B0 |
MHU38 LT.GRAY,TRIM2#,左側 |
1 | ||
| 67754-48051B0 |
MHU38 LT.GRAY,TRIM2#,右側 |
1 | ||
| 67754-48061B0 |
MHU38 LT.GRAY,TRIM2#,左側 |
1 | ||
| 67754-48061A0 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,IVORY,TRIM0#,左側 |
1 | ||
| 67754G - SPACER, BACK DOOR TRIM | ||||
| 67754-48061B0 |
MHU38 ALCANTARA Prime Version *(D),LT.GRAY,TRIM11,左側 |
1 | ||
| 67754-48051A0 |
MHU38 Lﾊﾟｯｹｰｼﾞ,IVORY,TRIM0#,右側 |
1 | ||
| 67754-48010A0 |
MHU38 IVORY,TRIM0#,右側 |
1 | ||
| 67754-48050A0 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,IVORY,TRIM0#,右側 |
1 | ||
| 67754-48020B0 |
MHU38 LT.GRAY,TRIM2#,左側 |
1 | ||
| 67754-48050A0 |
MHU38 Lﾊﾟｯｹｰｼﾞ,IVORY,TRIM0#,右側 |
1 | ||
| 67754-48060A0 |
MHU38 Lﾊﾟｯｹｰｼﾞ,IVORY,TRIM0#,左側 |
1 | ||
| 67754-48010B0 |
MHU38 LT.GRAY,TRIM2#,右側 |
1 | ||
| 67754-48051A0 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,IVORY,TRIM0#,右側 |
1 | ||
| 67754-48050B0 |
MHU38 LT.GRAY,TRIM2#,右側 |
1 | ||
| 67754-48060A0 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,IVORY,TRIM0#,左側 |
1 | ||
| 67754-48020A0 |
MHU38 IVORY,TRIM0#,左側 |
1 | ||
| 67754-48061A0 |
MHU38 Lﾊﾟｯｹｰｼﾞ,IVORY,TRIM0#,左側 |
1 | ||
| 67754-48051B0 |
MHU38 ALCANTARA Prime Version *(D),LT.GRAY,TRIM11,右側 |
1 | ||
| 67754-48060B0 |
MHU38 LT.GRAY,TRIM2#,左側 |
1 | ||
| 67754-48051B0 |
MHU38 LT.GRAY,TRIM2#,右側 |
1 | ||
| 67754-48061B0 |
MHU38 LT.GRAY,TRIM2#,左側 |
1 | ||
| 67754-48061A0 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ,IVORY,TRIM0#,左側 |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-48031 |
MHU38 |
1 | ||
| 67881-48032 |
MHU38 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-48310 |
MHU38 *EHT,厚さ=3.5,ﾌﾟﾗｲﾊﾞｼｰ,ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ&寒冷地仕様&EMV&iﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD |
1 | ||
| 68105-48230 |
MHU38 *EHT,厚さ=3.5,ﾌﾟﾗｲﾊﾞｼｰ,寒冷地仕様&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−Lり(01EMV & 03ﾅﾋﾞｹﾞｰｼｮﾝ) |
1 | ||
| 68105-48290 |
MHU38 *EHT,厚さ=3.5,ﾌﾟﾗｲﾊﾞｼｰ,ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ&EMV&ﾅﾋﾞｹﾞｰｼｮ塔Vｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD |
1 | ||
| 68105-48290 |
MHU38 *EHT,厚さ=3.5,ﾌﾟﾗｲﾊﾞｼｰ,ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ&EMV&ﾅﾋﾞｹﾞｰｼｮ塔Vｽﾃﾑ−有り(01EMV & 03ﾅﾋﾞｹﾞｰｼｮﾝ) |
1 | ||
| 68105-48310 |
MHU38 *EHT,厚さ=3.5,ﾌﾟﾗｲﾊﾞｼｰ,ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ&寒冷地仕様&EMV&iﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(01EMV & 03ﾅﾋﾞｹﾞｰｼｮﾝ) |
1 | ||
| 68105-48280 |
MHU38 *EHT,厚さ=3.5,ﾌﾟﾗｲﾊﾞｼｰ,ﾘﾔ ｽﾎﾟｲﾗｰ−ﾘﾔ & ｻｲﾄﾞ ｽﾎﾟｲﾗLり |
1 | ||
| 68105-48300 |
MHU38 *EHT,厚さ=3.5,ﾌﾟﾗｲﾊﾞｼｰ,ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 68105-48230 |
MHU38 *EHT,厚さ=3.5,ﾌﾟﾗｲﾊﾞｼｰ,寒冷地仕様&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−Lり(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD |
1 | ||
| 68105-48280 |
MHU38 *EHT,厚さ=3.5,ﾌﾟﾗｲﾊﾞｼｰ,ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ |
1 | ||
| 68105-48200 |
MHU38 *EHT,厚さ=3.5,ﾌﾟﾗｲﾊﾞｼｰ |
1 | ||
| 68105-48300 |
MHU38 *EHT,厚さ=3.5,ﾌﾟﾗｲﾊﾞｼｰ,寒冷地仕様&ﾘﾔ ｽﾎﾟｲﾗｰ−ﾘﾔ & ｻｲh ｽﾎﾟｲﾗ有り |
1 | ||
| 68105-48210 |
MHU38 *EHT,厚さ=3.5,ﾌﾟﾗｲﾊﾞｼｰ,EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(01ElV & 03ﾅﾋﾞｹﾞｰｼｮﾝ) |
1 | ||
| 68105-48290 |
MHU38 *EHT,厚さ=3.5,ﾌﾟﾗｲﾊﾞｼｰ,ﾘﾔ ｽﾎﾟｲﾗｰ−ﾘﾔ & ｻｲﾄﾞ ｽﾎﾟｲﾗLり&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/gDD |
1 | ||
| 68105-48220 |
MHU38 *EHT,厚さ=3.5,ﾌﾟﾗｲﾊﾞｼｰ,寒冷地仕様 |
1 | ||
| 68105-48310 |
MHU38 *EHT,厚さ=3.5,ﾌﾟﾗｲﾊﾞｼｰ,寒冷地仕様&ﾘﾔ ｽﾎﾟｲﾗｰ−ﾘﾔ & ｻｲh ｽﾎﾟｲﾗ有り&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞ[ｼｮﾝ)/HDD |
1 | ||
| 68105-48220 |
MHU38 *EHT,厚さ=3.5,ﾌﾟﾗｲﾊﾞｼｰ |
1 | ||
| 68105-48210 |
MHU38 *EHT,厚さ=3.5,ﾌﾟﾗｲﾊﾞｼｰ,EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05ElV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD |
1 | ||
| 68105-48300 |
MHU38 *EHT,厚さ=3.5,ﾌﾟﾗｲﾊﾞｼｰ,ﾘﾔ ｽﾎﾟｲﾗｰ−ﾘﾔ & ｻｲﾄﾞ ｽﾎﾟｲﾗLり |
1 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-48030 |
MHU38 寒冷地仕様&ﾘﾔ ｽﾎﾟｲﾗｰ−ﾘﾔ & ｻｲﾄﾞ ｽﾎﾟｲﾗ有り&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD |
1 | ||
| 75573-48030 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD |
1 | ||
| 75573-48030 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ&寒冷地仕様&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(01EMV & 03ﾅﾋﾞｹﾞｰｼｮﾝ) |
1 | ||
| 75573-48030 |
MHU38 ﾘﾔ ｽﾎﾟｲﾗｰ−ﾘﾔ & ｻｲﾄﾞ ｽﾎﾟｲﾗ有り&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD |
1 | ||
| 75573-48030 |
MHU38 寒冷地仕様&ﾘﾔ ｽﾎﾟｲﾗｰ−ﾘﾔ & ｻｲﾄﾞ ｽﾎﾟｲﾗ有り |
1 | ||
| 75573-48030 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(01EMV & 03ﾅﾋﾞｹﾞｰｼｮﾝ) |
1 | ||
| 75573-48030 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ |
1 | ||
| 75573-48020 |
MHU38 |
1 | ||
| 75573-48030 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ&寒冷地仕様&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD |
1 | ||
| 75573-48030 |
MHU38 ﾘﾔ ｽﾎﾟｲﾗｰ−ﾘﾔ & ｻｲﾄﾞ ｽﾎﾟｲﾗ有り |
1 | ||
| 75573-48030 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 75575D - MOULDING, BACK WINDOW, LOWER | ||||
| 75575-48020 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(01EMV & 03ﾅﾋﾞｹﾞｰｼｮﾝ) |
1 | ||
| 75575-48020 |
MHU38 ﾘﾔ ｽﾎﾟｲﾗｰ−ﾘﾔ & ｻｲﾄﾞ ｽﾎﾟｲﾗ有り&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD |
1 | ||
| 75575-48020 |
MHU38 寒冷地仕様&ﾘﾔ ｽﾎﾟｲﾗｰ−ﾘﾔ & ｻｲﾄﾞ ｽﾎﾟｲﾗ有り&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD |
1 | ||
| 75575-48020 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ&寒冷地仕様&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(01EMV & 03ﾅﾋﾞｹﾞｰｼｮﾝ) |
1 | ||
| 75575-48020 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ |
1 | ||
| 75575-48020 |
MHU38 寒冷地仕様&ﾘﾔ ｽﾎﾟｲﾗｰ−ﾘﾔ & ｻｲﾄﾞ ｽﾎﾟｲﾗ有り |
1 | ||
| 75575-48010 |
MHU38 |
1 | ||
| 75575-48020 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ&寒冷地仕様&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD |
1 | ||
| 75575-48020 |
MHU38 ﾘﾔ ｽﾎﾟｲﾗｰ−ﾘﾔ & ｻｲﾄﾞ ｽﾎﾟｲﾗ有り |
1 | ||
| 75575-48020 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(05EMV & 05ﾅﾋﾞｹﾞｰｼｮﾝ)/HDD |
1 | ||
| 75575-48020 |
MHU38 ﾌﾟﾚﾐｱﾑSﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| Common parts | ||||
| 52599-48010 | ||||
| 75121-48010 | ||||
| 75819-48010 | ||||
| 90164-40096 | ||||
| 90189-04102 | ||||
| 90541-09128 | ||||
| 90959-01458 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
