SXU15W-AWPGK (1997)

Toyota Harrier

Production Dec 1997 - Nov 2000
Engine 5SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9712- )

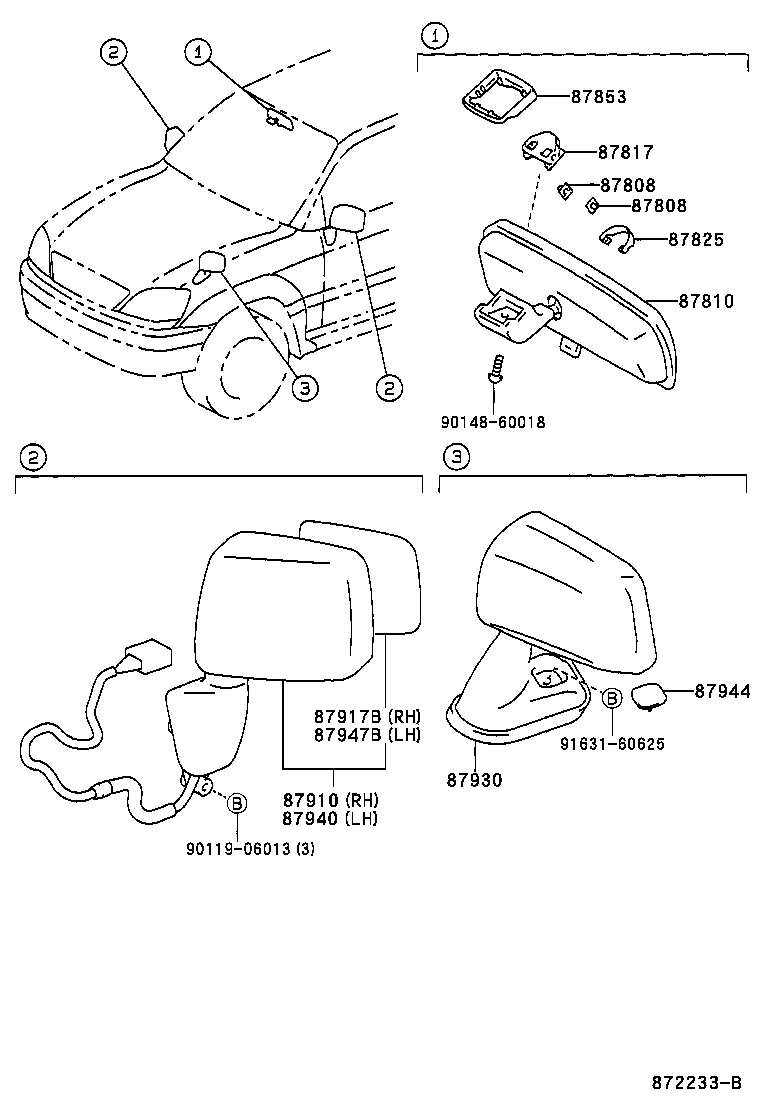

Click highlighted areas on diagram

diagram 87808 87808 87810 87817 87825 87853 87910 87917B 87930 87940 87944 87947B 9011906013 9014860018 9163160625
Part # Description Qty Price
87808 - HOLDER SUB-ASSY, INNER MIRROR
87808-24010

ACU1#,MCU1#,SXU1#

 2
87808 - HOLDER SUB-ASSY, INNER MIRROR
87808-24010

ACU1#,MCU1#,SXU1#

 2
87810 - MIRROR ASSY, INNER REAR VIEW
87810-24040A0

ACU1#,MCU1#,SXU1#

IVORY,TRIM0#

 1
87810-24040B2

MCU1#,SXU1#

BLUE GRAY,TRIM1#

 1
87810-24040B1

MCU1#,SXU1#

MD.GRAY,TRIM1#

 1
87817 - SPACER, INNER REAR VIEW MIRROR
87817-24010

ACU1#,MCU1#,SXU1#

 1
87825 - SPRING, INNER REAR VIEW MIRROR SETTING
87825-24010

ACU1#,MCU1#,SXU1#

 1
87853 - BASE, INNER REAR VIEW MIRROR
87853-24020

ACU1#,MCU1#,SXU1#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-48010D0

MCU1#,SXU1#

RED MC.,3M8

 1
87910-48010E0

MCU1#,SXU1#

BEIGE SF.,4P2

 1
87910-48010C0

MCU1#,SXU1#

BLACK,202

 1
87910-48010B0

MCU1#,SXU1#

SILVER ME.,1C0

 1
87910-48010G0

MCU1#,SXU1#

GREEN MC.,6R1

 1
87910-48010J0

MCU1#,SXU1#

DK.BLUE MC.,8L4

 1
87910-48020C0

MCU1#,SXU1#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),BLACK,202

 1
87910-48010B2

MCU1#,SXU1#

DK.GRAY M.M,1C6

 1
87910-48010A0

MCU1#,SXU1#

WHITE PM.,057

 1
87910-48020A0

MCU1#,SXU1#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),WHITE PM.,057

 1
87910-48010A2

MCU1#,SXU1#

SUPER WHITE 2,040

 1
87910-48020B2

MCU1#,SXU1#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),DK.GRAY M.M,1C6

 1
87910-48020A2

MCU1#,SXU1#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),SUPER WHITE 2,040

 1
87910-48020J0

MCU1#,SXU1#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),DK.BLUE MC.,8L4

 1
87910-48020B0

MCU1#,SXU1#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),SILVER ME.,1C0

 1
87910-48020E0

MCU1#,SXU1#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),BEIGE SF.,4P2

 1
87910-48020D0

MCU1#,SXU1#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),RED MC.,3M8

 1
87910-48020G0

MCU1#,SXU1#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),GREEN MC.,6R1

 1
87910-48020B1

MCU1#,SXU1#

EXTRA Gﾊﾟﾂｹｰｼﾞ *(X) & ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗｰ ﾋｰﾀﾂｷ),SILVER ME.,199

 1
87910-48010B1

MCU1#,SXU1#

EXTRA Gﾊﾟﾂｹ-ｼﾞ *(X),SILVER ME.,199

 1
87910-48020A1

MCU1#,SXU1#

EXTRA Gﾊﾟﾂｹｰｼﾞ *(X) & ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗｰ ﾋｰﾀﾂｷ),SU. WHITE PM.,051

 1
87910-48010A1

MCU1#,SXU1#

EXTRA Gﾊﾟﾂｹ-ｼﾞ *(X),SU. WHITE PM.,051

 1
87917B - MIRROR, OUTER REAR VIEW, RH
87931-48020

MCU1#,SXU1#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ)

 1
87931-48010

MCU1#,SXU1#

 1
87930 - DEVICE ASSY, FRONT FENDER SIDE VIEW, LH
87930-48010A0

MCU1#,SXU1#

WHITE PM.,057

 1
87930-48010D0

MCU1#,SXU1#

RED MC.,3M8

 1
87930-48010J0

MCU1#,SXU1#

DK.BLUE MC.,8L4

 1
87930-48010E0

ACU1#,MCU1#,SXU1#

BEIGE SF.,4P2

 1
87930-48010B0

ACU1#,MCU1#,SXU1#

SILVER ME.,1C0

 1
87930-48010C0

ACU1#,MCU1#,SXU1#

BLACK,202

 1
87930-48010B2

MCU1#,SXU1#

DK.GRAY M.M,1C6

 1
87930-48010G0

MCU1#,SXU1#

GREEN MC.,6R1

 1
87930-48010A1

MCU1#,SXU1#

EXTRA Gﾊﾟﾂｹ-ｼﾞ *(X),SU. WHITE PM.,051

 1
87930-48010B1

MCU1#,SXU1#

EXTRA Gﾊﾟﾂｹ-ｼﾞ *(X),SILVER ME.,199

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-48010A0

MCU1#,SXU1#

WHITE PM.,057

 1
87940-48020A0

MCU1#,SXU1#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),WHITE PM.,057

 1
87940-48010B0

MCU1#,SXU1#

SILVER ME.,1C0

 1
87940-48010E0

MCU1#,SXU1#

BEIGE SF.,4P2

 1
87940-48010J0

MCU1#,SXU1#

DK.BLUE MC.,8L4

 1
87940-48010A2

MCU1#,SXU1#

SUPER WHITE 2,040

 1
87940-48020G0

MCU1#,SXU1#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),GREEN MC.,6R1

 1
87940-48010G0

MCU1#,SXU1#

GREEN MC.,6R1

 1
87940-48010C0

MCU1#,SXU1#

BLACK,202

 1
87940-48020J0

MCU1#,SXU1#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),DK.BLUE MC.,8L4

 1
87940-48020C0

MCU1#,SXU1#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),BLACK,202

 1
87940-48020E0

MCU1#,SXU1#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),BEIGE SF.,4P2

 1
87940-48020A2

MCU1#,SXU1#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),SUPER WHITE 2,040

 1
87940-48020B2

MCU1#,SXU1#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),DK.GRAY M.M,1C6

 1
87940-48010B2

MCU1#,SXU1#

DK.GRAY M.M,1C6

 1
87940-48010D0

MCU1#,SXU1#

RED MC.,3M8

 1
87940-48020D0

MCU1#,SXU1#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),RED MC.,3M8

 1
87940-48020B0

MCU1#,SXU1#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ),SILVER ME.,1C0

 1
87940-48020B1

MCU1#,SXU1#

EXTRA Gﾊﾟﾂｹｰｼﾞ *(X) & ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗｰ ﾋｰﾀﾂｷ),SILVER ME.,199

 1
87940-48020A1

MCU1#,SXU1#

EXTRA Gﾊﾟﾂｹｰｼﾞ *(X) & ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗｰ ﾋｰﾀﾂｷ),SU. WHITE PM.,051

 1
87940-48010B1

MCU1#,SXU1#

EXTRA Gﾊﾟﾂｹ-ｼﾞ *(X),SILVER ME.,199

 1
87940-48010A1

MCU1#,SXU1#

EXTRA Gﾊﾟﾂｹ-ｼﾞ *(X),SU. WHITE PM.,051

 1
87944 - COVER, FRONT FENDER SIDE VIEW DEVICE, LH
87944-48010D0

MCU1#,SXU1#

RED MC.,3M8

 1
87944-48010A0

MCU1#,SXU1#

WHITE PM.,057

 1
87944-48010J0

MCU1#,SXU1#

DK.BLUE MC.,8L4

 1
87944-48010B0

ACU1#,MCU1#,SXU1#

SILVER ME.,1C0

 1
87944-48010E0

ACU1#,MCU1#,SXU1#

BEIGE SF.,4P2

 1
87944-48010A1

MCU1#,SXU1#

EXTRA Gﾊﾟﾂｹ-ｼﾞ *(X),SU. WHITE PM.,051

 1
87944-48010B1

MCU1#,SXU1#

EXTRA Gﾊﾟﾂｹ-ｼﾞ *(X),SILVER ME.,199

 1
87944-48010C0

ACU1#,MCU1#,SXU1#

BLACK,202

 1
87944-48010G0

MCU1#,SXU1#

GREEN MC.,6R1

 1
87947B - MIRROR, OUTER REAR VIEW, LH
87961-48010

MCU1#,SXU1#

 1
87961-48020

MCU1#,SXU1#

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ- ﾋ-ﾀﾂｷ)

 1
Common parts
90119-06013
90148-60018
91631-60625
