SXU15W-AWPGK (1997)

Toyota Harrier

Production Dec 1997 - Nov 2000
Engine 5SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9712- )

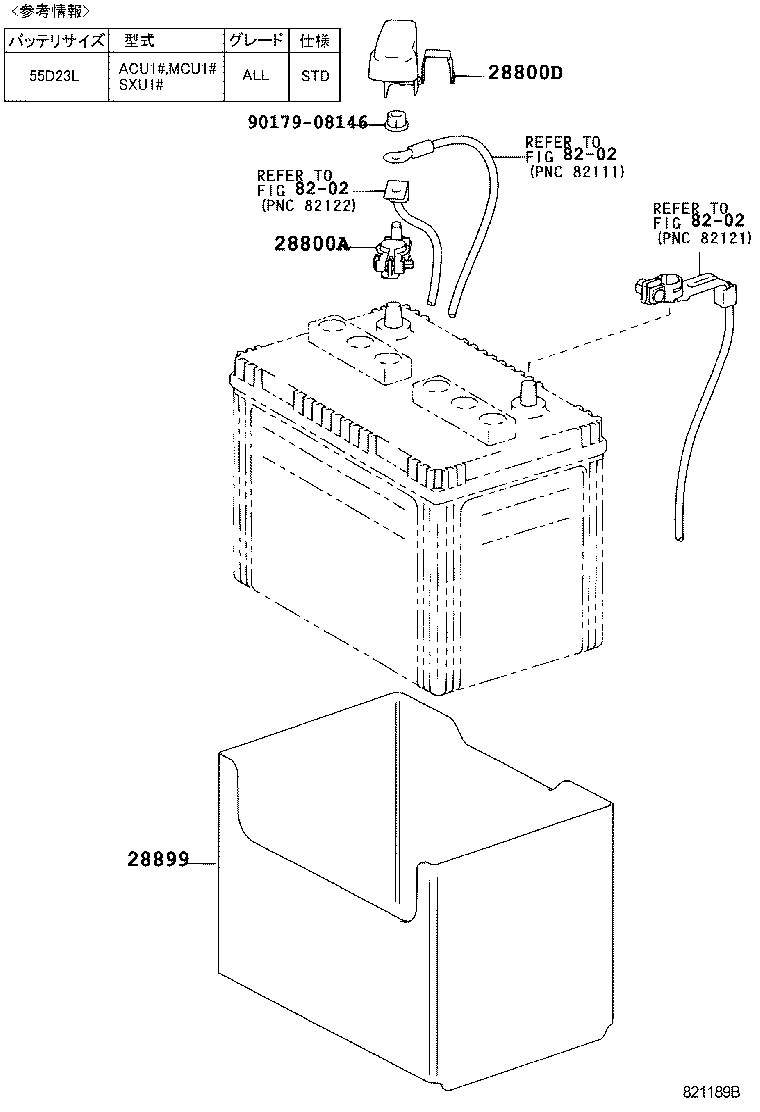

Click highlighted areas on diagram

diagram 28800A 28800D 28899 8202 8202 8202 9017908146
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05058

2AZFE,1MZFE,5SFE..ACU1#,MCU1#,SXU1#

 1
90982-05030

1MZFE,5SFE..MCU1#,SXU1#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-20350

2AZFE,1MZFE,5SFE..ACU1#,MCU1#,SXU1#

 1
Common parts
90179-08146
Linked diagrams
8202
