SXU15W-AWPGK (1997)
Toyota Harrier
Production
Dec 1997
-
Nov 2000
Engine
5SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9712-0011)

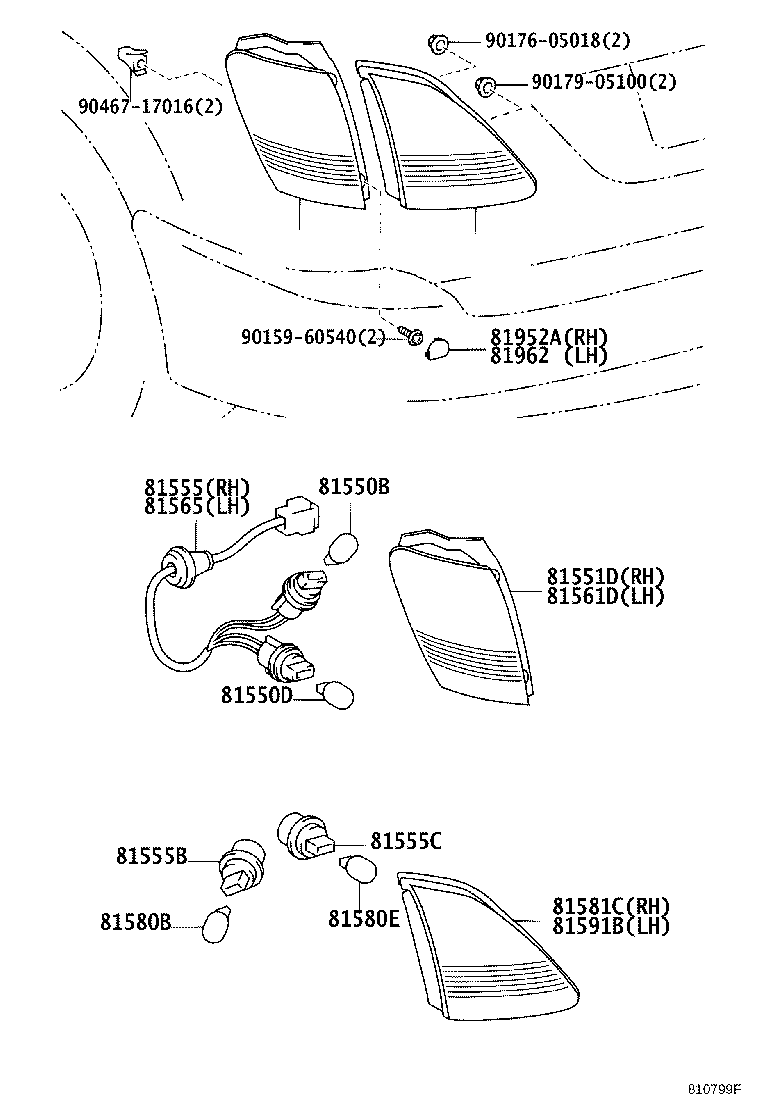

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13043 |
MCU1#,SXU1# 12V 21W |
2 | ||
| 81550D - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
MCU1#,SXU1# 12V 21/5W |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-48010 |
MCU1#,SXU1# |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-48010 |
MCU1#,SXU1# |
1 | ||
| 81555B - SOCKET PLUG, NO.1 | ||||
| 90075-60002 |
MCU1#,SXU1# |
2 | ||
| 90075-60003 |
MCU1#,SXU1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
2 | ||
| 81555C - SOCKET PLUG, NO.2 | ||||
| 90075-60003 |
MCU1#,SXU1# |
2 | ||
| 90075-60002 |
MCU1#,SXU1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
2 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-48010 |
MCU1#,SXU1# |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-48010 |
MCU1#,SXU1# |
1 | ||
| 81580B - BULB (FOR REAR LAMP) | ||||
| 90981-13044 |
ACU1#,MCU1#,SXU1# 12V 21/5W |
2 | ||
| 90981-13043 |
MCU1#,SXU1# 12V 21W,ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ) |
2 | ||
| 81580E - BULB | ||||
| 90981-13043 |
ACU1#,MCU1#,SXU1# 12V 21W |
2 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-48020 |
MCU1#,SXU1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81581-48010 |
MCU1#,SXU1# |
1 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-48020 |
MCU1#,SXU1# ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81591-48010 |
MCU1#,SXU1# |
1 | ||
| 81952A - COVER, REAR LAMP, RH | ||||
| 81952-22010 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 81962 - COVER, REAR LAMP, LH | ||||
| 81952-22010 |
ACU1#,MCU1#,SXU1# |
2 | ||
| Common parts | ||||
| 90159-60540 | ||||
| 90176-05018 | ||||
| 90179-05100 | ||||
| 90467-17016 | ||||
