SXU15W-AWPGK (1997)

Toyota Harrier

Production Dec 1997 - Nov 2000
Engine 5SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9712-0011)SXU1#

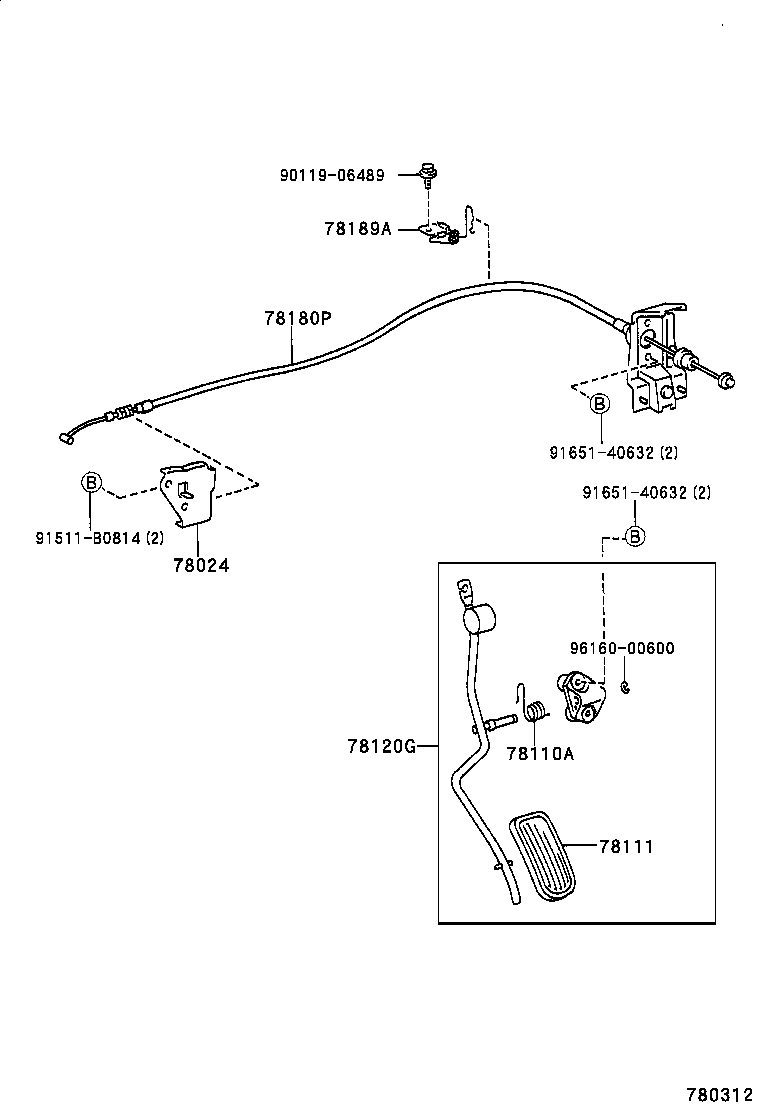

Click highlighted areas on diagram

diagram 78024 78110A 78111 78120G 78180P 78189A 9011906489 91511B0814 9165140632 9165140632 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-44020

SXU1#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26054

MCU1#,SXU1#

 1
78111 - PEDAL, ACCELERATOR
78111-33020

ACU1#,MCU1#,SXU1#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-48010

MCU1#,SXU1#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-48020

SXU1#

 1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-48030

SXU1#

 1
Common parts
90119-06489
91511-B0814
91651-40632
96160-00600
