SXU15W-AWPGK (1997)

Toyota Harrier

Production Dec 1997 - Nov 2000
Engine 5SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9712- )

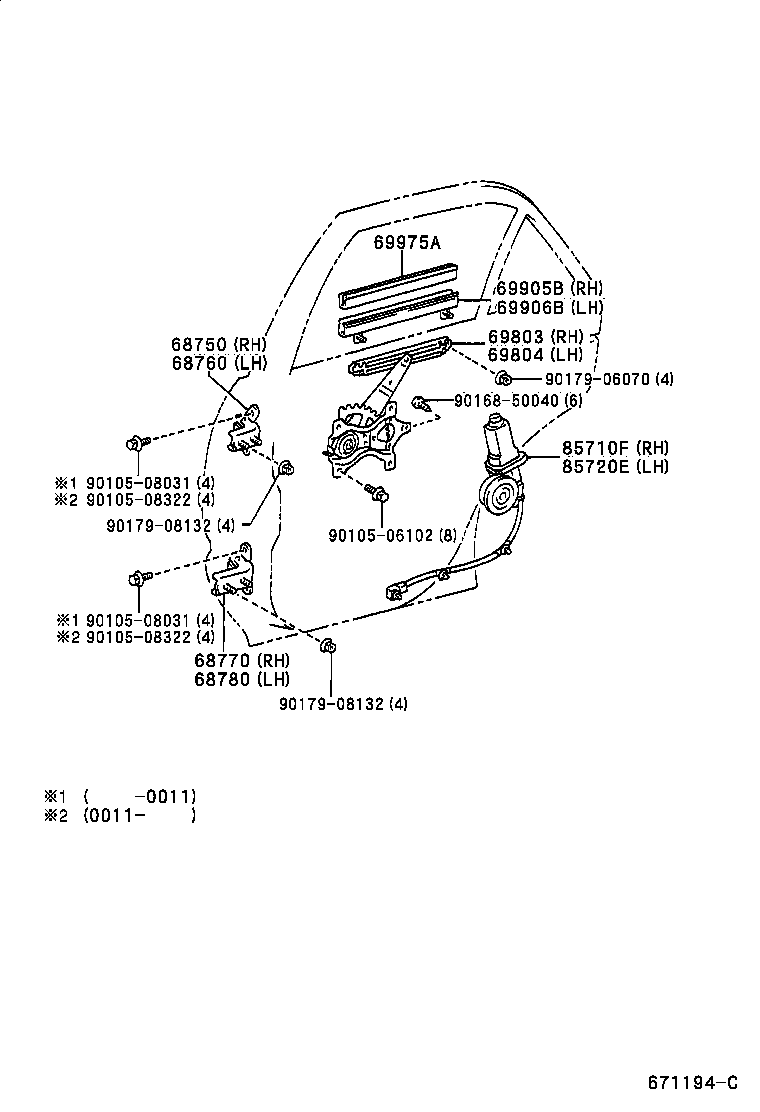

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69803 69804 69905B 69906B 69975A 85710F 85720E 9010506102 9010508031 9010508031 9010508322 9010508322 9016850040 9017906070 9017908132 9017908132
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-48010

ACU1#,MCU1#,SXU1#

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-48010

ACU1#,MCU1#,SXU1#

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-33010

ACU1#,MCU1#,SXU1#

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-33010

ACU1#,MCU1#,SXU1#

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-48020

ACU1#,MCU1#,SXU1#

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-48020

ACU1#,MCU1#,SXU1#

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-48010

ACU1#,MCU1#,SXU1#

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-48010

ACU1#,MCU1#,SXU1#

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-42010

ACU1#,MCU1#,SXU1#

 2
85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85720-48030

ACU1#,MCU1#,SXU1#

 1
85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85710-48020

ACU1#,MCU1#,SXU1#

 1
Common parts
90105-06102
90105-08031
90105-08322
90168-50040
90179-06070
90179-08132
