SXU15W-AWPGK (1997)

Toyota Harrier

Production Dec 1997 - Nov 2000
Engine 5SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9712- )

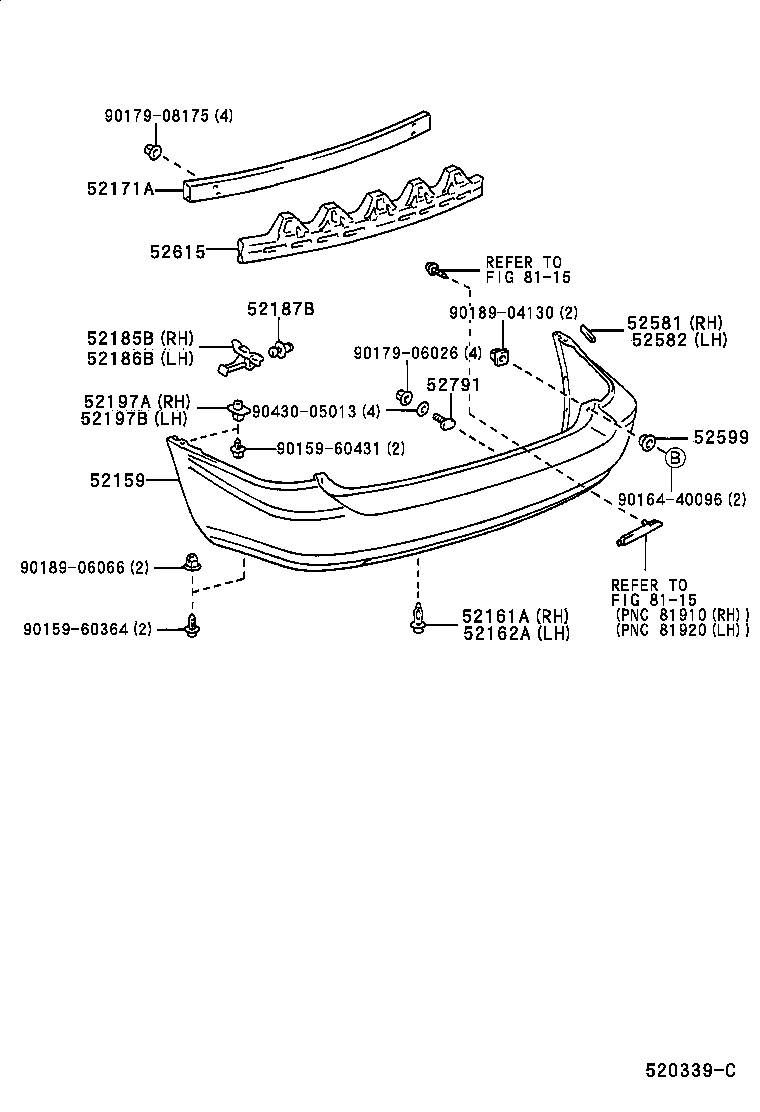

Click highlighted areas on diagram

diagram 52159 52161A 52162A 52171A 52185B 52186B 52187B 52197A 52197B 52581 52582 52599 52615 52791 8115 8115 9015960364 9015960431 9016440096 9017906026 9017908175 9018904130 9018906066 9043005013
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-48010G0

MCU1#,SXU1#

YELLOW SILVER,057

 1
52159-48010J0

MCU1#,SXU1#

GRAY ME.,1C0

 1
52159-48010D0

MCU1#,SXU1#

DK. GRAY M.,202

 1
52159-48010D1

MCU1#,SXU1#

RED MC.,3M8

 1
52159-48010H0

MCU1#,SXU1#

GRAY ME.,6R1

 1
52159-48010J1

MCU1#,SXU1#

NIGHT BLUE M,8L4

 1
52159-48010G1

MCU1#,SXU1#

YELLOW SILVER,057

 1
52159-48010H1

MCU1#,SXU1#

GRAY ME.,6R1

 1
52159-48010B1

MCU1#,SXU1#

EXTRA Gﾊﾟﾂｹ-ｼﾞ *(X),SILVER ME.,199

 1
52159-48010B2

MCU1#,SXU1#

ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾂｱﾗ- 2,DK.GRAY,1C6

 1
52159-48010J2

ACU1#,MCU1#,SXU1#

GRAY ME.,1C0

 1
52159-48010C0

MCU1#,SXU1#

ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾂｱﾗ-,BLACK,202

 1
52159-48010A2

MCU1#,SXU1#

ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾂｱﾗ- 2,SUPER WHITE 2,040

 1
52159-48010A1

MCU1#,SXU1#

EXTRA Gﾊﾟﾂｹ-ｼﾞ *(X),SUPER WHITE PEARL MC,051

 1
52159-48010B0

ACU1#,MCU1#,SXU1#

LT.GRAIGE ME.,4P2

 1
52159-48010A0

MCU1#,SXU1#

ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾂｱﾗ-,WHITE PEARL MC,057

 1
52159-48010D3

ACU1#,MCU1#,SXU1#

DK. GRAY M.,202

 1
52161A - PIECE, REAR BUMPER, RH
52161-16010

ACU1#,MCU1#,SXU1#

 1
52162A - PIECE, REAR BUMPER, LH
52161-16010

ACU1#,MCU1#,SXU1#

 1
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-48010

MCU1#,SXU1#

 1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-48010

ACU1#,MCU1#,SXU1#

 1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52185-48010

ACU1#,MCU1#,SXU1#

 1
52187B - GUIDE, REAR BUMPER LOCATION
52187-16070

ACU1#,MCU1#,SXU1#

 2
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-16020

ACU1#,MCU1#,SXU1#

 1
52197B - BRACKET, REAR BUMPER SEAL, LH
52197-16020

ACU1#,MCU1#,SXU1#

 1
52581 - PROTECTOR, REAR BUMPER, RH
52581-48010

ACU1#,MCU1#,SXU1#

 1
52582 - PROTECTOR, REAR BUMPER, LH
52581-48010

ACU1#,MCU1#,SXU1#

 1
52599 - STOPPER, REAR BUMPER, UPPER
52599-48010

ACU1#,MCU1#,SXU1#

 2
52615 - ABSORBER, REAR BUMPER ENERGY
52615-48010

MCU1#,SXU1#

 1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-12010

MCU1#,SXU1#

 4
52791-33010

ACU1#,MCU1#,SXU1#

 4
Common parts
90159-60364
90159-60431
90164-40096
90179-06026
90179-08175
90189-04130
90189-06066
90430-05013
Linked diagrams
8115
