SXU15W-AWPGK (1997)
Toyota Harrier

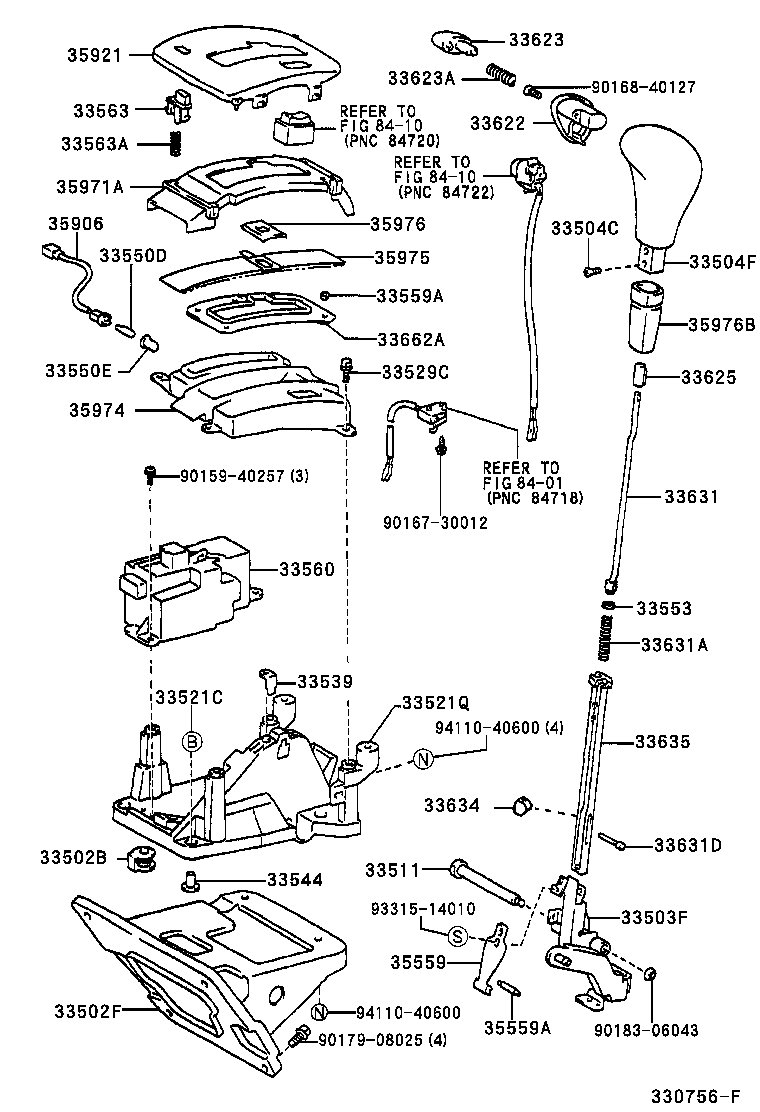

ILLUST NO. 1 OF 2(9712-0011)
ｱﾘ(ｽﾃｱｼﾌﾄﾏﾁﾂｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502B - GROMMET (FOR SHIFT LEVER PLATE) | ||||
| 90903-89015 |
MCU1#,SXU1# |
4 | ||
| 33502F - HOUSING SUB-ASSY, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33502-48010 |
MCU1#,SXU1# |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-48010 |
MCU1#,SXU1# |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40238 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-48010B0 |
MCU1#,SXU1# ｳﾚﾀﾝ,SHADOW GRAY,TRIM1# |
1 | ||
| 33542-48020B0 |
MCU1#,SXU1# ﾎﾝｶﾞﾜ,SHADOW GRAY,TRIM1# |
1 | ||
| 33542-48010E0 |
MCU1#,SXU1# ｳﾚﾀﾝ,SANDAL WOOD,TRIM0# |
1 | ||
| 33542-48020E0 |
ACU1#,MCU1#,SXU1# ﾎﾝｶﾞﾜ,SANDAL WOOD,TRIM0# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-48010 |
MCU1#,SXU1# |
1 | ||
| 33521C - BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 33529-48010 |
MCU1#,SXU1# |
4 | ||
| 33521Q - HOUSING, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33521-48010 |
MCU1#,SXU1# |
1 | ||
| 33529C - BOLT, SHIFT LEVER | ||||
| 33529-50010 |
ACU1#,MCU1#,SXU1# |
4 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-33010 |
MCU1#,SXU1# |
1 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-48010 |
MCU1#,SXU1# |
4 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
ACU1#,MCU1#,SXU1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04055 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 33553 - SEAT, SHIFT LEVER SPRING | ||||
| 33553-48010 |
MCU1#,SXU1# |
1 | ||
| 33559A - NUT, SHIFT LEVER, NO.1 | ||||
| 33559-50010 |
ACU1#,MCU1#,SXU1# |
5 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-48010 |
MCU1#,SXU1# ｱﾘ(ｽﾃｱｼﾌﾄﾏﾁﾂｸ) |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-48010 |
MCU1#,SXU1# |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-06089 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-48020B0 |
MCU1#,SXU1# SHADOW GRAY,TRIM1# |
1 | ||
| 33622-48020E0 |
ACU1#,MCU1#,SXU1# SANDAL WOOD,TRIM0# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-48010B0 |
MCU1#,SXU1# SHADOW GRAY,TRIM1# |
1 | ||
| 33623-48010E0 |
ACU1#,MCU1#,SXU1# SANDAL WOOD,TRIM0# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07116 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-48010 |
MCU1#,SXU1# |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07115 |
MCU1#,SXU1# |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04014 |
MCU1#,SXU1# |
1 | ||
| 33634 - PROTECTOR, WIRE | ||||
| 33634-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 33635 - GUIDE, WIRE (FOR SHIFT LEVER) | ||||
| 33635-48010 |
MCU1#,SXU1# |
1 | ||
| 33662A - CUSHION, SHIFT LEVER GUIDE | ||||
| 33662-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 35559 - SPRING, MANUAL DETENT | ||||
| 35559-48010 |
MCU1#,SXU1# |
1 | ||
| 35559A - PIN (FOR MANUAL DETENT SPRING) | ||||
| 90249-02005 |
MCU1#,SXU1# |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-48010 |
MCU1#,SXU1# |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-48010 |
ACU1#,MCU1#,SXU1# ｱﾘ(ｽﾃｱｼﾌﾄﾏﾁﾂｸ) |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-48010 |
ACU1#,MCU1#,SXU1# ｱﾘ(ｽﾃｱｼﾌﾄﾏﾁﾂｸ) |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 33622-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| Common parts | ||||
| 90159-40257 | ||||
| 90167-30012 | ||||
| 90168-40127 | ||||
| 90179-08025 | ||||
| 90183-06043 | ||||
| 93315-14010 | ||||
| 94110-40600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||

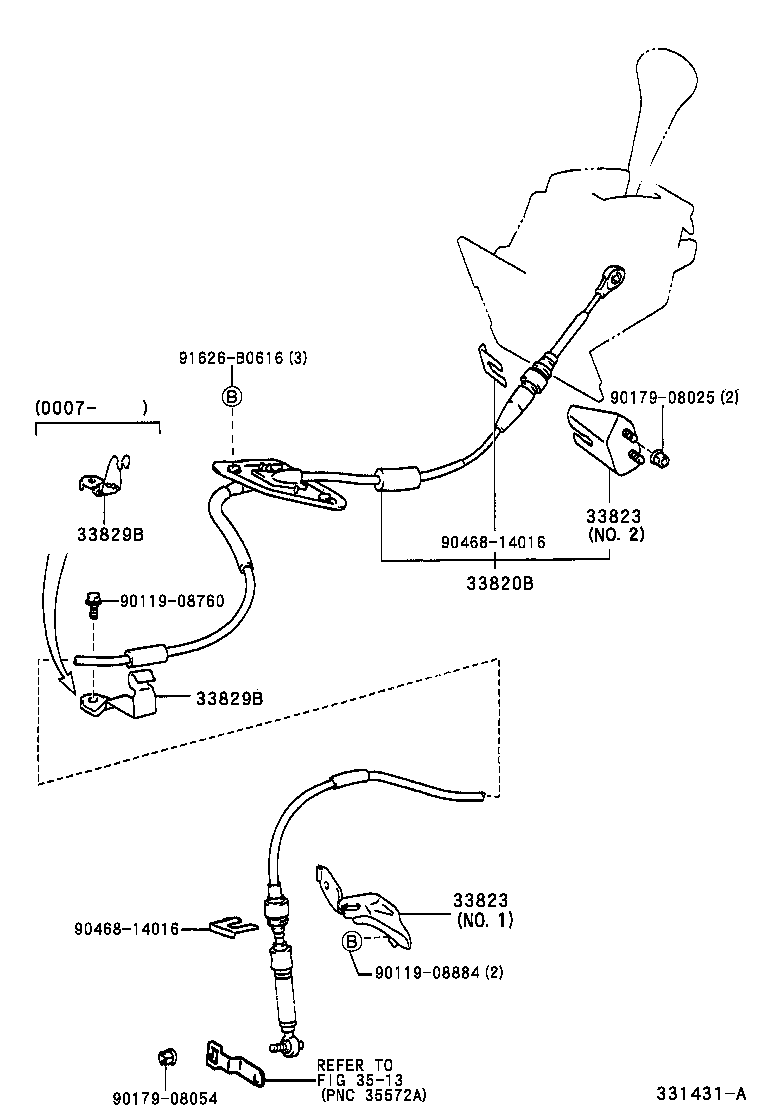

ILLUST NO. 2 OF 2(9712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-48010 |
SXU1# |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-48020 |
ACU1#,MCU1#,SXU1# NO.2 |
1 | ||
| 33823-48010 |
MCU1#,SXU1# NO.1 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-48020 |
ACU1#,MCU1#,SXU1# NO.2 |
1 | ||
| 33823-48010 |
MCU1#,SXU1# NO.1 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-48010 |
SXU1# |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-48010 |
SXU1# |
1 | ||
| Common parts | ||||
| 90119-08760 | ||||
| 90119-08884 | ||||
| 90179-08025 | ||||
| 90179-08054 | ||||
| 90468-14016 | ||||
| 91626-B0616 | ||||
| Linked diagrams | ||||
| 3513 | ||||
