SXU10W-AWPGK (1997)
Toyota Harrier
Production
Dec 1997
-
Nov 2000
Engine
5SFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9712- )

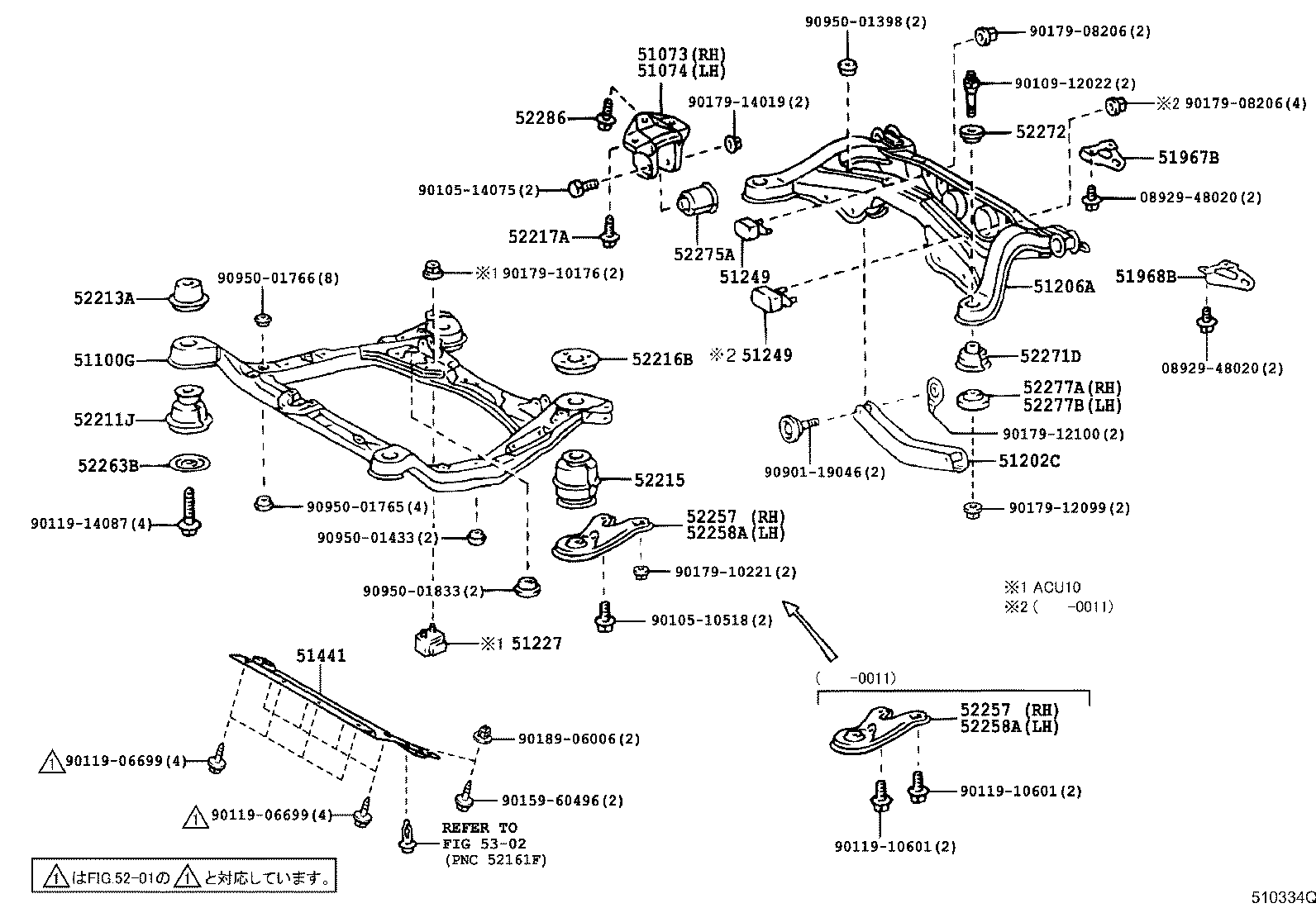

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH | ||||
| 51073-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH | ||||
| 51074-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 51100G - FRAME ASSY, FRONT | ||||
| 51100-48010 |
MCU1#,SXU1# |
1 | ||
| 51202C - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION, LOWER | ||||
| 51202-48010 |
ACU10,MCU10,SXU10 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-48010 |
MCU1#,SXU1# |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 51967B - HOOK, TRANSPORT, REAR RH | ||||
| 51967-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51968-48010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-33050 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-33050 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52215-33010 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-33020 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 52217A - BOLT, BODY MOUNTING | ||||
| 52217-48010 |
ACU1#,MCU1#,SXU1# |
4 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-48010 |
MCU1#,SXU1# |
1 | ||
| 51023-48010 |
MCU1#,SXU1# |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-48010 |
MCU1#,SXU1# |
1 | ||
| 51023-48010 |
MCU1#,SXU1# |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 51024-48010 |
MCU1#,SXU1# |
1 | ||
| 52258-48010 |
MCU1#,SXU1# |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 51024-48010 |
MCU1#,SXU1# |
1 | ||
| 52258-48010 |
MCU1#,SXU1# |
1 | ||
| 52263B - RETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.1 | ||||
| 52263-48010 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-32010 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER | ||||
| 52272-32010 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-48010 |
ACU1#,MCU1#,SXU1# |
2 | ||
| 52277A - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH | ||||
| 52277-32010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52277-32010 |
ACU1#,MCU1#,SXU1# |
1 | ||
| 52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2 | ||||
| 52286-48010 |
ACU1#,MCU1#,SXU1# |
2 | ||
| Common parts | ||||
| 08929-48020 | ||||
| 90105-10518 | ||||
| 90105-14075 | ||||
| 90109-12022 | ||||
| 90119-06699 | ||||
| 90119-10601 | ||||
| 90119-14087 | ||||
| 90159-60496 | ||||
| 90179-08206 | ||||
| 90179-10176 | ||||
| 90179-10221 | ||||
| 90179-12099 | ||||
| 90179-12100 | ||||
| 90179-14019 | ||||
| 90189-06006 | ||||
| 90901-19046 | ||||
| 90950-01398 | ||||
| 90950-01433 | ||||
| 90950-01765 | ||||
| 90950-01766 | ||||
| 90950-01833 | ||||
| Linked diagrams | ||||
| 5302 | ||||
