SXU10W-AWPGK (1997)

Toyota Harrier

Production Dec 1997 - Nov 2000
Engine 5SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9712-0011)

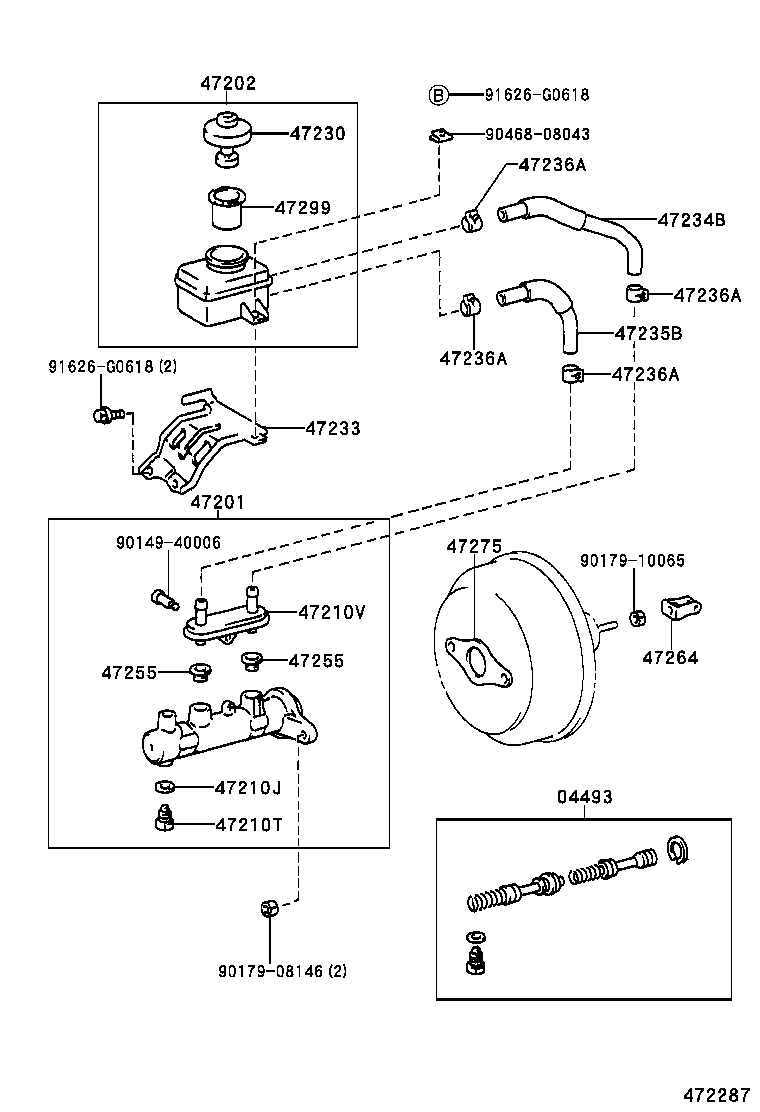

Click highlighted areas on diagram

diagram 04493 47201 47202 47210J 47210T 47210V 47230 47233 47234B 47235B 47236A 47236A 47236A 47236A 47255 47255 47264 47275 47299 9014940006 9017908146 9017910065 9046808043 91626G0618 91626G0618
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-33060

ACU1#,MCU1#,SXU1#

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-48010

MCU1#,SXU1#

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-48010

MCU1#,SXU1#

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

MCU1#,SXU1#

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

ACU1#,MCU1#,SXU1#

 1
47210V - UNION(FOR BRAKE MASTER CYLINDER)
90029-40011

MCU1#,SXU1#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
84460-30040

MCU1#,SXU1#

 1
47233 - BRACKET, RESERVOIR
47233-48010

MCU1#,SXU1#

 1
47234B - TUBE, RESERVOIR, NO.1
47234-48010

MCU1#,SXU1#

 1
47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235-48010

MCU1#,SXU1#

 1
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16003

ACU1#,MCU1#,SXU1#

 4
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16003

ACU1#,MCU1#,SXU1#

 4
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16003

ACU1#,MCU1#,SXU1#

 4
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16003

ACU1#,MCU1#,SXU1#

 4
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

ACU1#,MCU1#,SXU1#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

ACU1#,MCU1#,SXU1#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-48010

ACU1#,MCU1#,SXU1#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-12020

ACU1#,MCU1#,SXU1#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-32010

MCU1#,SXU1#

 1
Common parts
90149-40006
90179-08146
90179-10065
90468-08043
91626-G0618
