MXUA85-ANXSB (2020)
Toyota Harrier
Production
Jun 2020
-
Sep 9999
Engine
M20AFKS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 4(2006- )MXUA8#
Click highlighted areas on diagram

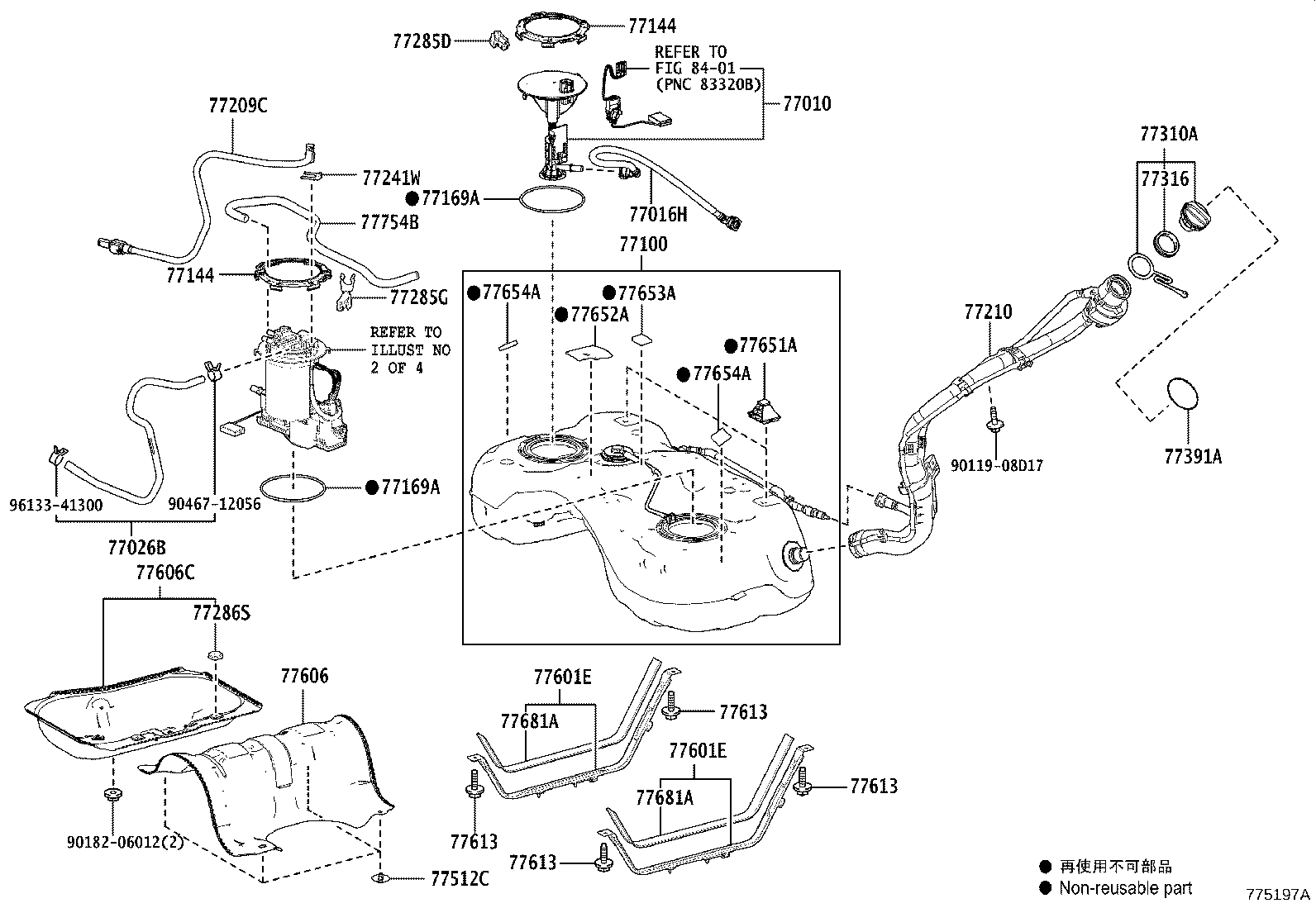

FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-42060 |
MXUA8# |
1 | ||
| 77016H - TUBE SUB-ASSY, FUEL RETURN VENT | ||||
| 77016-42070 |
MXUA8# |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-42050 |
MXUA8# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-42310 |
MXUA8# |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
MXUA8# |
2 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
MXUA8# |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
MXUA8# |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
MXUA8# |
2 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-42220 |
MXUA8# |
1 | ||
| 77210 - PIPE ASSY, FUEL TANK FILLER | ||||
| 77210-48420 |
MXUA8# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
AXUH8#,MXUA8# |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
AXUH8#,MXUA8# |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-42230 |
MXUA8# |
1 | ||
| 77286S - CUSHION, FUEL TANK PROTECTOR | ||||
| 77286-12110 |
MXUA8# |
3 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
AXUH8#,MXUA8# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
AXUH8#,MXUA8# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AXUH8#,MXUA8# |
1 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-35140 |
MXUA8# |
4 | ||
| 77601E - BAND SUB-ASSY, FUEL TANK | ||||
| 77601-42100 |
MXUA8# |
2 | ||
| 77601E - BAND SUB-ASSY, FUEL TANK | ||||
| 77601-42100 |
MXUA8# |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-42030 |
MXUA8# |
1 | ||
| 77606C - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77606-42040 |
MXUA8# |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
MXUA8# |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
MXUA8# |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
MXUA8# |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
MXUA8# |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-33060 |
MXUA8# |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
MXUA8# |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77652-33060 |
MXUA8# |
1 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77652-47010 |
MXUA8# |
2 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77652-47010 |
MXUA8# |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77682-75010 |
MXUA8# |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77682-75010 |
MXUA8# |
2 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-42090 |
MXUA8# |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90182-06012 | ||||
| 90467-12056 | ||||
| 96133-41300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 4(2006- )MXUA8#
Click highlighted areas on diagram

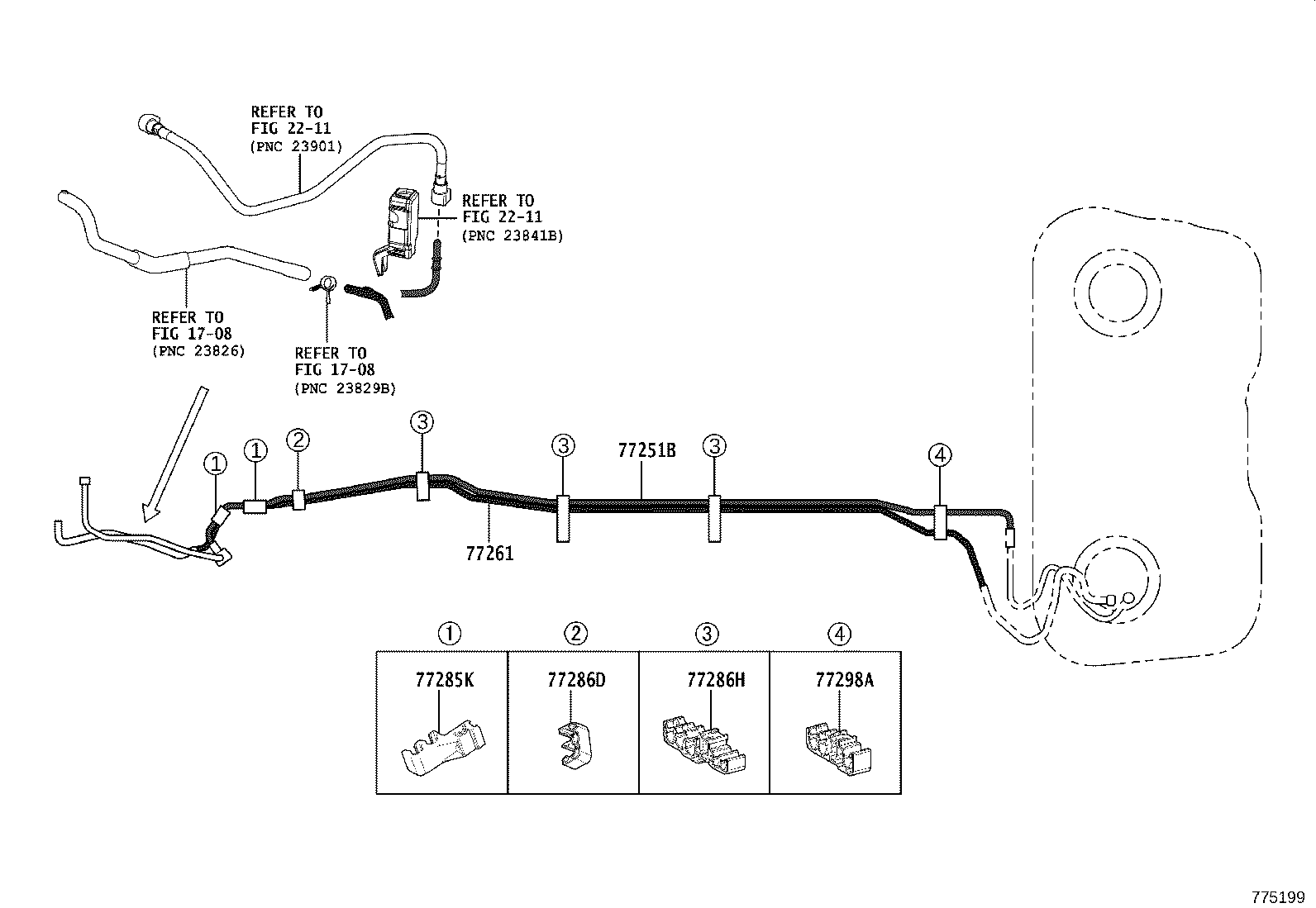

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-42250 |
MXUA8# |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-42130 |
MXUA8# |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77286-52100 |
MXUA8# |
2 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-42160 |
MXUA8# |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77285-42150 |
AXUH8#,MXUA8# |
3 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-33120 |
MXUA8# |
1 | ||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 2 OF 4(2006- )MXUA8#
Click highlighted areas on diagram

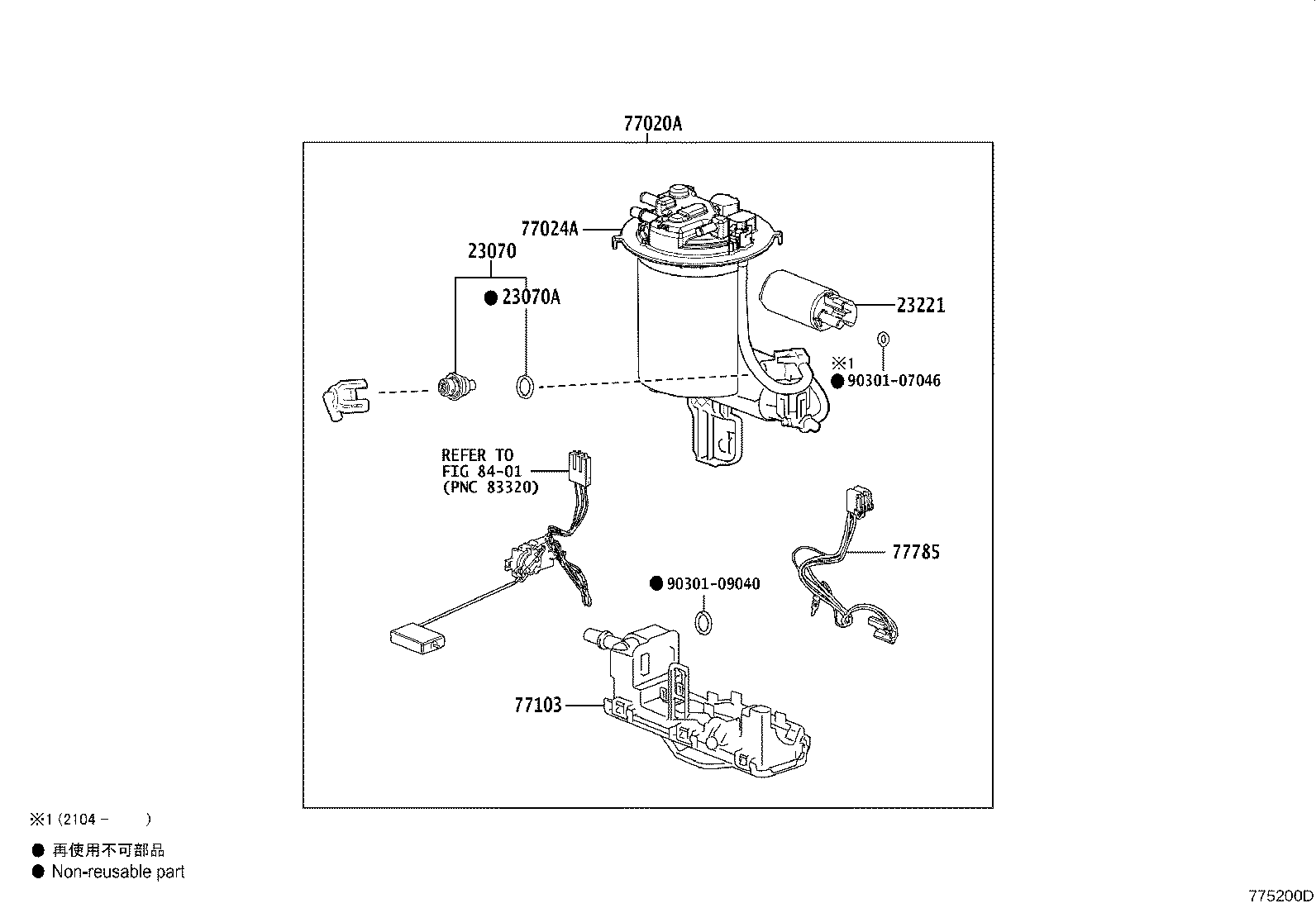

FUEL SUCTION TUBE(PUMP & GAGE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-24010 |
A25AFXS,M20AFKS..AXUH8#,MXUA8# |
1 | ||
| 23070A - RING, O, NO.1(FOR FUEL MAIN VALVE) | ||||
| 90301-15024 |
M20AFKS..MXUA8# |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-24010 |
A25AFXS,M20AFKS..AXUH8#,MXUA8# |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-42240 |
MXUA8# |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-42090 |
MXUA8# |
1 | ||
| 77103 - SUB-TANK SUB-ASSY, FUEL | ||||
| 77103-42080 |
MXUA8# |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-12010 |
MXUA8# |
1 | ||
| Common parts | ||||
| 90301-07046 | ||||
| 90301-09040 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 4(2006- )MXUA8#
Click highlighted areas on diagram

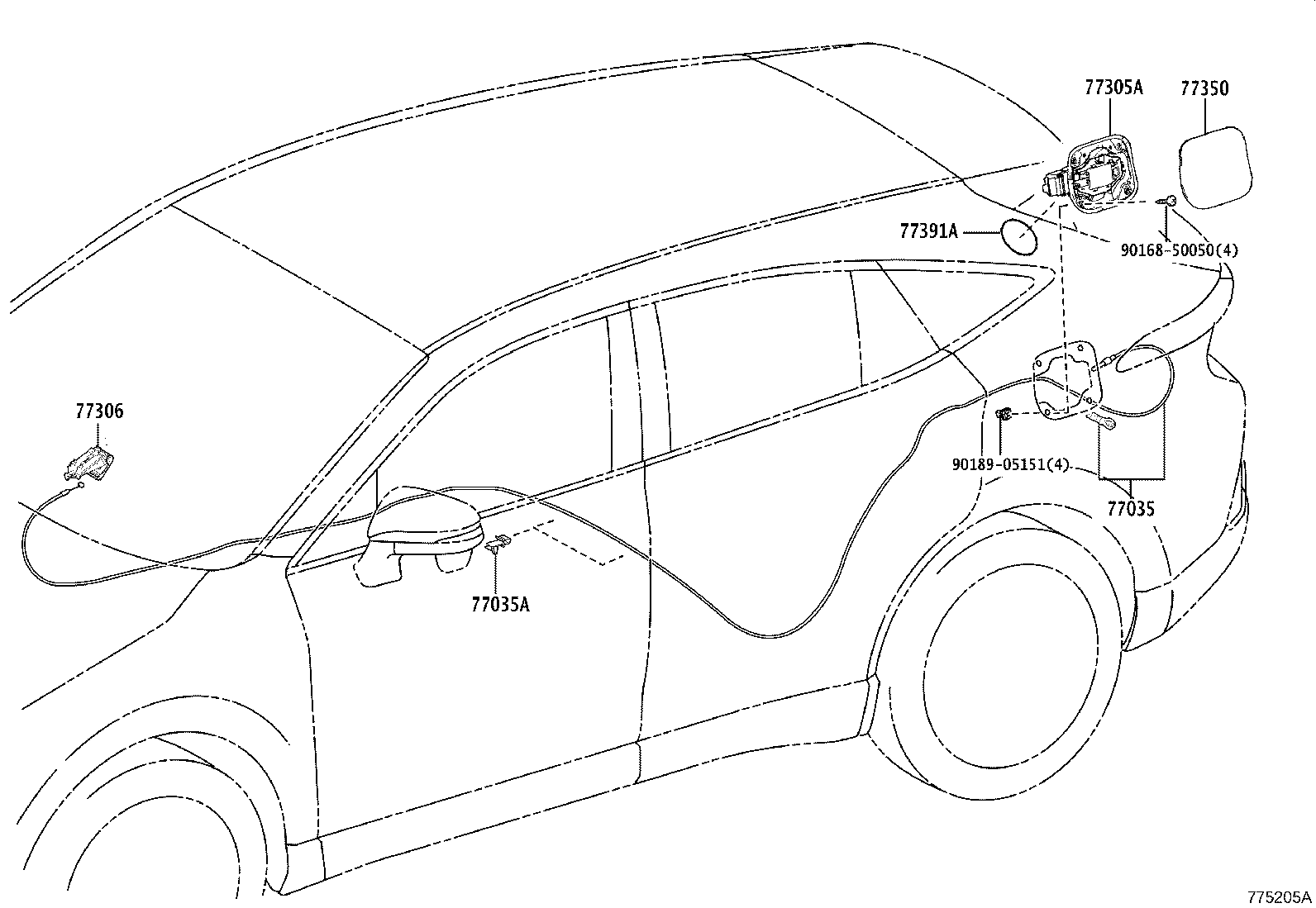

FUEL LID OPENER(CABLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-48090 |
MXUA8# |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-04004 |
MXUA8# |
2 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-48040 |
AXUH8#,MXUA8# |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-58020C1 |
MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 77306-58020C1 |
MXUA8#..S BLACK,TRIM2# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-48130 |
AXUH8#,MXUA8# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AXUH8#,MXUA8# |
1 | ||
| Common parts | ||||
| 90168-50050 | ||||
| 90189-05151 | ||||
