MXUA85-ANXSB (2020)
Toyota Harrier
Production
Jun 2020
-
Sep 9999
Engine
M20AFKS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2006- )

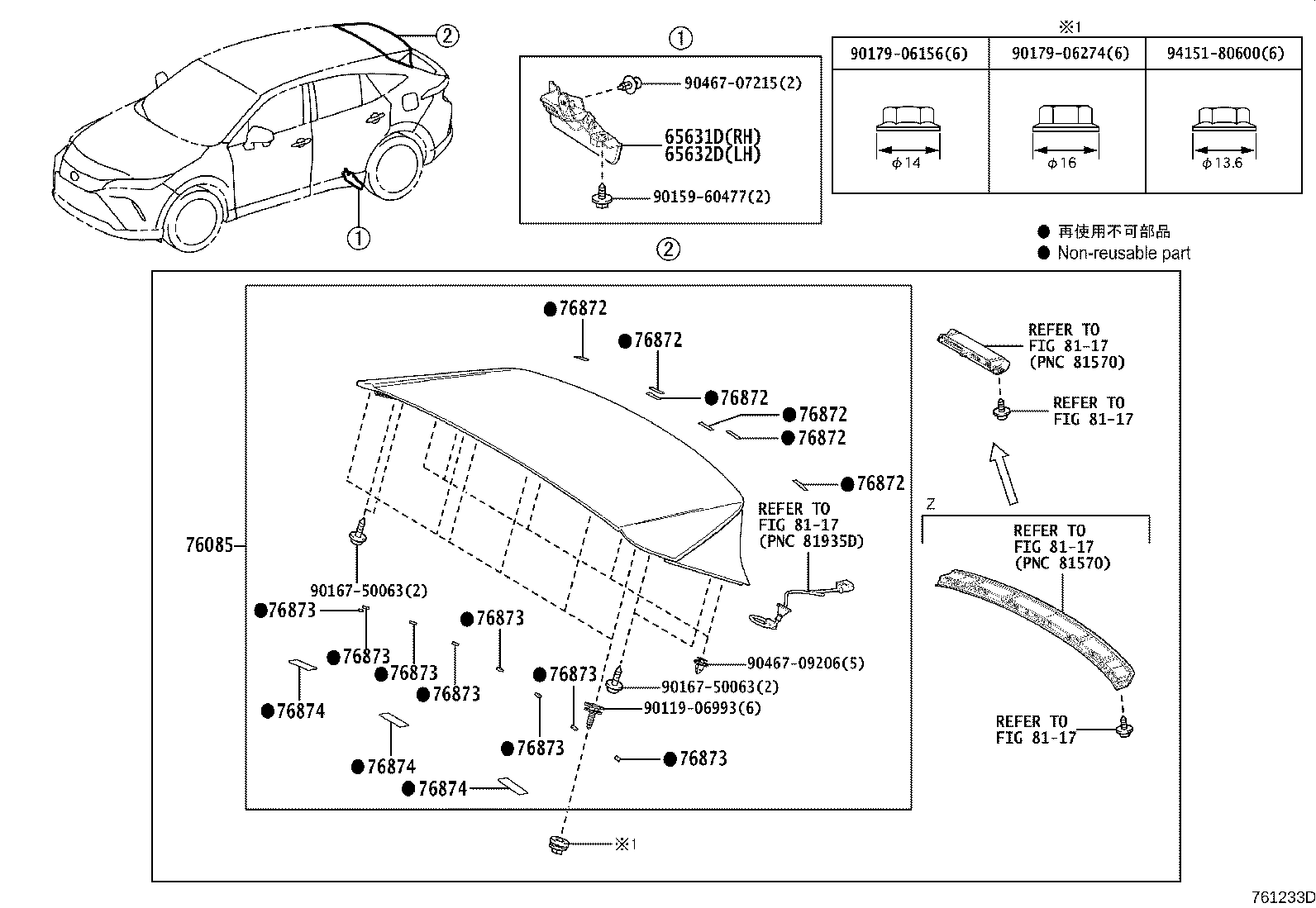

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-48020 |
AXUH8#,MXUA8# |
1 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-48020 |
AXUH8#,MXUA8# |
1 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-48911C0 |
AXUH8#,MXUA8#..G,S BLACK,070 ,1K9 ,202 ,219 ,3T3 ,4X1 ,8X8 |
1 | ||
| 76085-48909 |
AXUH8#,MXUA8#..G,S 要塗装 |
1 | ||
| 76085-48910 |
AXUH8#,MXUA8#..Z 要塗装 |
1 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-48050 |
AXUH8#,MXUA8# |
6 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-48050 |
AXUH8#,MXUA8# |
6 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-48050 |
AXUH8#,MXUA8# |
6 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-48050 |
AXUH8#,MXUA8# |
6 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-48050 |
AXUH8#,MXUA8# |
6 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-48050 |
AXUH8#,MXUA8# |
6 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-48060 |
AXUH8#,MXUA8# |
8 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-48060 |
AXUH8#,MXUA8# |
8 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-48060 |
AXUH8#,MXUA8# |
8 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-48060 |
AXUH8#,MXUA8# |
8 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-48060 |
AXUH8#,MXUA8# |
8 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-48060 |
AXUH8#,MXUA8# |
8 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-48060 |
AXUH8#,MXUA8# |
8 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-48060 |
AXUH8#,MXUA8# |
8 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-48040 |
AXUH8#,MXUA8# |
3 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-48040 |
AXUH8#,MXUA8# |
3 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-48040 |
AXUH8#,MXUA8# |
3 | ||
| Common parts | ||||
| 90119-06993 | ||||
| 90159-60477 | ||||
| 90167-50063 | ||||
| 90179-06156 | ||||
| 90179-06274 | ||||
| 90467-07215 | ||||
| 90467-09206 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8117 | ||||
