MXUA85-ANXSB (2020)

Toyota Harrier

Production Jun 2020 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )

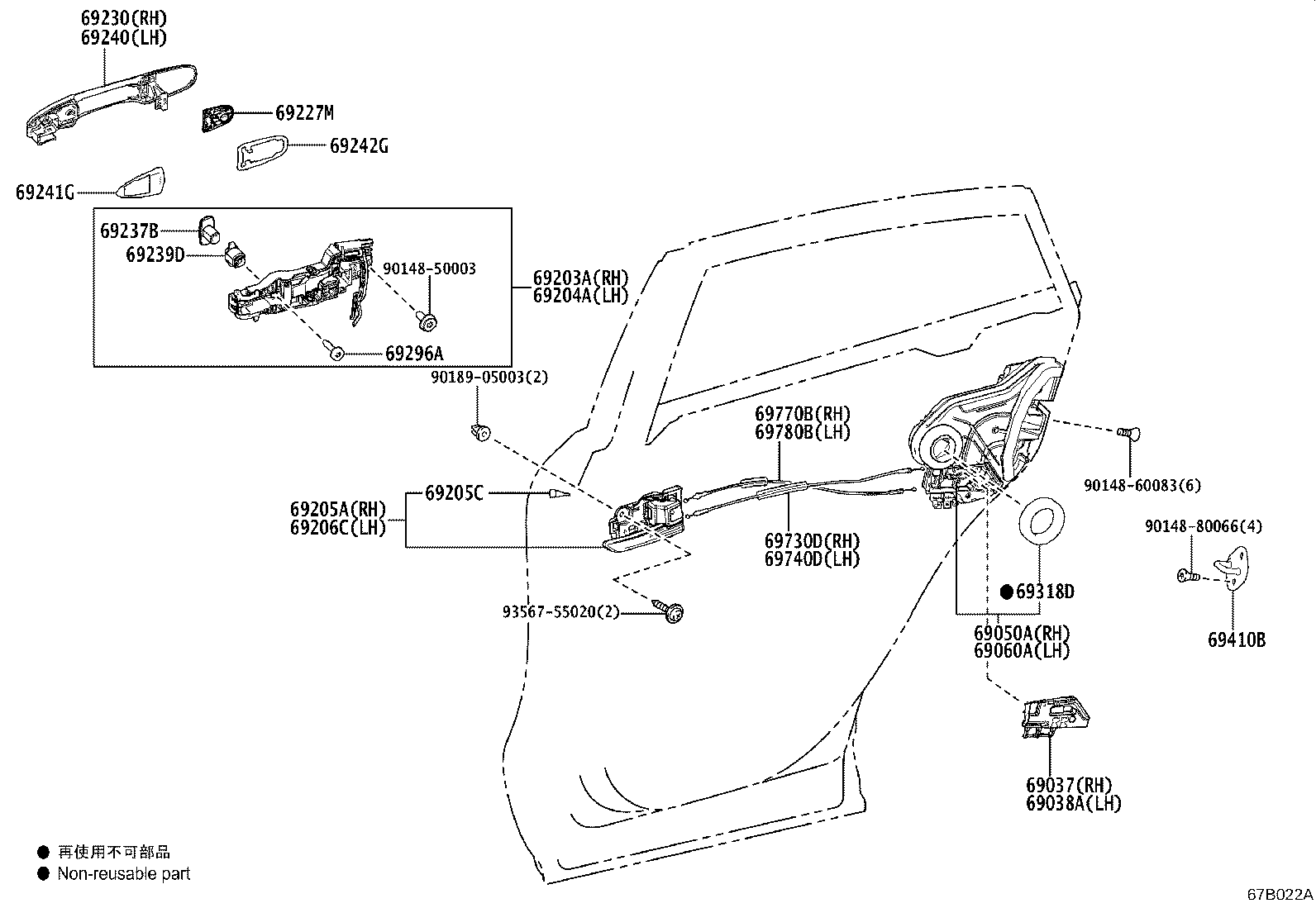

Click highlighted areas on diagram

diagram 69037 69038A 69050A 69060A 69203A 69204A 69205A 69205C 69206C 69227M 69230 69237B 69239D 69240 69241G 69242G 69296A 69318D 69410B 69730D 69740D 69770B 69780B 9014850003 9014860083 9014880066 9018905003 9356755020
Part # Description Qty Price
69037 - COVER SUB-ASSY, REAR DOOR LOCK, RH
69037-30010

AXUH8#,MXUA8#

 1
69038A - COVER SUB-ASSY, REAR DOOR LOCK, LH
69038-30010

AXUH8#,MXUA8#

 1
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-48060

AXUH8#,MXUA8#

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-48060

AXUH8#,MXUA8#

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-48070

AXUH8#,MXUA8#

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-48070

AXUH8#,MXUA8#

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-33140C0

AXUH8#,MXUA8#..G,Z

BLACK,TRIM1#,2#,4#

 1
69205-33140C0

AXUH8#,MXUA8#..S

BLACK,TRIM2#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04014

AXUH8#,MXUA8#

 4
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-33150C0

AXUH8#,MXUA8#..G,Z

BLACK,TRIM1#,2#,4#

 1
69206-33150C0

AXUH8#,MXUA8#..S

BLACK,TRIM2#

 1
69227M - COVER, REAR DOOR OUTSIDE HANDLE
69227-47020

AXUH8#,MXUA8#

 2
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69210-48130

AXUH8#,MXUA8#..Z

塗装不要

 1
69211-33080

AXUH8#,MXUA8#..G

ﾒｯｷ

 1
69211-47021E0

AXUH8#,MXUA8#..S

STEEL BLONDE,4X1

 1
69211-47021C3

AXUH8#,MXUA8#..S

BLACK,202

 1
69211-47021A1

AXUH8#,MXUA8#..S

WHITE PEARL CS.,070

 1
69211-47021P1

AXUH8#,MXUA8#..S

SLATE GRAY ME.,1K4 ,1K9

 1
69211-47021C4

AXUH8#,MXUA8#..S

PRECIOUS BLACK,219

 1
69211-47021D1

AXUH8#,MXUA8#..S

RED MC.,3T3

 1
69211-47021J5

AXUH8#,MXUA8#..S

DK. BLUE MC.,8X8

 1
69237B - NUT, REAR DOOR HANDLE
69237-62010

AXUH8#,MXUA8#

 2
69239D - BUSH, REAR DOOR HANDLE
69239-47010

AXUH8#,MXUA8#

 2
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69210-48130

AXUH8#,MXUA8#..Z

塗装不要

 1
69211-47021E0

AXUH8#,MXUA8#..S

STEEL BLONDE,4X1

 1
69211-47021C4

AXUH8#,MXUA8#..S

PRECIOUS BLACK,219

 1
69211-47021A1

AXUH8#,MXUA8#..S

WHITE PEARL CS.,070

 1
69211-47021D1

AXUH8#,MXUA8#..S

RED MC.,3T3

 1
69211-47021C3

AXUH8#,MXUA8#..S

BLACK,202

 1
69211-33080

AXUH8#,MXUA8#..G

ﾒｯｷ

 1
69211-47021P1

AXUH8#,MXUA8#..S

SLATE GRAY ME.,1K4 ,1K9

 1
69211-47021J5

AXUH8#,MXUA8#..S

DK. BLUE MC.,8X8

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-47020

AXUH8#,MXUA8#

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-47030

AXUH8#,MXUA8#

 2
69296A - SCREW, DOOR INSIDE HANDLE
69296-30010

AXUH8#,MXUA8#

 2
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

AXUH8#,MXUA8#

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-20110

AXUH8#,MXUA8#

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-48100

AXUH8#,MXUA8#

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-48100

AXUH8#,MXUA8#

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-48110

AXUH8#,MXUA8#

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-48110

AXUH8#,MXUA8#

 1
Common parts
90148-50003
90148-60083
90148-80066
90189-05003
93567-55020
