MXUA85-ANXGB (2020)
Toyota Harrier
(2006- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

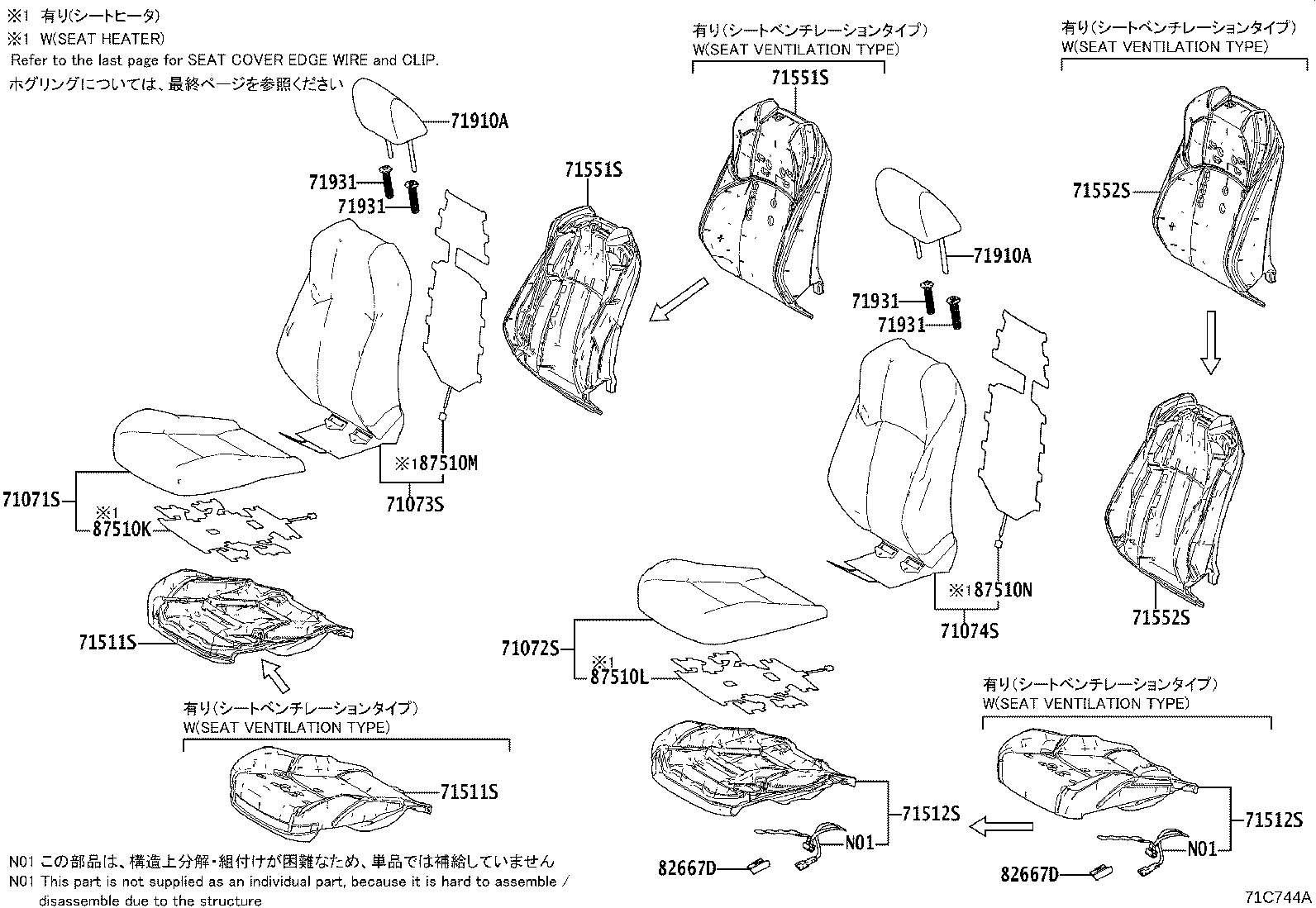

ILLUST NO. 1 OF 6(2006- )
ﾌﾛﾝﾄｼｰﾄｶﾊﾞｰ&ﾊﾟｯﾄ,ﾍｯﾄﾞﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-48D70C1 |
AXUH8#,MXUA8#..S BLACK/GRAY,TRIM2# |
1 | ||
| 71071-48E10B1 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S),MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71071-48D90B1 |
AXUH8#,MXUA8#..G,Z MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71071-48D90C2 |
AXUH8#,MXUA8#..G,Z BLACK/GRAY,TRIM2# |
1 | ||
| 71071-48E10C3 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S),BLACK/CAMEL,TRIM4# |
1 | ||
| 71071-48E10C2 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S),BLACK/GRAY,TRIM2# |
1 | ||
| 71071-48D90C3 |
AXUH8#,MXUA8#..G,Z BLACK/CAMEL,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-48D10B1 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S),MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71072-48C80C3 |
AXUH8#,MXUA8#..G,Z BLACK/CAMEL,TRIM4# |
1 | ||
| 71072-48C80B1 |
AXUH8#,MXUA8#..G,Z MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71072-48C80C2 |
AXUH8#,MXUA8#..G,Z BLACK/GRAY,TRIM2# |
1 | ||
| 71072-48D10C2 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S),BLACK/GRAY,TRIM2# |
1 | ||
| 71072-48D10C3 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S),BLACK/CAMEL,TRIM4# |
1 | ||
| 71072-48C60C1 |
AXUH8#,MXUA8#..S BLACK/GRAY,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-48G30B1 |
AXUH8#,MXUA8#..G,Z MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71073-48G60C2 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S),BLACK/GRAY,TRIM2# |
1 | ||
| 71073-48G20C1 |
AXUH8#,MXUA8#..S BLACK/GRAY,TRIM2# |
1 | ||
| 71073-48G60C3 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S),BLACK/CAMEL,TRIM4# |
1 | ||
| 71073-48G30C2 |
AXUH8#,MXUA8#..G,Z BLACK/GRAY,TRIM2# |
1 | ||
| 71073-48G60B1 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S),MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71073-48G30C3 |
AXUH8#,MXUA8#..G,Z BLACK/CAMEL,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-48G20B1 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S),MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71074-48F90C2 |
AXUH8#,MXUA8#..G,Z BLACK/GRAY,TRIM2# |
1 | ||
| 71074-48F80C1 |
AXUH8#,MXUA8#..S BLACK/GRAY,TRIM2# |
1 | ||
| 71074-48F90C3 |
AXUH8#,MXUA8#..G,Z BLACK/CAMEL,TRIM4# |
1 | ||
| 71074-48G20C3 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S),BLACK/CAMEL,TRIM4# |
1 | ||
| 71074-48F90B1 |
AXUH8#,MXUA8#..G,Z MEDIUM GRAY/BEIGE,TRIM1# |
1 | ||
| 71074-48G20C2 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S),BLACK/GRAY,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-48470 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 71511-48460 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 71511-48430 |
AXUH8#,MXUA8#..S |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-48470 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 71511-48460 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 71511-48430 |
AXUH8#,MXUA8#..S |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-48120 |
AXUH8#,MXUA8# |
1 | ||
| 71502-48130 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-48120 |
AXUH8#,MXUA8# |
1 | ||
| 71502-48130 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-48280 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 71551-48270 |
AXUH8#,MXUA8# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-48280 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 71551-48270 |
AXUH8#,MXUA8# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-48270 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 71552-48260 |
AXUH8#,MXUA8# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-48270 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 71552-48260 |
AXUH8#,MXUA8# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-48E50C0 |
MXUA8#..G,Z BLACK/GRAY,TRIM2# |
2 | ||
| 71910-48E50B1 |
MXUA8#..G,Z MEDIUM GRAY/BEIGE,TRIM1# |
2 | ||
| 71910-48E80C1 |
MXUA8#..G,Z “Leather Package”*(S),BLACK/CAMEL,TRIM4# |
2 | ||
| 71910-48E50C1 |
MXUA8#..G,Z BLACK/CAMEL,TRIM4# |
2 | ||
| 71910-48A60C0 |
MXUA8#..S BLACK/GRAY,TRIM2# |
2 | ||
| 71910-48E80B1 |
MXUA8#..G,Z “Leather Package”*(S),MEDIUM GRAY/BEIGE,TRIM1# |
2 | ||
| 71910-48E80C0 |
MXUA8#..G,Z “Leather Package”*(S),BLACK/GRAY,TRIM2# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-48E50C0 |
MXUA8#..G,Z BLACK/GRAY,TRIM2# |
2 | ||
| 71910-48E50B1 |
MXUA8#..G,Z MEDIUM GRAY/BEIGE,TRIM1# |
2 | ||
| 71910-48E80C1 |
MXUA8#..G,Z “Leather Package”*(S),BLACK/CAMEL,TRIM4# |
2 | ||
| 71910-48E50C1 |
MXUA8#..G,Z BLACK/CAMEL,TRIM4# |
2 | ||
| 71910-48A60C0 |
MXUA8#..S BLACK/GRAY,TRIM2# |
2 | ||
| 71910-48E80B1 |
MXUA8#..G,Z “Leather Package”*(S),MEDIUM GRAY/BEIGE,TRIM1# |
2 | ||
| 71910-48E80C0 |
MXUA8#..G,Z “Leather Package”*(S),BLACK/GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050C5 |
AXUH8#,MXUA8#..S ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-47050C5 |
AXUH8#,MXUA8#..G,Z ﾛｯｸ付,BLACK,TRIM1#,2#,4# |
2 | ||
| 71931-47030C4 |
AXUH8#,MXUA8#..S ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
AXUH8#,MXUA8#..G,Z ﾛｯｸ無,BLACK,TRIM1#,2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050C5 |
AXUH8#,MXUA8#..S ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-47050C5 |
AXUH8#,MXUA8#..G,Z ﾛｯｸ付,BLACK,TRIM1#,2#,4# |
2 | ||
| 71931-47030C4 |
AXUH8#,MXUA8#..S ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
AXUH8#,MXUA8#..G,Z ﾛｯｸ無,BLACK,TRIM1#,2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050C5 |
AXUH8#,MXUA8#..S ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-47050C5 |
AXUH8#,MXUA8#..G,Z ﾛｯｸ付,BLACK,TRIM1#,2#,4# |
2 | ||
| 71931-47030C4 |
AXUH8#,MXUA8#..S ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
AXUH8#,MXUA8#..G,Z ﾛｯｸ無,BLACK,TRIM1#,2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050C5 |
AXUH8#,MXUA8#..S ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-47050C5 |
AXUH8#,MXUA8#..G,Z ﾛｯｸ付,BLACK,TRIM1#,2#,4# |
2 | ||
| 71931-47030C4 |
AXUH8#,MXUA8#..S ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
AXUH8#,MXUA8#..G,Z ﾛｯｸ無,BLACK,TRIM1#,2#,4# |
2 | ||
| 82667D - HOLDER, CONNECTOR | ||||
| 82666-47630 |
AXUH8#,MXUA8# |
1 | ||
| 82667D - HOLDER, CONNECTOR | ||||
| 82666-47630 |
AXUH8#,MXUA8# |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-48280 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-48290 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-42060 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-42060 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||

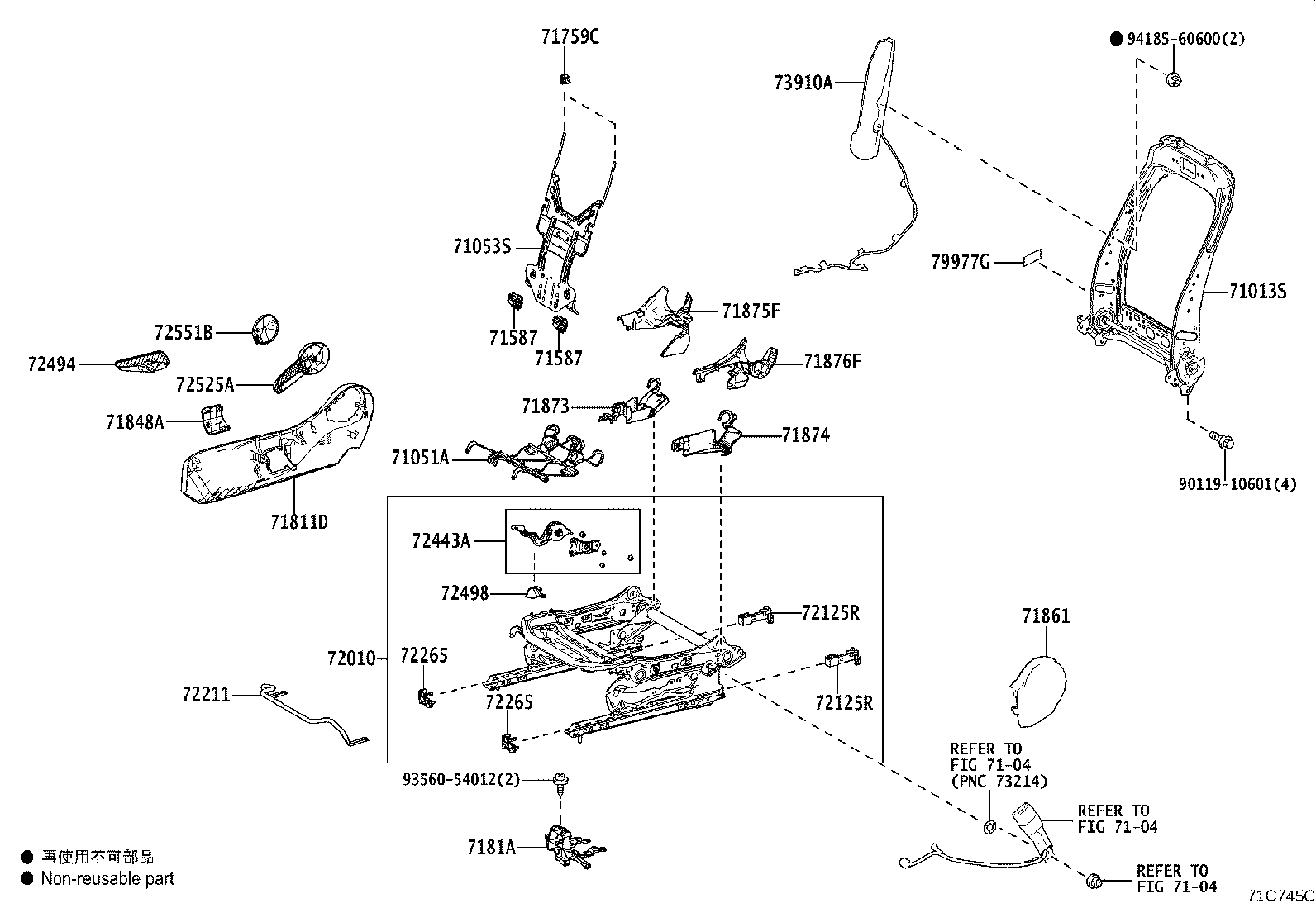

ILLUST NO. 3 OF 6(2006- )
ｳﾝﾃﾝｾｷ(ﾏﾆｭｱﾙｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-42250 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 71013-42340 |
AXUH8#,MXUA8#..S |
1 | ||
| 71013-42270 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47090 |
AXUH8#,MXUA8# |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-47050 |
AXUH8#,MXUA8#..S |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
AXUH8#,MXUA8# |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
AXUH8#,MXUA8# |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-50040 |
AXUH8#,MXUA8# |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-26510C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 71811-42200C0 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-47010 |
AXUH8#,MXUA8#..S |
1 | ||
| 7181A-42010 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-42020C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47070C1 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 71861-47070C1 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42050 |
AXUH8#,MXUA8# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-42060 |
AXUH8#,MXUA8# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-42090C0 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 71875-42090C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-42100C0 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 71875-42100C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-42350 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 72010-42300 |
AXUH8#,MXUA8#..S |
1 | ||
| 72010-42370 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-47010 |
AXUH8#,MXUA8#..S |
2 | ||
| 72125-47020 |
AXUH8#,MXUA8#..G,Z |
2 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-47010 |
AXUH8#,MXUA8#..S |
2 | ||
| 72125-47020 |
AXUH8#,MXUA8#..G,Z |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-42020 |
AXUH8#,MXUA8#..S |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47010 |
AXUH8#,MXUA8#..S |
2 | ||
| 72265-47020 |
AXUH8#,MXUA8#..G,Z |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47010 |
AXUH8#,MXUA8#..S |
2 | ||
| 72265-47020 |
AXUH8#,MXUA8#..G,Z |
2 | ||
| 72443A - GEAR, VERTICAL ADJUSTER, RH | ||||
| 72443-42011 |
AXUH8#,MXUA8#..S |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-26020C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 72498 - COVER, VERTICAL ADJUSTER BRACKET | ||||
| 72498-42010 |
AXUH8#,MXUA8#..S |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26160C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 72551B - COVER, RECLINING HINGE, RH | ||||
| 72551-47030C1 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42090 |
AXUH8#,MXUA8# |
1 | ||
| 79977G - FELT, FRONT SEAT BACK, RH | ||||
| 79977-76010 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 79977-12090 |
AXUH8#,MXUA8#..S |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

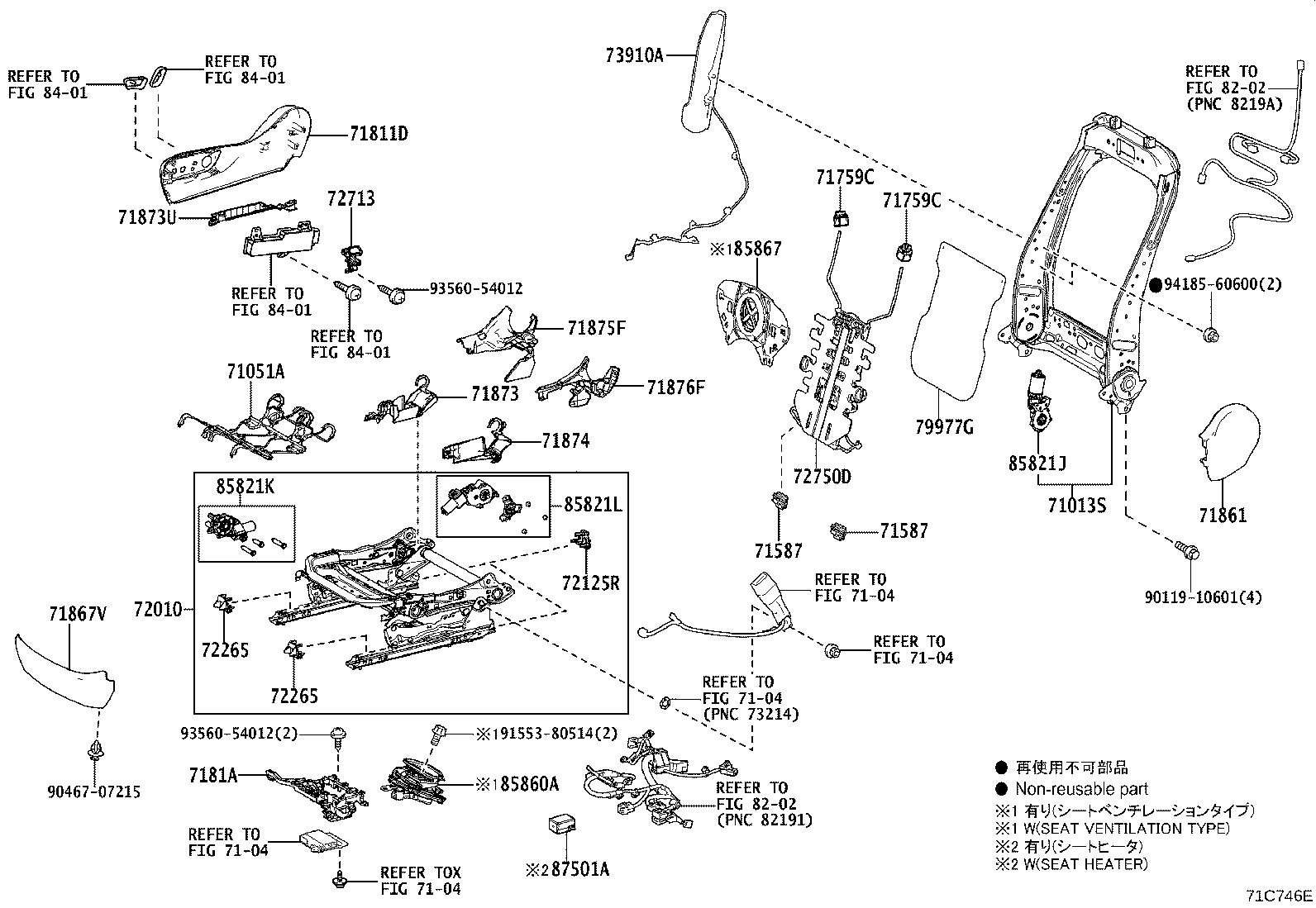

ILLUST NO. 2 OF 6(2006- )
ｳﾝﾃﾝｾｷ(ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-42250 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 71013-42340 |
AXUH8#,MXUA8#..S |
1 | ||
| 71013-42270 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47090 |
AXUH8#,MXUA8# |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
AXUH8#,MXUA8# |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
AXUH8#,MXUA8# |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-50040 |
AXUH8#,MXUA8# |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-50040 |
AXUH8#,MXUA8# |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-26510C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 71811-42200C0 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-47010 |
AXUH8#,MXUA8#..S |
1 | ||
| 7181A-42010 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47070C1 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 71861-47070C1 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 71867V - SHIELD, FRONT SEAT CUSHION, FRONT RH | ||||
| 71867-42040C0 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42050 |
AXUH8#,MXUA8# |
1 | ||
| 71873U - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-42070 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-42060 |
AXUH8#,MXUA8# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-42090C0 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 71875-42090C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-42100C0 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 71875-42100C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-42350 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 72010-42300 |
AXUH8#,MXUA8#..S |
1 | ||
| 72010-42370 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-47010 |
AXUH8#,MXUA8#..S |
2 | ||
| 72125-47020 |
AXUH8#,MXUA8#..G,Z |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47010 |
AXUH8#,MXUA8#..S |
2 | ||
| 72265-47020 |
AXUH8#,MXUA8#..G,Z |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47010 |
AXUH8#,MXUA8#..S |
2 | ||
| 72265-47020 |
AXUH8#,MXUA8#..G,Z |
2 | ||
| 72713 - BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH | ||||
| 72713-42010 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-33130 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 72750-33140 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42090 |
AXUH8#,MXUA8# |
1 | ||
| 79977G - FELT, FRONT SEAT BACK, RH | ||||
| 79977-76010 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 79977-12090 |
AXUH8#,MXUA8#..S |
1 | ||
| 85821J - MOTOR ASSY, POWER SEAT RECLINING, RH | ||||
| 85801-48130 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 85801-48120 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 85821K - MOTOR ASSY, POWER SEAT TILT, RH | ||||
| 85801-11020 |
AXUH8#,MXUA8#..G,Z ｱﾘ(ﾊﾟﾜｰｼｰﾄ+ﾒﾓﾘ) |
1 | ||
| 85801-47050 |
AXUH8#,MXUA8# ｱﾘ(ﾊﾟﾜｰｼｰﾄ) |
1 | ||
| 85821L - MOTOR ASSY, POWER SEAT LIFTER, RH | ||||
| 85801-11030 |
AXUH8#,MXUA8#..G,Z ｱﾘ(ﾊﾟﾜｰｼｰﾄ+ﾒﾓﾘ) |
1 | ||
| 85801-47010 |
AXUH8#,MXUA8#..G,Z ｱﾘ(ﾊﾟﾜｰｼｰﾄ) |
1 | ||
| 85860A - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85801-42040 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 85867 - BLOWER, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85867-42020 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-33010 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90467-07215 | ||||
| 91553-80514 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||

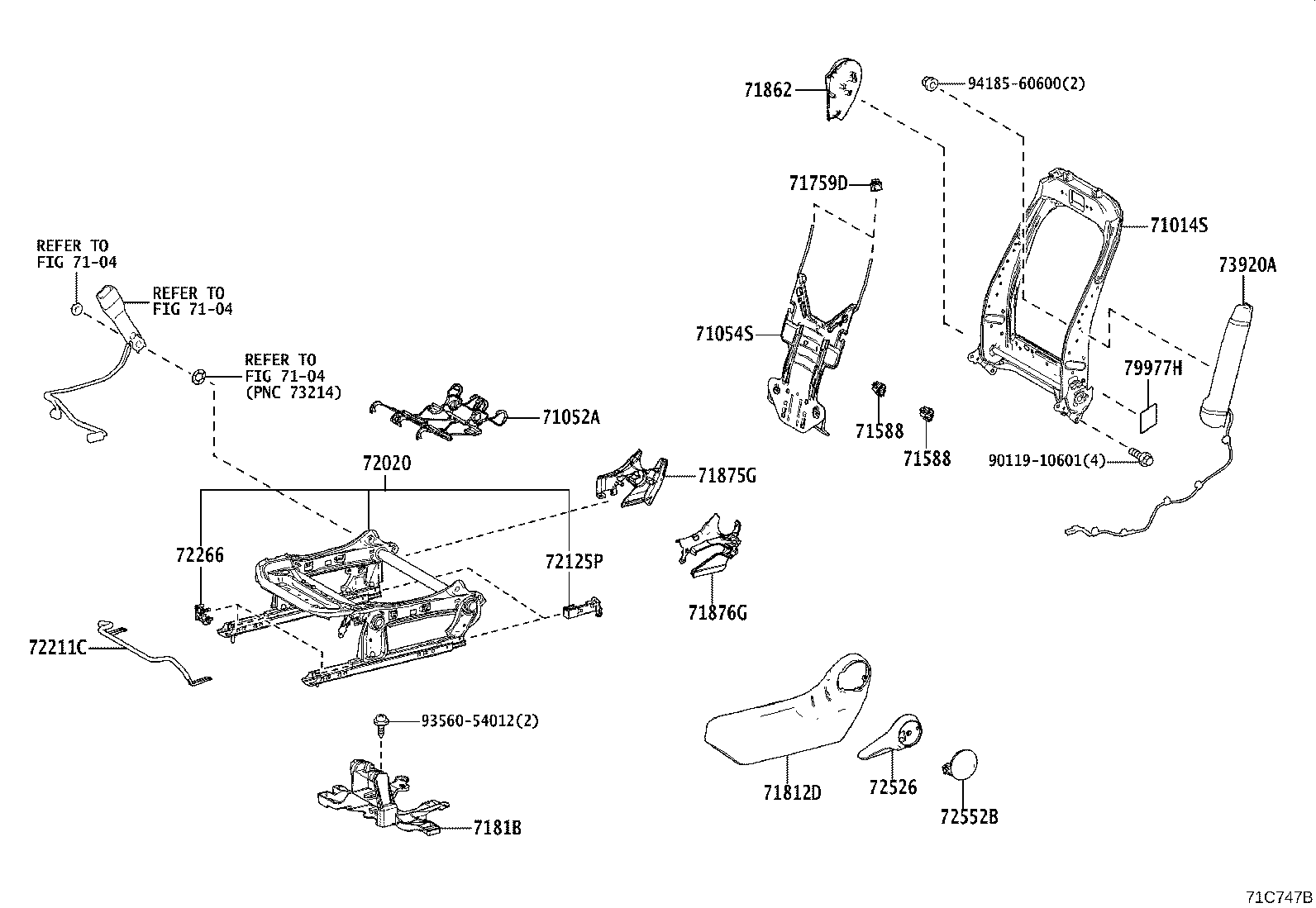

ILLUST NO. 5 OF 6(2006- )
ｼﾞｮｼｭｾｷ(ﾏﾆｭｱﾙｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-42230 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 71014-42330 |
AXUH8#,MXUA8# |
1 | ||
| 71014-42330 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47090 |
AXUH8#,MXUA8# |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-47050 |
AXUH8#,MXUA8# |
1 | ||
| 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71587-47010 |
AXUH8#,MXUA8# |
2 | ||
| 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71587-47010 |
AXUH8#,MXUA8# |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-50040 |
AXUH8#,MXUA8# |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-26450C0 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S),BLACK,TRIM1#,2#,4# |
1 | ||
| 71812-26500C0 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 71812-26500C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-47010 |
AXUH8#,MXUA8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-42120C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 71862-42120C0 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-42060C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 71876-42060C0 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-42070C0 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 71876-42070C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-42380 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 72020-42310 |
AXUH8#,MXUA8# |
1 | ||
| 72125P - COVER, SEAT TRACK, UPPER REAR NO.3 | ||||
| 72125-47010 |
AXUH8#,MXUA8# |
2 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-42020 |
AXUH8#,MXUA8# |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-47010 |
AXUH8#,MXUA8# |
2 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26100C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 72526-26100C0 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 72552B - COVER, RECLINING HINGE, LH | ||||
| 72551-47030C1 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 72551-47030C1 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-42090 |
AXUH8#,MXUA8# |
1 | ||
| 79977H - FELT, FRONT SEAT BACK, LH | ||||
| 79977-76010 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 79977-12090 |
AXUH8#,MXUA8# |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

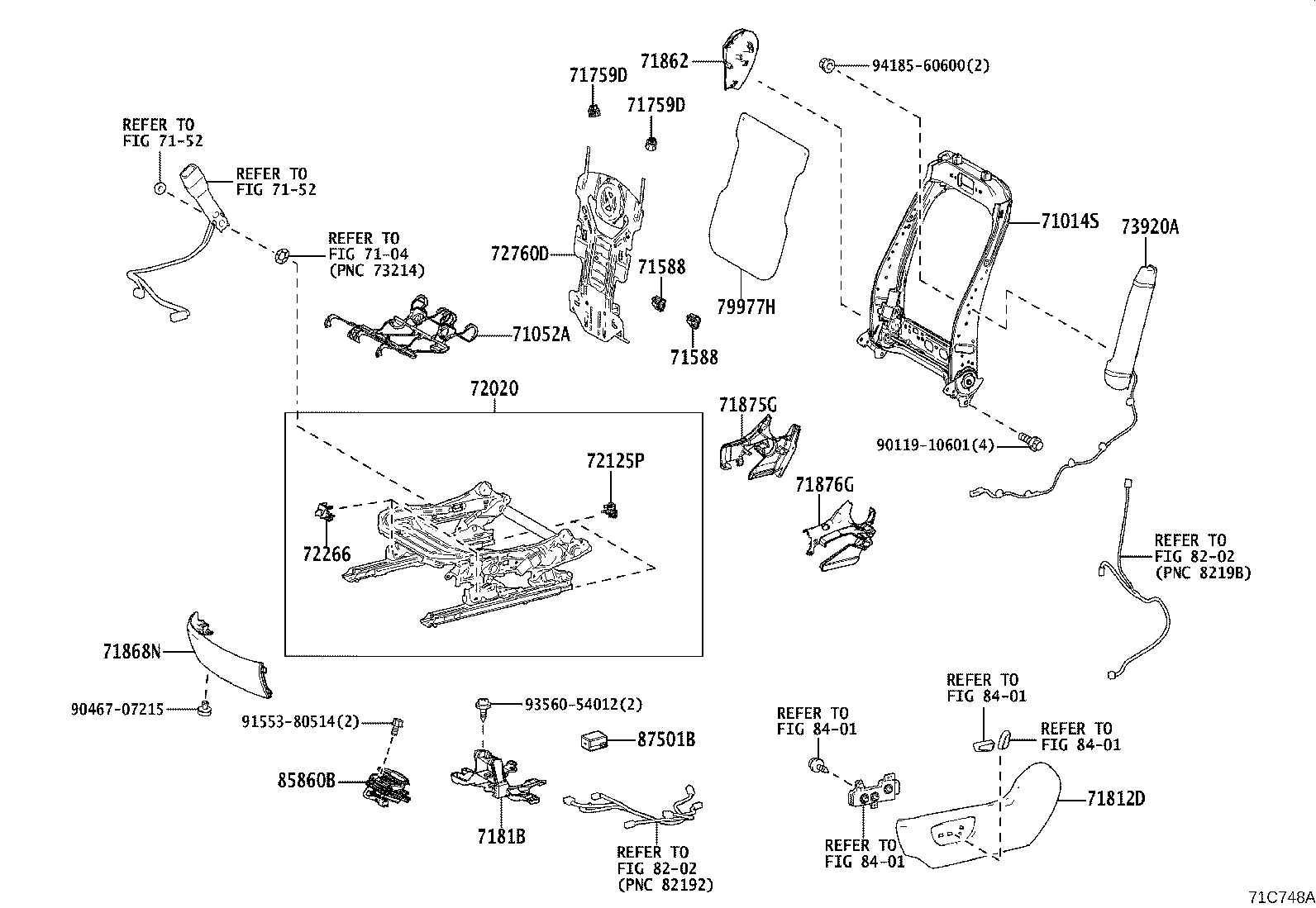

ILLUST NO. 4 OF 6(2006- )
ｼﾞｮｼｭｾｷ(ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-42230 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 71014-42330 |
AXUH8#,MXUA8# |
1 | ||
| 71014-42330 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47090 |
AXUH8#,MXUA8# |
1 | ||
| 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71587-47010 |
AXUH8#,MXUA8# |
2 | ||
| 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71587-47010 |
AXUH8#,MXUA8# |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-50040 |
AXUH8#,MXUA8# |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-50040 |
AXUH8#,MXUA8# |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-26450C0 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S),BLACK,TRIM1#,2#,4# |
1 | ||
| 71812-26500C0 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 71812-26500C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-47010 |
AXUH8#,MXUA8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-42120C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 71862-42120C0 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 71868N - SHIELD, FRONT SEAT CUSHION, FRONT LH | ||||
| 71868-42040C0 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S),BLACK,TRIM1#,2#,4# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-42060C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 71876-42060C0 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-42070C0 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 71876-42070C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-42380 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 72020-42310 |
AXUH8#,MXUA8# |
1 | ||
| 72125P - COVER, SEAT TRACK, UPPER REAR NO.3 | ||||
| 72125-47010 |
AXUH8#,MXUA8# |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-47010 |
AXUH8#,MXUA8# |
2 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-42020 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-42090 |
AXUH8#,MXUA8# |
1 | ||
| 79977H - FELT, FRONT SEAT BACK, LH | ||||
| 79977-76010 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 79977-12090 |
AXUH8#,MXUA8# |
1 | ||
| 85860B - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85802-42010 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-33010 |
AXUH8#,MXUA8#..G,Z “Leather Package”*(S) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90467-07215 | ||||
| 91553-80514 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 6 OF 6(2006- )
ﾌﾛﾝﾄｼｰﾄﾌｨｯﾃｨﾝｸﾞﾊﾟｰﾂ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-10100 |
AXUH8#,MXUA8# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-10100 |
AXUH8#,MXUA8# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-10100 |
AXUH8#,MXUA8# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-10100 |
AXUH8#,MXUA8# |
1 | ||
| 72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72137-47060 |
AXUH8#,MXUA8# |
1 | ||
| 72138N - COVER, SEAT TRACK BRACKET, OUTER REAR LH | ||||
| 72137-47060 |
AXUH8#,MXUA8# |
1 | ||
| 72157F - COVER, SEAT TRACK BRACKET, INNER REAR RH | ||||
| 72157-47080 |
AXUH8#,MXUA8# |
1 | ||
| 72158E - COVER, SEAT TRACK BRACKET, INNER REAR LH | ||||
| 72158-47080 |
AXUH8#,MXUA8# |
1 | ||
| Common parts | ||||
| 90148-10007 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
