MXUA85-ANXGB (2020)

Toyota Harrier

Production Jun 2020 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )S

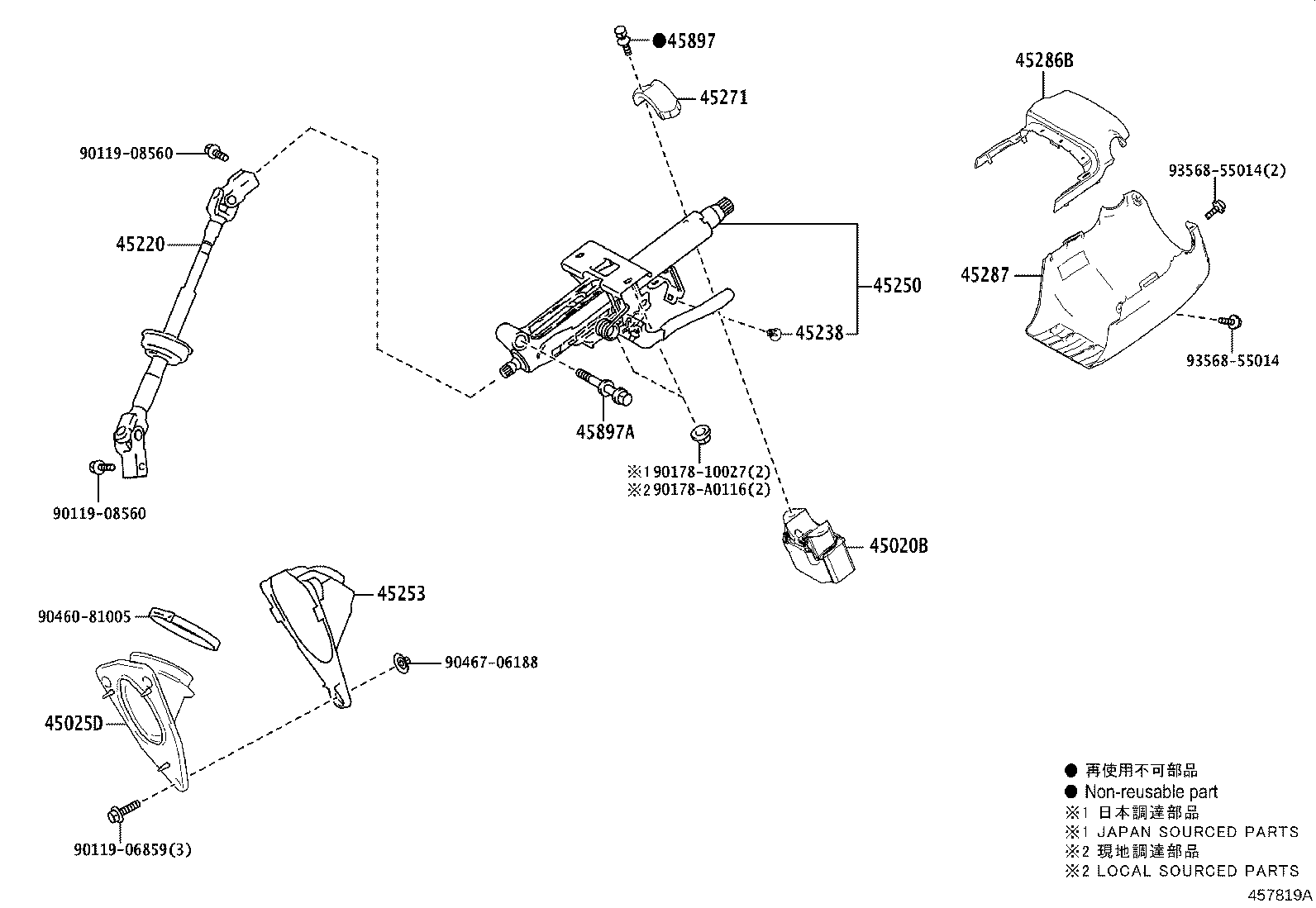

Click highlighted areas on diagram

diagram 45020B 45025D 45220 45238 45250 45253 45271 45286B 45287 45897 45897A 9011906859 9011908560 9011908560 9017810027 90178A0116 9046081005 9046706188 9356855014 9356855014
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-K0010

AXUH8#,MXUA8#..S

 1
45020-48120

AXUH8#,MXUA8#..G,Z

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-42090

AXUH8#,MXUA8#

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-42020

AXUH8#,MXUA8#

 1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-11010

AXUH8#,MXUA8#..G,Z

 1
45238-52010

AXUH8#,MXUA8#..S

 1
45250 - COLUMN ASSY, STEERING
45250-42420

AXUH8#,MXUA8#..S

 1
45250-48430

AXUH8#,MXUA8#..G,Z

 1
45253 - COVER, STEERING COLUMN HOLE
45253-42030

AXUH8#,MXUA8#

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52030

AXUH8#,MXUA8#..S

 1
45286B - COVER, STEERING COLUMN, UPR
45286-33290C0

AXUH8#,MXUA8#..S

BLACK,TRIM2#

 1
45286-33290C0

AXUH8#,MXUA8#..G,Z

BLACK,TRIM1#,2#,4#

 1
45287 - COVER, STEERING COLUMN, LWR
45024-33230C0

AXUH8#,MXUA8#..S

BLACK,TRIM2#

 1
45024-33240C0

AXUH8#,MXUA8#..G,Z

BLACK,TRIM1#,2#,4#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

AXUH8#,MXUA8#

 2
45897A - BOLT, TILT STEERING PAWL SET
90119-10980

AXUH8#,MXUA8#

 1
Common parts
90119-06859
90119-08560
90178-10027
90178-A0116
90460-81005
90467-06188
93568-55014

(2006- )G,Z

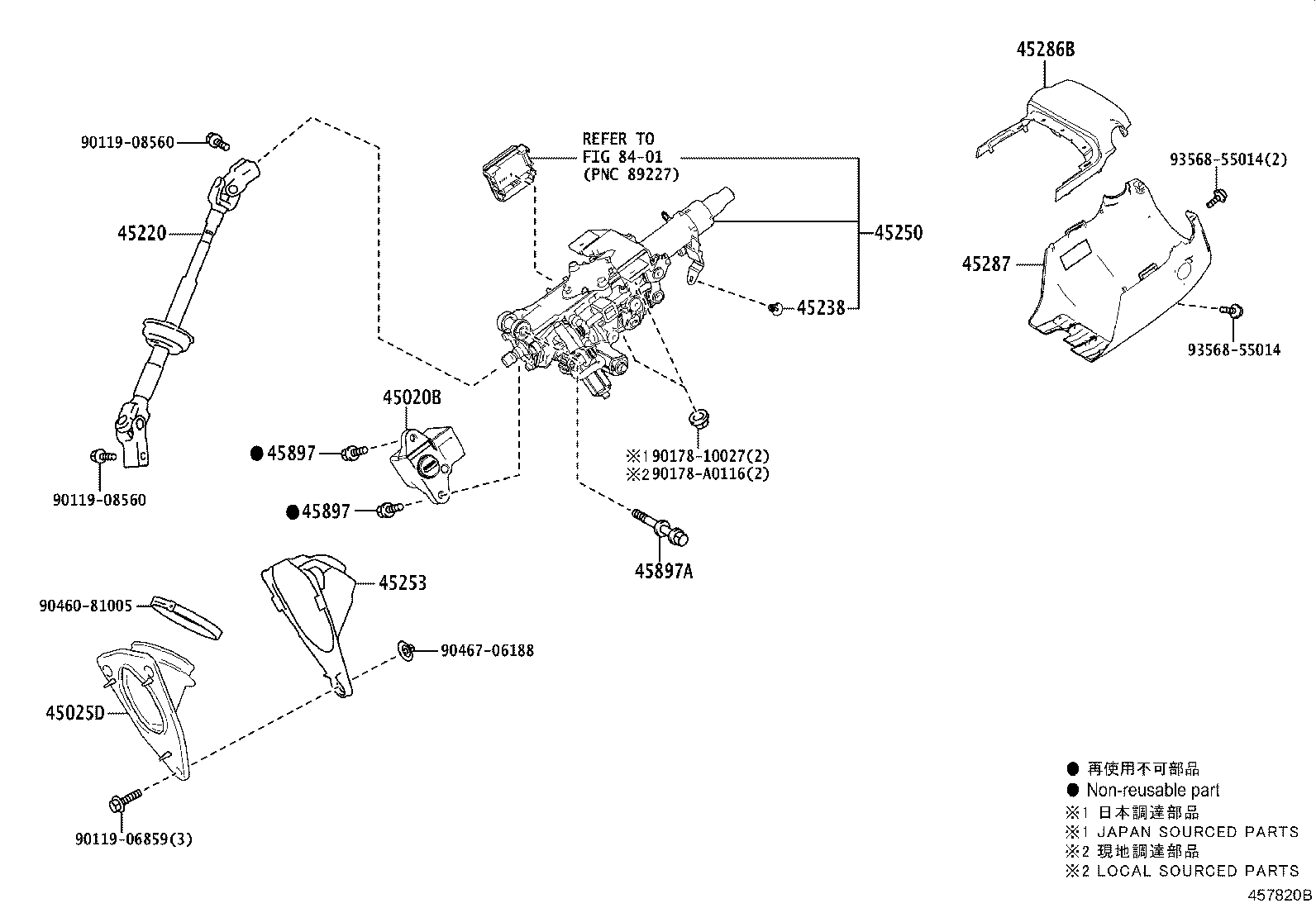

Click highlighted areas on diagram

diagram 45020B 45025D 45220 45238 45250 45253 45286B 45287 45897 45897 45897A 8401 9011906859 9011908560 9011908560 9017810027 90178A0116 9046081005 9046706188 9356855014 9356855014
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-K0010

AXUH8#,MXUA8#..S

 1
45020-48120

AXUH8#,MXUA8#..G,Z

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-42090

AXUH8#,MXUA8#

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-42020

AXUH8#,MXUA8#

 1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-11010

AXUH8#,MXUA8#..G,Z

 1
45238-52010

AXUH8#,MXUA8#..S

 1
45250 - COLUMN ASSY, STEERING
45250-42420

AXUH8#,MXUA8#..S

 1
45250-48430

AXUH8#,MXUA8#..G,Z

 1
45253 - COVER, STEERING COLUMN HOLE
45253-42030

AXUH8#,MXUA8#

 1
45286B - COVER, STEERING COLUMN, UPR
45286-33290C0

AXUH8#,MXUA8#..S

BLACK,TRIM2#

 1
45286-33290C0

AXUH8#,MXUA8#..G,Z

BLACK,TRIM1#,2#,4#

 1
45287 - COVER, STEERING COLUMN, LWR
45024-33230C0

AXUH8#,MXUA8#..S

BLACK,TRIM2#

 1
45024-33240C0

AXUH8#,MXUA8#..G,Z

BLACK,TRIM1#,2#,4#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

AXUH8#,MXUA8#

 2
45897 - BOLT, STEERING LOCK SET
45897-12020

AXUH8#,MXUA8#

 2
45897A - BOLT, TILT STEERING PAWL SET
90119-10980

AXUH8#,MXUA8#

 1
Common parts
90119-06859
90119-08560
90178-10027
90178-A0116
90460-81005
90467-06188
93568-55014
Linked diagrams
8401
