MXUA85-ANXGB (2020)

Toyota Harrier

Production Jun 2020 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )M20AFKS

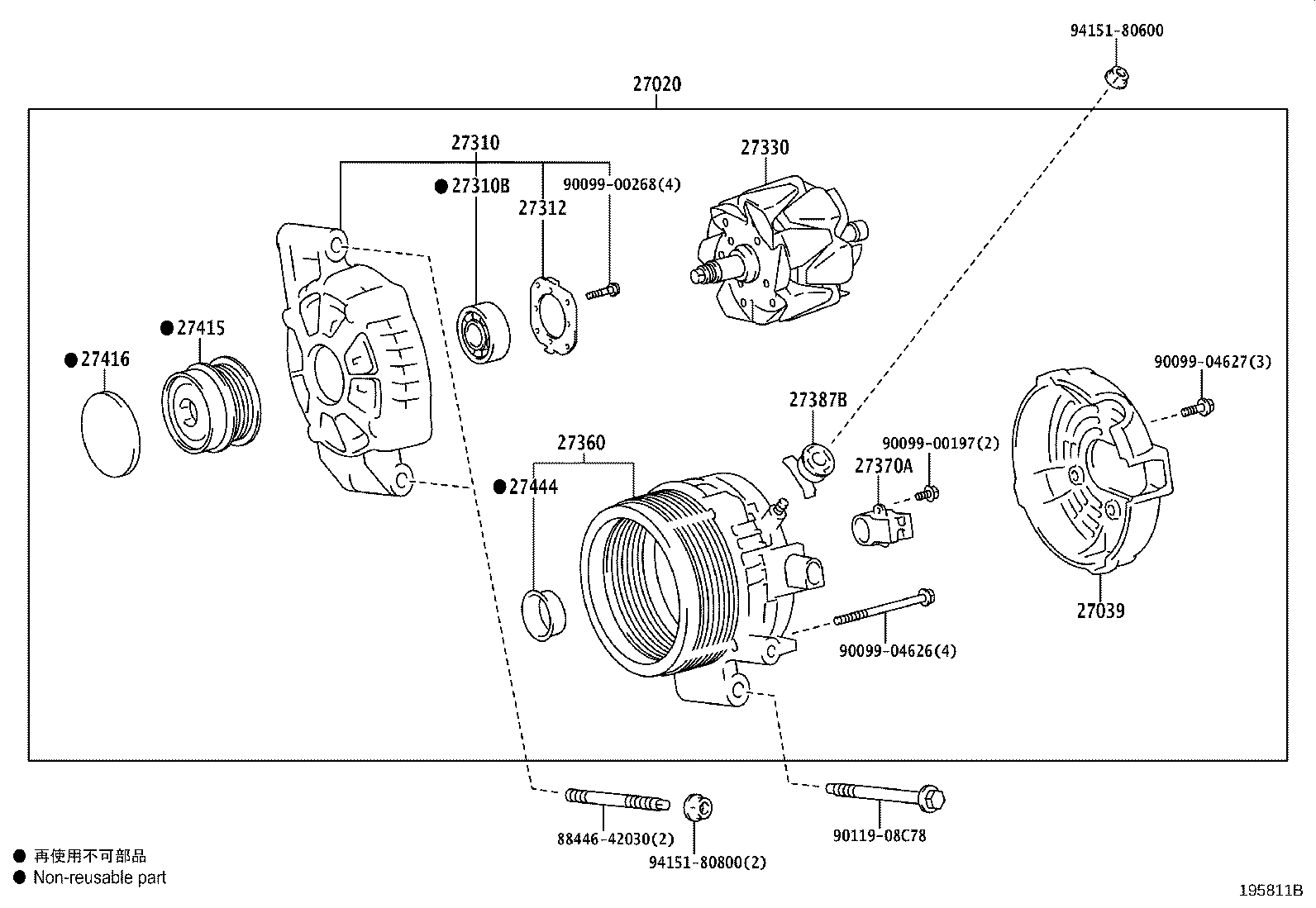

Click highlighted areas on diagram

12V 130A

diagram 27020 27039 27310 27310B 27312 27330 27360 27370A 27387B 27415 27416 27444 8844642030 9009900197 9009900268 9009904626 9009904627 9011908C78 9415180600 9415180800
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-24040

M20AFKS..MXUA8#

12V 130A

 1
27039 - COVER, ALTERNATOR REAR END
27039-37220

M20AFKS..MXUA8#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-24130

M20AFKS..MXUA8#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10223

M20AFKS..MXUA8#

 1
27312 - PLATE, RETAINER
27312-72100

M20AFKS..MXUA8#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-37220

M20AFKS..MXUA8#

 1
27360 - COIL ASSY, ALTERNATOR
27360-24130

M20AFKS..MXUA8#

 1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-31220

M20AFKS..MXUA8#

 1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-20130

M20AFKS..MXUA8#

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-24010

M20AFKS..MXUA8#

 1
27416 - CAP, ALTERNATOR PULLEY
27416-47010

M20AFKS..MXUA8#

 1
27444 - PACKING, ALTERNATOR BEARING COVER
27444-21190

M20AFKS..MXUA8#

 1
Common parts
88446-42030
90099-00197
90099-00268
90099-04626
90099-04627
90119-08C78
94151-80600
94151-80800
