MXUA80-ANXSB (2020)

Toyota Harrier

Production Jun 2020 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )

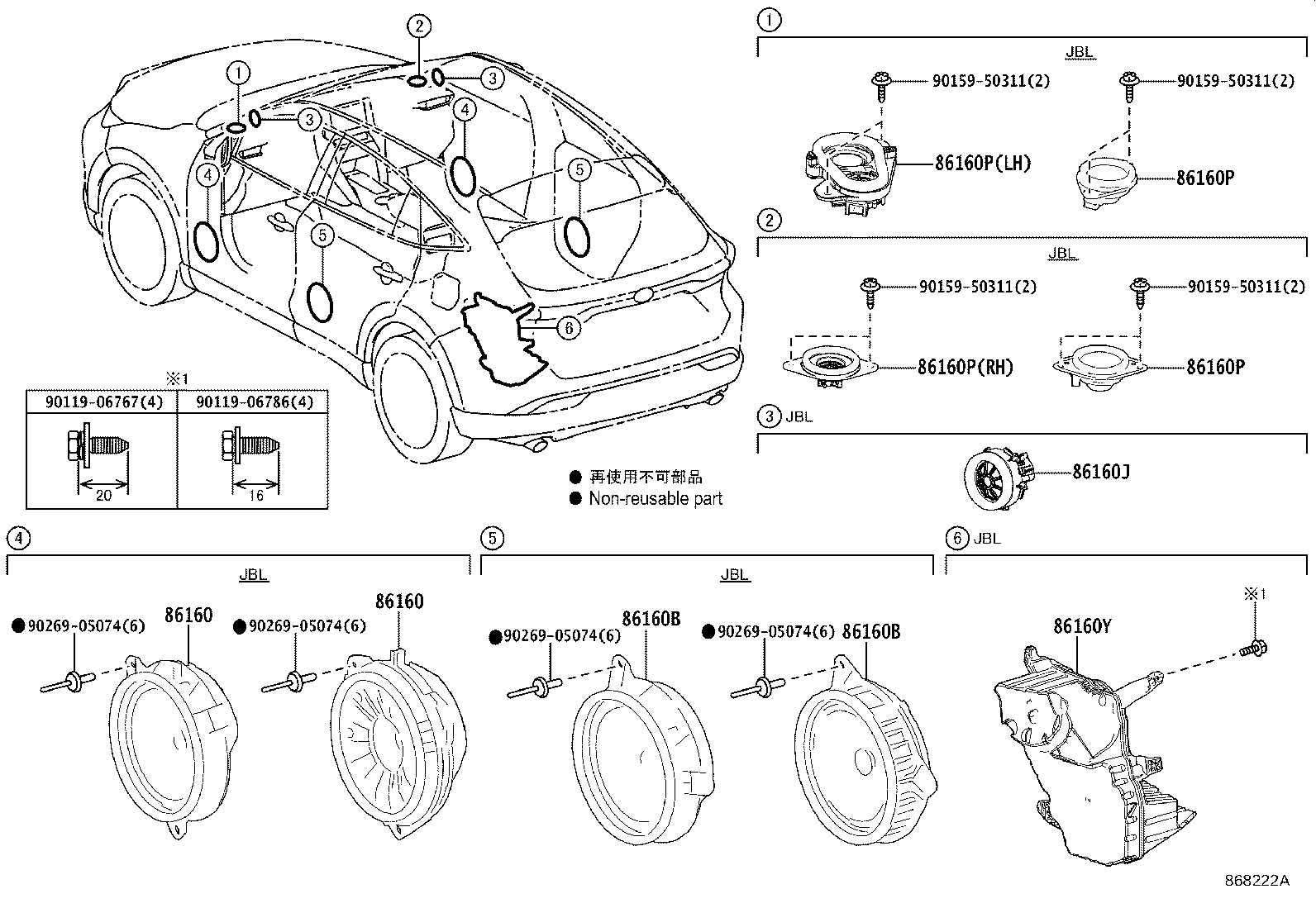

Click highlighted areas on diagram

diagram 86160 86160 86160B 86160B 86160J 86160P 86160P 86160P 86160P 86160Y 9011906767 9011906786 9015950311 9015950311 9015950311 9015950311 9026905074 9026905074 9026905074 9026905074
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-1A210

AXUH8#,MXUA8#..G,S

 2
86160-42160

AXUH8#,MXUA8#..Z

 2
86160-42160

AXUH8#,MXUA8#..G

ｵｰﾃﾞｨｵ−JBL&12.3ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ T2(日本)

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-1A210

AXUH8#,MXUA8#..G,S

 2
86160-42160

AXUH8#,MXUA8#..Z

 2
86160-42160

AXUH8#,MXUA8#..G

ｵｰﾃﾞｨｵ−JBL&12.3ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ T2(日本)

 2
86160B - SPEAKER ASSY, REAR
86160-1A210

AXUH8#,MXUA8#..G,S

 2
86160-42170

AXUH8#,MXUA8#..G

ｵｰﾃﾞｨｵ−JBL&12.3ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ T2(日本)

 2
86160-42170

AXUH8#,MXUA8#..Z

 2
86160B - SPEAKER ASSY, REAR
86160-1A210

AXUH8#,MXUA8#..G,S

 2
86160-42170

AXUH8#,MXUA8#..G

ｵｰﾃﾞｨｵ−JBL&12.3ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ T2(日本)

 2
86160-42170

AXUH8#,MXUA8#..Z

 2
86160J - SPEAKER ASSY, FRONT NO.3
86150-42080

AXUH8#,MXUA8#..Z

 2
86150-42080

AXUH8#,MXUA8#..G

ｵｰﾃﾞｨｵ−JBL&12.3ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ T2(日本)

 2
86160P - SPEAKER ASSY, FRONT NO.2
86150-42050

AXUH8#,MXUA8#..G,S

左側

 1
86150-42010

AXUH8#,MXUA8#..G,S

右側

 1
86160-33A30

AXUH8#,MXUA8#..Z

 2
86160-33A30

AXUH8#,MXUA8#..G

ｵｰﾃﾞｨｵ−JBL&12.3ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ T2(日本)

 2
86160P - SPEAKER ASSY, FRONT NO.2
86150-42050

AXUH8#,MXUA8#..G,S

左側

 1
86150-42010

AXUH8#,MXUA8#..G,S

右側

 1
86160-33A30

AXUH8#,MXUA8#..Z

 2
86160-33A30

AXUH8#,MXUA8#..G

ｵｰﾃﾞｨｵ−JBL&12.3ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ T2(日本)

 2
86160P - SPEAKER ASSY, FRONT NO.2
86150-42050

AXUH8#,MXUA8#..G,S

左側

 1
86150-42010

AXUH8#,MXUA8#..G,S

右側

 1
86160-33A30

AXUH8#,MXUA8#..Z

 2
86160-33A30

AXUH8#,MXUA8#..G

ｵｰﾃﾞｨｵ−JBL&12.3ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ T2(日本)

 2
86160P - SPEAKER ASSY, FRONT NO.2
86150-42050

AXUH8#,MXUA8#..G,S

左側

 1
86150-42010

AXUH8#,MXUA8#..G,S

右側

 1
86160-33A30

AXUH8#,MXUA8#..Z

 2
86160-33A30

AXUH8#,MXUA8#..G

ｵｰﾃﾞｨｵ−JBL&12.3ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ T2(日本)

 2
86160Y - SPEAKER ASSY, REAR NO.2
86150-48070

AXUH8#,MXUA8#..Z

 1
86150-48070

AXUH8#,MXUA8#..G

ｵｰﾃﾞｨｵ−JBL&12.3ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ T2(日本)

 1
Common parts
90119-06767
90119-06786
90159-50311
90269-05074
