MXUA80-ANXSB (2020)

Toyota Harrier

Production Jun 2020 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )

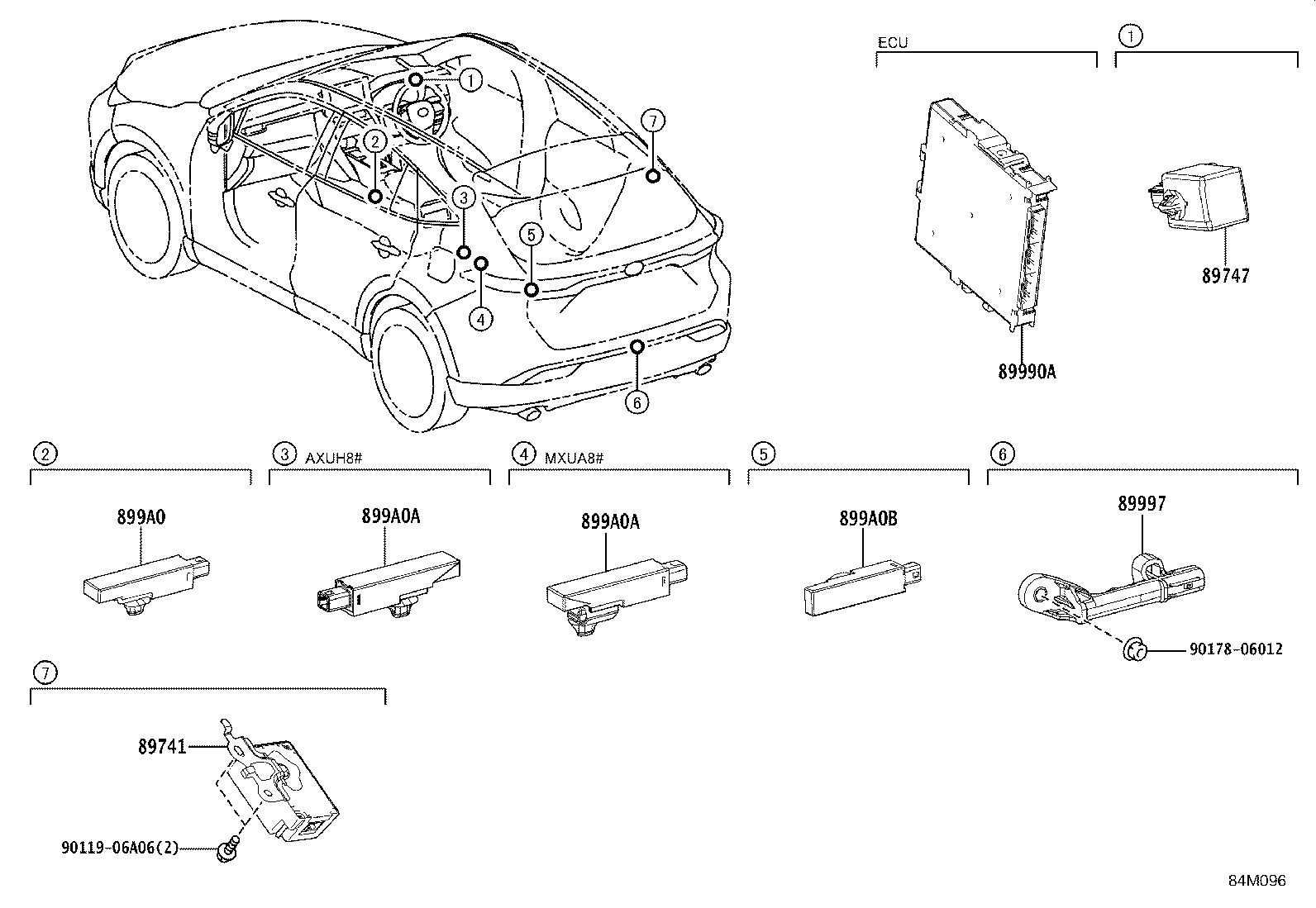

Click highlighted areas on diagram

diagram 89741 89747 89990A 89997 899A0 899A0A 899A0A 899A0B 9011906A06 9017806012
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89740-48350

AXUH8#,MXUA8#

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

AXUH8#,MXUA8#

 1
89990A - COMPUTER ASSY, SMART KEY
899H0-48010

MXUA8#..G,S

 1
899H0-48020

MXUA8#..Z

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-30100

AXUH8#,MXUA8#

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-12130

AXUH8#,MXUA8#

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-42030

MXUA8#

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-42030

MXUA8#

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-12130

AXUH8#,MXUA8#

 1
Common parts
90119-06A06
90178-06012
