MXUA80-ANXSB (2020)
Toyota Harrier
(2006- )S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63395E - CLIP(FOR MAP LAMP) | ||||
| 90467-09245 |
AXUH8#,MXUA8# |
4 | ||
| 81080K - LAMP ASSY, CONSOLE BOX ILLUMINATION | ||||
| 81081-48030 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 81080N - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-33280 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 81080V - LAMP ASSY, INTERIOR ILLUMINATION, NO.2 | ||||
| 81080-33280 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 81080W - LAMP ASSY, INTERIOR ILLUMINATION, NO.3 | ||||
| 81080-42040 |
AXUH8#,MXUA8# |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-11030 |
AXUH8#,MXUA8# |
2 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-48030C1 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM2#,4# |
1 | ||
| 81240-48030B0 |
AXUH8#,MXUA8#..G,Z LT.GRAY,TRIM1# |
1 | ||
| 81240-48030B0 |
AXUH8#,MXUA8#..S LT.GRAY,TRIM2# |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81081-48050 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81208-48360 |
AXUH8#,MXUA8# |
1 | ||
| 81208-48390 |
AXUH8#,MXUA8#..Z ﾑｰﾝﾙｰﾌ−調光ﾊﾟﾉﾗﾏﾙｰﾌ&電動ｼｪｰﾄﾞ |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-11010 |
AXUH8#,MXUA8# |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-50260 |
AXUH8#,MXUA8# |
2 | ||
| Linked diagrams | ||||

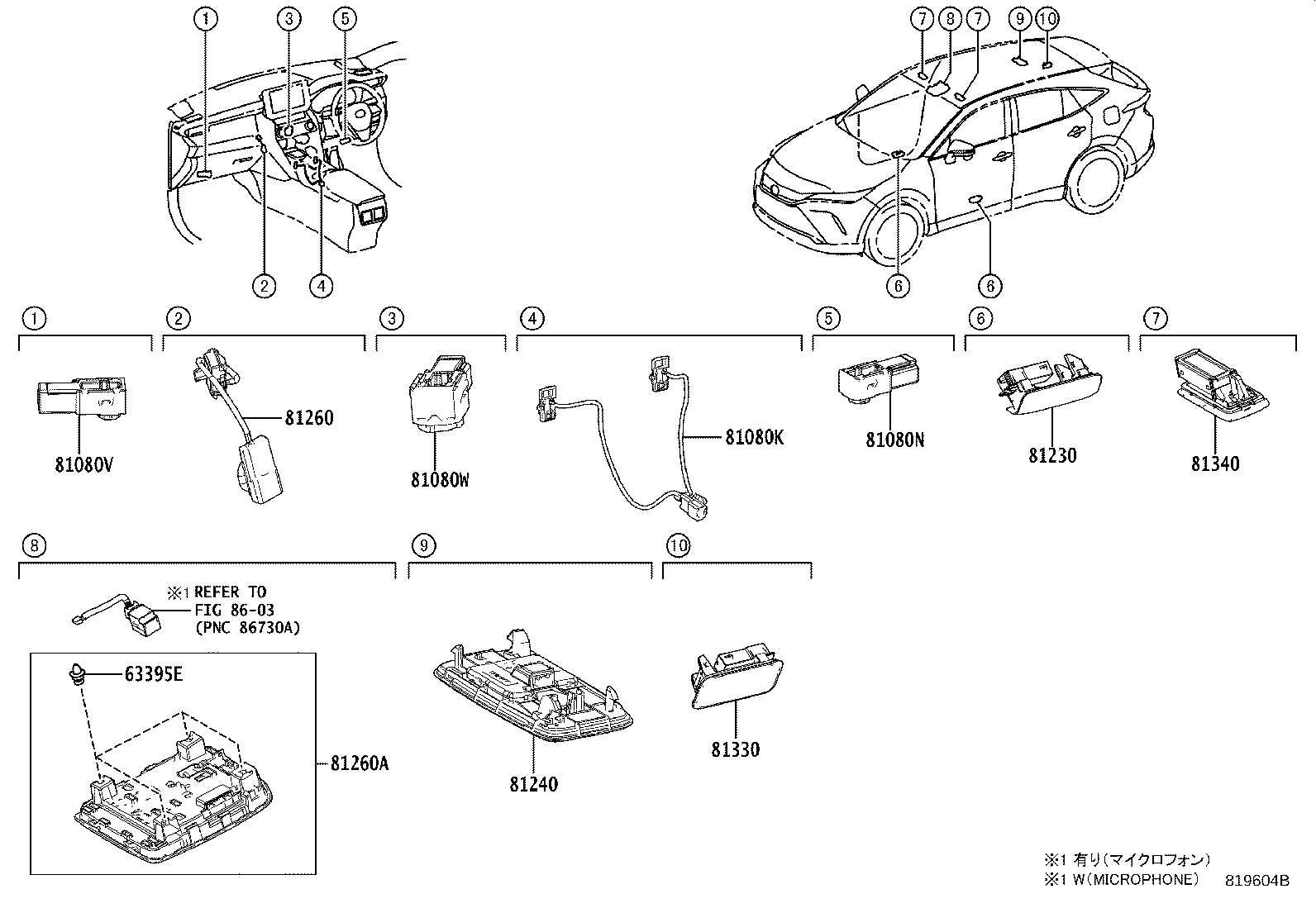

| 8603 | ||||
(2006- )G,Z
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63395E - CLIP(FOR MAP LAMP) | ||||
| 90467-09245 |
AXUH8#,MXUA8# |
4 | ||
| 63395E - CLIP(FOR MAP LAMP) | ||||
| 90467-09245 |
AXUH8#,MXUA8# |
4 | ||
| 81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-35010 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 81080K - LAMP ASSY, CONSOLE BOX ILLUMINATION | ||||
| 81081-48030 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-35020 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 81080N - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-33280 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 81080V - LAMP ASSY, INTERIOR ILLUMINATION, NO.2 | ||||
| 81080-33280 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 81080W - LAMP ASSY, INTERIOR ILLUMINATION, NO.3 | ||||
| 81080-42040 |
AXUH8#,MXUA8# |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-11030 |
AXUH8#,MXUA8# |
2 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-48030C1 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM2#,4# |
1 | ||
| 81240-48030B0 |
AXUH8#,MXUA8#..G,Z LT.GRAY,TRIM1# |
1 | ||
| 81240-48030B0 |
AXUH8#,MXUA8#..S LT.GRAY,TRIM2# |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81081-48050 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81208-48360 |
AXUH8#,MXUA8# |
1 | ||
| 81208-48390 |
AXUH8#,MXUA8#..Z ﾑｰﾝﾙｰﾌ−調光ﾊﾟﾉﾗﾏﾙｰﾌ&電動ｼｪｰﾄﾞ |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81208-48360 |
AXUH8#,MXUA8# |
1 | ||
| 81208-48390 |
AXUH8#,MXUA8#..Z ﾑｰﾝﾙｰﾌ−調光ﾊﾟﾉﾗﾏﾙｰﾌ&電動ｼｪｰﾄﾞ |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-11010 |
AXUH8#,MXUA8# |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-50260 |
AXUH8#,MXUA8# |
2 | ||
| Linked diagrams | ||||
| 8603 | ||||
