MXUA80-ANXSB (2020)
Toyota Harrier

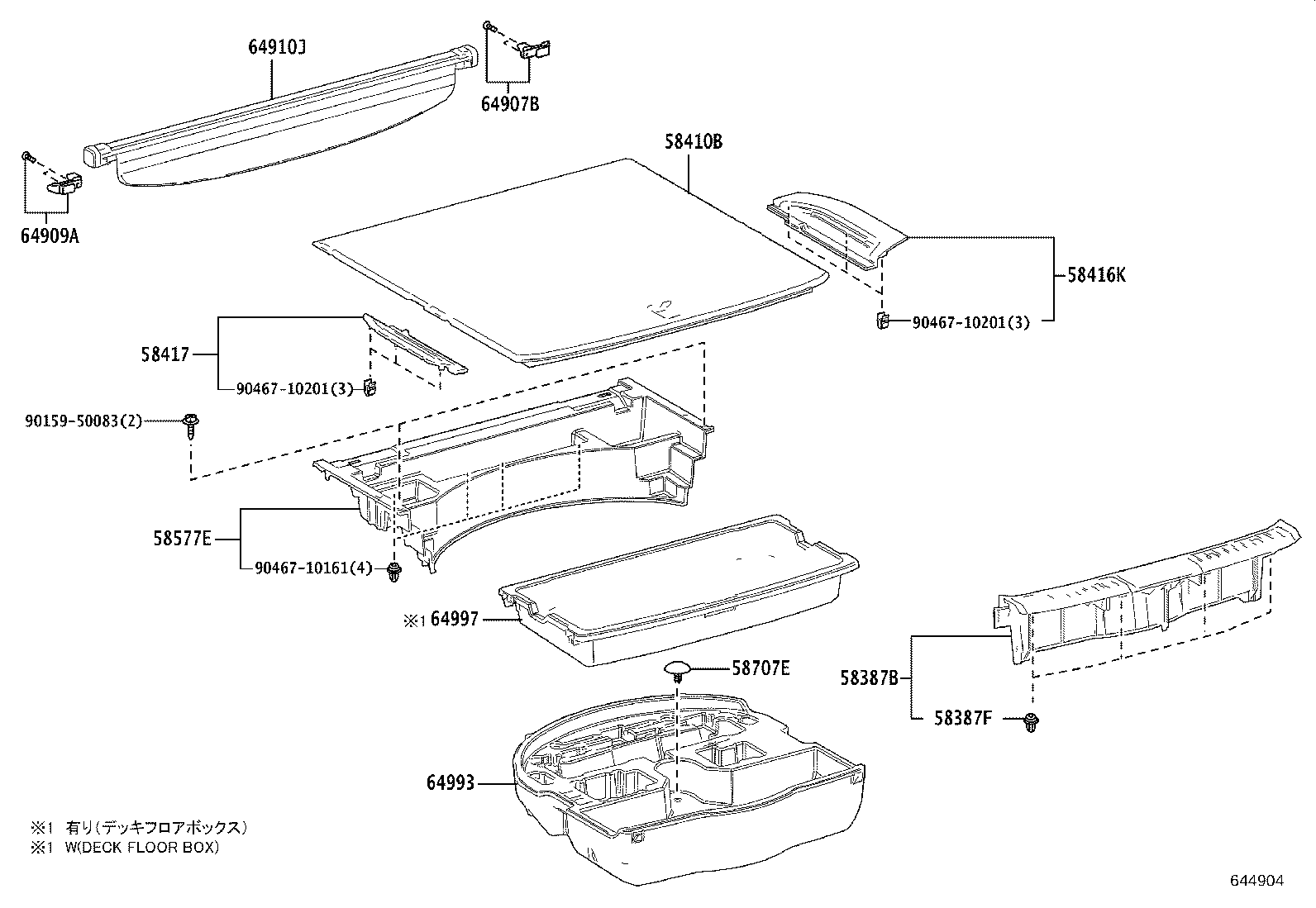

ILLUST NO. 1 OF 2(2006- )
ｱﾘ(ﾀｲﾔﾊﾟﾝｸｵｳｷｭｳｼｭｳﾘｷｯﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387B - PLATE, REAR FLOOR FINISH | ||||
| 58387-48130C0 |
AXUH8#,MXUA8#..Z BLACK,TRIM1#,2#,4# |
1 | ||
| 58387-48120C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 58387-48120C0 |
AXUH8#,MXUA8#..G BLACK,TRIM1#,2#,4# |
1 | ||
| 58387F - CLIP, REAR FLOOR FINISH PLATE | ||||
| 90467-10161 |
AXUH8#,MXUA8# |
4 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-48190C8 |
AXUH8#,MXUA8#..G BLACK,TRIM1#,2#,4# |
1 | ||
| 58410-48180C3 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 58410-48200C7 |
AXUH8#,MXUA8#..Z BLACK,TRIM1#,2#,4# |
1 | ||
| 58416K - BOARD, REAR FLOOR, NO.2 | ||||
| 58416-48020C0 |
AXUH8#,MXUA8#..G BLACK,TRIM1#,2#,4# |
1 | ||
| 58416-48020C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 58416-48030C0 |
AXUH8#,MXUA8#..Z BLACK,TRIM1#,2#,4# |
1 | ||
| 58417 - BOARD, REAR FLOOR, NO.3 | ||||
| 58417-48060C0 |
AXUH8#,MXUA8#..G BLACK,TRIM1#,2#,4# |
1 | ||
| 58417-48060C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 58417-48070C0 |
AXUH8#,MXUA8#..Z BLACK,TRIM1#,2#,4# |
1 | ||
| 58577E - PLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1 | ||||
| 58577-48030 |
AXUH8#,MXUA8# |
1 | ||
| 58707E - PLUG SET, HOLE | ||||
| 58707-50060 |
AXUH8#,MXUA8# |
1 | ||
| 64907B - STOPPER SUB-ASSY, TONNEAU COVER, RH | ||||
| 64907-48010 |
AXUH8#,MXUA8# ﾄﾉｶﾊﾞｰ−有り |
1 | ||
| 64909A - STOPPER SUB-ASSY, TONNEAU COVER, LH | ||||
| 64909-48010 |
AXUH8#,MXUA8# ﾄﾉｶﾊﾞｰ−有り |
1 | ||
| 64910J - COVER ASSY, TONNEAU | ||||
| 64910-48170C0 |
AXUH8#,MXUA8#..G,Z ﾄﾉｶﾊﾞｰ−有り,BLACK,TRIM1#,2#,4# |
1 | ||
| 64910-48170C0 |
AXUH8#,MXUA8#..S ﾄﾉｶﾊﾞｰ−有り,BLACK,TRIM2# |
1 | ||
| 64993 - BOX, DECK FLOOR, REAR | ||||
| 64993-48170 |
AXUH8#,MXUA8# |
1 | ||
| 64997 - BOX, DECK FLOOR, LH | ||||
| 64997-48040 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| Common parts | ||||
| 90159-50083 | ||||
| 90467-10161 | ||||
| 90467-10201 | ||||

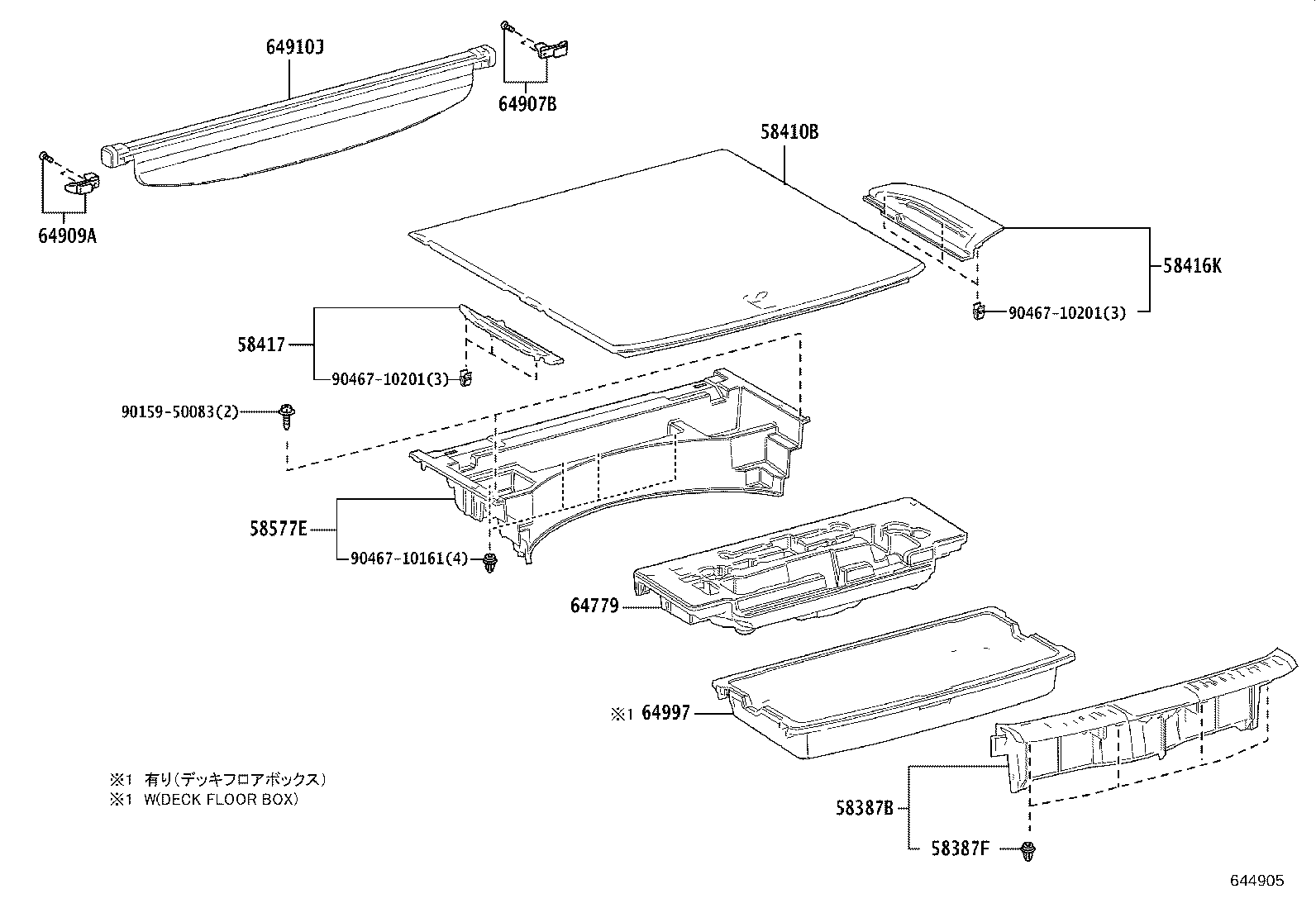

ILLUST NO. 1 OF 2(2006- )
ｱﾘ(ｽﾍﾟｱﾀｲﾔ(ｵｳｷｭｳﾖｳ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387B - PLATE, REAR FLOOR FINISH | ||||
| 58387-48130C0 |
AXUH8#,MXUA8#..Z BLACK,TRIM1#,2#,4# |
1 | ||
| 58387-48120C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 58387-48120C0 |
AXUH8#,MXUA8#..G BLACK,TRIM1#,2#,4# |
1 | ||
| 58387F - CLIP, REAR FLOOR FINISH PLATE | ||||
| 90467-10161 |
AXUH8#,MXUA8# |
4 | ||
| 58410B - BOARD ASSY, DECK | ||||
| 58410-48190C8 |
AXUH8#,MXUA8#..G BLACK,TRIM1#,2#,4# |
1 | ||
| 58410-48180C3 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 58410-48200C7 |
AXUH8#,MXUA8#..Z BLACK,TRIM1#,2#,4# |
1 | ||
| 58416K - BOARD, REAR FLOOR, NO.2 | ||||
| 58416-48020C0 |
AXUH8#,MXUA8#..G BLACK,TRIM1#,2#,4# |
1 | ||
| 58416-48020C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 58416-48030C0 |
AXUH8#,MXUA8#..Z BLACK,TRIM1#,2#,4# |
1 | ||
| 58417 - BOARD, REAR FLOOR, NO.3 | ||||
| 58417-48060C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 58417-48060C0 |
AXUH8#,MXUA8#..G BLACK,TRIM1#,2#,4# |
1 | ||
| 58417-48070C0 |
AXUH8#,MXUA8#..Z BLACK,TRIM1#,2#,4# |
1 | ||
| 58577E - PLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1 | ||||
| 58577-48030 |
AXUH8#,MXUA8# |
1 | ||
| 64779 - TRAY, SPARE WHEEL COVER | ||||
| 64779-48070 |
AXUH8#,MXUA8# ｽﾍﾟｱﾀｲﾔ−応急用(T165/80 17ｽﾁｰﾙ) |
1 | ||
| 64907B - STOPPER SUB-ASSY, TONNEAU COVER, RH | ||||
| 64907-48010 |
AXUH8#,MXUA8# ﾄﾉｶﾊﾞｰ−有り |
1 | ||
| 64909A - STOPPER SUB-ASSY, TONNEAU COVER, LH | ||||
| 64909-48010 |
AXUH8#,MXUA8# ﾄﾉｶﾊﾞｰ−有り |
1 | ||
| 64910J - COVER ASSY, TONNEAU | ||||
| 64910-48170C0 |
AXUH8#,MXUA8#..G,Z ﾄﾉｶﾊﾞｰ−有り,BLACK,TRIM1#,2#,4# |
1 | ||
| 64910-48170C0 |
AXUH8#,MXUA8#..S ﾄﾉｶﾊﾞｰ−有り,BLACK,TRIM2# |
1 | ||
| 64997 - BOX, DECK FLOOR, LH | ||||
| 64997-48040 |
AXUH8#,MXUA8#..G,Z |
1 | ||
| Common parts | ||||
| 90159-50083 | ||||
| 90467-10161 | ||||
| 90467-10201 | ||||

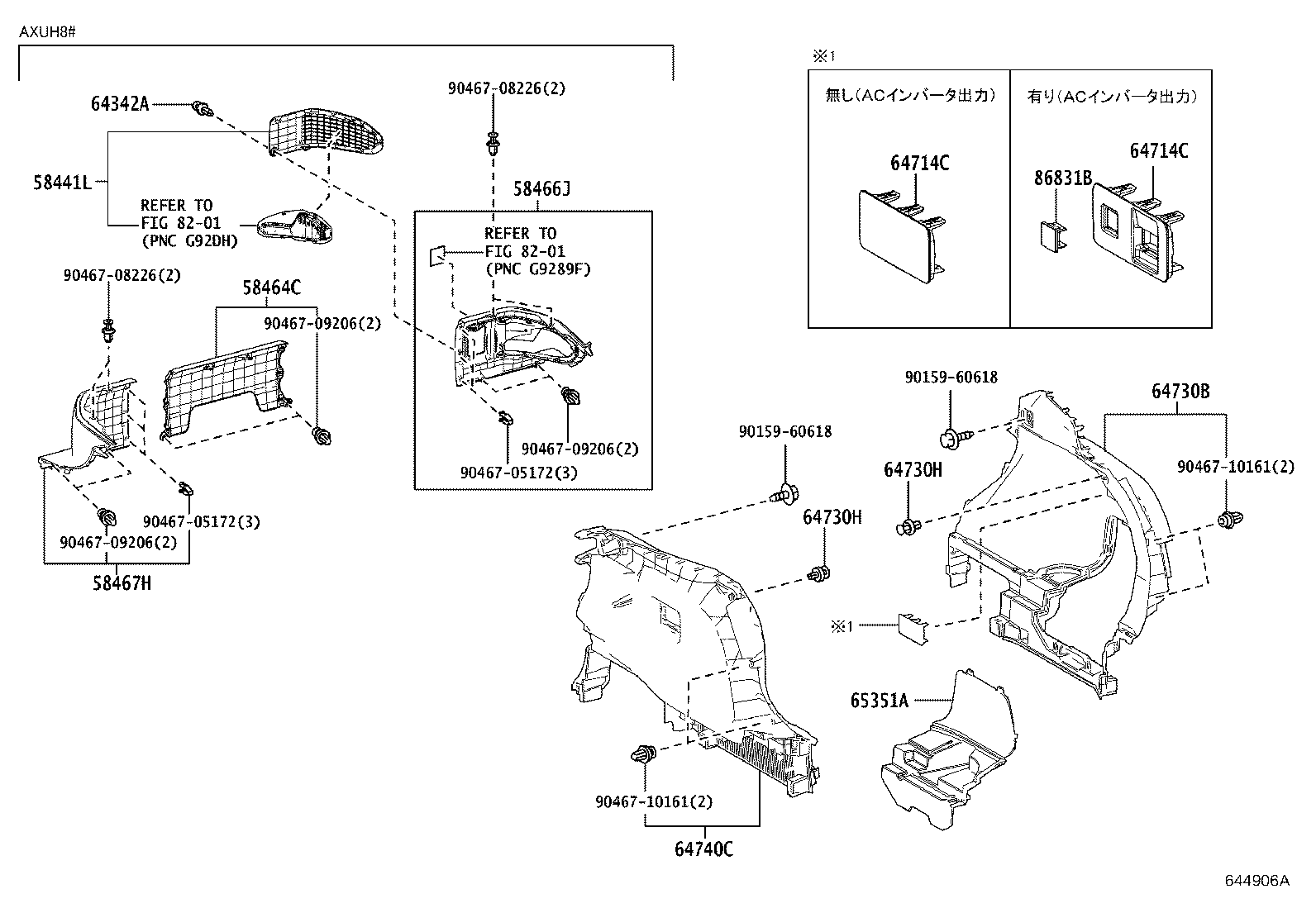

ILLUST NO. 2 OF 2(2006- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-48150C0 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 64714-48140C0 |
MXUA8#..G,Z ACｲﾝﾊﾞｰﾀ出力−100V/100W,BLACK,TRIM1#,2#,4# |
1 | ||
| 64714-48150C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 64714-48140C0 |
MXUA8#..S ACｲﾝﾊﾞｰﾀ出力−100V/100W,BLACK,TRIM2# |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-48150C0 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 64714-48140C0 |
MXUA8#..G,Z ACｲﾝﾊﾞｰﾀ出力−100V/100W,BLACK,TRIM1#,2#,4# |
1 | ||
| 64714-48150C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 64714-48140C0 |
MXUA8#..S ACｲﾝﾊﾞｰﾀ出力−100V/100W,BLACK,TRIM2# |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-48190C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 64730-48200C0 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 64730H - CLIP(FOR DECK TRIM SIDE PANEL) | ||||
| 90467-09242 |
AXUH8#,MXUA8# |
2 | ||
| 64730H - CLIP(FOR DECK TRIM SIDE PANEL) | ||||
| 90467-09242 |
AXUH8#,MXUA8# |
2 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-48190C0 |
AXUH8#,MXUA8#..G ｵｰﾃﾞｨｵ−JBL&12.3ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ T2(日本),BLACK,TRIM1#,2#,4# |
1 | ||
| 64740-48170C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 64740-48180C0 |
AXUH8#,MXUA8#..G BLACK,TRIM1#,2#,4# |
1 | ||
| 64740-48190C0 |
AXUH8#,MXUA8#..Z BLACK,TRIM1#,2#,4# |
1 | ||
| 65351A - COVER, BATTERY HOLE | ||||
| 65351-48010C0 |
AXUH8#,MXUA8#..G,Z BLACK,TRIM1#,2#,4# |
1 | ||
| 65351-48010C0 |
AXUH8#,MXUA8#..S BLACK,TRIM2# |
1 | ||
| 86831B - COVER, ACCESSORY SOCKET | ||||
| 86831-48010C1 |
MXUA8# ACｲﾝﾊﾞｰﾀ出力−100V/100W,BLACK |
1 | ||
| Common parts | ||||
| 90159-60618 | ||||
| 90467-05172 | ||||
| 90467-08226 | ||||
| 90467-09206 | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 8201 | ||||
