MXUA80-ANXSB (2020)

Toyota Harrier

Production Jun 2020 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )MXUA8#

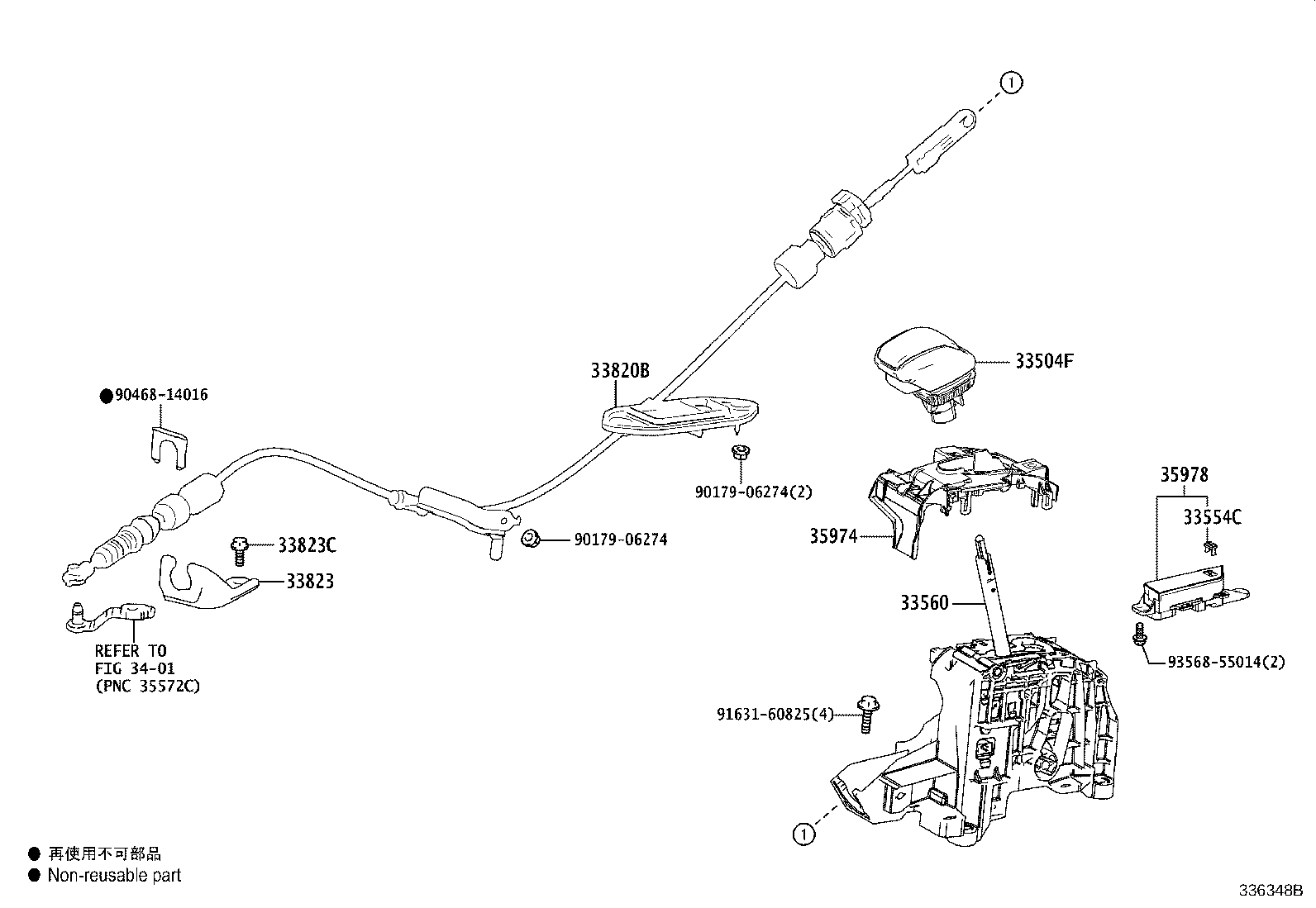

Click highlighted areas on diagram

diagram 33504F 33554C 33560 33820B 33823 33823C 3401 35974 35978 9017906274 9017906274 9046814016 9163160825 9356855014
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-40050C0

AXUH8#,MXUA8#..S

BLACK,TRIM2#

 1
33542-40050C0

AXUH8#,MXUA8#..G,Z

BLACK,TRIM1#,2#,4#

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-48110

AXUH8#,MXUA8#

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-10020

AXUH8#,MXUA8#

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-48430

MXUA8#

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-12310

MXUA8#

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91671-80820

AXUH8#,MXUA8#

 2
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-48190

AXUH8#,MXUA8#

 1
35978 - INDICATOR, SHIFT POSITION
35978-48070

MXUA8#

 1
Common parts
90179-06274
90468-14016
91631-60825
93568-55014
Linked diagrams
3401
