MXUA80-ANXMB (2020)

Toyota Harrier

Production Jun 2020 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )

Click highlighted areas on diagram

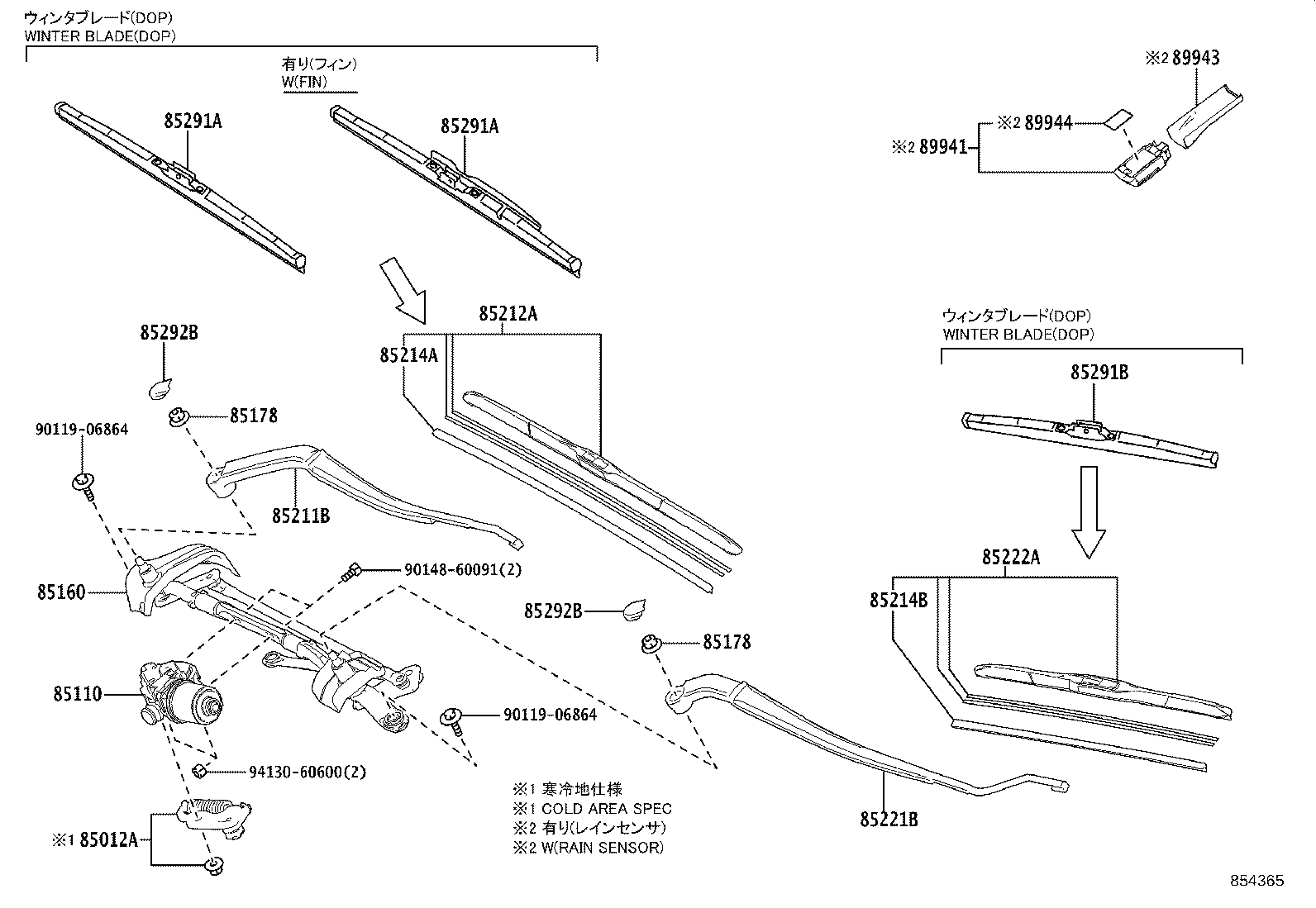

diagram 85213B 85213C
Part # Description Qty Price
85213B - RUBBER, WIPER BLADE, RH(FOR GLASS COAT)
85213-30280

AXUH8#,MXUA8#

 1
85213C - RUBBER, WIPER BLADE, LH(FOR GLASS COAT)
85213-28120

AXUH8#,MXUA8#

 1

(2006- )

Click highlighted areas on diagram

diagram 85012A 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291A 85291B 85292B 85292B 89941 89943 89944 9011906864 9011906864 9014860091 9413060600
Part # Description Qty Price
85012A - CRANK SUB-ASSY, FRONT WIPER
85012-50010

AXUH8#,MXUA8#

寒冷地仕様

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-42280

AXUH8#,MXUA8#

寒冷地仕様

 1
85110-48220

AXUH8#,MXUA8#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-42270

AXUH8#,MXUA8#

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

AXUH8#,MXUA8#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

AXUH8#,MXUA8#

 2
85211B - ARM, FRONT WIPER, RH
85211-42230

AXUH8#,MXUA8#

 1
85212A - BLADE, FR WIPER, RH
85212-42200

AXUH8#,MXUA8#

 1
85214A - RUBBER, WIPER, RH
85214-52110

AXUH8#,MXUA8#

 1
85214B - RUBBER, WIPER, LH
85214-28090

AXUH8#,MXUA8#

 1
85221B - ARM, FRONT WIPER, LH
85221-42230

AXUH8#,MXUA8#

 1
85222A - BLADE, FR WIPER, LH
85222-42190

AXUH8#,MXUA8#

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-47040

AXUH8#,MXUA8#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),無し(ﾌｨﾝ)

 1
85291-47050

AXUH8#,MXUA8#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-47040

AXUH8#,MXUA8#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),無し(ﾌｨﾝ)

 1
85291-47050

AXUH8#,MXUA8#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-28150

AXUH8#,MXUA8#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

AXUH8#,MXUA8#

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

AXUH8#,MXUA8#

 2
89941 - SENSOR, RAIN
89941-42020

AXUH8#,MXUA8#..G,Z

 1
89941-42020

AXUH8#,MXUA8#..S

ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾄﾞﾗｲﾌﾞﾚｺｰﾀﾞ

 1
89943 - COVER, RAIN SENSOR
89943-42040

AXUH8#,MXUA8#..S

ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾄﾞﾗｲﾌﾞﾚｺｰﾀﾞ

 1
89943-42040

AXUH8#,MXUA8#..G,Z

 1
89944 - TAPE, RAIN SENSOR
89944-42020

AXUH8#,MXUA8#..G,Z

 1
89944-42020

AXUH8#,MXUA8#..S

ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&ﾄﾞﾗｲﾌﾞﾚｺｰﾀﾞ

 1
Common parts
90119-06864
90148-60091
94130-60600
