MXUA80-ANXGB (2020)

Toyota Harrier

Production Jun 2020 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )

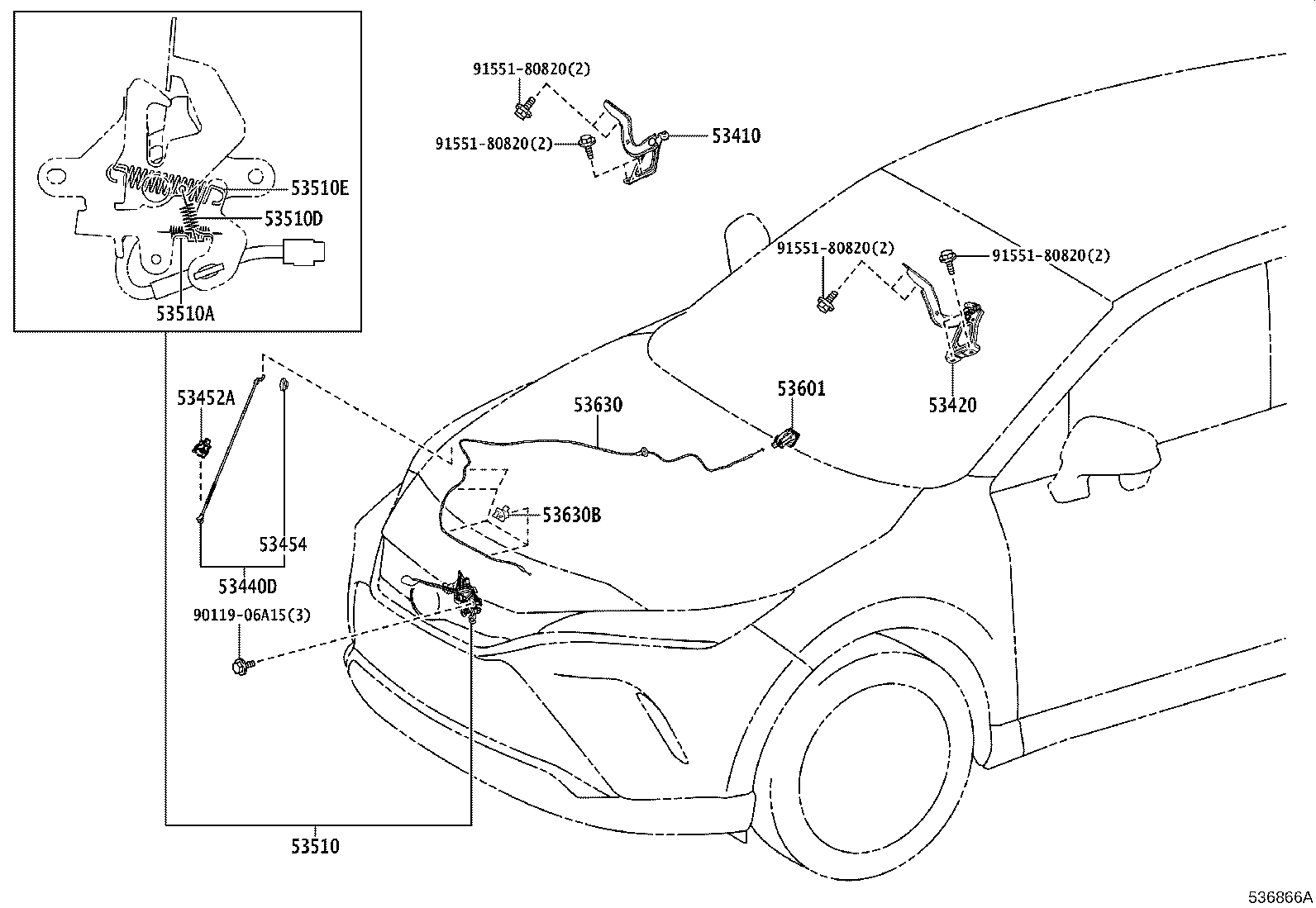

Click highlighted areas on diagram

diagram 53410 53420 53440D 53452A 53454 53510 53510A 53510D 53510E 53601 53630 53630B 9011906A15 9155180820 9155180820 9155180820 9155180820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-48180

AXUH8#,MXUA8#

 1
53410-48200

AXUH8#,MXUA8#

 1
53420 - HINGE ASSY, HOOD, LH
53420-48200

AXUH8#,MXUA8#

 1
53440D - SUPPORT ASSY, HOOD
53440-48050

AXUH8#,MXUA8#

 1
53452A - HOLDER, HOOD STAY
53452-12130

AXUH8#,MXUA8#

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-52010

AXUH8#,MXUA8#

 1
53510 - LOCK ASSY, HOOD
53510-48280

AXUH8#,MXUA8#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

AXUH8#,MXUA8#

線径=0.9,ｺｲﾙ巻数=21

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

AXUH8#,MXUA8#

線径=1.2,ｺｲﾙ巻数=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-16080

AXUH8#,MXUA8#

線径=1.6,ｺｲﾙ巻数=13

 1
90506-16077

AXUH8#,MXUA8#

線径=1.6,ｺｲﾙ巻数=12

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-30100C0

AXUH8#,MXUA8#..G,Z

BLACK,TRIM1#,2#,4#

 1
53601-30100C0

AXUH8#,MXUA8#..S

BLACK,TRIM2#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-48120

AXUH8#,MXUA8#

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

AXUH8#,MXUA8#

 4
Common parts
90119-06A15
91551-80820
