MXUA80-ANXGB (2020)
Toyota Harrier
Production
Jun 2020
-
Sep 9999
Engine
M20AFKS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2006- )

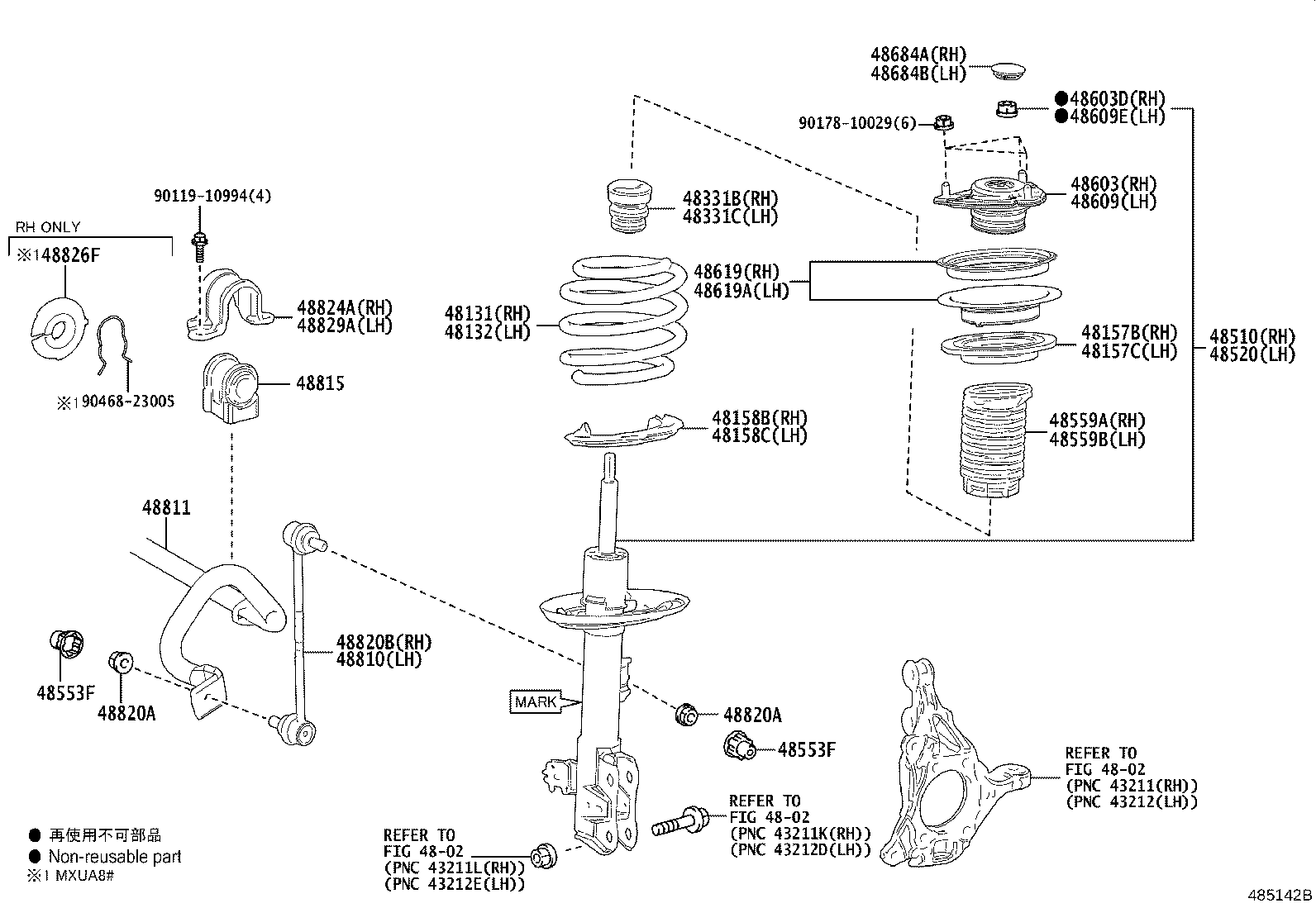

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-48860 |
MXUA80;MXUA85..S |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-48860 |
MXUA80;MXUA85..S |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-33090 |
AXUH8#,MXUA8# |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-33090 |
AXUH8#,MXUA8# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-33110 |
AXUH8#,MXUA8# |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-33110 |
AXUH8#,MXUA8# |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-42140 |
AXUH8#,MXUA8# |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-42140 |
AXUH8#,MXUA8# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80B41 |
MXUA80 ﾏｰｸ 48510−48610 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80699 |
MXUA80 ﾏｰｸ 48520−48610 |
1 | ||
| 48553F - CAP | ||||
| 48553-52030 |
AXUH8#,MXUA8# |
4 | ||
| 48553F - CAP | ||||
| 48553-52030 |
AXUH8#,MXUA8# |
4 | ||
| 48559A - COVER, FRONT SHOCK ABSORBER DUST, RH NO.1 | ||||
| 48559-42010 |
AXUH8#,MXUA8# |
1 | ||
| 48559B - COVER, FRONT SHOCK ABSORBER DUST, LH NO.1 | ||||
| 48559-42010 |
AXUH8#,MXUA8# |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-42070 |
AXUH8#,MXUA8# |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90177-14007 |
AXUH8#,MXUA8# |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-42070 |
AXUH8#,MXUA8# |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90177-14007 |
AXUH8#,MXUA8# |
1 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-42040 |
AXUH8#,MXUA8# |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-42040 |
AXUH8#,MXUA8# |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-33030 |
AXUH8#,MXUA8# |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-33030 |
AXUH8#,MXUA8# |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-42040 |
AXUH8#,MXUA8# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-42080 |
AXUH8#,MXUA8# |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-33150 |
AXUH8#,MXUA8# |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21241 |
AXUH8#,MXUA8# |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21241 |
AXUH8#,MXUA8# |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-42040 |
AXUH8#,MXUA8# |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-33040 |
AXUH8#,MXUA8# |
1 | ||
| 48826F - PROTECTOR, STABILIZER | ||||
| 48826-42010 |
MXUA8# |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-33040 |
AXUH8#,MXUA8# |
1 | ||
| Common parts | ||||
| 90119-10994 | ||||
| 90178-10029 | ||||
| 90468-23005 | ||||
| Linked diagrams | ||||
| 4802 | ||||
