MCU36W-AWAGK (2003)

Toyota Harrier

Production Feb 2003 - Jan 2006
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

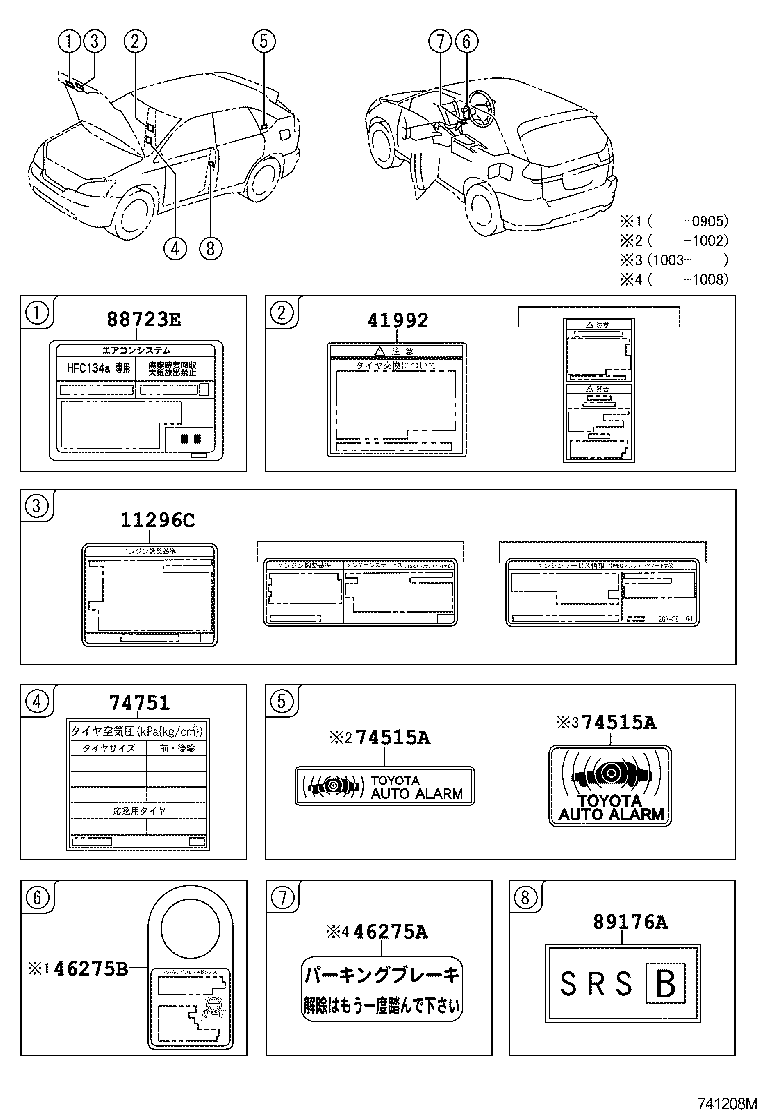

ILLUST NO. 1 OF 3(0302- )

Click highlighted areas on diagram

diagram 11296C 41992 46275A 46275B 74515A 74515A 74751 88723E 89176A
Part # Description Qty Price
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-20051

1MZFE..MCU3#

 1
41992 - LABEL, DIFFERENTIAL NOTICE
41992-33010

ACU35,MCU35,36

 1
46275A - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.1
46275-22010A0

ACU3#,MCU3#

WHITE,TRIM0#,1#

 1
46275-22010B0

ACU3#,MCU3#

GRAY,TRIM2#

 1
46275B - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.2
46275-47010

ACU3#,MCU3#

 1
74515A - PLATE, THEFT WARNING
74515-30020

ACU3#,MCU3#

 2
74515A - PLATE, THEFT WARNING
74515-30020

ACU3#,MCU3#

 2
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-48100

ACU3#,MCU3#

 1
88723E - LABEL, COOLER SERVICE CAUTION
88733-51010

ACU3#,MCU3#

 1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-51010

ACU3#,MCU3#

 1

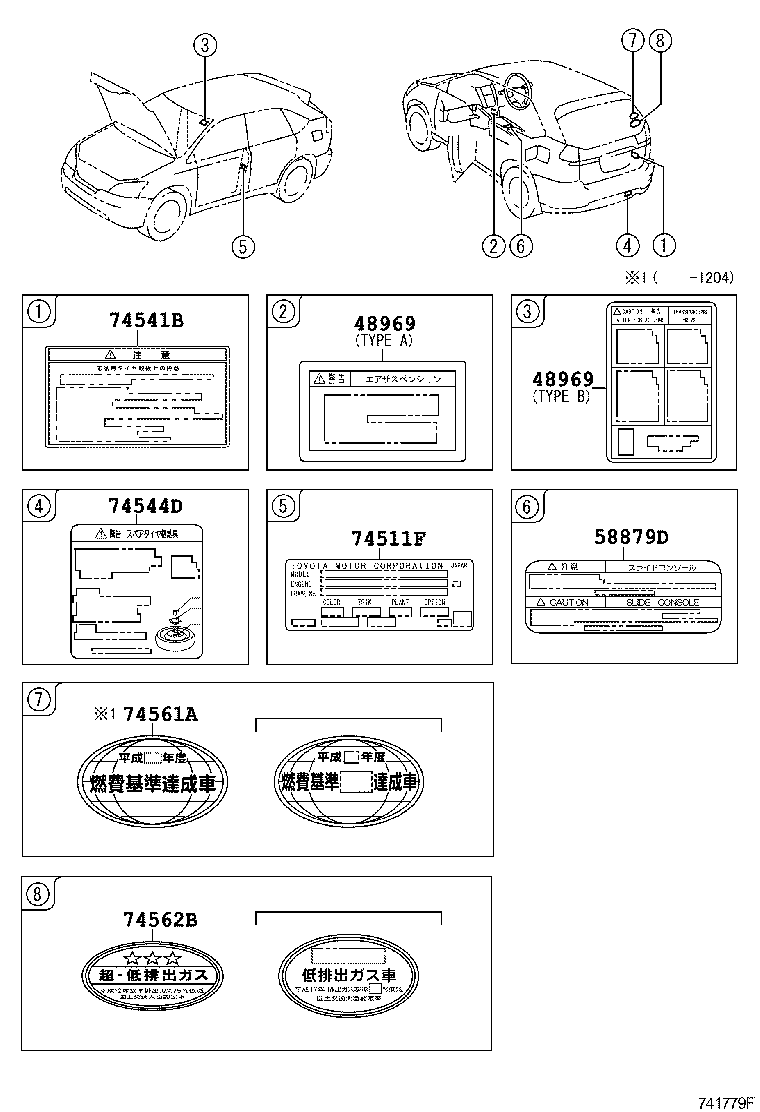

ILLUST NO. 2 OF 3(0302- )

Click highlighted areas on diagram

diagram 48969 48969 58879D 74511F 74541B 74544D 74561A 74562B
Part # Description Qty Price
48969 - LABEL, JACK UP CAUTION
48969-48040

MCU31,36

TYPE B:ｲﾗｽﾄ参照

 1
48969-48010

MCU31,36

TYPE A:ｲﾗｽﾄ参照

 1
48969 - LABEL, JACK UP CAUTION
48969-48040

MCU31,36

TYPE B:ｲﾗｽﾄ参照

 1
48969-48010

MCU31,36

TYPE A:ｲﾗｽﾄ参照

 1
58879D - LABEL, CONSOLE DOOR LOCK CAUTION
58879-48010

ACU3#,MCU3#

 1
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-2B300

ACU3#,MCU3#

*111

 1
74541B - PLATE, COMPACT SPARE TIRE CAUTION
42668-28060

ACU3#,MCU3#

 1
74544D - PLATE, TIRE CARRIER CAUTION
74544-48010

ACU3#,MCU3#

 1
74561A - LABEL, FUEL CONSUMPTION INFORMATION
74561-52010

ACU35,MCU36

平成22年度 燃費基準達成車

 1
74562B - LABEL, EMISSION INFORMATION
74562-12610

ACU3#,MCU3#

H17 排出ｶﾞｽ50%低減

 1
74562-40050

ACU3#,MCU3#

H12 排出ｶﾞｽ75%低減

 1

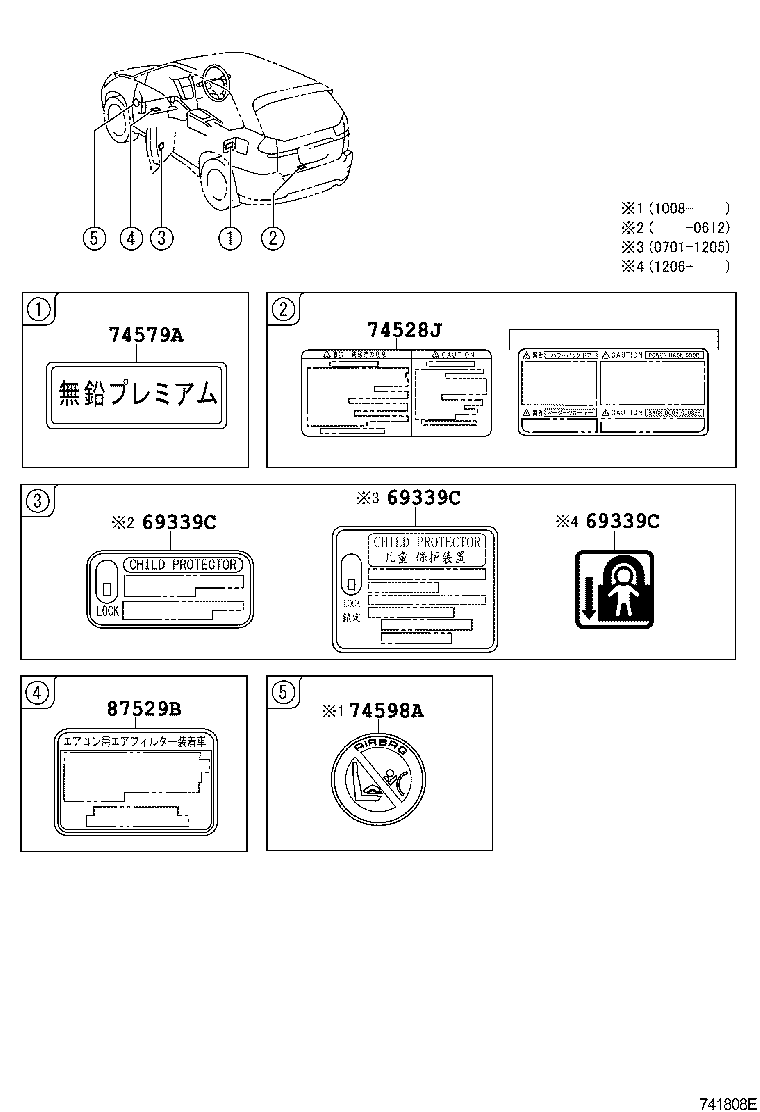

ILLUST NO. 3 OF 3(0302- )

Click highlighted areas on diagram

diagram 69339C 69339C 69339C 74528J 74579A 74598A 87529B
Part # Description Qty Price
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-12010

ACU3#,MCU3#

 2
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-12010

ACU3#,MCU3#

 2
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-12010

ACU3#,MCU3#

 2
74528J - LABEL, POWER BACK DOOR CAUTION
74528-48010

MCU31,36

 1
74528-48030

MCU31,36

 1
74579A - LABEL, UNLEADED FUEL INFORMATION
74579-24010

MCU3#

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50020

ACU3#,MCU3#

 1
