MCU35W-AWAGK (2003)

Toyota Harrier

Production Feb 2003 - Jan 2006
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

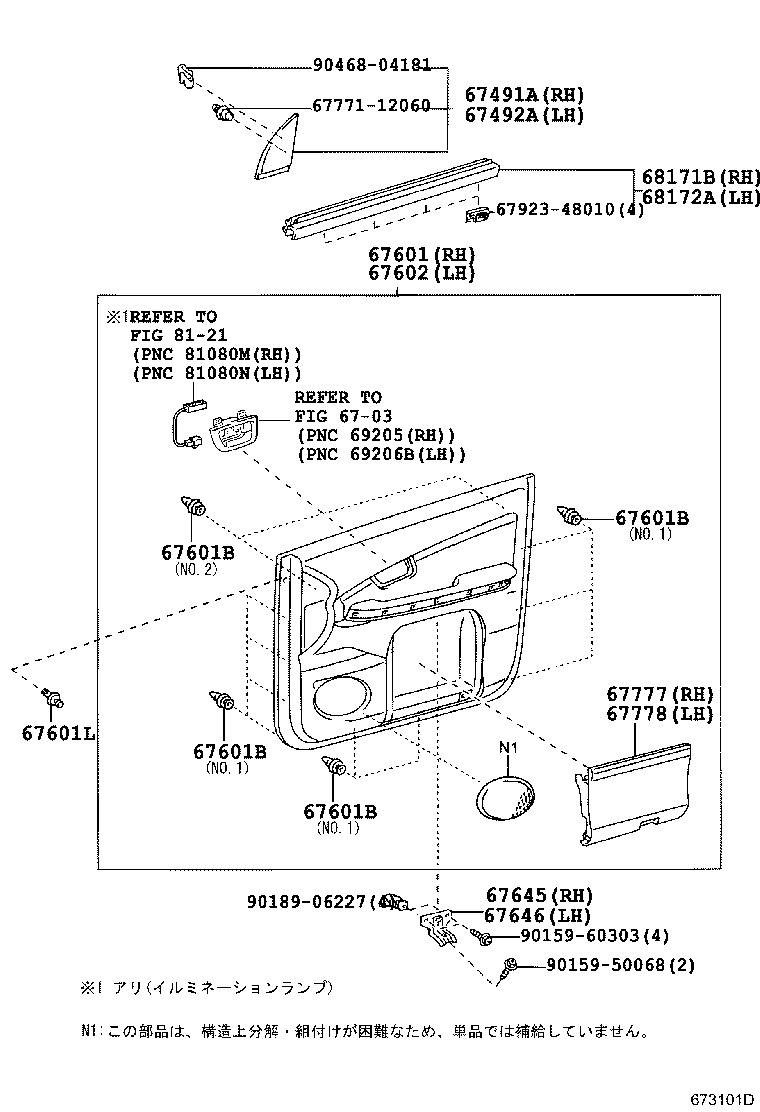

ILLUST NO. 2 OF 3(0302- )

Click highlighted areas on diagram

ﾄﾞｱﾄﾘﾑ

diagram 6703 67491A 67492A 67601 67601B 67601B 67601B 67601B 67601L 67602 67645 67646 6777112060 67777 67778 6792348010 68171B 68172A 8121 9015950068 9015960303 9018906227 9046804181
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-48030

ACU3#,MCU3#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-48030

ACU3#,MCU3#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-48370E0

ACU3#,MCU30,35

ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ 2*(T),IVORY,TRIM00

 1
67610-48370E0

ACU3#,MCU30,35

ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ *(T),IVORY,TRIM00

 1
67610-48180B1

ACU3#,MCU30,35

LT.GRAY,TRIM1#

 1
67610-48180C1

ACU3#,MCU30,35

BLACK,TRIM2#

 1
67610-48180A1

ACU3#,MCU30,35

IVORY,TRIM0#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-10162

ACU3#,MCU3#

NO.2

 4
90467-09206

ACU3#,MCU3#

NO.1

 18
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-10162

ACU3#,MCU3#

NO.2

 4
90467-09206

ACU3#,MCU3#

NO.1

 18
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-10162

ACU3#,MCU3#

NO.2

 4
90467-09206

ACU3#,MCU3#

NO.1

 18
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-10162

ACU3#,MCU3#

NO.2

 4
90467-09206

ACU3#,MCU3#

NO.1

 18
67601L - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07076C0

ACU3#,MCU3#

BLACK,TRIM1#,2#

 2
90467-07076E6

ACU3#,MCU3#

SANDAL WOOD,TRIM0#

 2
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-48180A1

ACU3#,MCU30,35

IVORY,TRIM0#

 1
67620-48300E0

ACU3#,MCU30,35

ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ *(T),IVORY,TRIM00

 1
67620-48180B1

ACU3#,MCU30,35

LT.GRAY,TRIM1#

 1
67620-48300E0

ACU3#,MCU30,35

ｱﾙｶﾝﾀｰﾗ ﾊﾞｰｼﾞｮﾝ 2*(T),IVORY,TRIM00

 1
67620-48180C1

ACU3#,MCU30,35

BLACK,TRIM2#

 1
67645 - BRACKET, FRONT DOOR ARMREST SET, RH
67645-48010

ACU3#,MCU3#

 1
67646 - BRACKET, FRONT DOOR ARMREST SET, LH
67645-48010

ACU3#,MCU3#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67770-48010B0

ACU3#,MCU3#

LT.GRAY,TRIM1#

 1
67770-48010A0

ACU3#,MCU3#

IVORY,TRIM0#

 1
67770-48010C0

ACU3#,MCU3#

BLACK,TRIM2#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67780-48010B0

ACU3#,MCU3#

LT.GRAY,TRIM1#

 1
67780-48010C0

ACU3#,MCU3#

BLACK,TRIM2#

 1
67780-48010A0

ACU3#,MCU3#

IVORY,TRIM0#

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-48030

ACU3#,MCU3#

 1
68171-48031

ACU3#,MCU3#

 1
68171-48032

ACU3#,MCU3#

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-48030

ACU3#,MCU3#

 1
68172-48031

ACU3#,MCU3#

 1
68172-48032

ACU3#,MCU3#

 1
Common parts
67771-12060
67923-48010
90159-50068
90159-60303
90189-06227
90468-04181
Linked diagrams
6703
8121

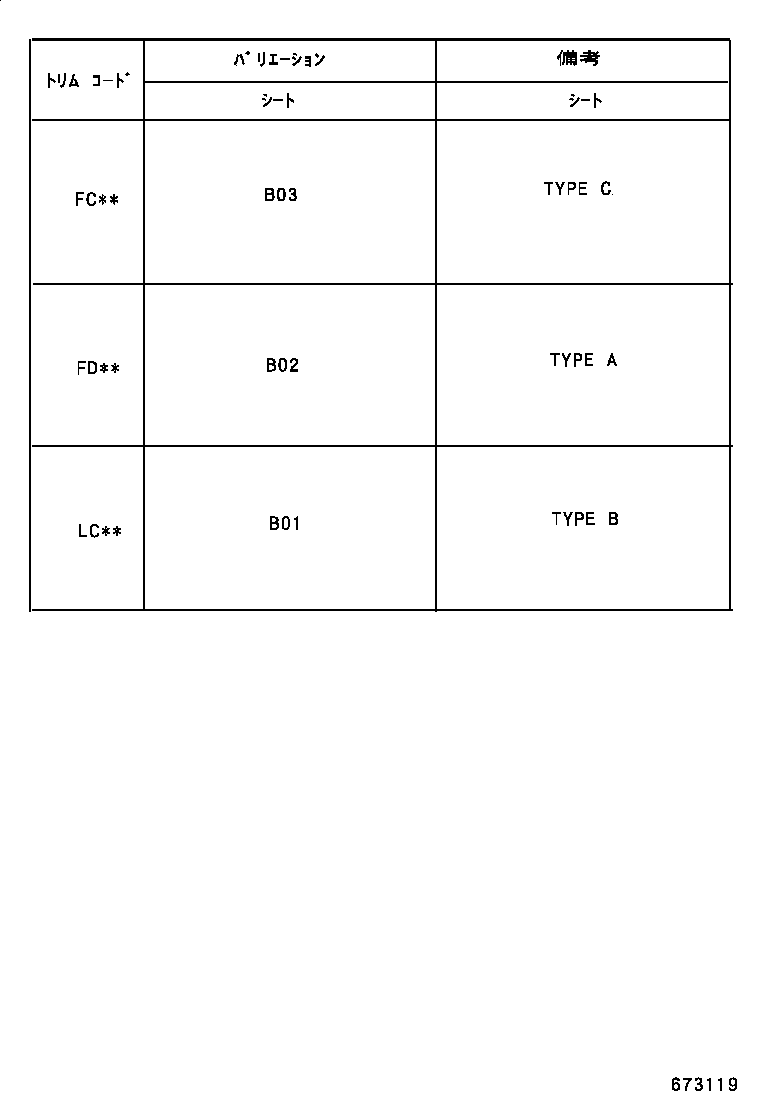

ILLUST NO. 3 OF 3(0302-0601)

Click highlighted areas on diagram

ﾄﾘﾑｺｰﾄﾞ

diagram
Part # Description Qty Price

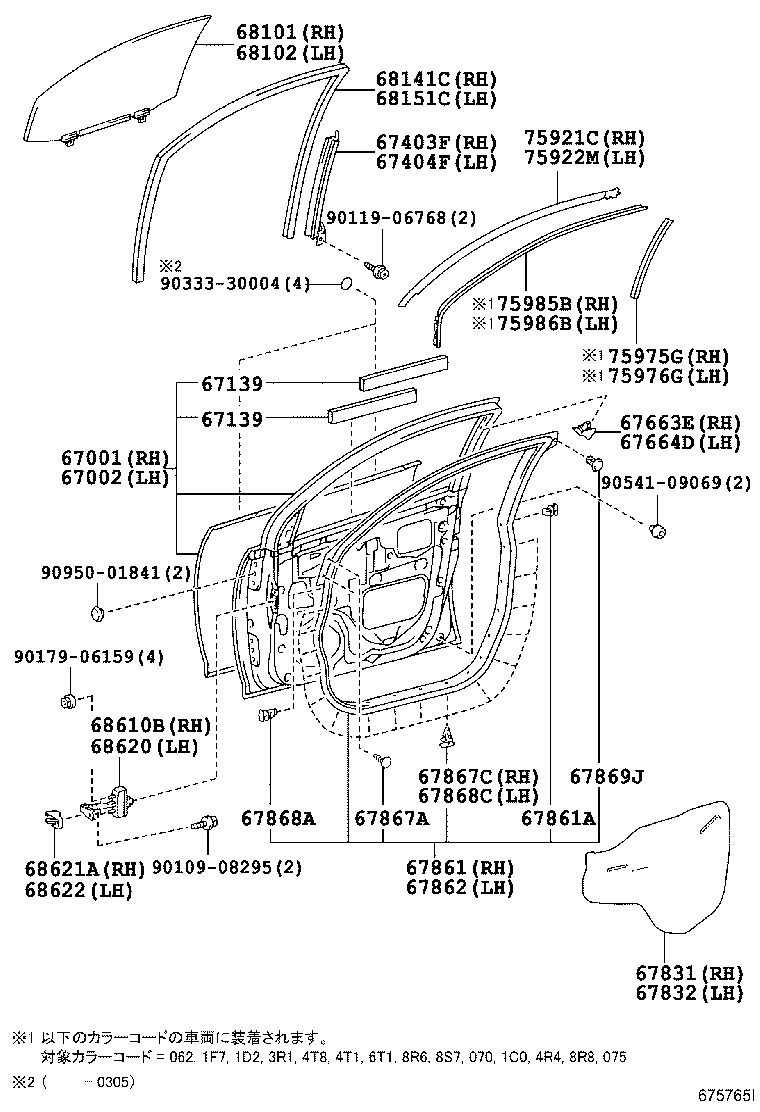

ILLUST NO. 1 OF 3(0302- )

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

diagram 67001 67002 67139 67139 67403F 67404F 67663E 67664D 67831 67832 67861 67861A 67862 67867A 67867C 67868A 67868C 67869J 68101 68102 68141C 68151C 68610B 68620 68621A 68622 75921C 75922M 75975G 75976G 75985B 75986B 9010908295 9011906768 9017906159 9033330004 9054109069 9095001841
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-48060

ACU3#,MCU3#

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-48060

ACU3#,MCU3#

 1
67139 - LINING, DOOR OUTSIDE PANEL REINFORCEMENT
67813-44010

ACU3#,MCU3#

 4
67139 - LINING, DOOR OUTSIDE PANEL REINFORCEMENT
67813-44010

ACU3#,MCU3#

 4
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-48040

ACU3#,MCU3#

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-48040

ACU3#,MCU3#

 1
67663E - GARNISH, DOOR FRAME, RH
67663-48010

ACU3#,MCU3#

 1
67664D - GARNISH, DOOR FRAME, LH
67664-48010

ACU3#,MCU3#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-48031

ACU3#,MCU3#

 1
67831-48030

ACU3#,MCU3#

 1
67831-48032

ACU3#,MCU3#

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-48030

ACU3#,MCU3#

 1
67832-48031

ACU3#,MCU3#

 1
67832-48032

ACU3#,MCU3#

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-48030

ACU3#,MCU3#

 1
67861-48040

ACU3#,MCU3#

寒冷地仕様

 1
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67867-48010

ACU3#,MCU3#

 2
90467-04034

ACU3#,MCU3#

 2
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-48030

ACU3#,MCU3#

 1
67862-48040

ACU3#,MCU3#

寒冷地仕様

 1
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
90467-0509722

ACU3#,MCU3#

BLACK,TRIM0#,1#,2#

 4
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

ACU3#,MCU3#

 16
67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)
67867-12150

ACU3#,MCU3#

 2
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

ACU3#,MCU3#

 16
67869J - CLIP, FRONT DOOR WEATHERSTRIP
67869-35010

ACU3#,MCU3#

 2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-48060

ACU3#,MCU3#

*UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-48060

ACU3#,MCU3#

*UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-48030

ACU3#,MCU3#

 1
68141-48031

ACU3#,MCU3#

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-48031

ACU3#,MCU3#

 1
68151-48030

ACU3#,MCU3#

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-48030

ACU3#,MCU3#

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-48020

ACU3#,MCU3#

 1
68621A - COVER, FRONT DOOR CHECK, RH
68621-53010

ACU3#,MCU3#

 1
68622 - COVER, FRONT DOOR CHECK, LH
68622-53010

ACU3#,MCU3#

 1
75921C - TAPE, BLACK OUT, NO.1 RH
75921-48020

ACU3#,MCU3#

 1
75922M - TAPE, BLACK OUT, NO.1 LH
75922-48020

ACU3#,MCU3#

 1
75975G - STRIPE, FRONT DOOR, NO.2 RH
75975-48010

ACU3#,MCU3#

 1
75976G - STRIPE, FRONT DOOR, NO.2 LH
75976-48010

ACU3#,MCU3#

 1
75985B - STRIPE, FRONT DOOR, NO.3 RH
75985-48020

ACU3#,MCU3#

 1
75986B - STRIPE, FRONT DOOR, NO.3 LH
75986-48020

ACU3#,MCU3#

 1
Common parts
90109-08295
90119-06768
90179-06159
90333-30004
90541-09069
90950-01841
