MCU35W-AWAGK (2003)

Toyota Harrier

Production Feb 2003 - Jan 2006
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0302- )

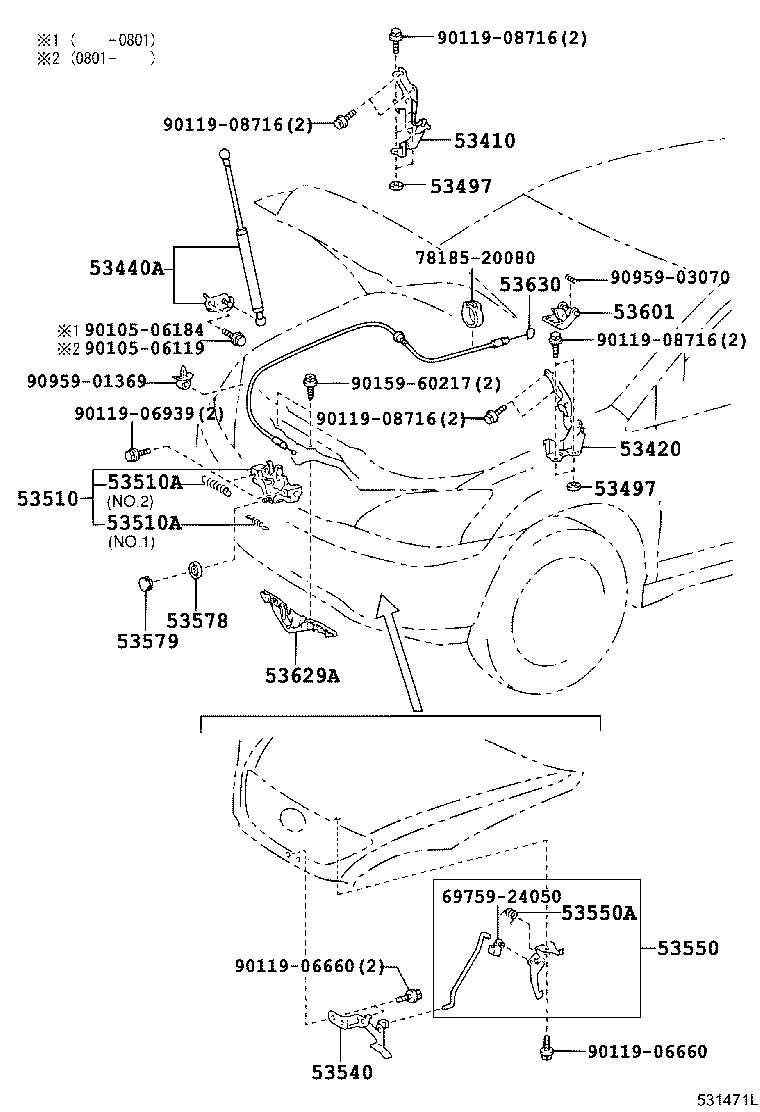

Click highlighted areas on diagram

diagram 53410 53420 53440A 53497 53497 53510 53510A 53510A 53540 53550 53550A 53578 53579 53601 53629A 53630 6975924050 7818520080 9010506119 9010506184 9011906660 9011906660 9011906939 9011908716 9011908716 9011908716 9011908716 9015960217 9095901369 9095903070
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-48030

ACU3#,MCU3#

 1
53420 - HINGE ASSY, HOOD, LH
53420-48030

ACU3#,MCU3#

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-49125

ACU3#,MCU3#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-50020

ACU3#,MCU3#

厚さ=1.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-50020

ACU3#,MCU3#

厚さ=1.0

 4
53510 - LOCK ASSY, HOOD
53510-48060

ACU3#,MCU3#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09050

ACU3#,MCU3#

線径=0.9,ｺｲﾙ巻数=20.5,NO.1

 1
90506-18068

ACU3#,MCU3#

線径=1.8,ｺｲﾙ巻数=18,NO.2

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09050

ACU3#,MCU3#

線径=0.9,ｺｲﾙ巻数=20.5,NO.1

 1
90506-18068

ACU3#,MCU3#

線径=1.8,ｺｲﾙ巻数=18,NO.2

 1
53540 - LEVER ASSY, AUXILIARY CATCH RELEASE
53540-48010

ACU3#,MCU3#

 1
53550 - HOOK ASSY, HOOD AUXILIARY CATCH
53550-48020

ACU3#,MCU3#

 1
53550A - SPRING, TORSION(FOR HOOD LOCK HOOK)
90508-18102

ACU3#,MCU3#

 1
53578 - NUT, HOOD LOCK
53578-50010

ACU3#,MCU3#

 1
53579 - CAP, HOOD LOCK NUT
53579-50010

ACU3#,MCU3#

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53611-12040B6

ACU3#,MCU3#

LT.GRAY,TRIM1#

 1
53611-12040A0

ACU3#,MCU3#

IVORY,TRIM0#

 1
53611-12040C0

ACU3#,MCU3#

BLACK,TRIM2#

 1
53629A - COVER, HOOD LOCK CONTROL CABLE
53629-48010

ACU3#,MCU3#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-48030

ACU3#,MCU3#

 1
Common parts
69759-24050
78185-20080
90105-06119
90105-06184
90119-06660
90119-06939
90119-08716
90159-60217
90959-01369
90959-03070
